Technical Parameter Table
| Parameter | Specification |
|---|---|

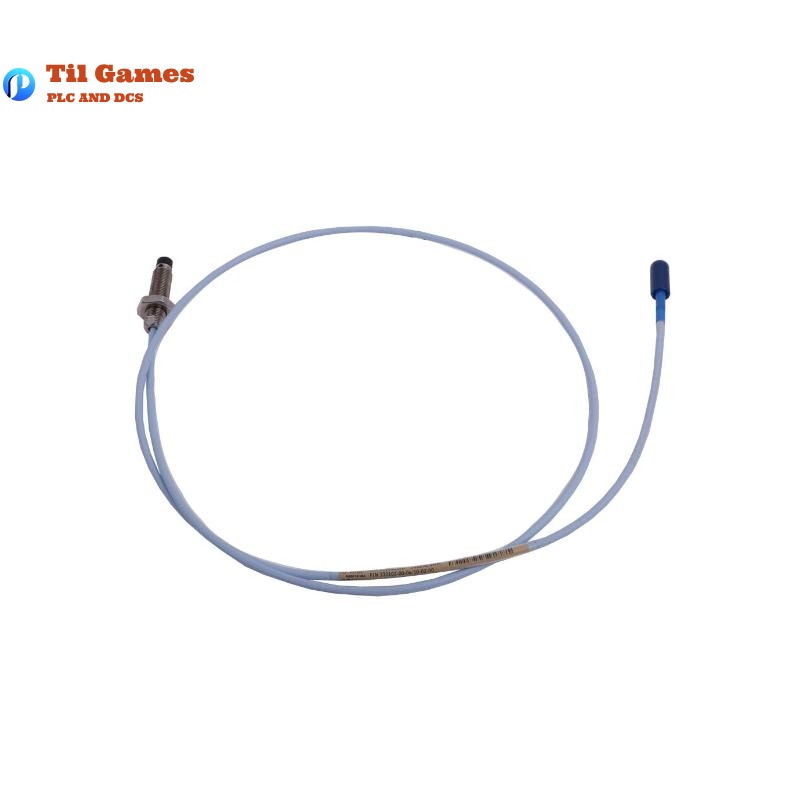

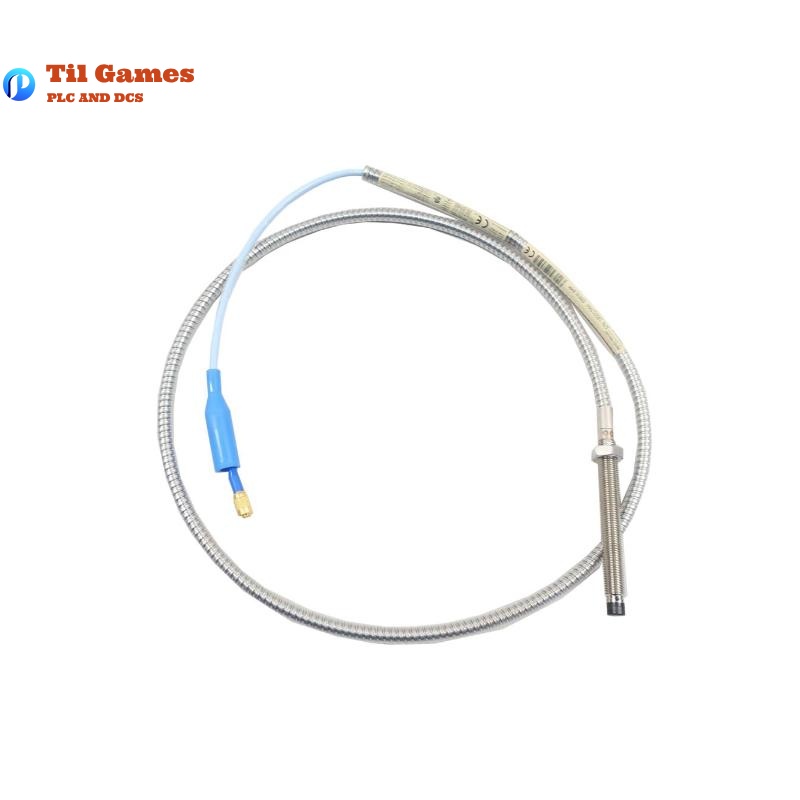

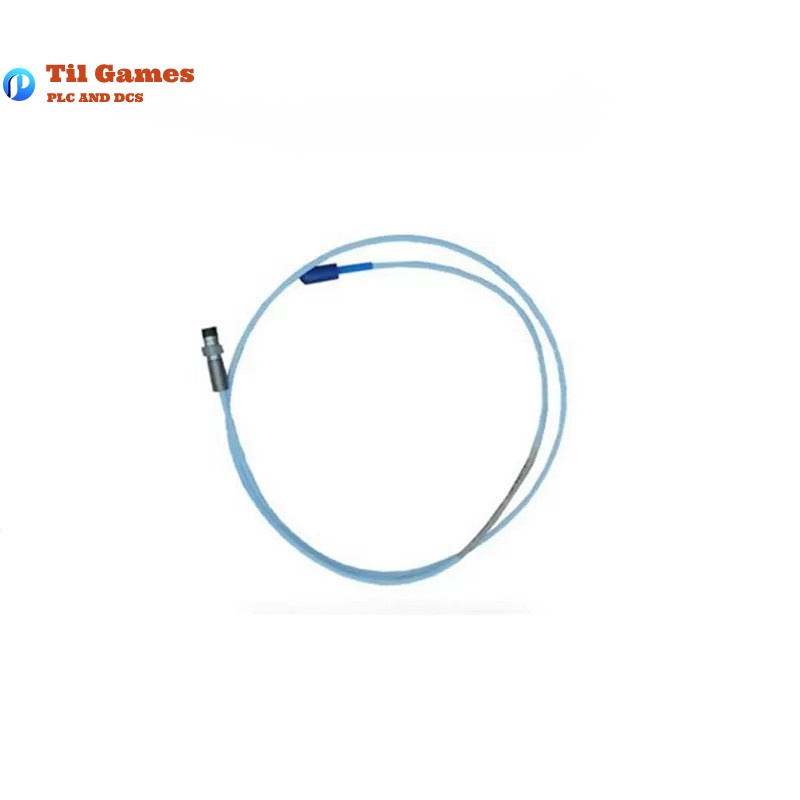

| Model | 330103-00-04-10-01-00 |
| Probe Tip Diameter | 8.0 mm |
| Mounting Thread | M10 x 1 |
| Material | AISI 303/304 stainless steel |
| Cable Type | FEP-insulated 75Ω triaxial cable |
| Total Length | 1.0 meter (3.3 feet) |
| Cable Tensile Strength | 330 N (probe body to lead), 270 N (lead to extension cable) |
| Recommended Mount Torque | 7.5 N·m (66 in·lbf) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C / +260°C (ETR version) |
| Recommended Gap Voltage | -9 VDC (~1.27 mm or 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Accuracy | ±0.025 mm (±1 mil) / ±0.038 mm (±1.5 mil) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5/1 m), ±6.5% (9 m) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Recommended Minimum Shaft Dia | 76.2 mm (3 in) |
| Supply Voltage | -17.5 to -26 VDC, max 12 mA current |
| Output Resistance | 50 Ω |
| Probe Weight | 0.323 kg (for 1.0 m length) |
| Total System Weight (Typical) | 0.7 kg (includes probe, cable, proximitor sensor) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does this probe support DIN rail mounting?
A1: Yes, the 3300 XL Proximitor Sensor can be mounted via DIN rail or panel mount options.
Q2: Is this model suitable for high-temperature environments?
A2: Yes, the ETR version supports up to 218°C for the probe and 260°C for the cable.
Q3: Does this probe require a specific proximitor sensor?
A3: Yes, it must be used with a 3300 XL Proximitor Sensor for proper function and accuracy.
Q4: What is the maximum field wiring distance?
A4: The maximum cable length between the Proximitor Sensor and monitor is 305 meters (1000 feet).
Q5: Is the probe resistant to corrosion?
A5: Yes, the connectors are gold-plated and corrosion-resistant for industrial use.
Q6: Is the system compliant with API 670?
A6: Yes, the standard 5-meter system complies with API 670 standards for mechanical setup and accuracy.
Q7: Are components interchangeable with older systems?
A7: Yes, XL and non-XL 3300-series 5 mm and 8 mm components are electrically and physically compatible.
Q8: What is the minimum recommended shaft diameter?
A8: Recommended minimum shaft diameter is 76.2 mm; do not use below 50.8 mm to avoid signal interference.
