Technical Specifications
| Item | Specification |
|---|---|

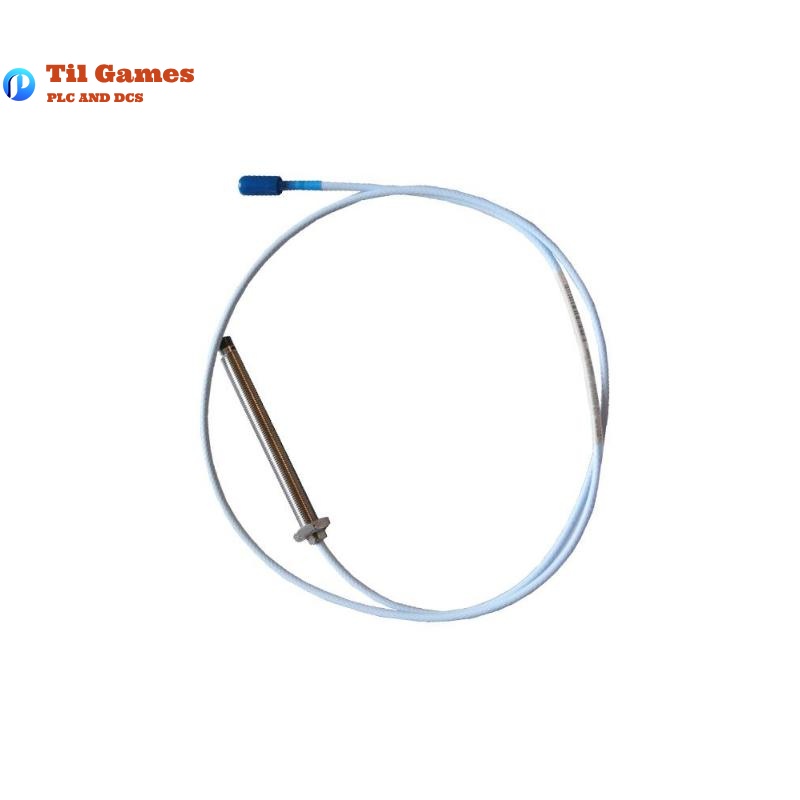

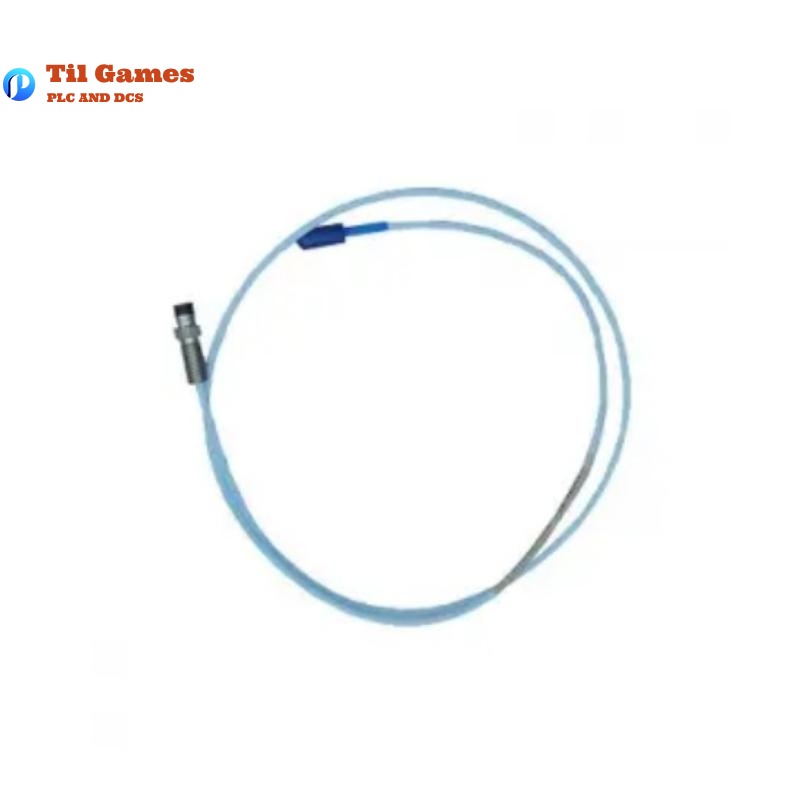

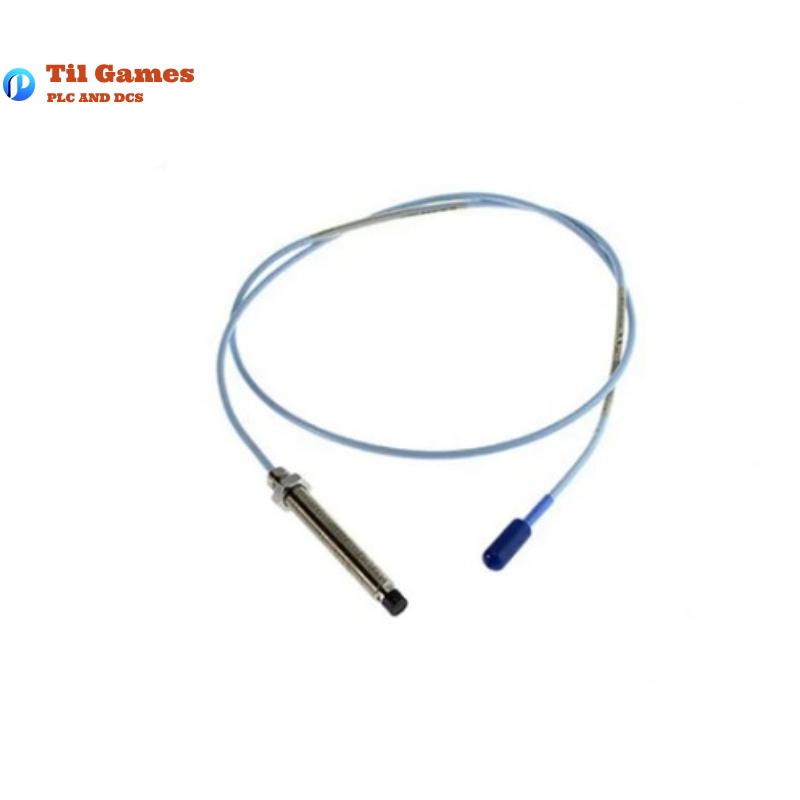

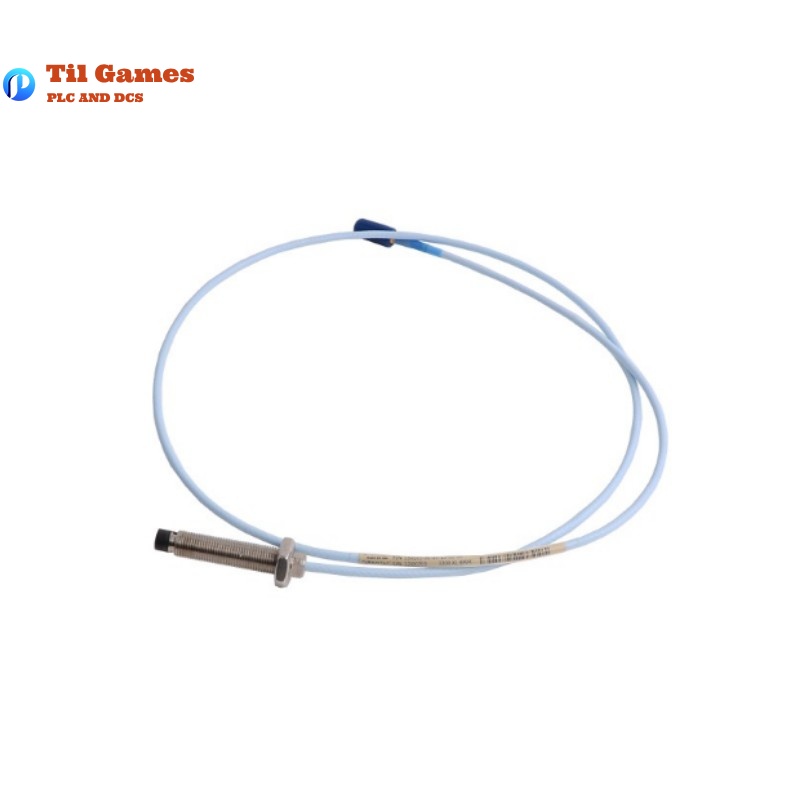

| Product Model | Bently Nevada 330103-00-04-10-02-00 |
| Probe Type | Non-contact eddy current proximity probe |
| Probe Diameter | 8 mm |
| Mounting Thread | M10x1 |
| Recommended Gap | 1.27 mm (50 mils), corresponds to -9 Vdc |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5%, standard 1-meter system |
| Deviation from Straight Line | ±0.025 mm (±1 mil) |
| Probe Materials | PPS tip, stainless steel case (AISI 303/304) |
| Total Length (Cable Included) | 1.0 meter (3.3 feet) |
| Total Weight | 0.323 kg (excluding extension cable) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C with ETR |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Installation Torque | Recommended: 11.2 N·m, Max: 33.9 N·m |
| Output Signal | Voltage output proportional to distance |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Target Material | Calibrated to AISI 4140 steel (other materials optional) |
| Cable Type | 75 Ω triaxial, FEP insulated (PFA for high-temp version) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Minimum Target Size | ≥15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What applications is this probe suitable for?
A1: It is mainly used in rotating machinery like turbines and compressors for shaft vibration and displacement monitoring.
Q2: Is the product compliant with API 670?
A2: Yes, when used with the 3300 XL Proximitor Sensor, it fully complies with API 670 standards.
Q3: Is component interchangeability supported?
A3: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q4: Can it be used in high-temperature environments?
A4: Yes, with optional ETR probe and cable, it supports up to 260°C operation.
Q5: Are there specific installation requirements?
A5: Yes, recommended mounting torque is 11.2 N·m; do not exceed specified thread engagement.
Q6: Are special tools required for connection?
A6: No, the ClickLoc connectors are finger-tightened and provide a locking click.
Q7: How long can the cable be extended?
A7: The maximum total system length supported is 9 meters (including probe cable).
Q8: How is environmental protection ensured?
A8: It includes corrosion-resistant gold-plated connectors; connector protectors are recommended.
