Technical Specifications
| Parameter | Specification |
|---|---|

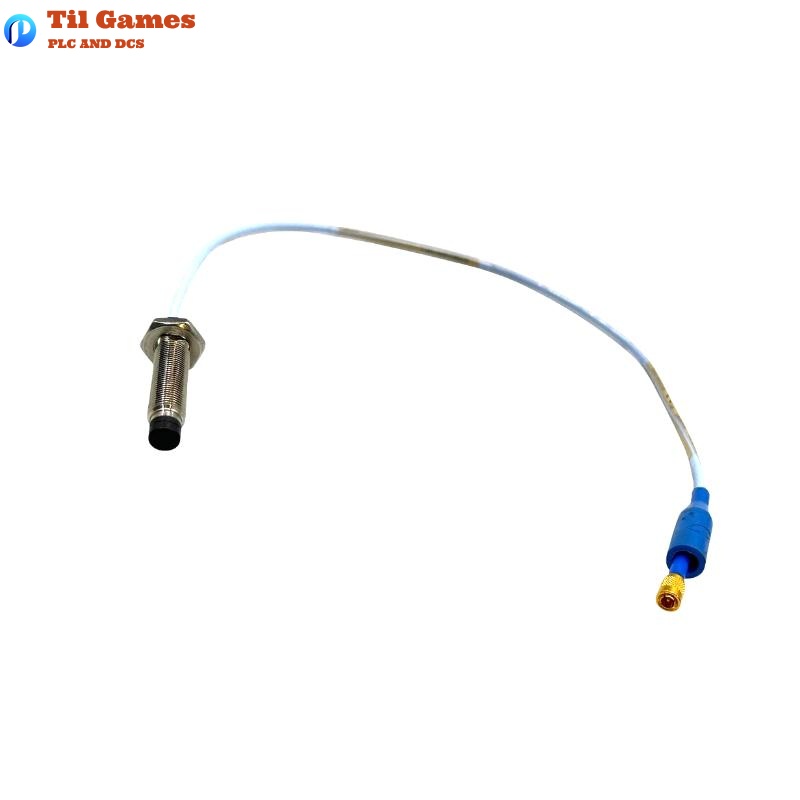

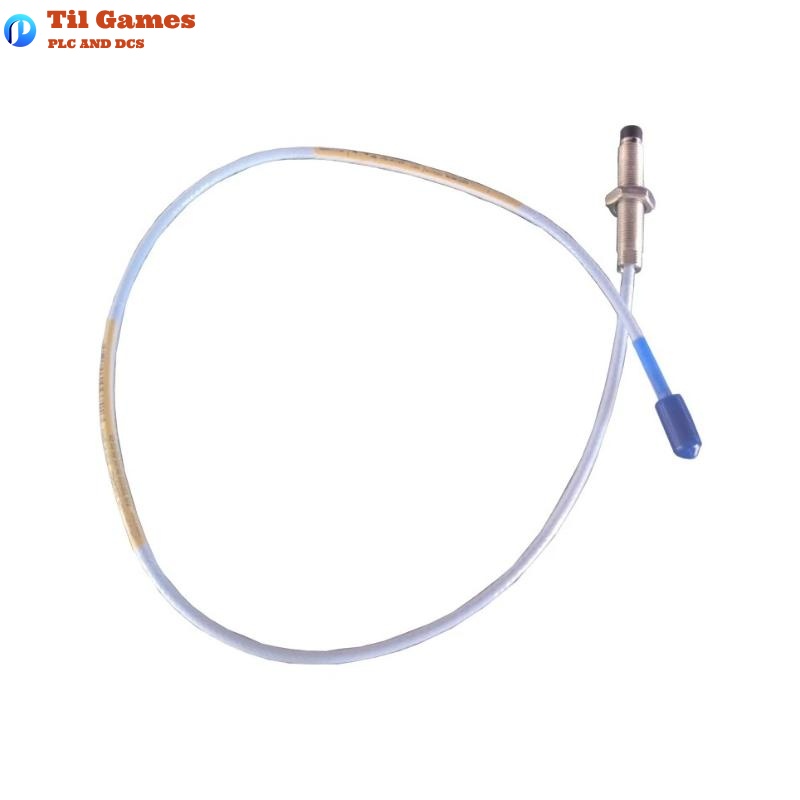

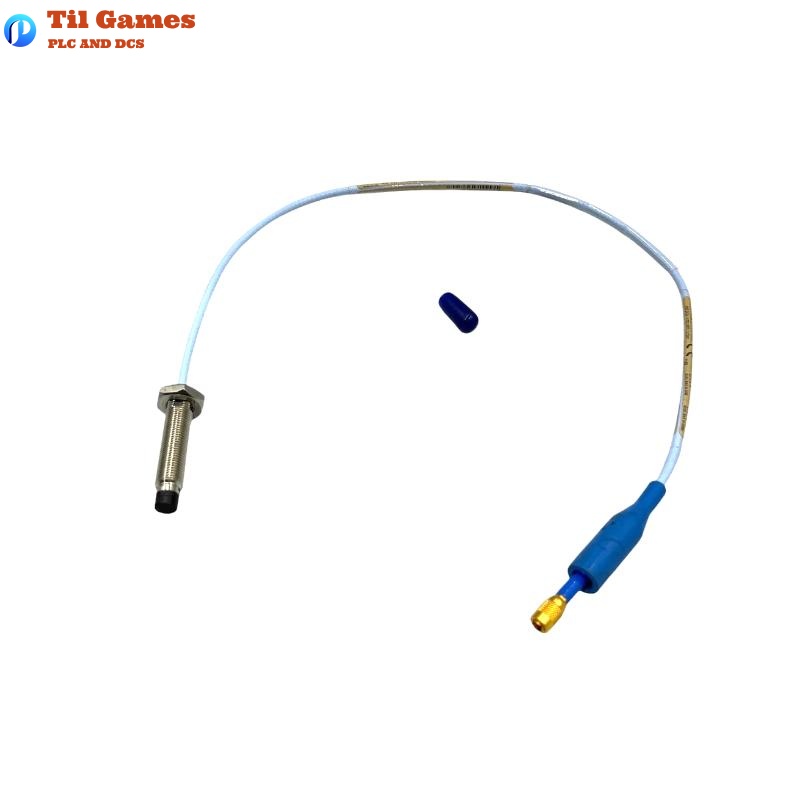

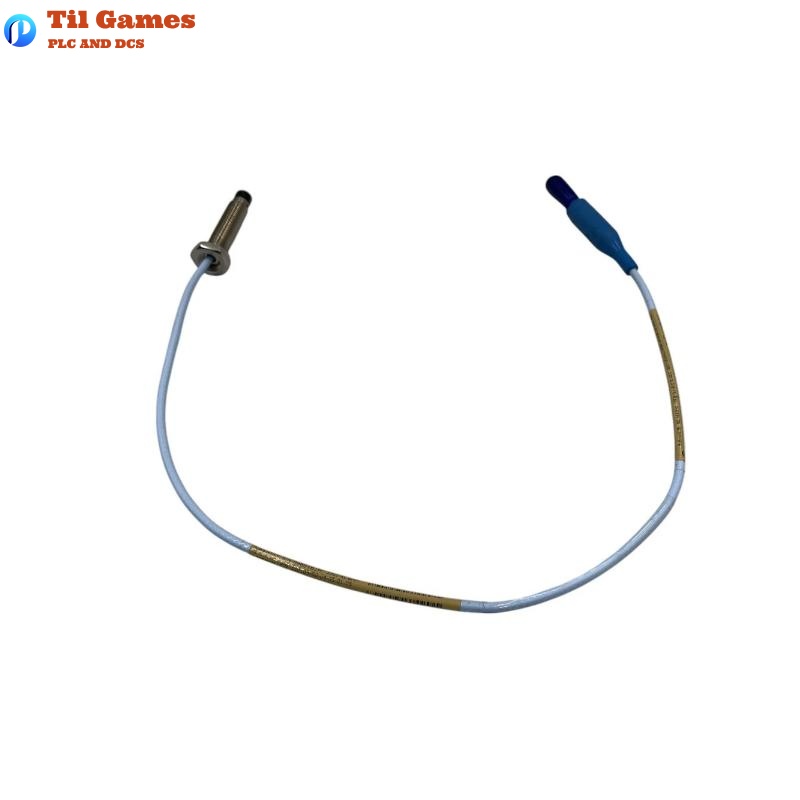

| Product Model | 330103-00-04-10-02-CN |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Type | M10 x 1 |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc, with protector |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C (Standard) / up to +218°C (ETR probe tip) |
| Storage Temperature | -52°C to +177°C |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), nominal -9 Vdc |
| ISF (Scale Factor) | 7.87 V/mm (200 mV/mil) ±5% (1 m system) |
| DSL (Linearity Deviation) | ±0.025 mm (±1 mil) max (1 m system) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB with up to 305 m field wiring |
| Pressure Seal | Viton® O-ring |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Minimum Shaft Diameter | Recommended ≥ 76.2 mm (3 in) |
| Relative Humidity Impact | <3% change in ASF at 93% RH for 56 days |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the recommended installation gap for the 330103-00-04-10-02-CN probe?
A1: The recommended gap is approximately 1.27 mm (50 mils), corresponding to -9 Vdc.
Q2: Can the 330103 probe be used in high-temperature environments?
A2: Yes, the ETR version supports up to +218°C for the probe tip and up to +260°C for the cable.
Q3: Is this probe compliant with API 670 standards?
A3: Yes, the 3300 XL 8 mm system complies with API 670 standards for mechanical and performance specifications.
Q4: What is the total weight of the 1-meter probe system?
A4: The total weight is approximately 0.323 kg.
Q5: Are the connectors tool-free?
A5: Yes, ClickLoc connectors are finger-tight with a locking click; no tools are needed.
Q6: Is the probe compatible with older 3300 series systems?
A6: Yes, it is backward compatible and interchangeable with 3300 5 mm and 8 mm systems.
Q7: What is the linear measurement range of this probe?
A7: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q8: What material is used for the probe tip and case?
A8: The tip is made of PPS, and the case is stainless steel (AISI 303/304).
