Technical Specifications
| Parameter | Value |
|---|---|

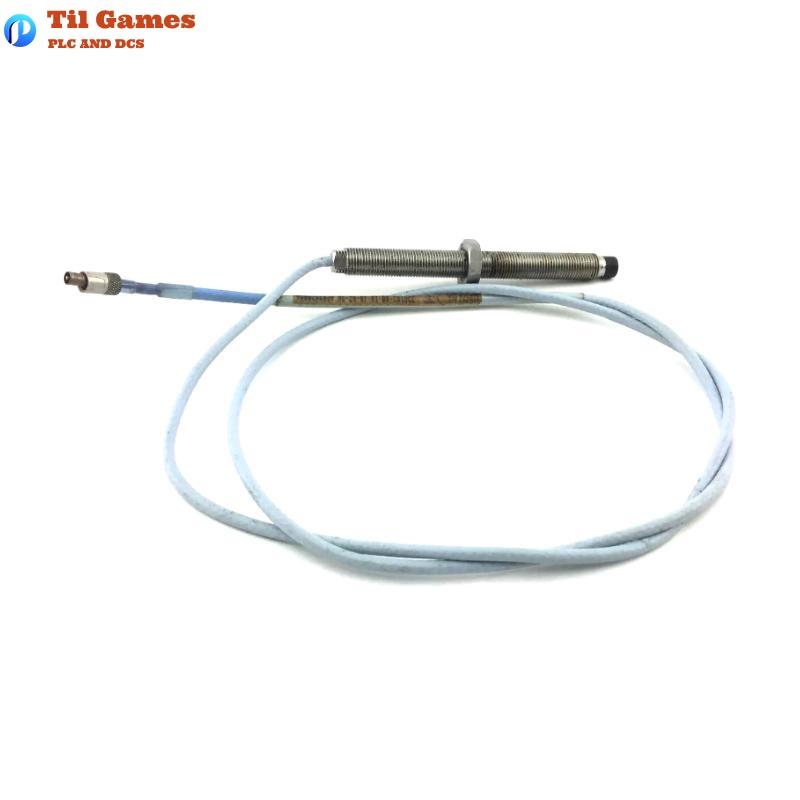

| Model | 330103-00-04-50-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Probe Housing Material | Stainless Steel AISI 303 or 304 |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Total Length | 5.0 meters |
| Weight | 1.615 kg |
| Probe Cable Type | 75 Ω triaxial cable, FEP insulated |
| Min. Cable Bend Radius | 25.4 mm |
| Tensile Strength | Max 330 N (probe case to lead) |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR tip) |
| Storage Temperature (Probe) | -52°C to +177°C |
| Linear Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Minimum Target Size | 15.2 mm diameter flat surface |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Probe Connector Type | Gold-plated ClickLoc connector (tool-free) |
| Environmental Protection | Connector protector recommended for harsh conditions |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of machinery is this probe suitable for?
A1: It is primarily used for vibration and position monitoring of fluid-film bearing machines, and also for Keyphasor and speed measurements.
Q2: What is the operating temperature range for this model?
A2: Standard: -52°C to +177°C; ETR version: up to +218°C for the probe tip and +260°C for the cable.
Q3: Does this probe require a specific extension cable?
A3: Yes, the 5-meter probe should be used with a 5-meter Proximitor sensor system to ensure specified linear range and accuracy.
Q4: Is this model compliant with API 670 standards?
A4: Yes, the 5-meter system fully meets API 670 requirements for mechanical design, linearity, accuracy, and thermal stability.
Q5: Is the probe resistant to electromagnetic interference?
A5: Yes, the system meets CE mark immunity requirements and performs well in RFI/EMI-heavy environments.
Q6: What is the minimum bend radius for the cable?
A6: The recommended minimum bend radius is 25.4 mm (1 inch) to prevent signal degradation.
Q7: Can this model be used with older 3300-series components?
A7: Yes, it is electrically and mechanically compatible, but overall system performance will be limited by the older components.
Q8: Are connector protectors necessary?
A8: Strongly recommended for improved environmental sealing, especially in oil-contaminated or humid conditions.
