Technical Specifications (330103-00-05-05-02-00)
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-05-05-02-00 |

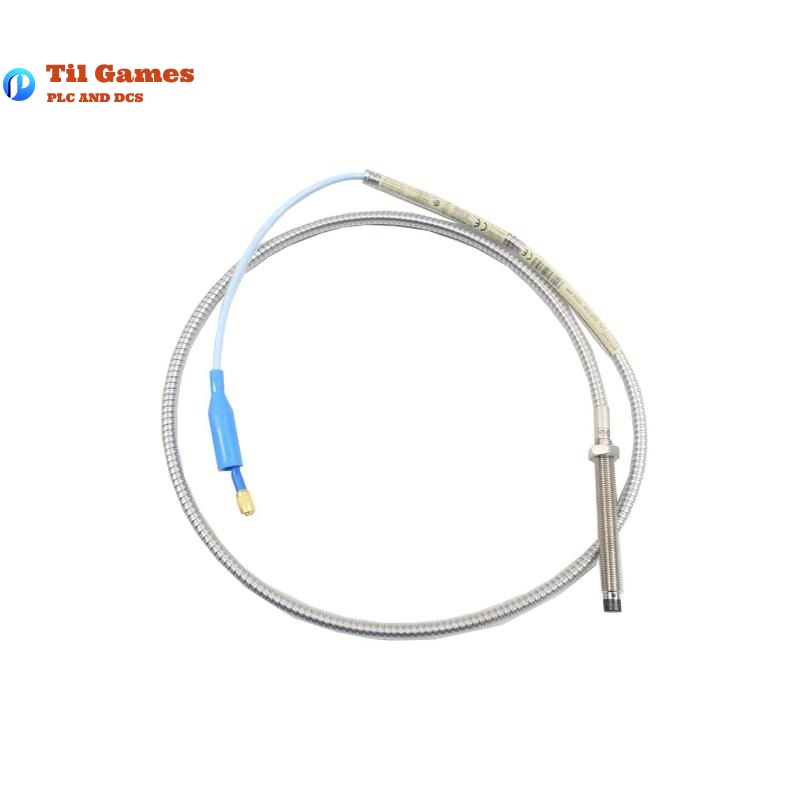

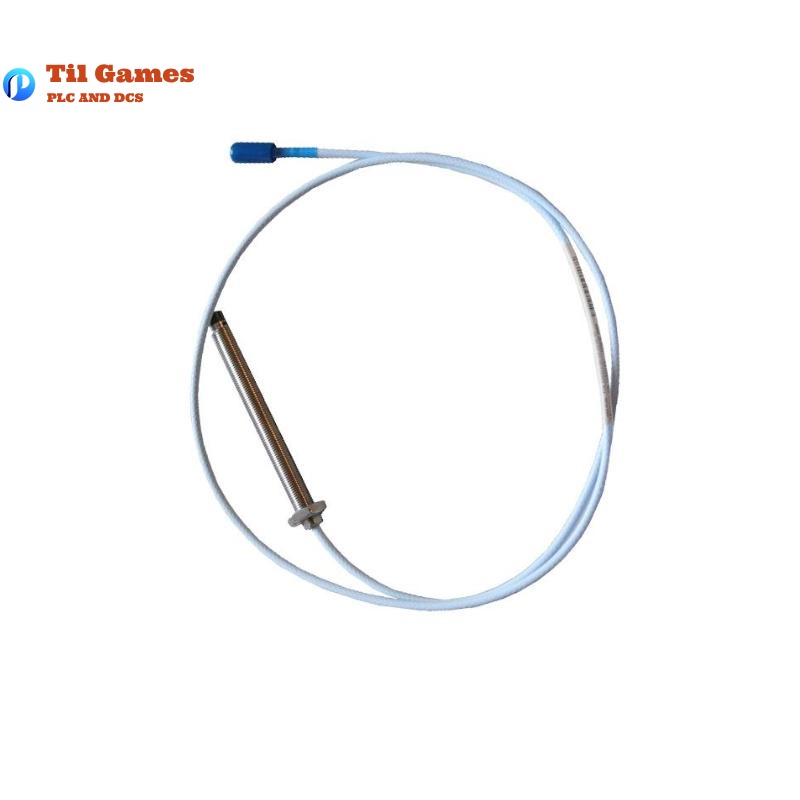

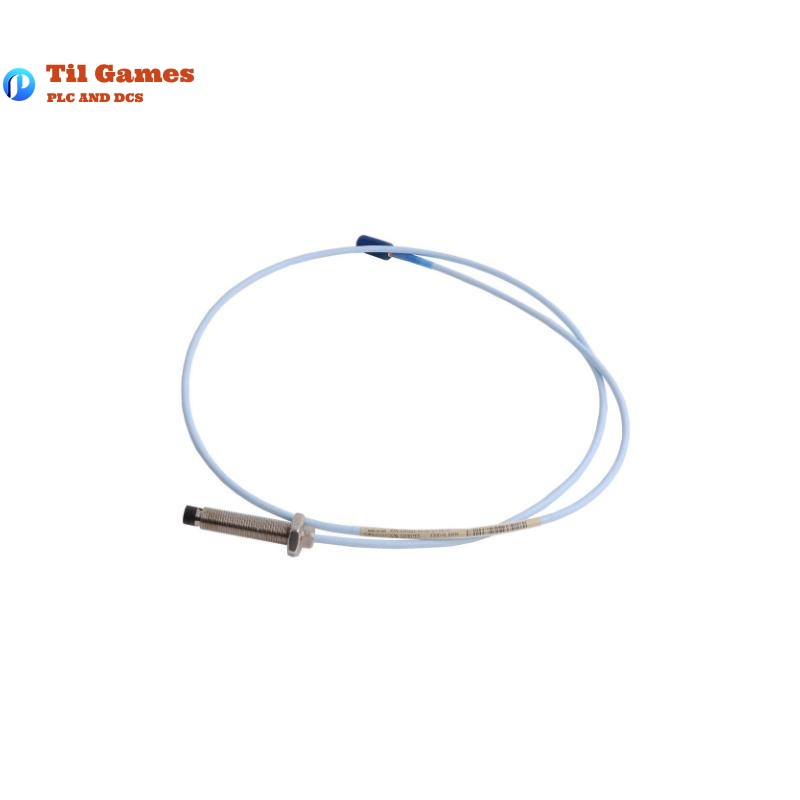

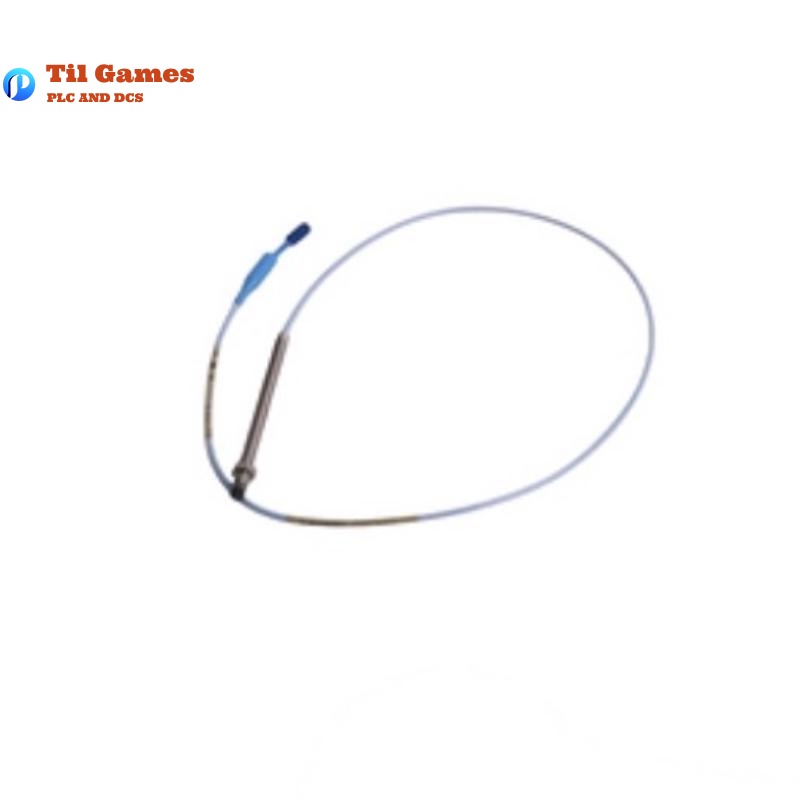

| Product Name | 3300 XL 8 mm Proximity Probe |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Total Length | 0.5 meter |
| Weight | 0.161 kg |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Thread Type | M10 x 1 (metric thread) |
| Probe Diameter | 8 mm (0.31 in) |
| Temperature Range (Probe) | -52°C to +177°C standard / up to +218°C with ETR option |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Probe Cable Pull Strength | 330 N (75 lbf) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Sensitivity (ISF) | 7.87 V/mm (200 mV/mil) ±5% (for 5 m system) |
| Accuracy (DSL) | ±0.025 mm (±1 mil) typical |
| Pressure Seal O-ring | Viton® O-ring |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Certifications | FCC, RoHS, CSA, ATEX, IECEx, SIL2/SIL3 |
| Environmental Rating | Suitable for high humidity, high EMI environments |
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the total length and weight of this probe model?
A1: The total length is 0.5 meter and the weight is 0.161 kg.
Q2: What is the thread type used in this model?
A2: This model uses a metric thread: M10 x 1.
Q3: What is the linear measurement range supported by this probe?
A3: It supports a linear range from 0.25 mm to 2.3 mm (10 to 90 mils).
Q4: Can this probe be used in high-temperature environments?
A4: Yes, standard up to 177°C, or up to 218°C with the ETR version.
Q5: What is the electrical sensitivity or scale factor of the system?
A5: The incremental scale factor (ISF) is 7.87 V/mm (200 mV/mil) ±5%.
Q6: Is this model compliant with API 670 standard?
A6: Yes, the 3300 XL 8 mm system is compliant with API 670 mechanical and electrical specifications.
Q7: Does the probe support reverse mount or armored cable?
A7: This specific model is forward-mount with standard cable and protector; reverse mount and armored options are available in other variants.
Q8: Is this probe interchangeable with other Bently Nevada 5 mm or non-XL models?
A8: Yes, it is electrically and mechanically interchangeable with non-XL 5 mm and 8 mm systems.
