Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330103-00-05-05-02-CN |

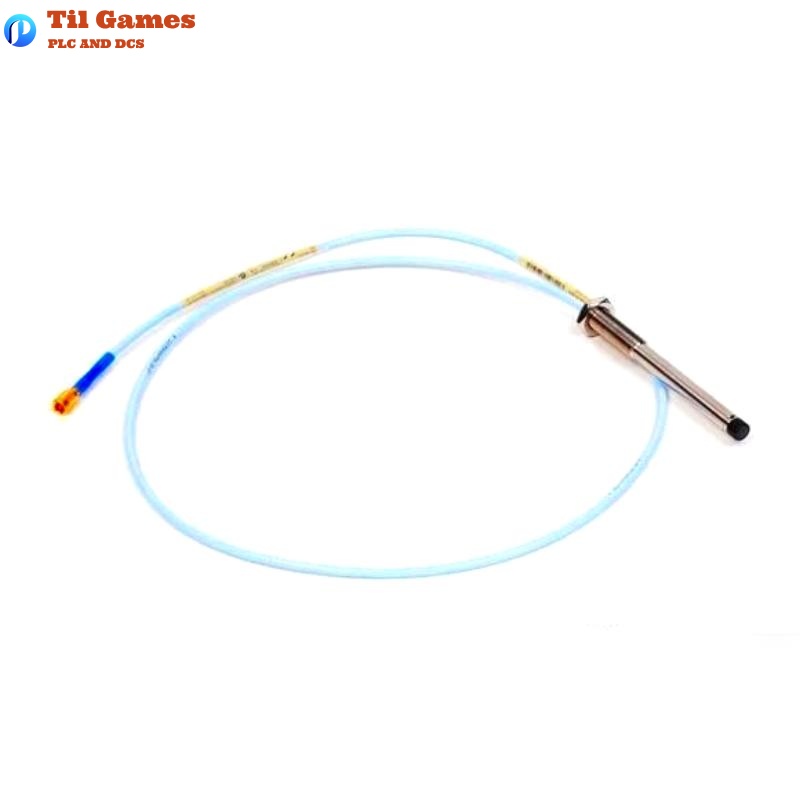

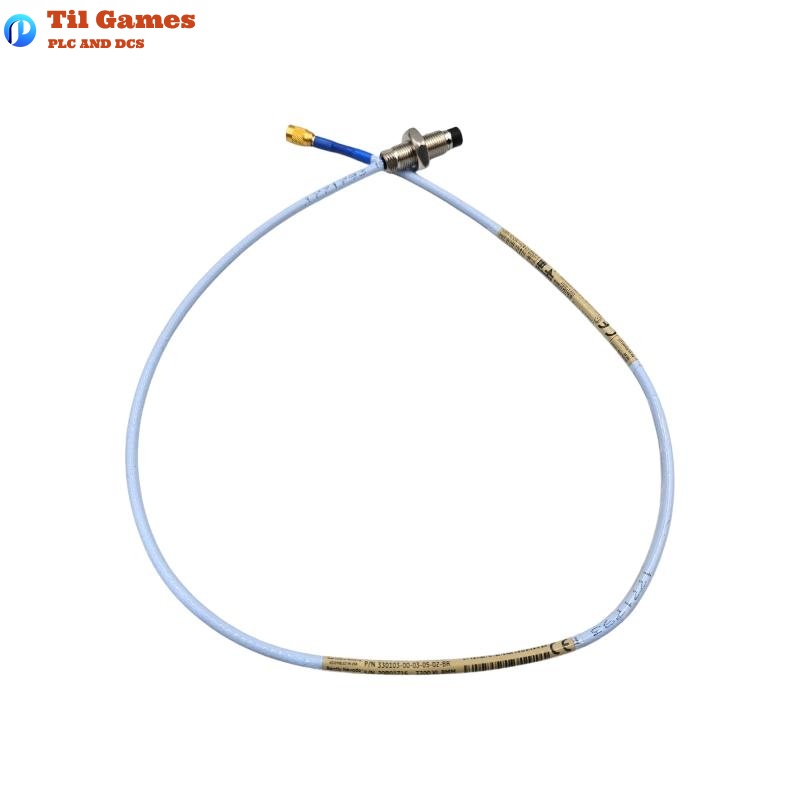

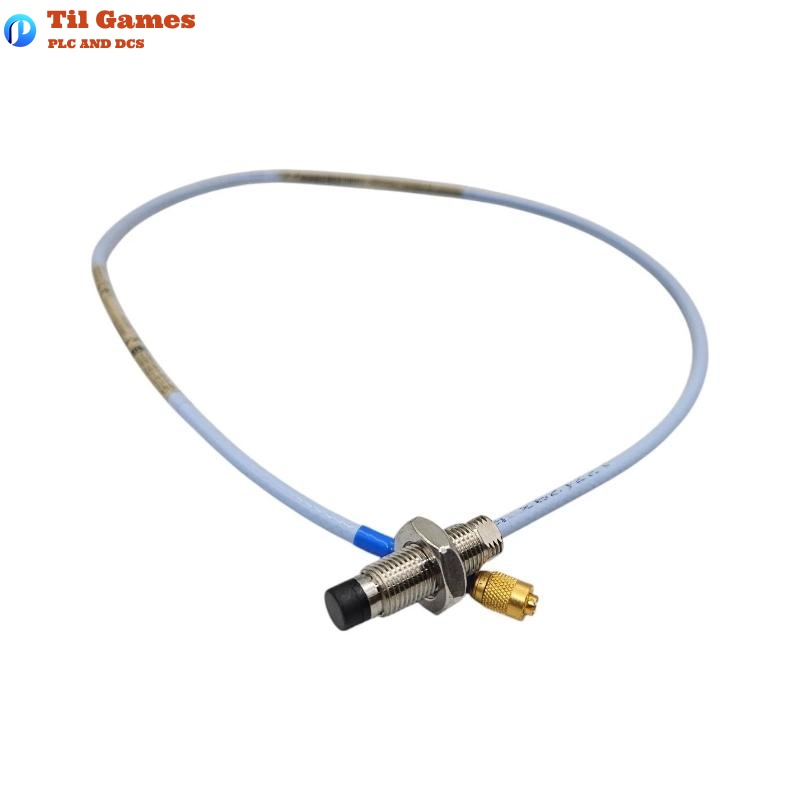

| Probe Type | 3300 XL 8 mm Proximity Probe, M10x1 thread, without armor |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel AISI 303 or 304 |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector | Miniature coaxial ClickLoc |
| Probe Length | 0.5 meter |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap Setting | Approx. 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (Standard system, 0.5 m) |
| Operating Temperature Range | –52°C to +177°C (Standard), up to +218°C for ETR version |
| Pressure Rating | Sealed with Viton O-ring, not pressure tested at factory |
| Relative Humidity Resistance | Less than 3% ASF change at 93% RH for 56 days |
| Minimum Target Diameter | 15.2 mm (0.6 in), recommended shaft ≥76.2 mm (3 in) |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Output Resistance | 50 Ω |
| Power Supply Requirements | –17.5 Vdc to –26 Vdc, 12 mA max |
| Weight (Total) | 0.161 kg |
| Dimensions (Total Length) | 0.5 meter |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of connection does the 330103 probe use?
A1: It uses a miniature coaxial ClickLoc connector, which clicks when fully tightened and requires no tools.
Q2: What is the probe’s linear measuring range?
A2: The linear range is 2 mm, starting from 0.25 mm to 2.3 mm from the target surface.
Q3: Is the 330103 probe suitable for high-temperature environments?
A3: The standard version supports up to 177°C, while the ETR version supports up to 218°C (probe tip) and 260°C (cable).
Q4: Can this probe be used with older Bently Nevada systems?
A4: Yes, it’s physically and electrically compatible with non-XL 3300 series 5 mm and 8 mm systems.
Q5: What is the recommended shaft diameter for installation?
A5: While the minimum is 50.8 mm, 76.2 mm or larger is recommended for reduced scale factor variation.
Q6: What sealing method does the probe use?
A6: It uses a Viton O-ring for differential pressure sealing but is not factory pressure tested.
Q7: What is the minimum bend radius for the probe cable?
A7: The minimum cable bend radius is 25.4 mm (1.0 inch).
Q8: Does the product require calibration for different materials?
A8: Yes, default calibration is for AISI 4140 steel. Calibration for other materials is available on request.
