Technical Specifications
| Parameter | Specification |
|---|---|

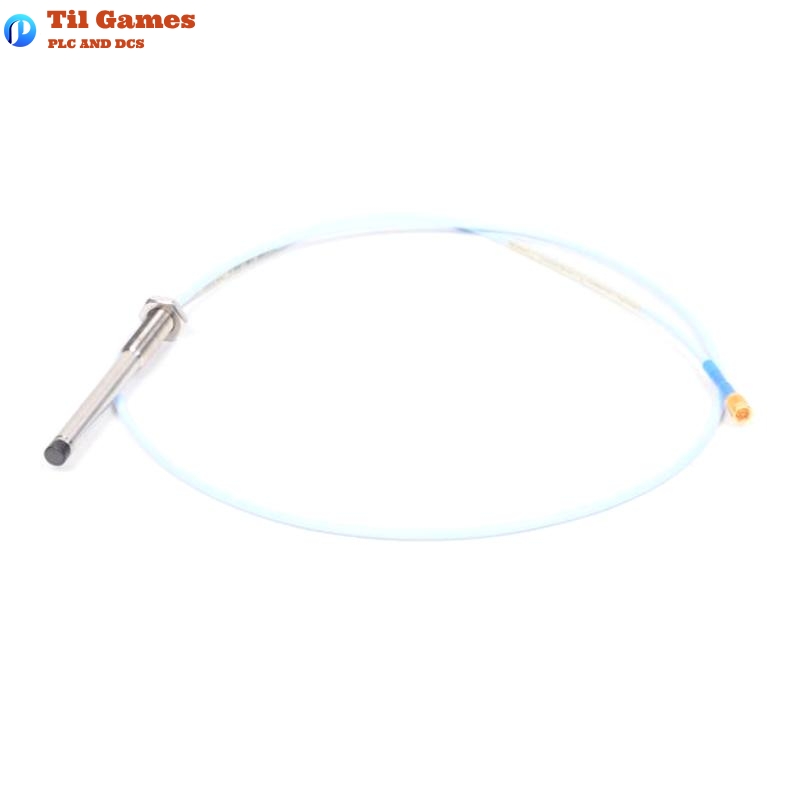

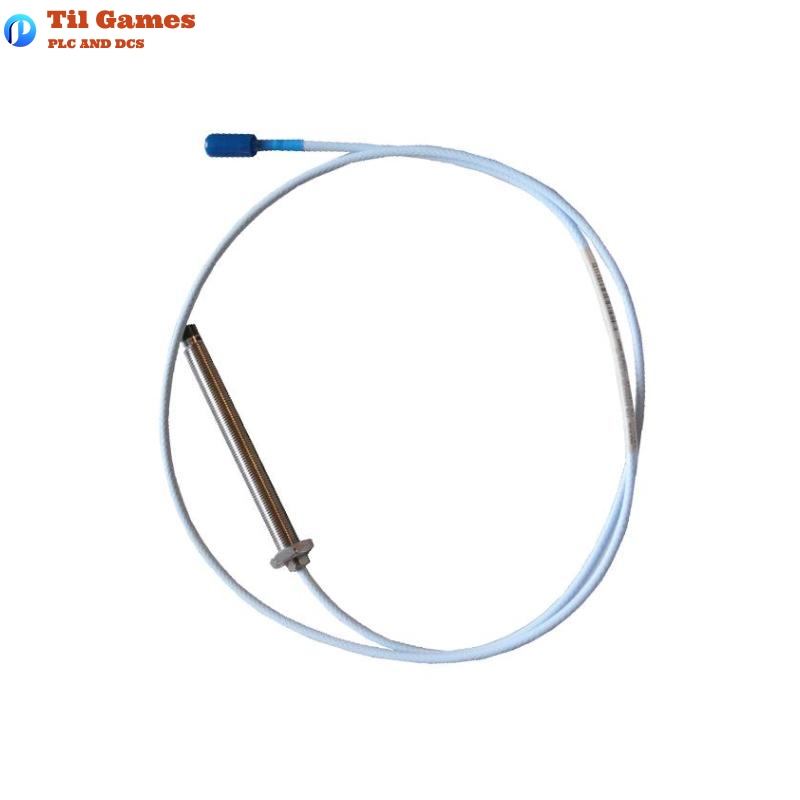

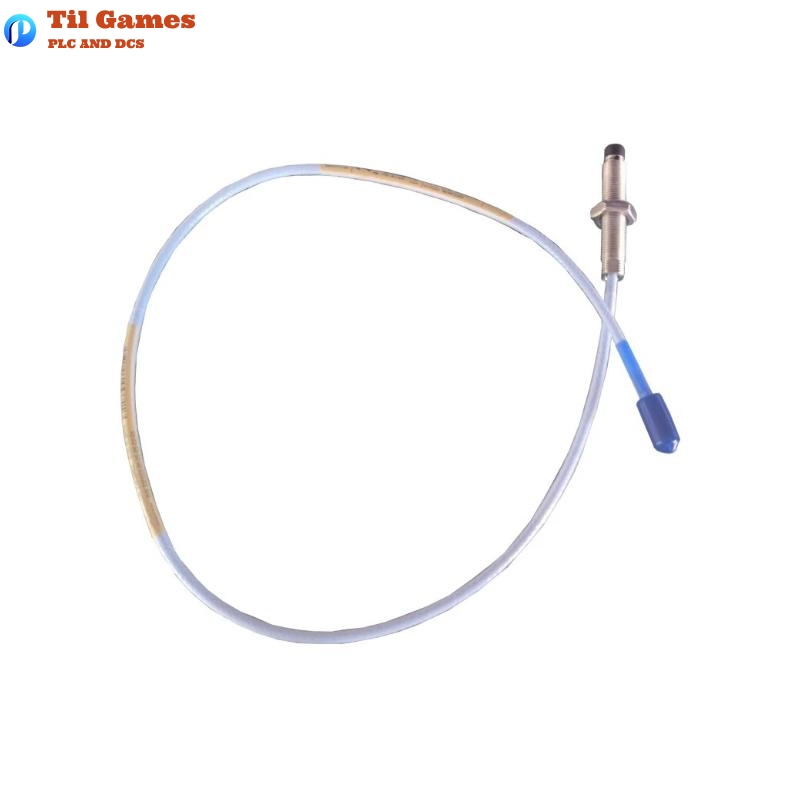

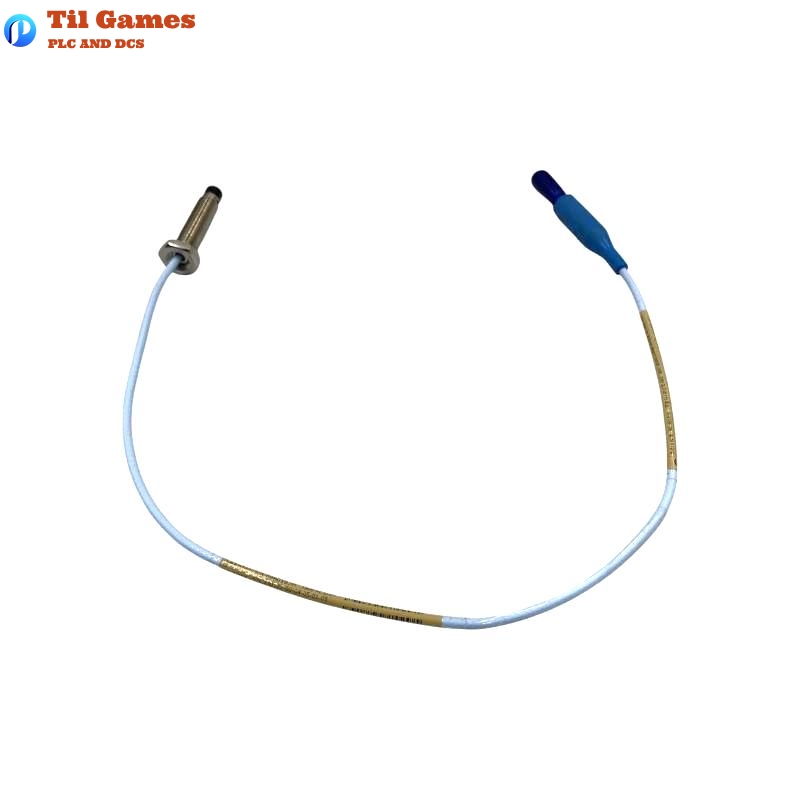

| Model | Bently Nevada 330103-00-05-10-01-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Size | M10 × 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Shaft Diameter Compatibility | Min: 50.8 mm (2 in) / Recommended: 76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter flat target |
| Gap Voltage Range | -1 to -17 VDC |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm or 50 mils) |
| Linear Range | 2 mm (80 mils), from approx. 0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (for 5 or 1 m system) |
| Deviation from Straight Line (DSL) | < ±0.025 mm (±1 mil) for 5 or 1 m system |
| Frequency Response | 0 to 10 kHz, +0, -3 dB with field wiring up to 305 m |
| Operating Temperature Range (Probe) | -52°C to +177°C (Standard) / up to +218°C (ETR probe tip) |
| Storage Temperature Range (Probe) | -52°C to +177°C |
| Cable Type | 75Ω triaxial FEP insulated (standard) or PFA insulated (ETR) |
| Connector Type | Miniature coaxial ClickLoc, gold-plated, finger-tight |
| Bend Radius (min) | 25.4 mm (1.0 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Environmental Compliance | RoHS 2011/65/EU, CE (EMC Directive 2014/30/EU) |
| Hazardous Area Approvals | CSA, ATEX, IECEx – Class I Div 1/2, Zone 0/2 (when installed per instructions) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the standard operating temperature range of the 330103 proximity probe?
A1: The standard operating temperature range is -52°C to +177°C. For extended range applications, the ETR version supports up to +218°C at the probe tip.
Q2: Can the 330103-00-05-10-01-00 probe be used in hazardous areas?
A2: Yes, it has approvals for Class I, Division 1/2, Zone 0/2 when installed using certified methods. Refer to installation drawings 141092 or 140979 for proper use.
Q3: What is the total length of this probe model?
A3: The model 330103-00-05-10-01-00 has a total probe length of 1.0 meter.
Q4: What material is used for the probe casing and tip?
A4: The probe casing is made from AISI 303 or 304 stainless steel, and the tip is molded from PPS (Polyphenylene sulfide) for durability.
Q5: Is the connector on the 330103 model tool-free?
A5: Yes, it uses a ClickLoc gold-plated coaxial connector that can be tightened by hand until it clicks, requiring no tools.
Q6: How accurate is the probe across its linear range?
A6: The probe maintains an ISF of 7.87 V/mm ±5% and deviation from best fit line (DSL) of less than ±0.025 mm when operating between 0°C and +45°C.
Q7: Can the probe be installed with other non-XL series components?
A7: While physically and electrically compatible with non-XL 3300 8 mm components, mixing XL and non-XL parts limits overall system performance to that of the older non-XL components.
Q8: What is the minimum shaft diameter recommended for accurate measurement?
A8: The minimum shaft diameter is 50.8 mm (2 in), but 76.2 mm (3 in) is recommended to reduce signal distortion and crosstalk.
