Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-05-10-01 |

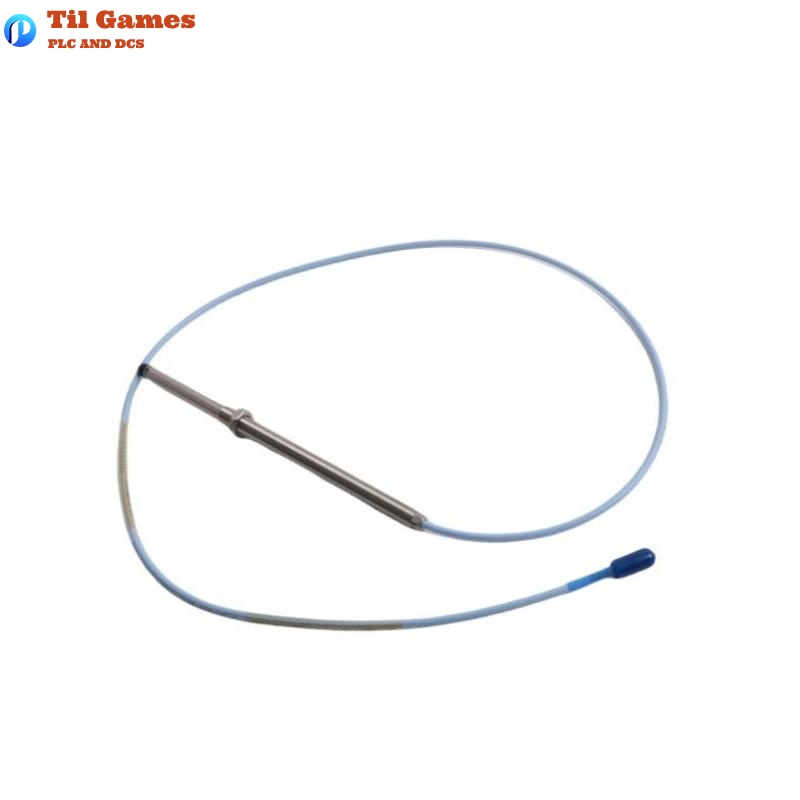

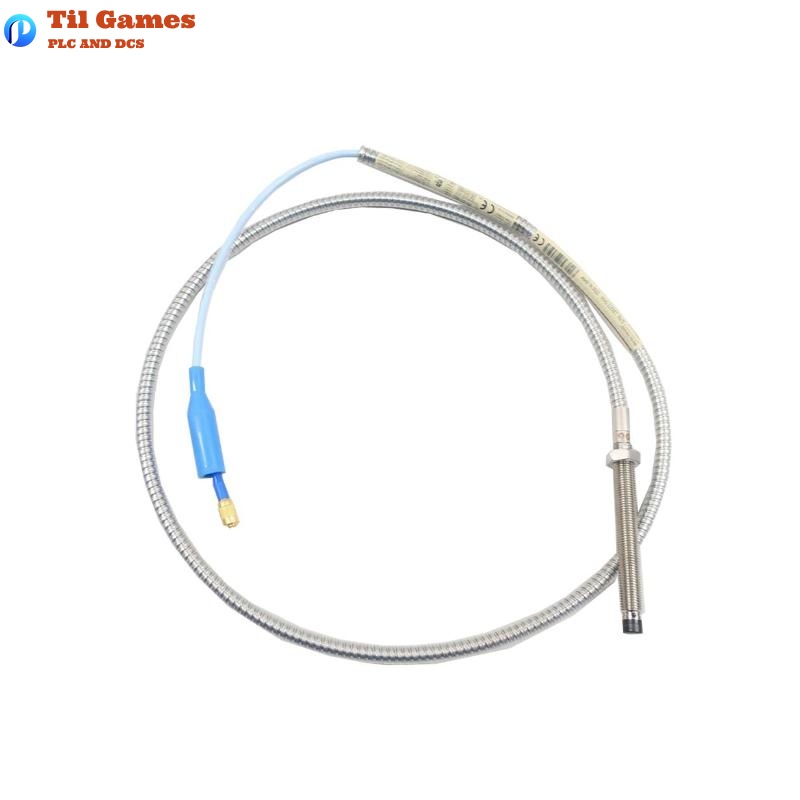

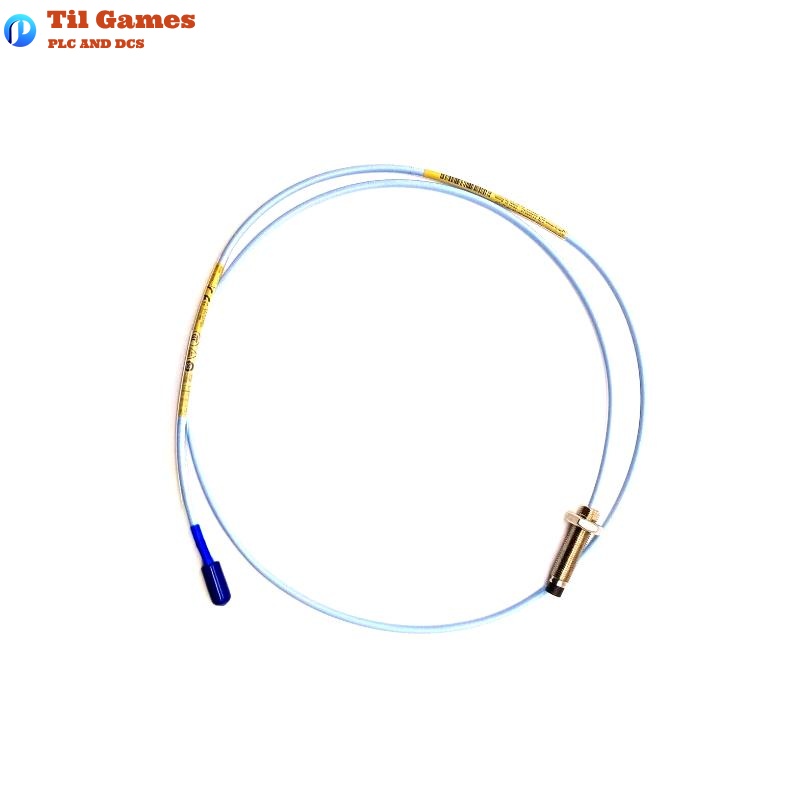

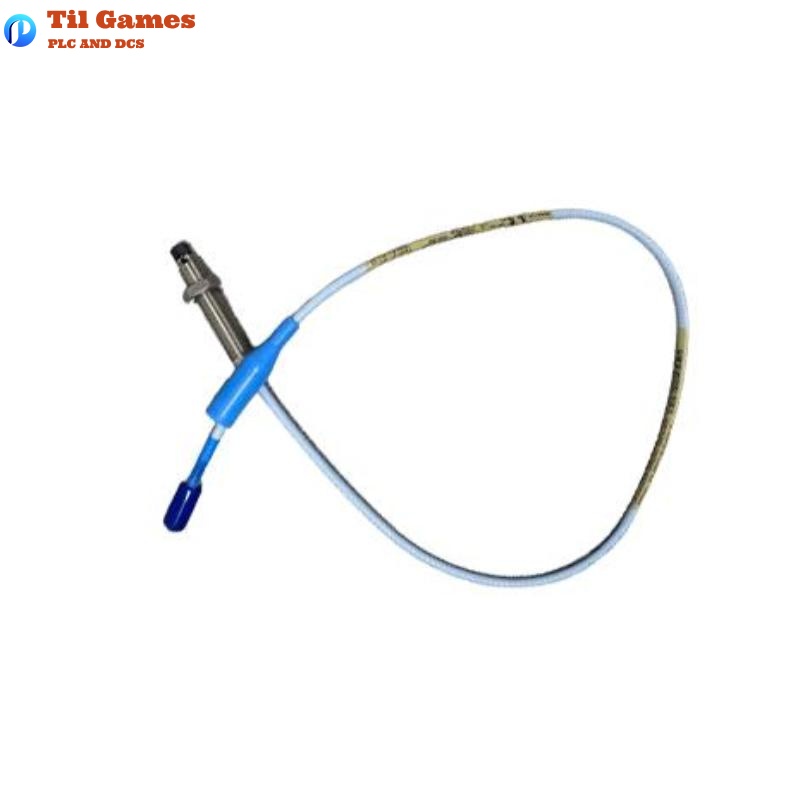

| Probe Type | 3300 XL 8 mm Proximity Probe, M10 x 1 Thread |
| Sensing Principle | Eddy current, non-contact |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) corresponding to -9 VDC |
| Scale Factor (ISF) | 7.87 V/mm ±5% for 5 m or 1 m systems |
| Deviation from Best Fit Line | ±0.025 mm (±1 mil) for 5 m or 1 m systems |
| Frequency Response | 0 – 10 kHz (±3 dB) with 305 m field wiring |
| Output Impedance | 50 Ω |
| Target Material | AISI 4140 steel (default) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Minimum Shaft Diameter | 50.8 mm (2 in); Recommended: 76.2 mm (3 in) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (probe only) |
| Operating Temperature Range | -52°C to +177°C |
| Connector Type | Miniature coaxial ClickLoc |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Maximum Probe Pull Strength | 330 N (75 lbf) from case to cable |
FAQ
FAQ
Q1: What is the sensing principle of the 330103-00-05-10-01 proximity probe?
A1: It uses non-contact eddy current technology to detect the distance to a conductive target surface.
Q2: What is the standard linear measurement range?
A2: 0.25 mm to 2.3 mm (10 to 90 mils).
Q3: What target material is the probe calibrated to by default?
A3: AISI 4140 steel.
Q4: Can the probe be used at high temperatures?
A4: Yes, up to +177°C for standard versions.
Q5: Is the 330103 probe compatible with other Bently Nevada systems?
A5: Yes, it is backward compatible with non-XL 3300 series 5 mm and 8 mm components.
Q6: What is the recommended gap setting for radial vibration?
A6: Approximately 1.27 mm (50 mils), corresponding to -9 VDC.
Q7: What is the probe’s thread size?
A7: M10 x 1.
Q8: How much does the 1.0 meter version weigh?
A8: Approximately 0.323 kg.
