Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-05-10-02-00 |

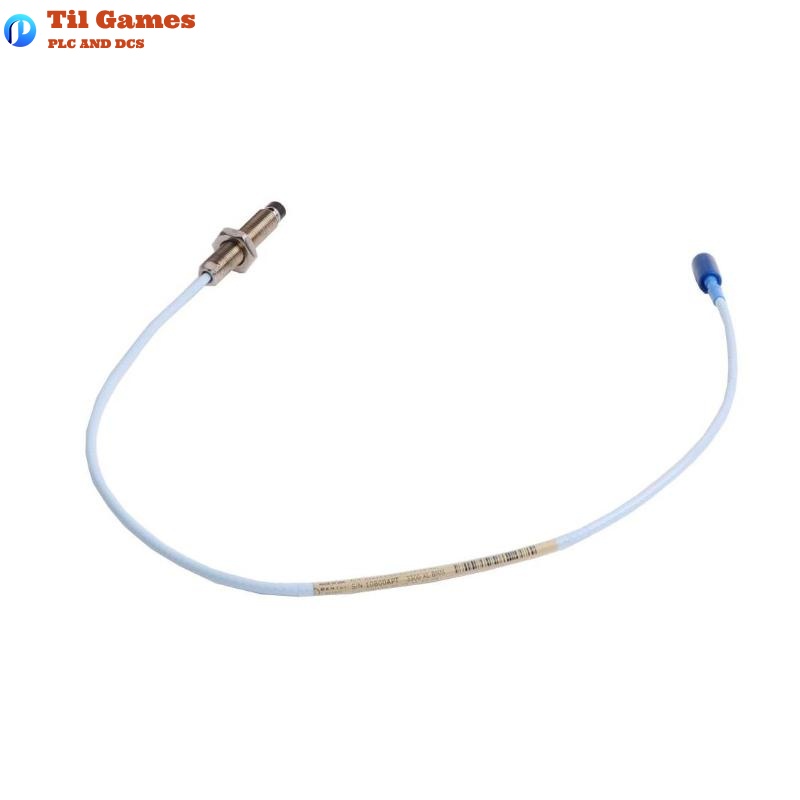

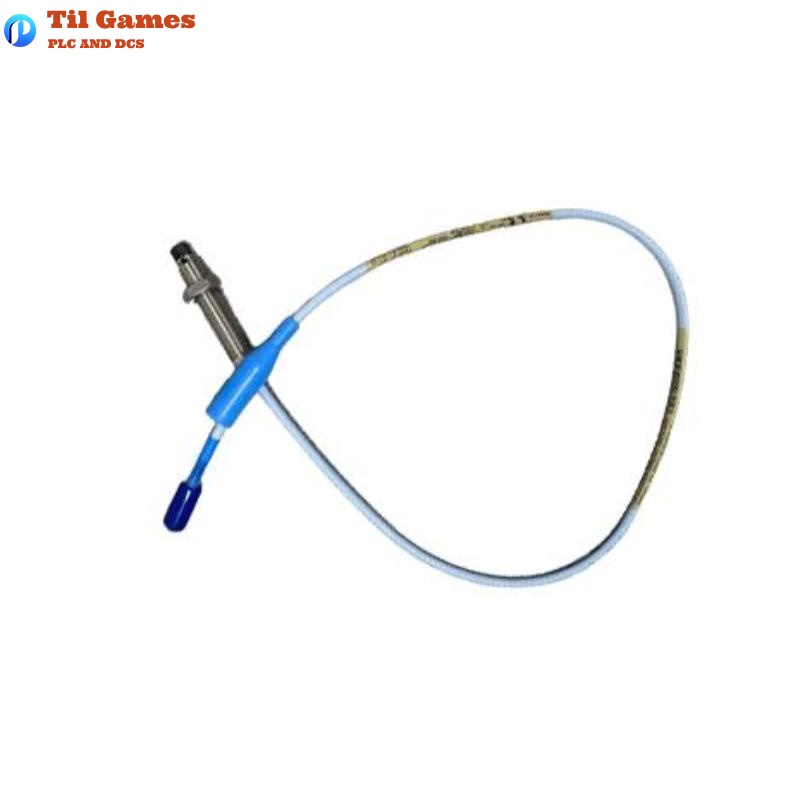

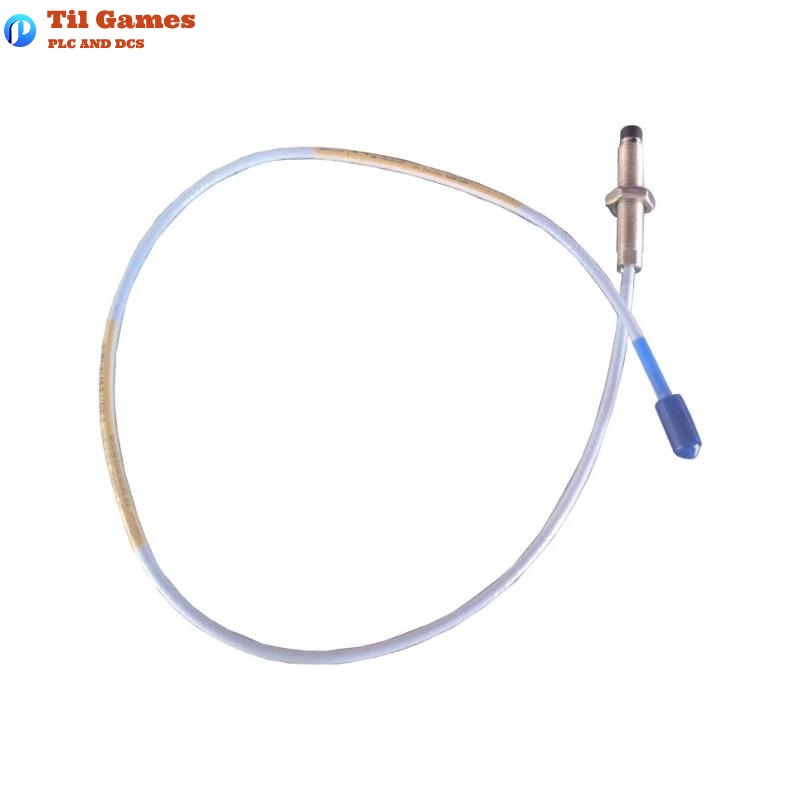

| Product Type | 3300 XL 8 mm Proximity Probe (M10 x 1 thread, without armor) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Cable Type | 75Ω triaxial FEP insulated cable |
| Total Probe Length | 1.0 meter |
| Linear Range | 2.0 mm (80 mils) from 0.25 mm to 2.3 mm |
| Recommended Gap | 1.27 mm (50 mils) nominal gap (approx. -9 Vdc) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (for 1 m system) |
| Deviation from Best Fit Line (DSL) | ≤ ±0.025 mm (±1 mil) |
| Frequency Response | 0 – 10 kHz, +0, -3 dB |
| Target Material Calibration | AISI 4140 steel (default) |
| Probe Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3.0 in) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Probe Cable Pull Strength | 330 N (75 lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Mounting Thread Type | M10 x 1 |
| Maximum Thread Engagement | 15 mm |
| Weight (Total System) | 0.323 kg (1.0 meter system) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330103-00-05-10-02-00 probe?
A1: It is used for non-contact vibration and position measurements in rotating machinery, particularly with fluid-film bearings.
Q2: What is the typical gap voltage for installation?
A2: The recommended gap corresponds to approximately -9 Vdc, which is about 1.27 mm (50 mils) from the target.
Q3: Is the probe compatible with other 3300 series systems?
A3: Yes, it is both electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What is the linear measurement range of the probe?
A4: 2.0 mm (80 mils), effective from 0.25 mm to 2.3 mm.
Q5: Can it withstand high temperature environments?
A5: Yes, the standard probe operates up to +177°C, and the ETR variant can operate up to +218°C.
Q6: Is special tooling required to install the ClickLoc connector?
A6: No, the ClickLoc connector is designed for tool-free finger-tight installation.
Q7: What is the expected performance accuracy?
A7: ±5% scale factor deviation and ±0.025 mm DSL for 1 m systems.
Q8: What shaft size is recommended for optimal performance?
A8: A minimum shaft diameter of 76.2 mm (3.0 in) is recommended to minimize cross-talk.
