Technical Specifications
| Item | Description |
|---|---|

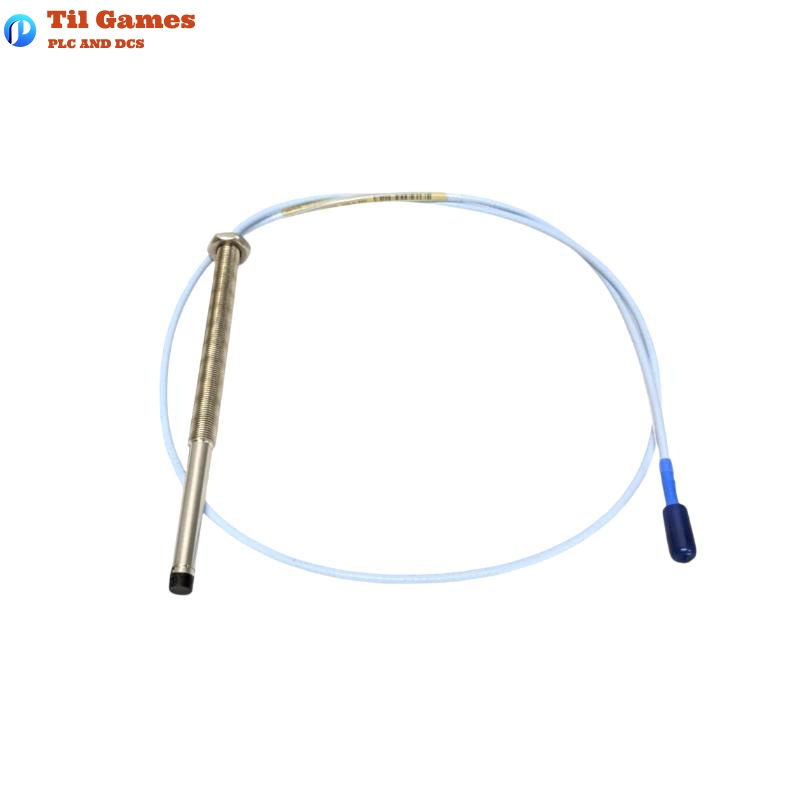

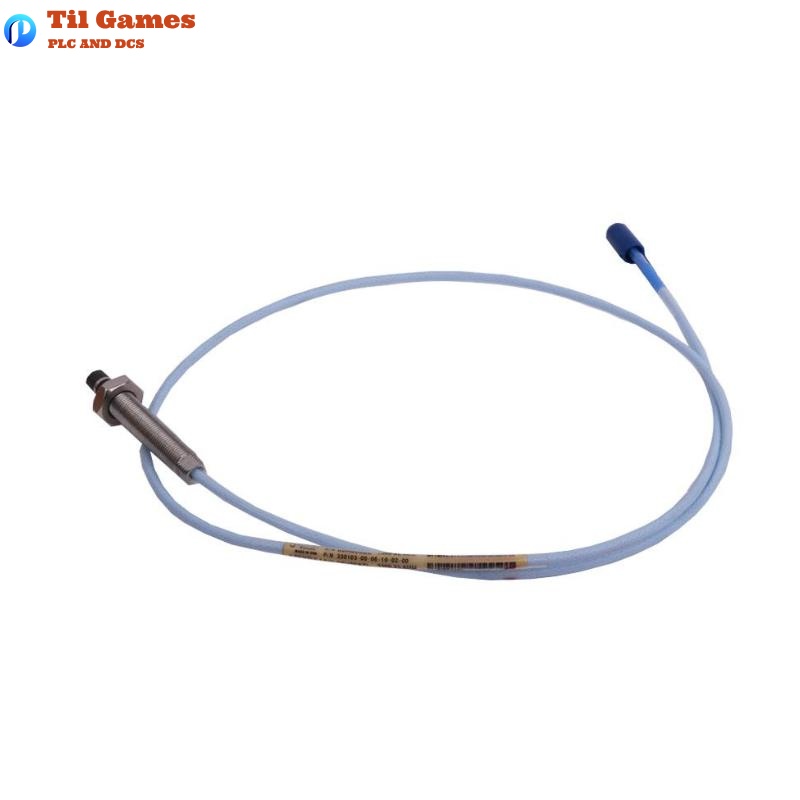

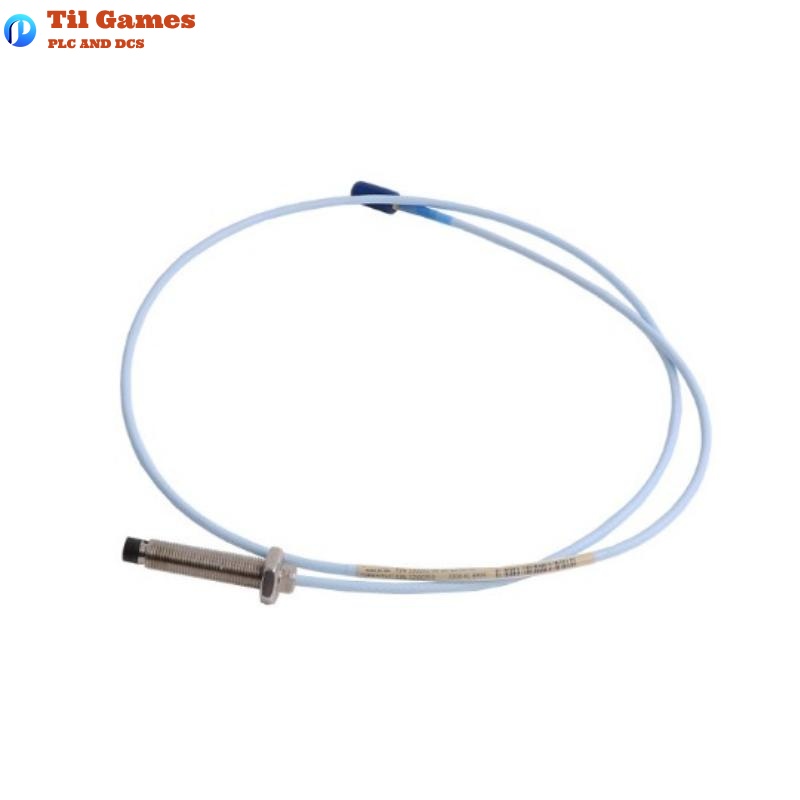

| Model | 330103-00-05-10-02-CN |
| Probe Type | Non-contacting eddy current proximity probe |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Case Material | AISI 303 or 304 stainless steel |

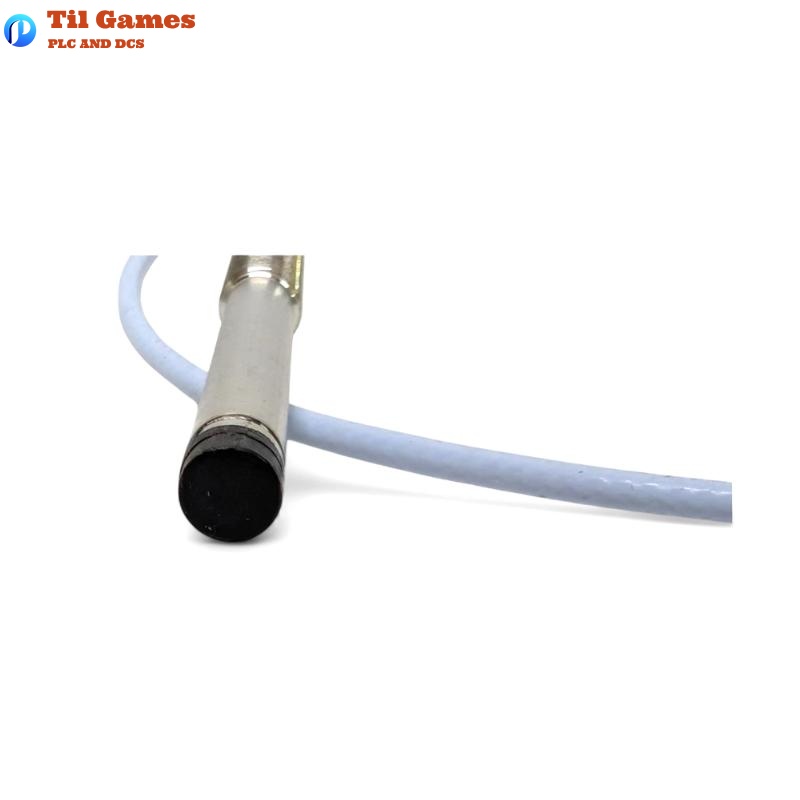

| Tip Material | Polyphenylene sulfide (PPS) |
| Probe Cable Type | 75Ω triaxial, FEP insulation |
| Minimum Cable Bend Radius | 25.4 mm |
| Mounting Thread | M10 x 1 |
| Recommended Torque | 7.5 N·m |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB, with up to 305 m field cable) |
| Temperature Range (Standard) | -52°C to +177°C |
| Humidity Tolerance | <3% change under 93% RH (IEC 68-2-3) |
| Pressure Seal | Viton® O-ring sealed |
| Minimum Target Size | ≥15.2 mm diameter |
| Recommended Shaft Diameter | Min. 50.8 mm; Recommended ≥76.2 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the temperature range supported by the 330103 probe?
A1: The standard probe supports -52°C to +177°C. Use ETR version for higher temperatures.
Q2: What are the main applications of this probe?
A2: It is mainly used for vibration and position measurements in rotating machines, including Keyphasor and speed detection.
Q3: Is an extension cable required for this model?
A3: No, the 1.0-meter version does not require an extension cable.
Q4: Are 3300 XL and non-XL series components interchangeable?
A4: Yes, but overall system performance will be limited by the non-XL components.
Q5: What is the output voltage range of the probe?
A5: It outputs a voltage approximately from -1 to -17 VDC, proportional to the distance.
Q6: How much installation space is required?
A6: A minimum bend radius of 25.4 mm is required; probe head is 8 mm in diameter.
Q7: Do connectors require special tools for installation?
A7: No, ClickLoc connectors are finger-tightened and click into place.
Q8: Is this product certified internationally?
A8: Yes, it complies with CE, RoHS, ATEX, IECEx, and North American cNRTLus standards.
