Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-10-10-02-00 |

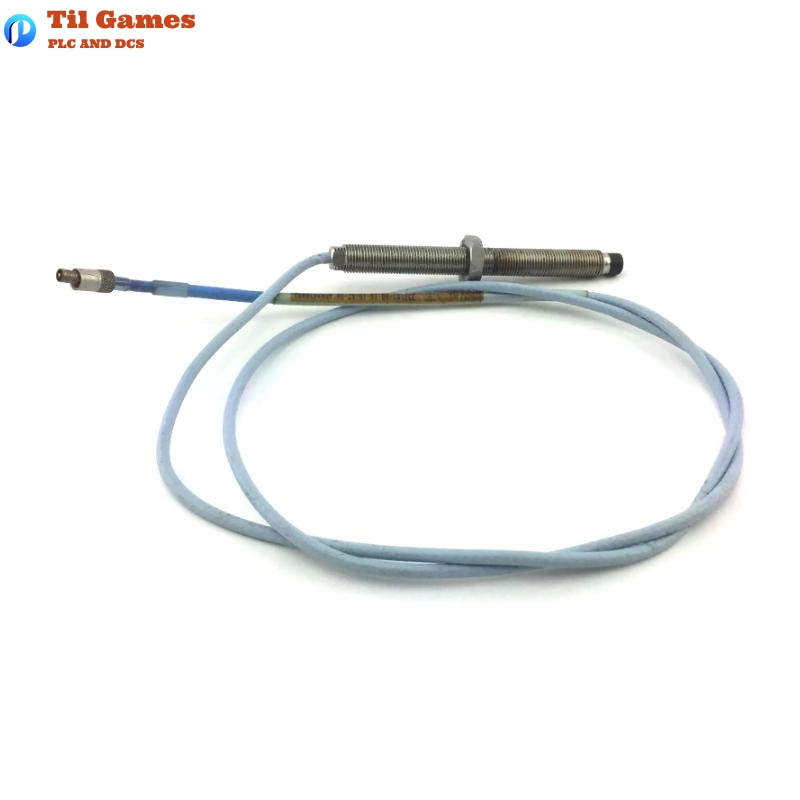

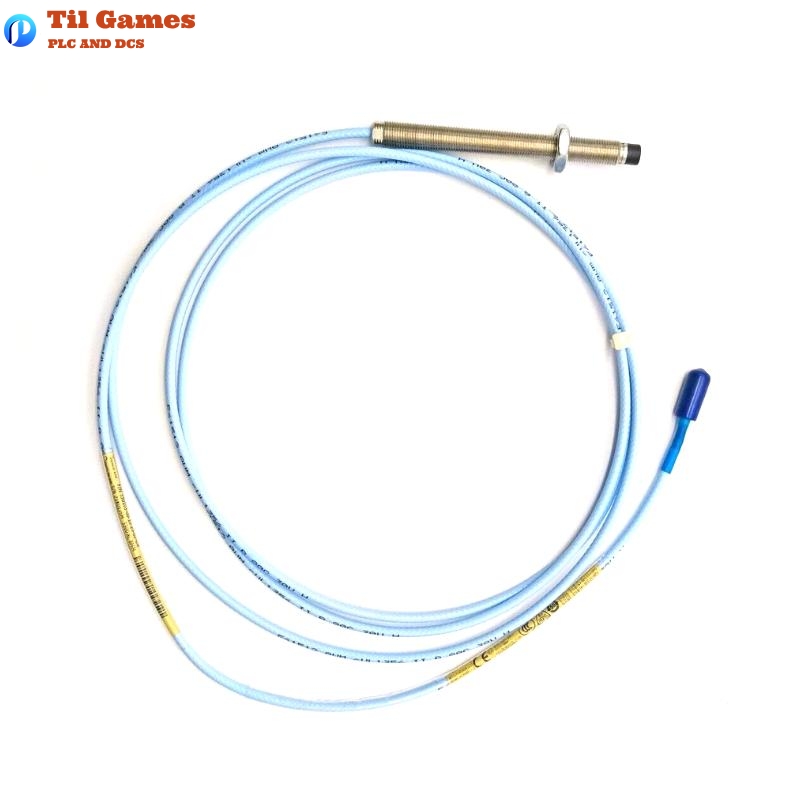

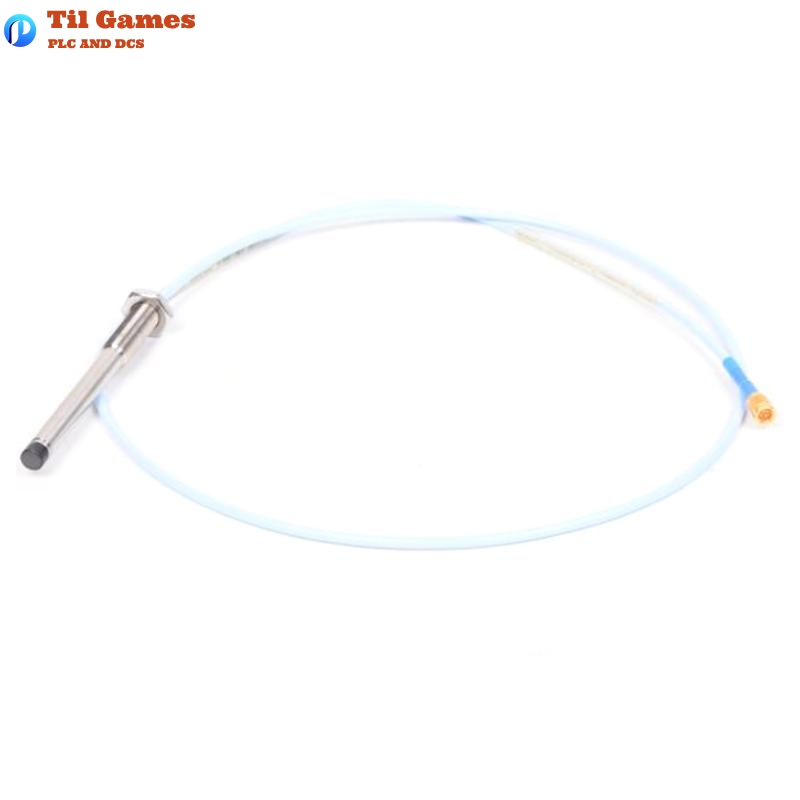

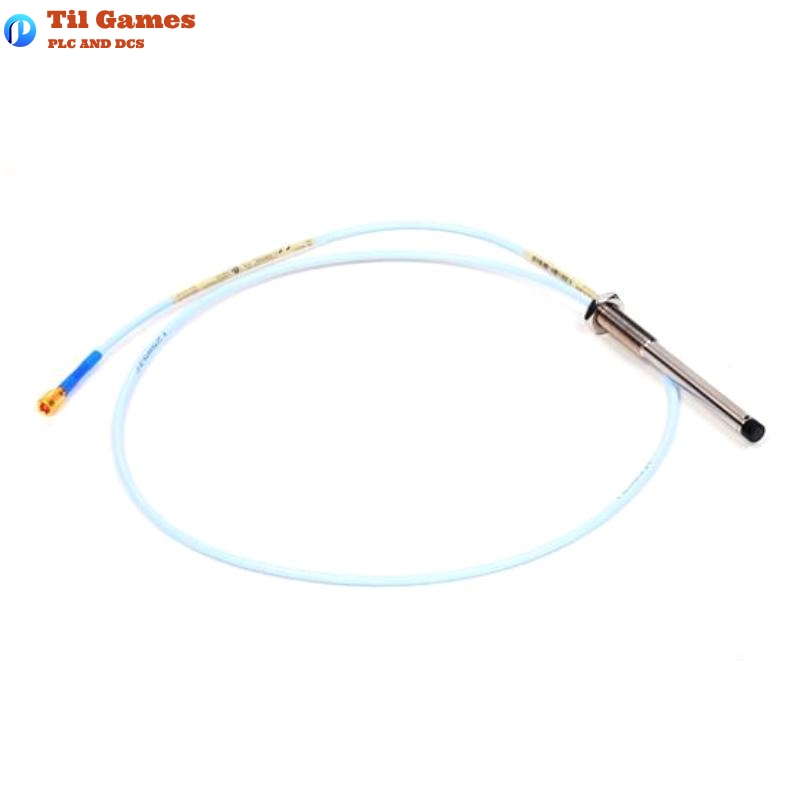

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 x 1 (metric), without armor |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (typical for 1.0-meter probe only) |
| Tip Diameter | 8.0 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc |
| Output Voltage Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (1 m systems) |
| Linear Range | 2.0 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Voltage | -9 Vdc ≈ 1.27 mm (50 mils) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Min. Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Minimum Bend Radius (Cable) | 25.4 mm (1.0 in) |
| Tensile Strength | 330 N (75 lbf) from probe case to probe lead |
| Mounting Torque (Forward Mount) | Recommended: 11.2 N·m (100 in·lbf); Max: 33.9 N·m (300 in·lbf) |
| RFI/EMI Immunity | High – compliant with CE requirements, no shielded conduit necessary |
| Humidity Resistance | <3% change in scale factor at 93% humidity (IEC 68-2-3, 56 days) |
| Certifications | CSA, ATEX, IECEx, CE, FCC compliant |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the typical application of the 330103-00-10-10-02-00 probe?
A1: It is primarily used for measuring vibration and position on fluid-film bearing machines, as well as Keyphasor reference and overspeed monitoring.
Q2: Does this probe comply with API 670 standards?
A2: Yes, when used in a 5-meter system, it fully complies with the mechanical configuration, linear range, and accuracy requirements of API 670.
Q3: Is the 330103 probe backward compatible with previous 3300 series components?
A3: Yes, it is both electrically and mechanically compatible with non-XL 3300 series 5 mm and 8 mm system components.
Q4: What is the recommended gap voltage for optimal vibration measurements?
A4: The recommended gap voltage is -9 Vdc, which corresponds to a gap of approximately 1.27 mm (50 mils).
Q5: What type of connector is used on this probe?
A5: It uses a corrosion-resistant, gold-plated miniature coaxial ClickLoc connector, which clicks into place without requiring tools.
Q6: Is the probe suitable for high-temperature applications?
A6: The standard probe supports up to +177°C. For higher temperatures (up to +218°C), an Extended Temperature Range (ETR) variant should be used.
Q7: Can this probe be used without an extension cable?
A7: Yes, the 1.0-meter version is often used without an extension cable and connects directly to the Proximitor Sensor.
Q8: What is the impact of magnetic fields on this probe?
A8: The probe shows minimal output change due to magnetic fields, with sensitivity values as low as 0.0119 mil pp/Gauss at 10 mil gap in a 1-meter configuration.
