Technical Specifications
| Parameter | Description |
|---|---|

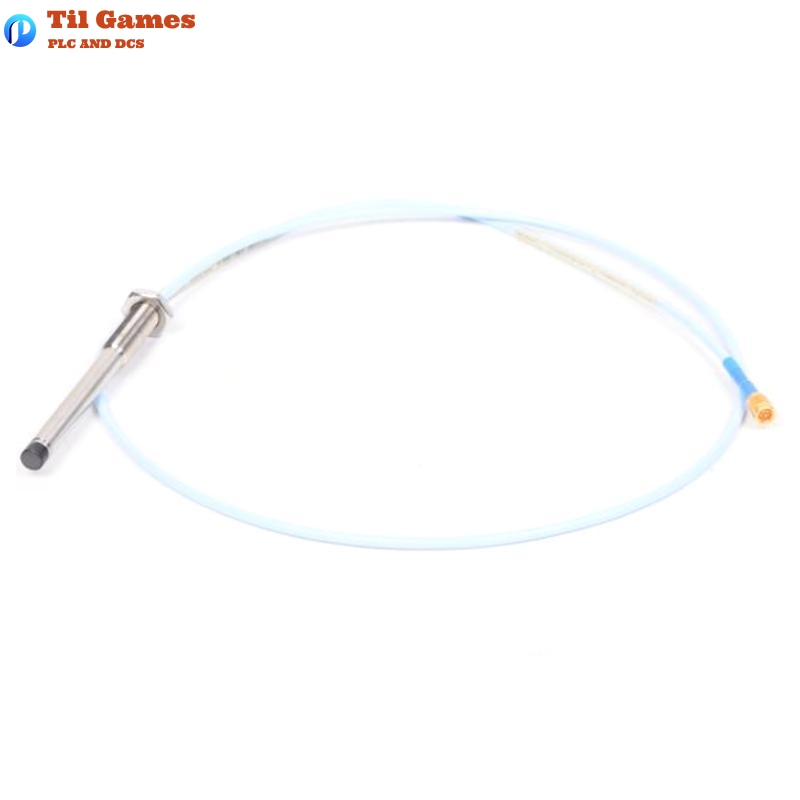

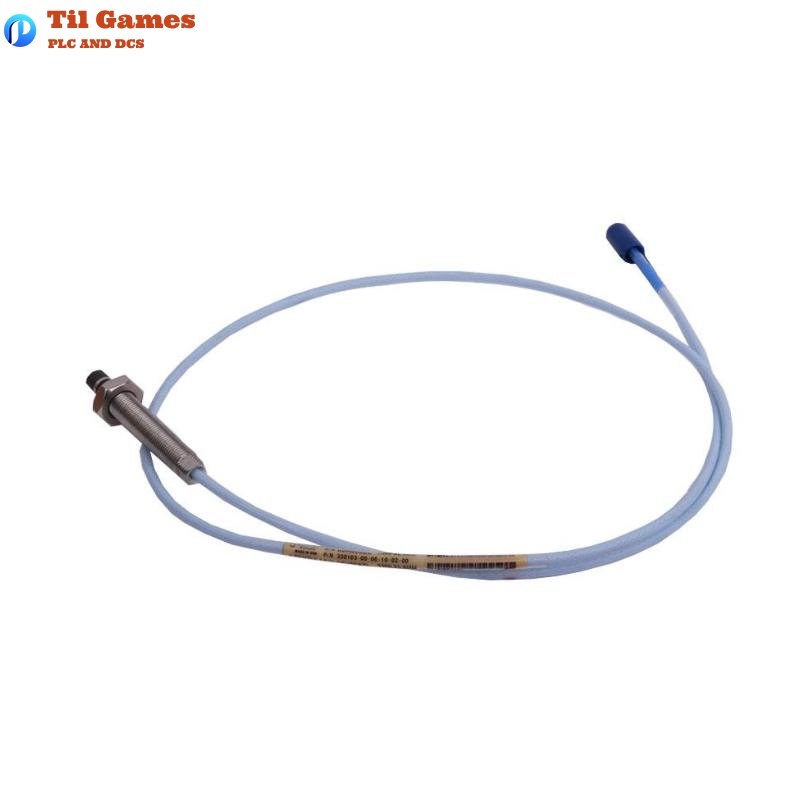

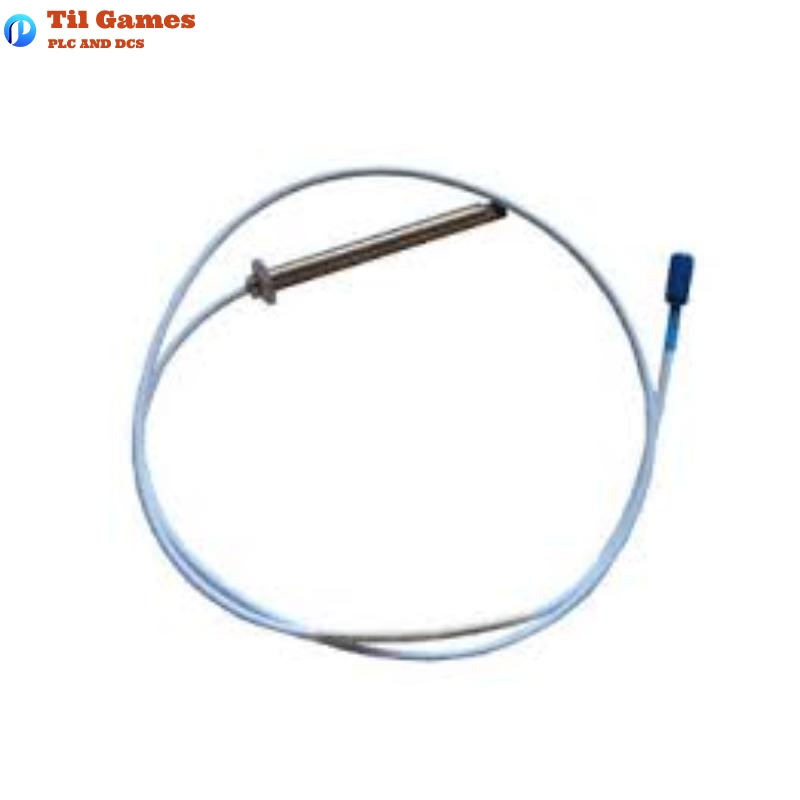

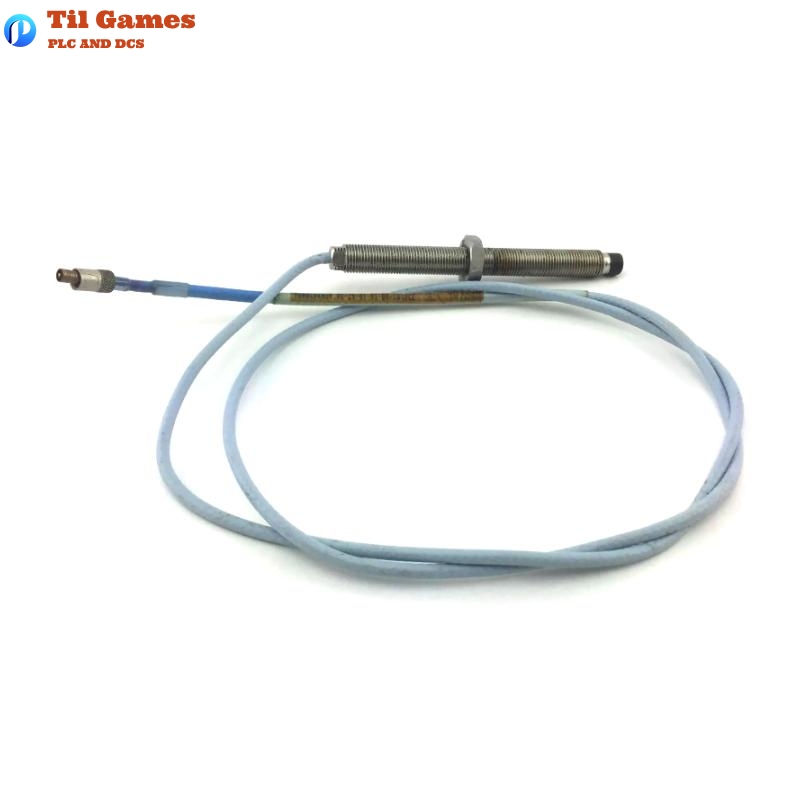

| Model Number | 330103-00-10-10-02-CN |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | M10 x 1 metric threads |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (typical for 1.0 m probe only) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Connector Material | Gold-plated brass or beryllium copper |
| Recommended Gap Setting | -9 VDC (~1.27 mm or 50 mils) |
| Linear Range | 2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils) |
| Operating Temperature (Probe) | -52°C to +177°C (Standard) / Up to +218°C (ETR probe tip) |
| Storage Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Extension Cable) | -52°C to +177°C (Standard) / Up to +260°C (ETR) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Minimum Bend Radius (Cable) | 25.4 mm (1.0 in) |
| System Length Compatibility | Used in 1-meter systems without extension cable |
| Output Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% for 1 m system |
| Deviation from Best Fit Line (DSL) | < ±0.025 mm (±1 mil) for 1 m system |
| EMC/EMI Immunity | Designed for high RFI environments; CE compliant |
| Certification Options | CSA, ATEX, IECEx available (option code: 05) |
| Sealing | Viton® O-ring; not pressure tested by default |
| Torque (Threaded M10x1) | Max: 22.6 N·m; Recommended: 7.5 N·m |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 330103 probe and other 3300 XL 8 mm probes?
A1: The 330103 uses an M10 x 1 metric thread instead of the standard 3/8-24 UNF thread and is primarily used in regions or systems where metric threading is standard.
Q2: Is the 330103 probe compatible with non-XL 3300 systems?
A2: Yes, it is both physically and electrically compatible with non-XL 3300 8 mm and 5 mm components, although system performance may revert to non-XL specifications.
Q3: Can the 330103 probe be used in high-temperature environments?
A3: Yes, the standard version supports up to +177°C. An Extended Temperature Range (ETR) version is available with a probe tip rating up to +218°C and cable up to +260°C.
Q4: What is the recommended minimum shaft diameter for accurate readings?
A4: The recommended minimum shaft diameter is 76.2 mm (3 inches), with 50.8 mm (2 inches) being the absolute minimum.
Q5: Does the 330103-00-10-10-02-CN require calibration for different target materials?
A5: Yes, it is factory calibrated for AISI 4140 steel. Calibration to other materials is available upon request for accurate measurements.
Q6: What is the standard gap voltage setting and how is it related to the physical gap?
A6: The recommended gap voltage is -9 VDC, which corresponds to a physical gap of approximately 1.27 mm (50 mils).
Q7: What type of environmental protection does the connector system offer?
A7: The ClickLoc connectors with optional connector protectors provide secure, corrosion-resistant, tool-free connections and enhanced environmental sealing.
Q8: Is the 330103 suitable for use in hazardous areas?
A8: Yes, it is certified for hazardous area installations under CSA, ATEX, and IECEx standards when installed with proper barriers or isolators per Bently Nevada guidelines.
