Technical Specifications
| Category | Specification |
|---|---|

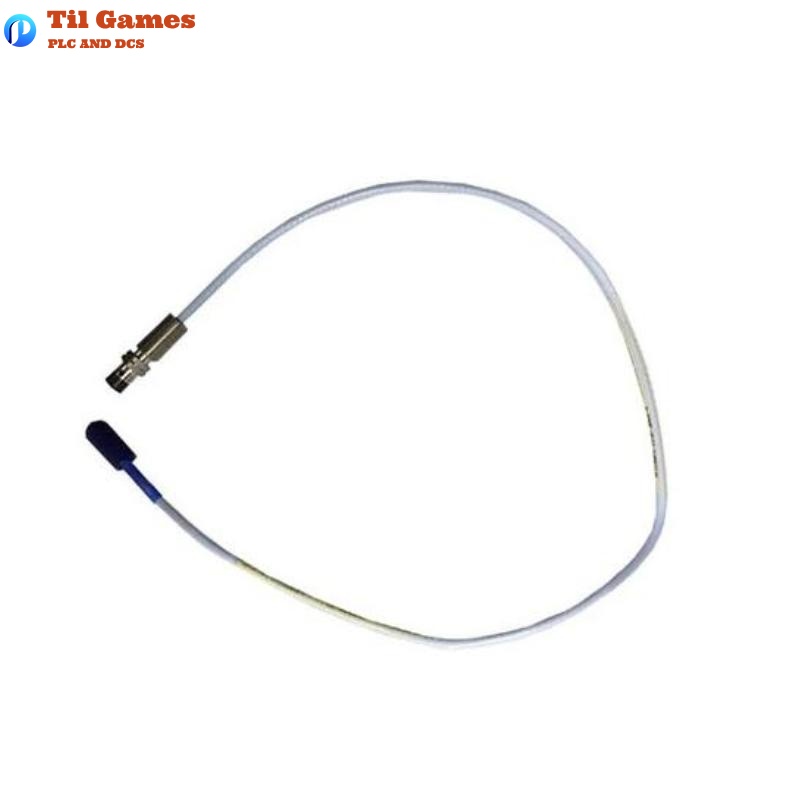

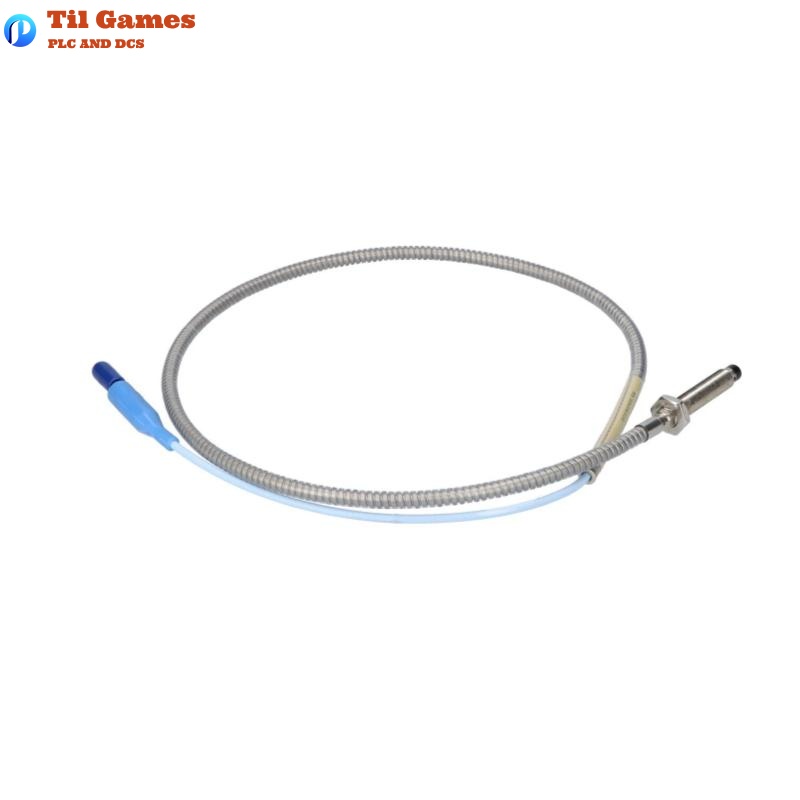

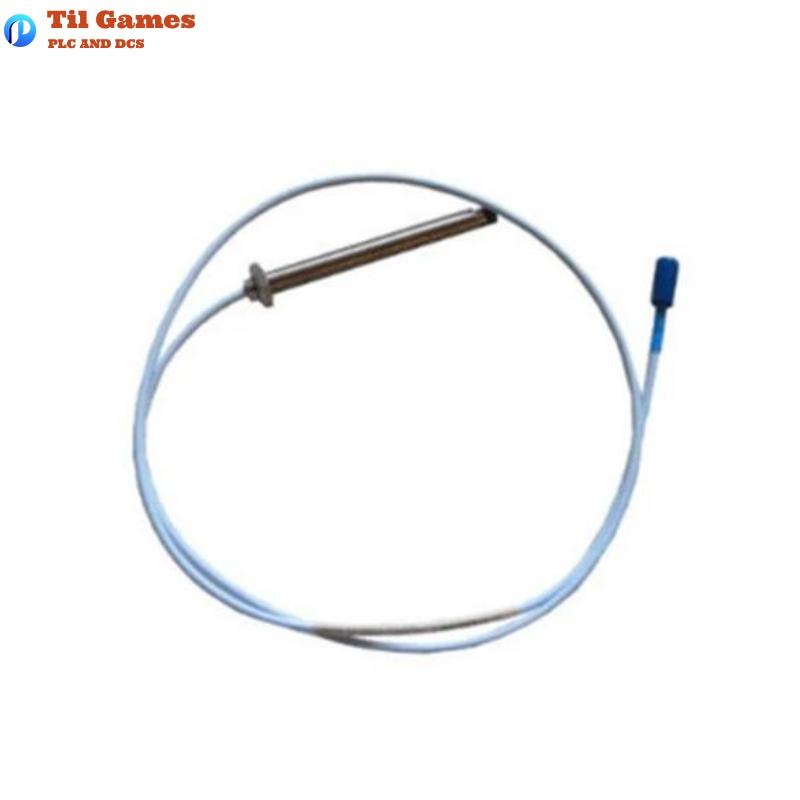

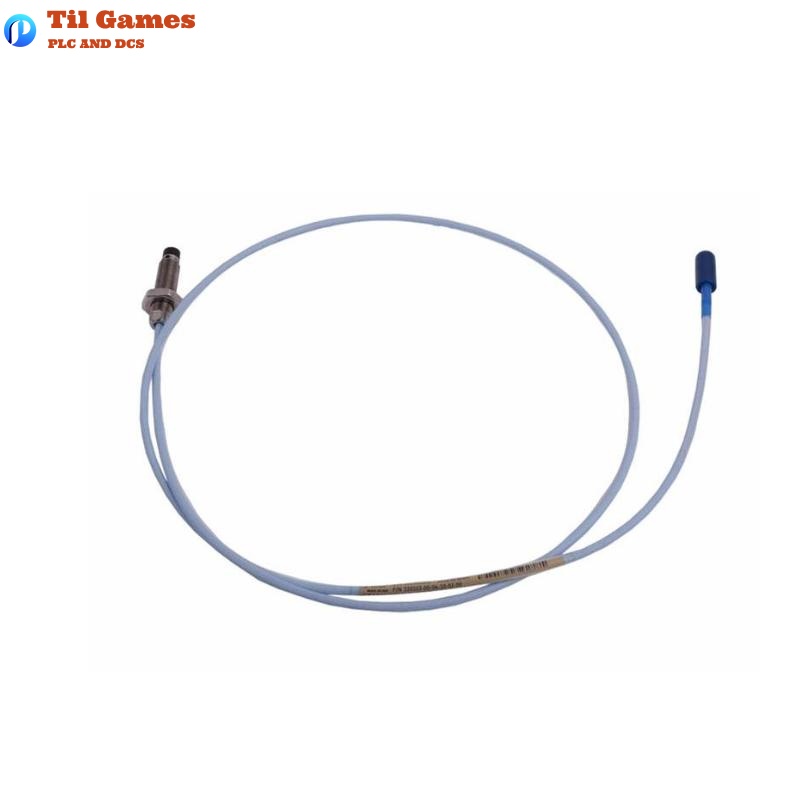

| Product Name | 3300 XL 8 mm Proximity Probe (with armor, M10 x 1 thread) |
| Probe Model | 330104-00-04-10-02-00 |
| Probe Diameter | 8.0 mm |
| Thread Specification | M10 x 1 |
| Cable Type | Standard FEP triaxial cable with ClickLoc miniature connector |
| Total Length (Cable) | 1.0 meter |
| Total Weight | 0.323 kg |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Armor Material | Stainless steel with FEP outer jacket |
| Tensile Strength | 330 N (probe to cable), 270 N (cable to extension) |
| Operating Temp Range | -52°C to +177°C |
| Storage Temp Range | -52°C to +177°C |
| Mount Torque (Max) | Forward-mount: 22.6 N·m (Recommended: 7.5 N·m) |
| Minimum Shaft Diameter | 50.8 mm |
| Recommended Shaft Dia. | 76.2 mm |
| Minimum Tip Separation | 38 mm (radial), 40 mm (axial) |
| Minimum Target Size | 15.2 mm diameter (flat metal surface) |
| Linear Range | 0.25 mm to 2.3 mm (–1 V to –17 V) |
| Recommended Gap | 1.27 mm (50 mils) corresponds to –9 V DC |
| Sensitivity | 7.87 V/mm ±5% (1 meter system) |
| Frequency Response | 0 Hz to 10 kHz, ±3 dB |
FAQ
Frequently Asked Questions (FAQ)
Q1: What installation types does this probe support?
A1: It supports both panel and DIN-rail mounting, with built-in electrical isolation.
Q2: Does it require specific extension cables?
A2: Yes, use 330130 series cables; total system length must match the Proximitor sensor length.
Q3: What is the maximum temperature the cable can handle?
A3: The standard cable supports up to +177°C.
Q4: Is the probe protected against leakage?
A4: Yes, the armored version supports optional FluidLoc for oil leak prevention.
Q5: Are special tools needed for connector installation?
A5: No, ClickLoc connectors are finger-tightened and self-locking.
Q6: Is this probe compatible with non-XL components?
A6: Yes, but performance will be limited to the non-XL component’s standards.
Q7: What are the common applications for this probe?
A7: It is used for vibration, position, Keyphasor reference, and speed measurements in fluid-film bearing machines.
Q8: Does this model meet API 670 standards?
A8: Yes, it fully complies with API 670 requirements for mechanical configuration, linear range, accuracy, and thermal stability.
