Technical Specifications
| Item | Specification |
|---|---|

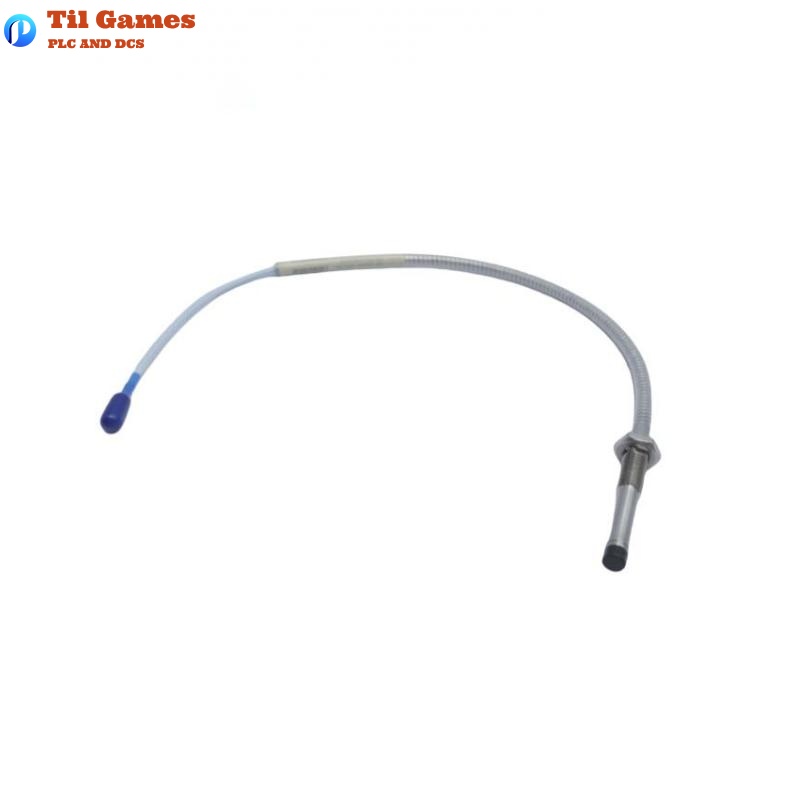

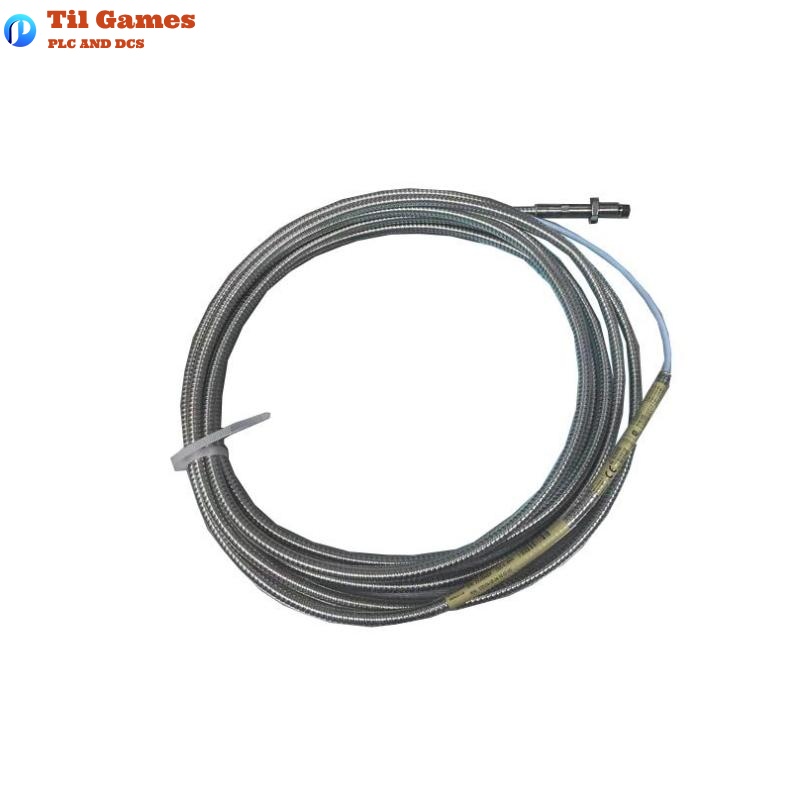

| Part Number | 330104-00-05-10-02 |
| Probe Type | Non-contacting 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 x 1 |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR) | Tip: -52°C to +218°C, Cable/Connector: -51°C to +260°C |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Cable Bend Radius | 25.4 mm |
| Max Tensile Strength | 330 N (probe body to cable), 270 N (cable to extension cable) |
| Connector Type | Gold-plated ClickLoc miniature coaxial connector |
| Max Thread Engagement | M10x1: 15 mm |
| Probe Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.3 mm (approximately -1 Vdc to -17 Vdc) |
| Recommended Gap Voltage | -9 Vdc (approximately 1.27 mm gap) |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Recommended Shaft Diameter | 76.2 mm |
| Environmental Certifications | Complies with API 670, EN61000-6-2, EN61000-6-4, RoHS, FCC, SIL |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the typical application of the 330104 probe?
A1: It is typically used for shaft vibration, displacement, Keyphasor, and speed measurements on fluid-film bearing machines.
Q2: Is it suitable for high-temperature environments?
A2: Yes, with the Extended Temperature Range (ETR) version, the probe supports up to +218°C and the cable up to +260°C.
Q3: Does each probe require calibration after installation?
A3: No, 3300 XL components are fully interchangeable and do not require individual calibration.
Q4: Are special tools required for connector installation?
A4: No, the ClickLoc connector installs by hand and clicks when properly tightened.
Q5: Is the probe backward compatible with older 3300 series systems?
A5: Yes, it is both electrically and physically compatible with 5 mm and 8 mm non-XL systems.
Q6: What is the linear range of this probe?
A6: The standard linear range is 0.25 mm to 2.3 mm (80 mils).
Q7: What cable lengths are supported?
A7: The total system length (probe + extension cable) ranges from 0.5 m to 9.0 m. The 1.0 m probe uses no extension cable.
Q8: How does the system prevent oil leakage through the cable?
A8: Optional FluidLoc cable construction prevents oil and other liquids from leaking through the interior.
