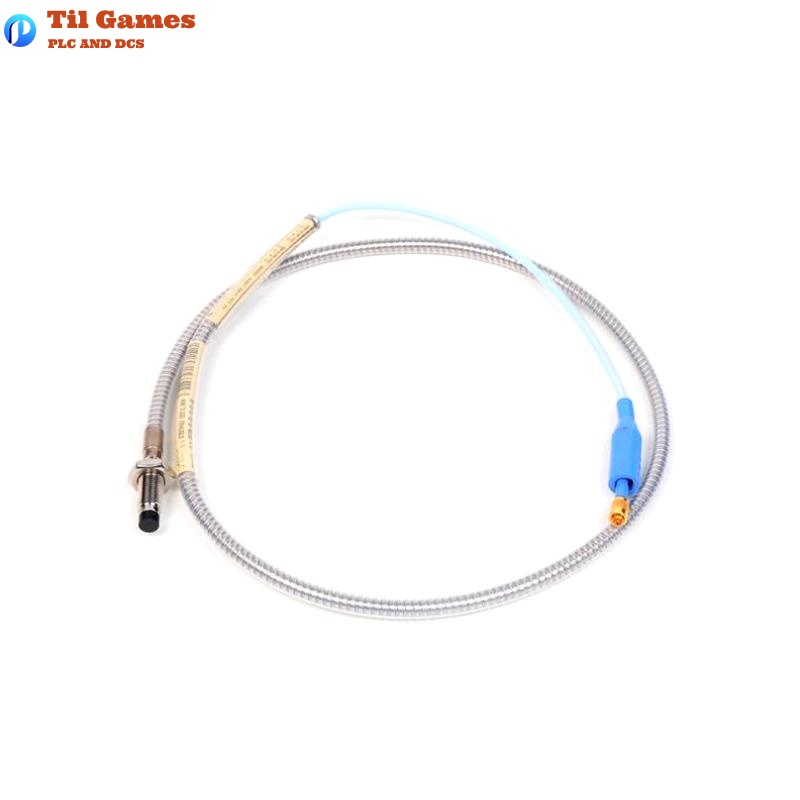

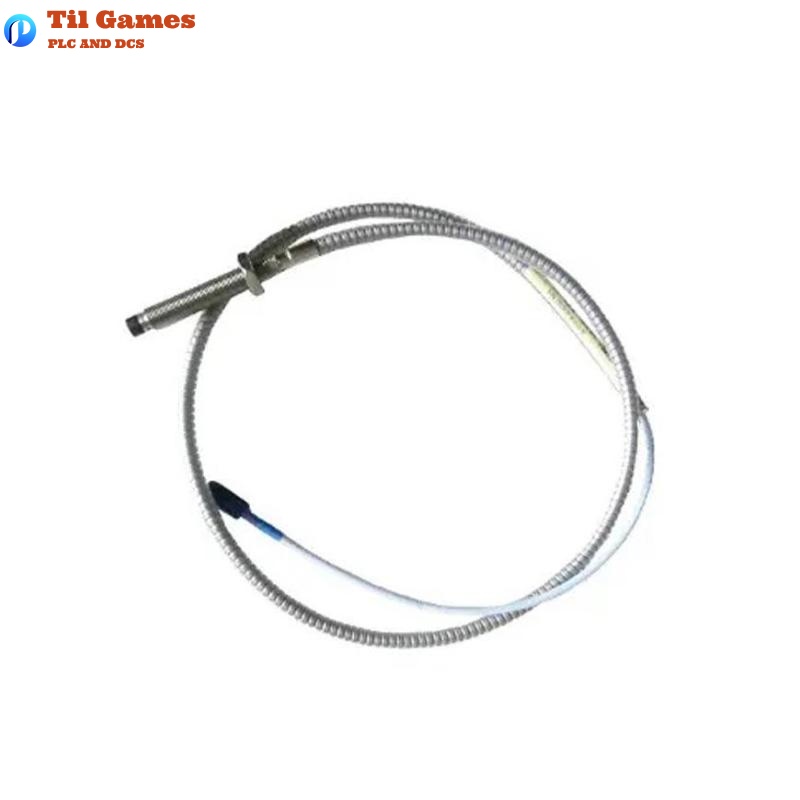

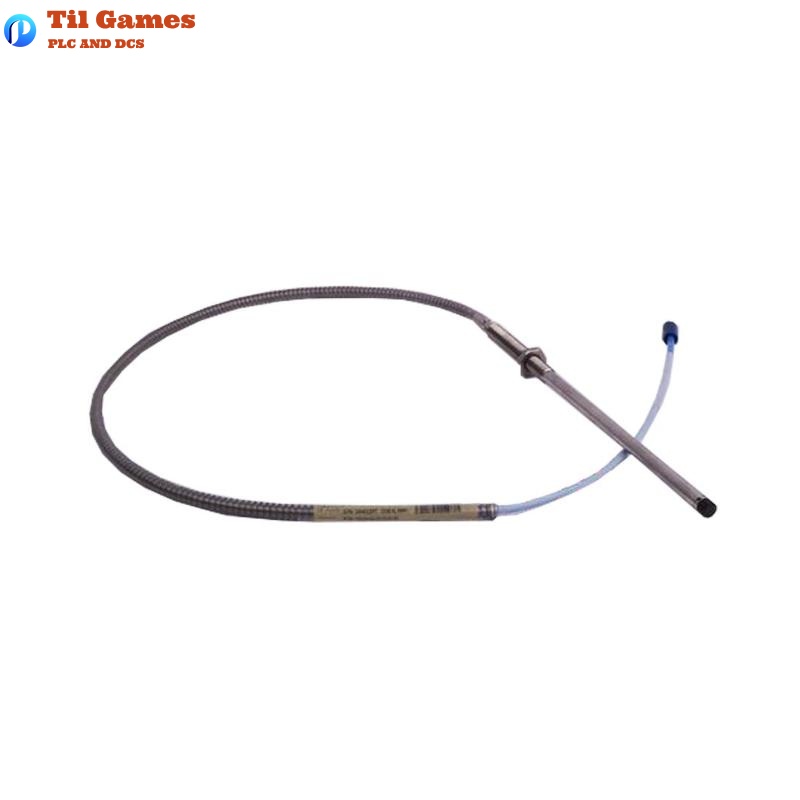

Bently Nevada 330104-00-06-10-02-00 Technical Specifications
Proximity Probe Technical Parameters (Metric)
| Parameter | Value / Description |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Mounting Style | Forward mount with armor |
| Probe Material | AISI 303/304 SST, PPS tip |
| Cable Type | 75Ω triaxial, FEP insulated |
| Total Length (C) | 1.0 meter |
| Total Weight | 0.323 kg |
| Temperature Range | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Tensile Strength | Max 330 N (probe housing), 270 N (cable junction) |
| Recommended Shaft Dia. | ≥ 76.2 mm |
| Linear Range | 2 mm (0.25 mm to 2.3 mm, ~ -1 to -17 VDC output) |
| Recommended Gap Voltage | -9 VDC (~1.27 mm) |
| Minimum Target Size | 15.2 mm flat surface |
| Minimum Cable Bend Radius | 25.4 mm |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Certifications | CE, ATEX, IECEx, CSA compliant |
| Humidity Tolerance | <3% ASF change in 93% RH, IEC 68-2-3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this probe compliant with API 670 standard?
A1: Yes, it fully complies with API 670 mechanical configuration, linear range, accuracy, and thermal stability.
Q2: Can it be used with legacy 3300 series components?
A2: Yes. The 3300 XL 8 mm series is fully backward compatible with 3300 5 mm and 8 mm components.
Q3: Is this probe suitable for high-temperature applications?
A3: Yes. The ETR version supports up to 218°C for the probe and 260°C for the cable.
Q4: Are special tools required for installation?
A4: No. It uses ClickLoc connectors that secure with finger-tight torque only.
Q5: How does the probe output signal work?
A5: It outputs a voltage proportional to the distance between probe tip and conductive surface for position/vibration monitoring.
Q6: Can the probe or cable be replaced in the field?
A6: Yes. The system supports field-replaceable and interchangeable components without calibration.
Q7: Are the connectors corrosion-resistant?
A7: Yes. They are made of gold-plated brass or beryllium copper, resistant to corrosion.
Q8: Does the probe resist electromagnetic interference?
A8: Yes. The sensor and probe offer high RFI/EMI immunity for reliable operation in interference-heavy environments.
