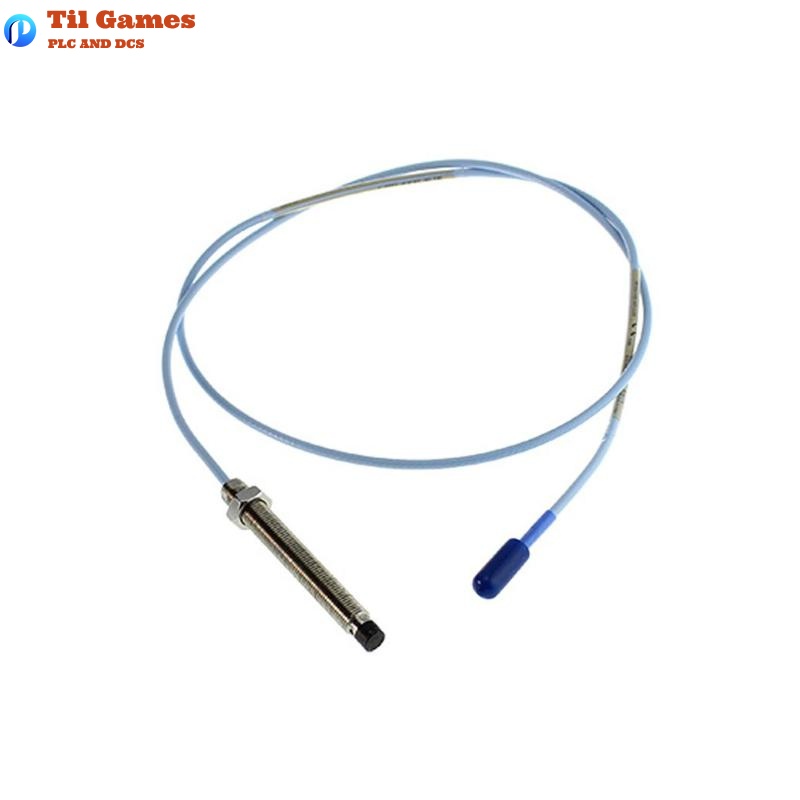

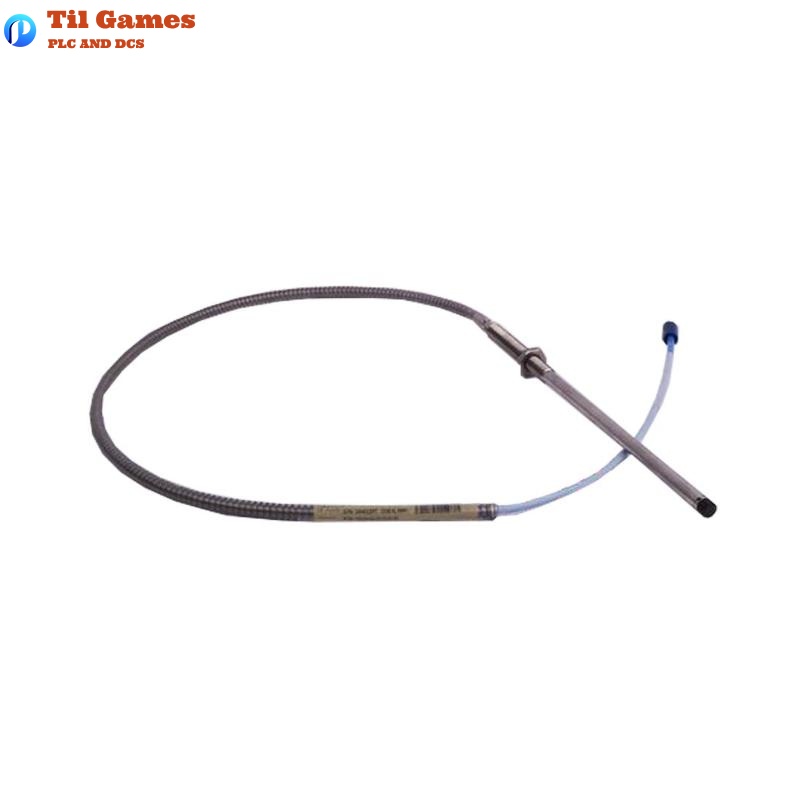

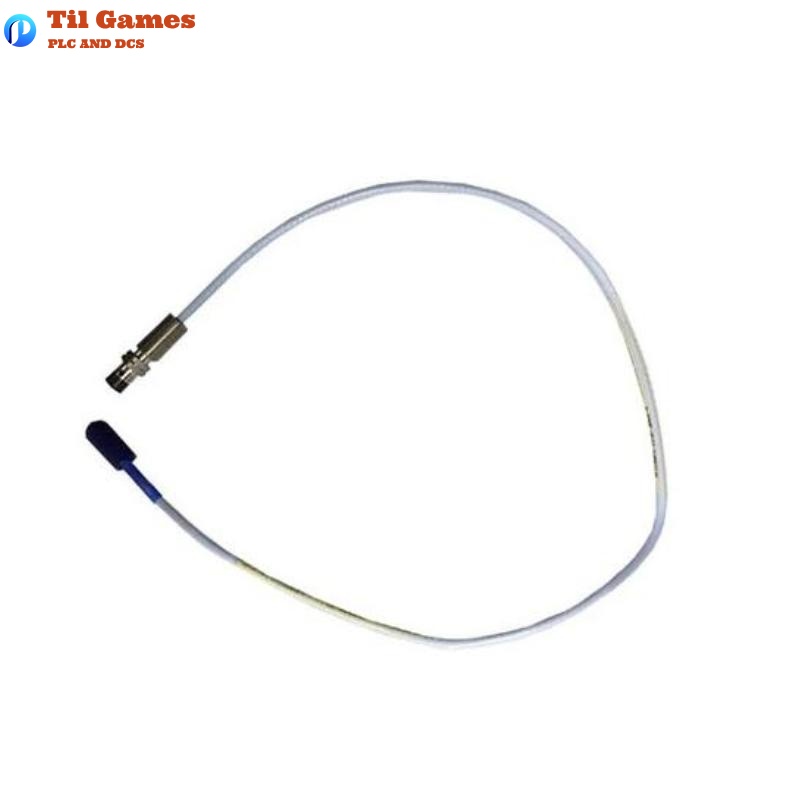

Bently Nevada 330104-00-06-50-01-00 3300 XL 8 mm Proximity Probe

FAQ

Q1: What are the main applications of the 330104-00-06-50-01-00 proximity probe?
A1: It is primarily used for measuring shaft vibration, shaft position (displacement), Keyphasor reference, and speed in fluid-film bearing machinery.

Q2: What is the temperature capability of the probe and cable?
A2: The standard probe operates up to 177°C. The extended temperature range (ETR) probe can reach up to 218°C for the tip and 260°C for the cable.

Q3: What is the recommended installation gap for the probe?
A3: The recommended gap is 1.27 mm (50 mils), corresponding to a -9 Vdc output.

Q4: Is this proximity probe compliant with API 670 standards?
A4: Yes, the standard 5-meter system fully complies with API 670 for linear range, accuracy, and mechanical configuration.

Q5: What target material is the probe calibrated to by default?
A5: It is factory-calibrated to AISI 4140 steel. Calibration for other materials is available upon request.

Q6: Is the 330104 probe interchangeable with other Bently Nevada transducer systems?
A6: Yes. It is electrically and mechanically compatible with both XL and non-XL 3300 series 5 mm and 8 mm components.

Q7: How well does the system resist electromagnetic interference?
A7: The 3300 XL Proximitor Sensor has enhanced RFI/EMI immunity and meets CE compliance without requiring shielded conduits or metal housings.

Q8: Are any special tools needed to install the connectors?
A8: No special tools are needed. The ClickLoc connectors are finger-tightened and feature a locking “click” mechanism to prevent loosening.
