Technical Specifications
| Parameter | Specification |
|---|---|

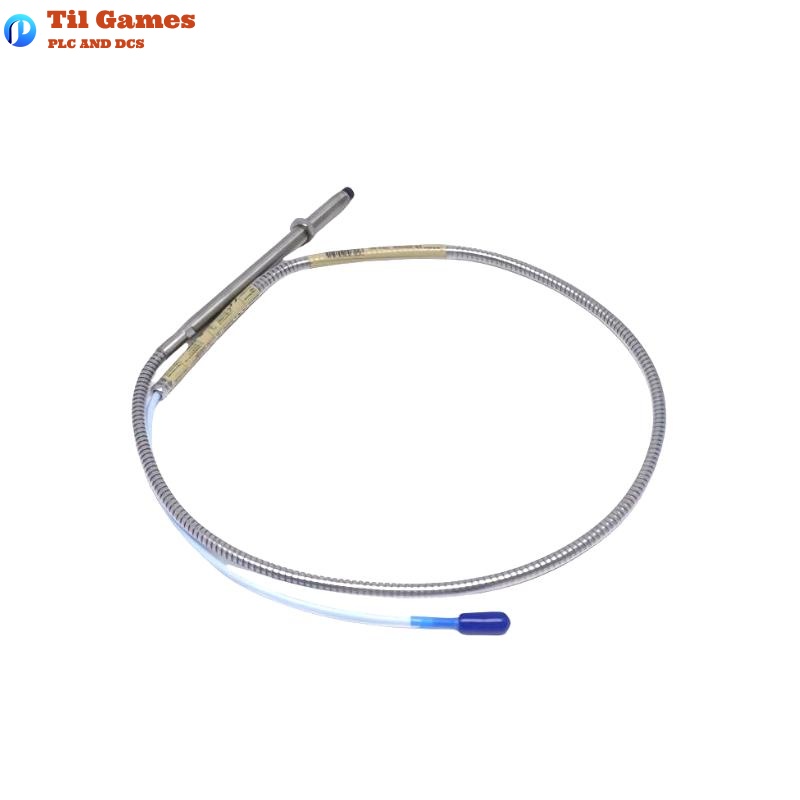

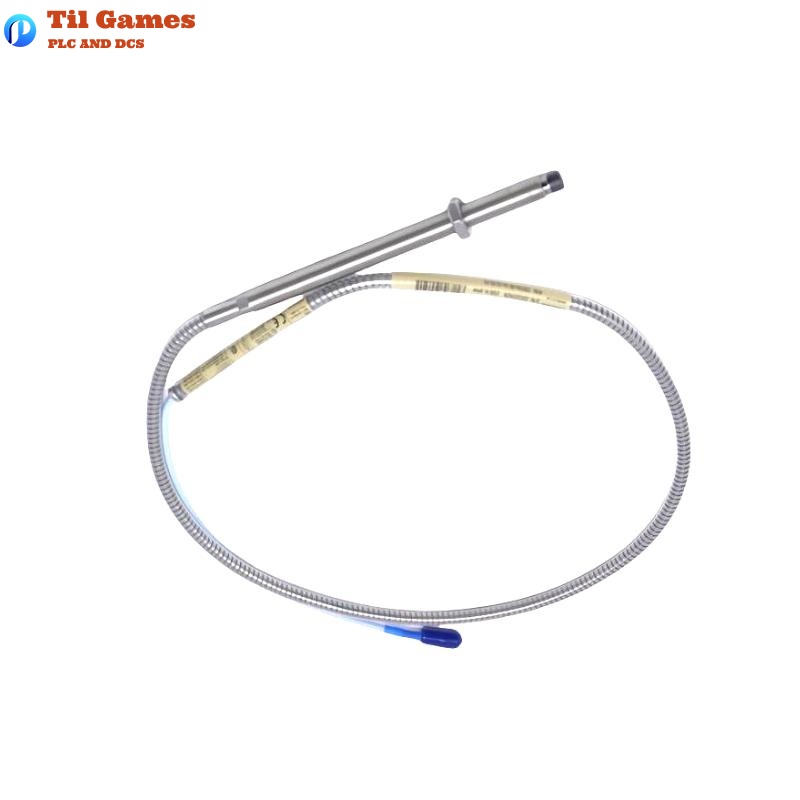

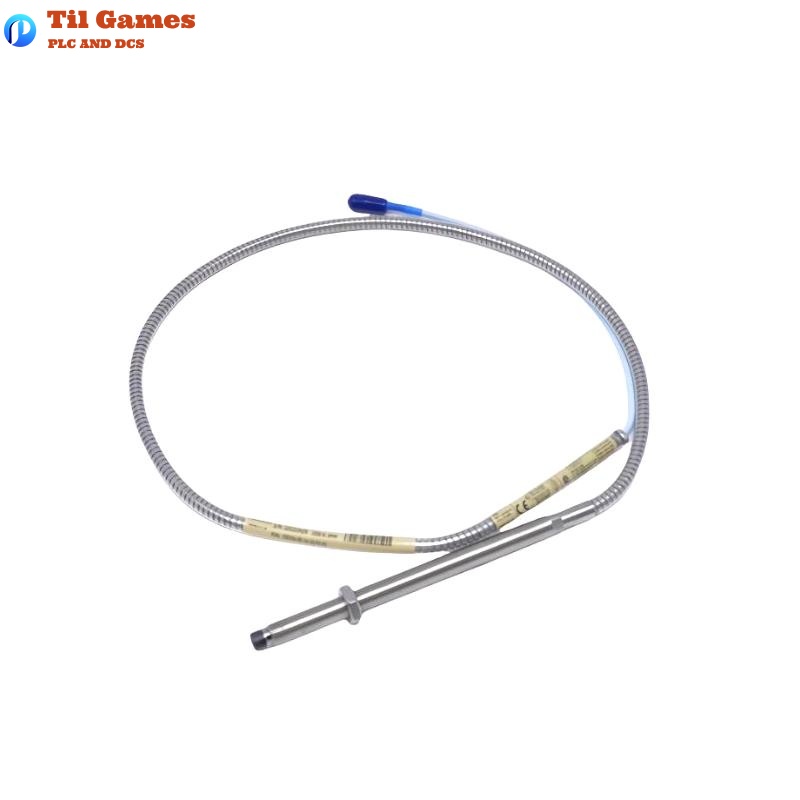

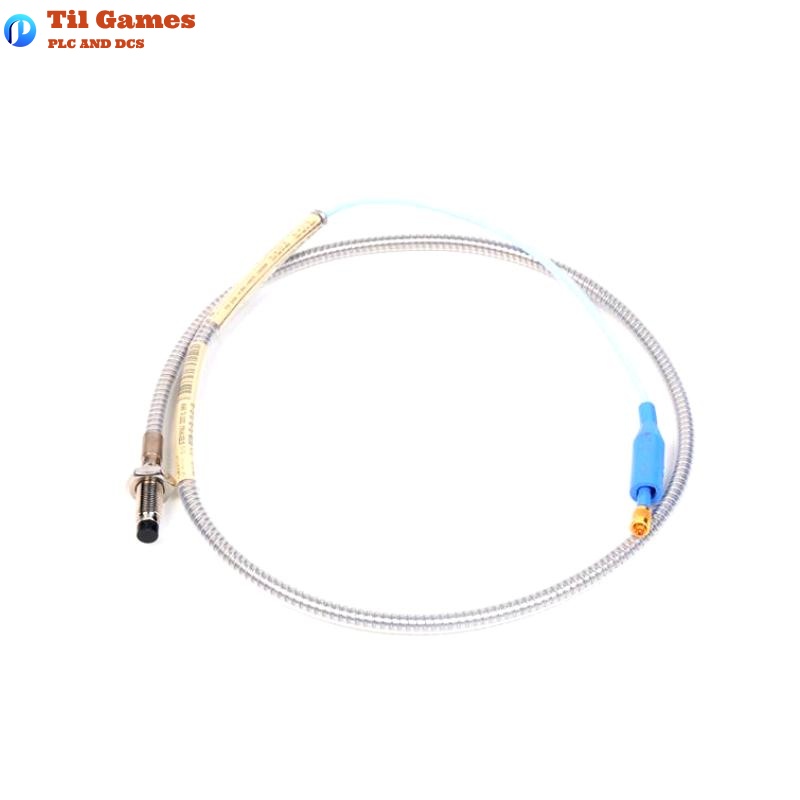

| Probe Model | 330104-00-08-05-02-00 |
| Probe Type | Non-contact eddy current probe, M10×1 thread |
| Probe Tip Diameter | 8 mm |
| Thread Engagement | 15 mm |
| Operating Gap Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils, corresponds to -9 VDC) |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (5-meter system) |
| Temperature Range | -52°C to +177°C |
| Cable Type | 75Ω triaxial cable, FEP insulated with ClickLoc |
| Pull Strength | 330 N (probe to lead), 270 N (lead to extension) |
| Power Supply | -17.5 VDC to -26 VDC |
| Output Impedance | 50 Ω |
| Probe Housing Material | 303 or 304 Stainless Steel; PPS probe tip |
| Cable Min. Bend Radius | 25.4 mm |
| Shaft Diameter | Min 50.8 mm; Recommended ≥76.2 mm |
| Min. Target Size | 15.2 mm diameter |
| Total System Length | 0.5 meter |
| Total Weight | 0.162 kg (probe with cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the probe comply with API 670 standard?
A1: Yes, the 3300 XL 8 mm system meets API 670 requirements for mechanical design, linear range, accuracy, and thermal stability.
Q2: Can this be mixed with non-XL series components?
A2: Yes, but system performance will default to the non-XL standard if mixed.
Q3: Is the probe suitable for high-temperature environments?
A3: Yes. The standard probe supports up to 177°C. For higher temperatures, ETR probes are available.
Q4: Are special tools required for installation?
A4: No special tools are needed. ClickLoc connectors are designed for finger-tight installation.
Q5: What is the maximum field wiring length supported?
A5: Up to 305 meters (1,000 feet) using shielded triad cable.
Q6: Does this model have hazardous area certifications?
A6: Yes. It includes CSA, ATEX, and IECEx certifications for use in hazardous environments.
Q7: Can this be used for Keyphasor or speed applications?
A7: Yes, but refer to Bently Nevada’s guidance on overspeed protection with eddy current probes.
Q8: Is the system protected against EMI/RFI interference?
A8: Yes, the Proximitor Sensor is engineered to resist electromagnetic interference and complies with CE requirements.
