Technical Specifications
| Parameter | Specification |
|---|---|

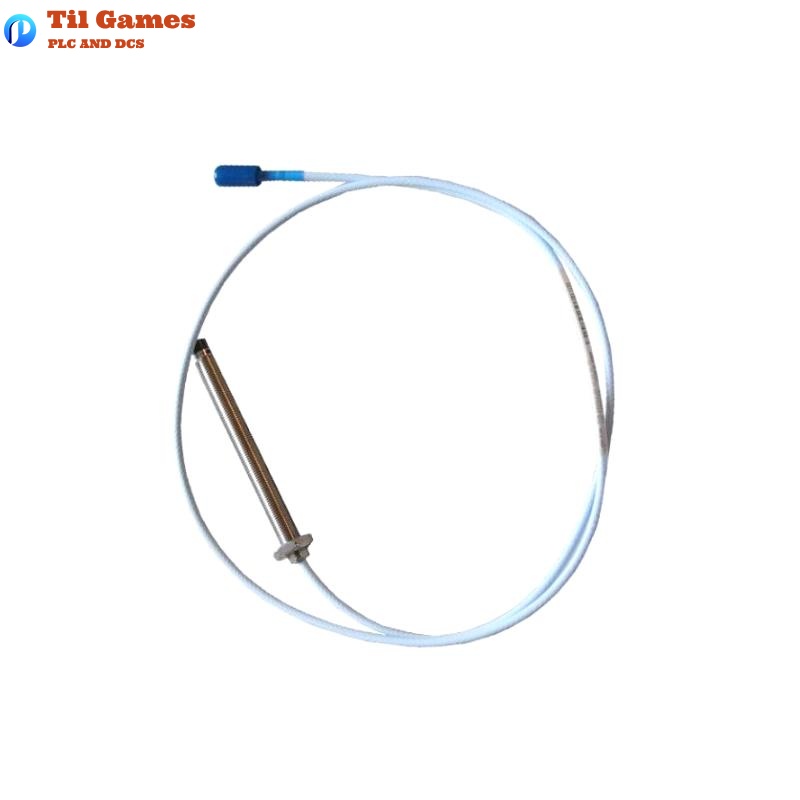

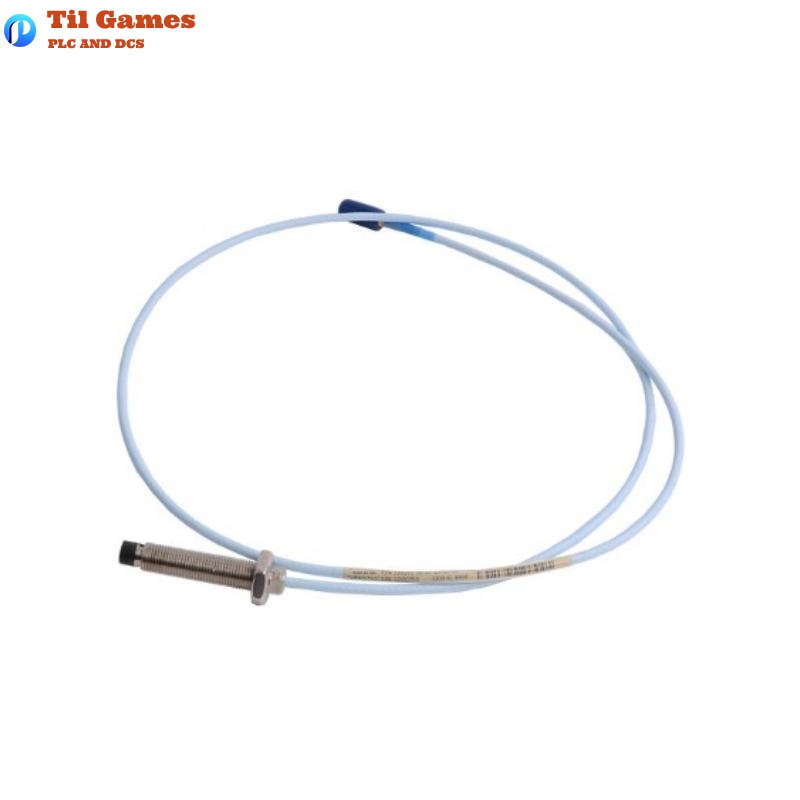

| Model | 330104-00-08-10-01-00 |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75 Ω triaxial FEP insulated coaxial |
| Cable Bend Radius | ≥25.4 mm |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), approx. -9 Vdc |
| Scale Factor | 7.87 V/mm ±5% (1 m & 5 m), ±6.5% (9 m system) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Min Target Size | 15.2 mm diameter |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Operating Temp (ETR Probe) | -52°C to +218°C (probe tip), up to +260°C (cable) |
| Humidity Resistance | <3% ASF change at 93% RH for 56 days |
| Probe Tensile Strength | 330 N (probe tip), 270 N (cable connector) |
| Compliance | API 670 compliant, CE, RoHS, FCC, ATEX, IECEx, SIL 2/3, ABS maritime certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the linear measurement range of the 330104-00-08-10-01-00 probe?
A1: The linear range is 2 mm, from 0.25 mm to 2.3 mm (10 to 90 mils).
Q2: Is the 3300 XL probe suitable for high-temperature environments?
A2: Yes. The standard probe supports up to +177°C. The ETR version supports up to +218°C at the probe tip.
Q3: What is the typical output scale factor?
A3: The scale factor is 7.87 V/mm (200 mV/mil) ±5% for 1 m and 5 m systems.
Q4: Can this probe be used interchangeably with other 3300 series components?
A4: Yes. It is fully backward compatible and interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q5: What type of cable is used with this probe?

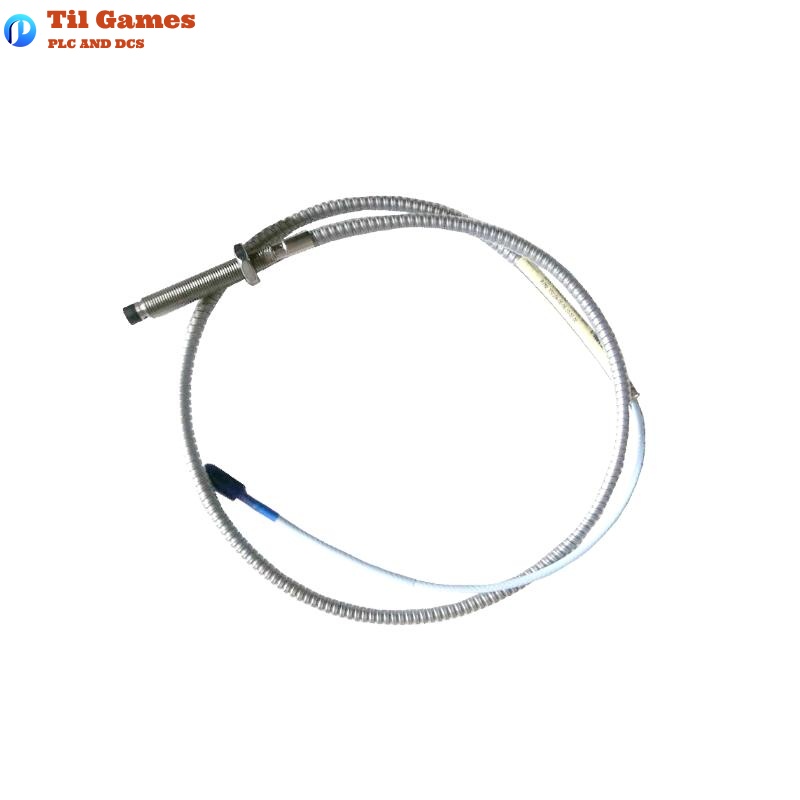

A5: A 75 Ω triaxial FEP-insulated cable, optionally with FluidLoc or armor.
Q6: Is the connector tool-less?
A6: Yes. It uses a ClickLoc gold-plated connector which tightens by hand and clicks when secure.
Q7: What environmental ratings does this probe have?
A7: It meets ATEX, IECEx, RoHS, CE, FCC, and API 670 standards, and supports hazardous area use.
Q8: What is the recommended shaft diameter for installation?
A8: Minimum shaft diameter is 50.8 mm; recommended is at least 76.2 mm for optimal accuracy.
