Technical Specifications
| Item | Specification |
|---|---|

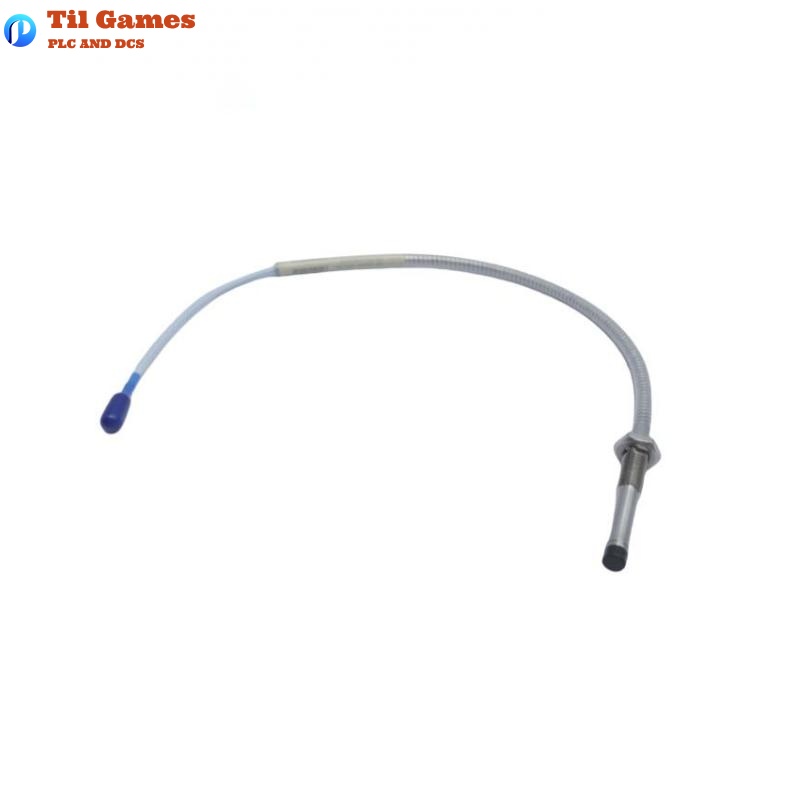

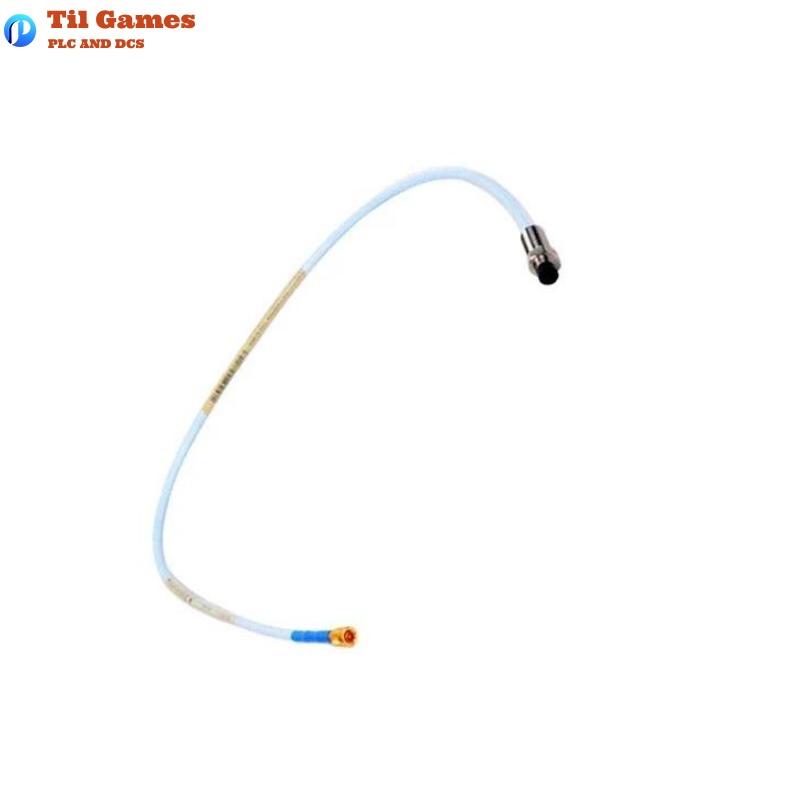

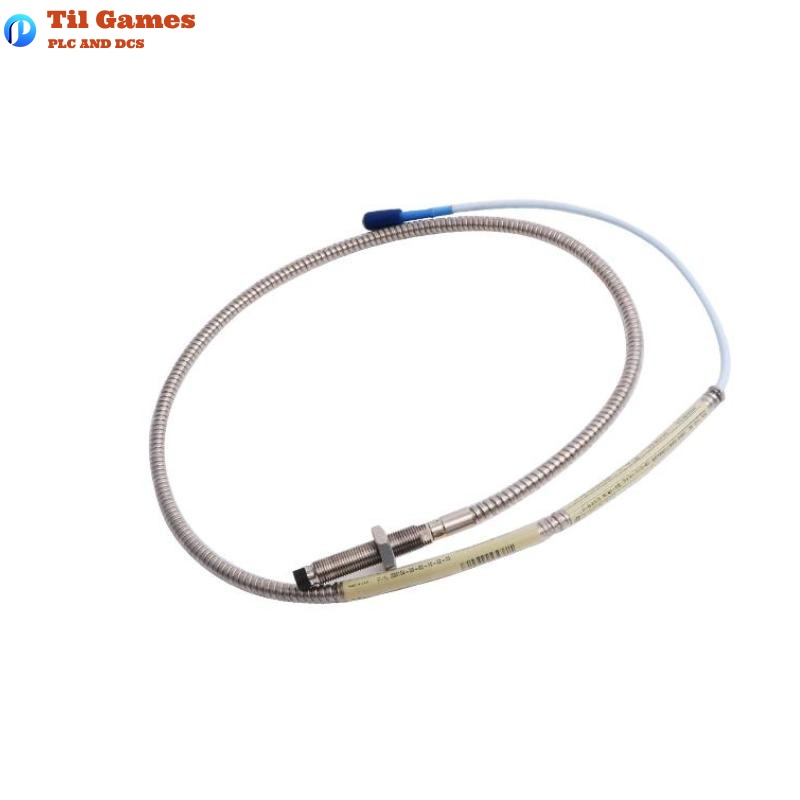

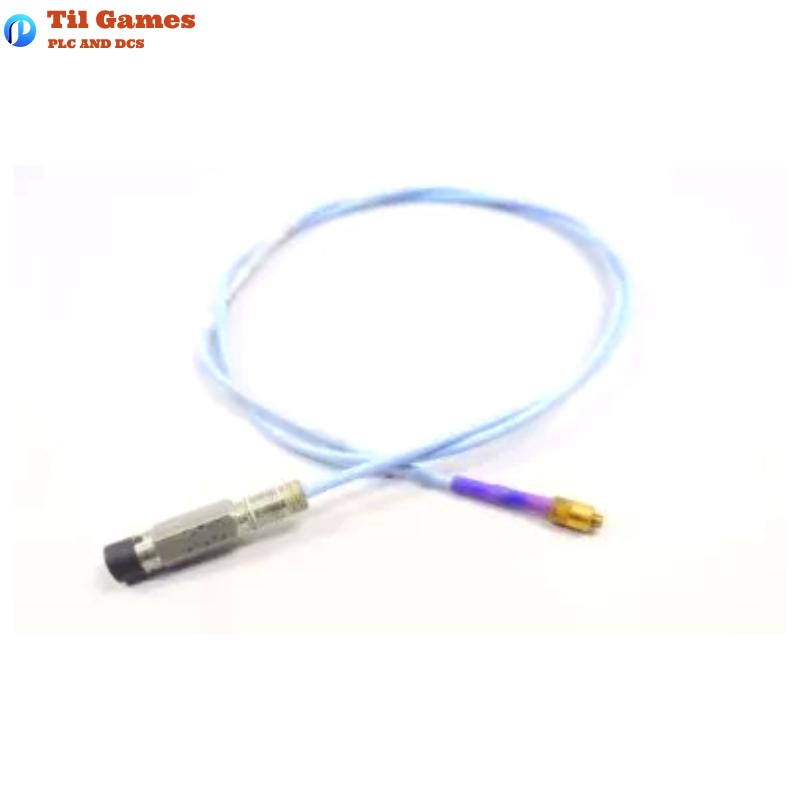

| Probe Type | 3300 XL 8 mm Proximity Probe (Armored) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (probe only, excluding extension cable and Proximitor) |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω Triaxial, FEP insulated |
| Operating Temperature | -52°C to +177°C |
| Minimum Bend Radius | 25.4 mm |
| Thread Type | M10 x 1 Metric Thread |
| Recommended Torque | 7.5 N·m (recommended) / 22.6 N·m (maximum) |
| Recommended Gap Setting | -9 VDC (approx. 1.27 mm / 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| ISF | 7.87 V/mm (200 mV/mil) ±5% (1-meter system) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Recommended Shaft Dia. | 76.2 mm (3 in) minimum |
| Proximitor Power Supply | -17.5 to -26 VDC, 12 mA typical |
| Output Resistance | 50 Ω |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of machinery is this probe used on?
A1: It is designed for fluid-film bearing machines such as turbines, compressors, and generators.
Q2: Is this probe interchangeable with other 3300-series components?
A2: Yes, it is both electrically and mechanically interchangeable with 3300 5 mm and 8 mm series parts.
Q3: Does the probe have corrosion protection?
A3: Yes, it uses gold-plated ClickLoc connectors for enhanced corrosion resistance and locking capability.
Q4: Is extended temperature operation supported?
A4: Yes, extended temperature (ETR) versions are available for up to 260°C.
Q5: Are any special tools required for connector installation?
A5: No, ClickLoc connectors are finger-tightened and provide a tactile “click” to indicate proper engagement.
Q6: What tensile strength does the probe assembly support?
A6: The probe can withstand up to 330 N pull strength between probe and cable.
Q7: Does cable length affect system accuracy?
A7: Within specified limits, accuracy is maintained. Do not exceed total recommended lengths (e.g., 9 m systems).
Q8: Are there international approvals for hazardous locations?
A8: Yes, the probe is certified for CSA, ATEX, and IECEx standards, supporting intrinsically safe and non-incendive zones.
