Technical Specifications
| Parameter | Description |
|---|---|

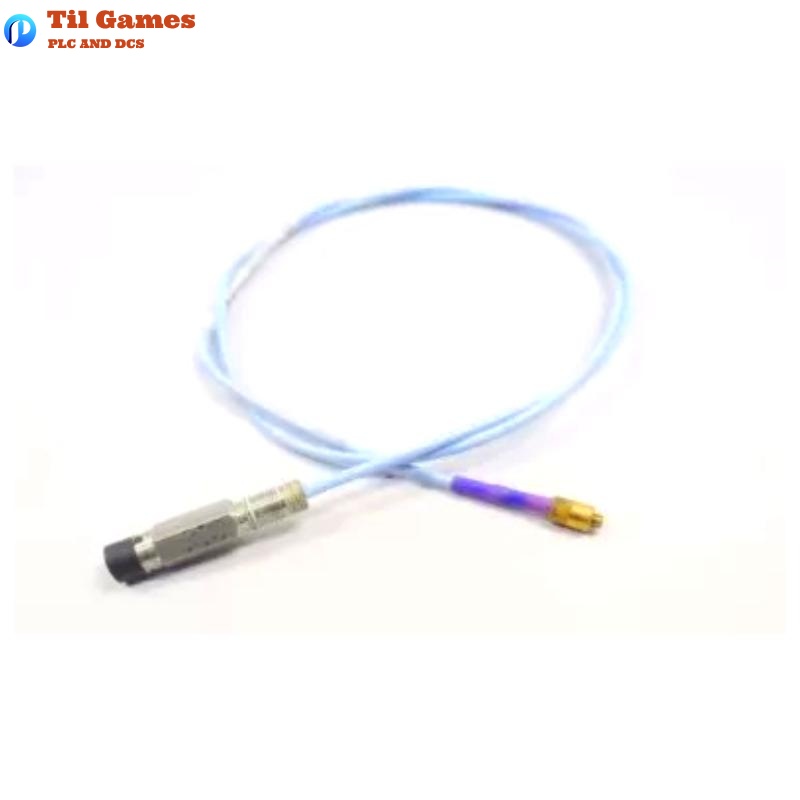

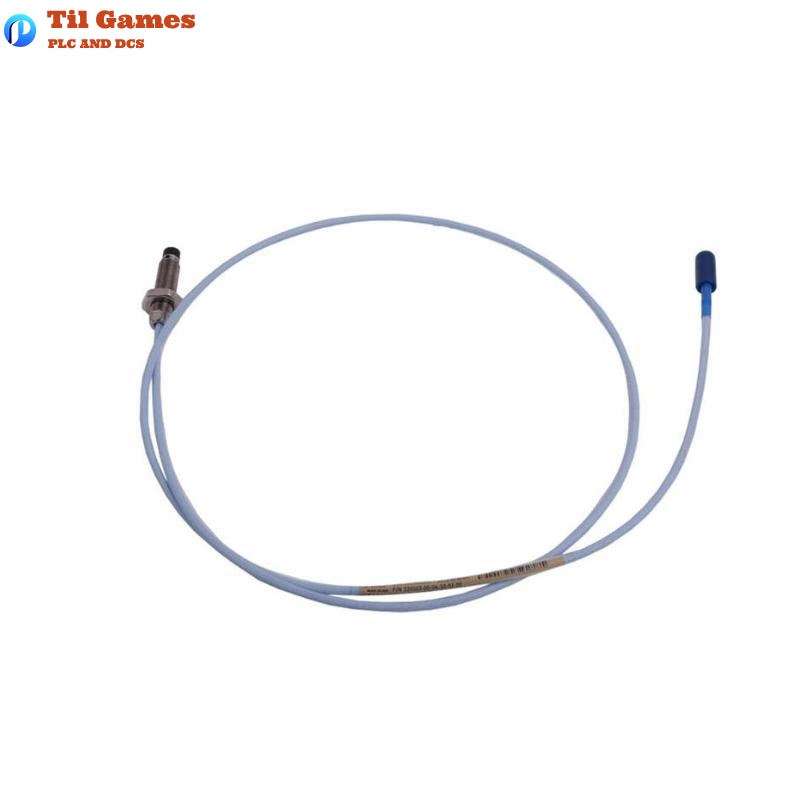

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Material | Case: AISI 304 stainless steel; Tip: PPS |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm |
| Operating Temperature | -52°C to +177°C (standard version) |
| Storage Temperature | -52°C to +177°C |
| Recommended Torque (M10) | Recommended: 7.5 N·m; Max: 22.6 N·m |
| Output Voltage | 7.87 V/mm (200 mV/mil), ±5% error (standard system) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Shaft Diameter | 50.8 mm; Recommended: 76.2 mm |
| Protection Rating | IP54 (when using connector protector) |
| Certifications | CSA, ATEX, IECEx; Ex ia and Ex nA certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum temperature rating of this probe?
A1: The standard version supports up to +177°C; the ETR version supports up to +218°C at the probe tip.
Q2: Does this model come with armored cable?

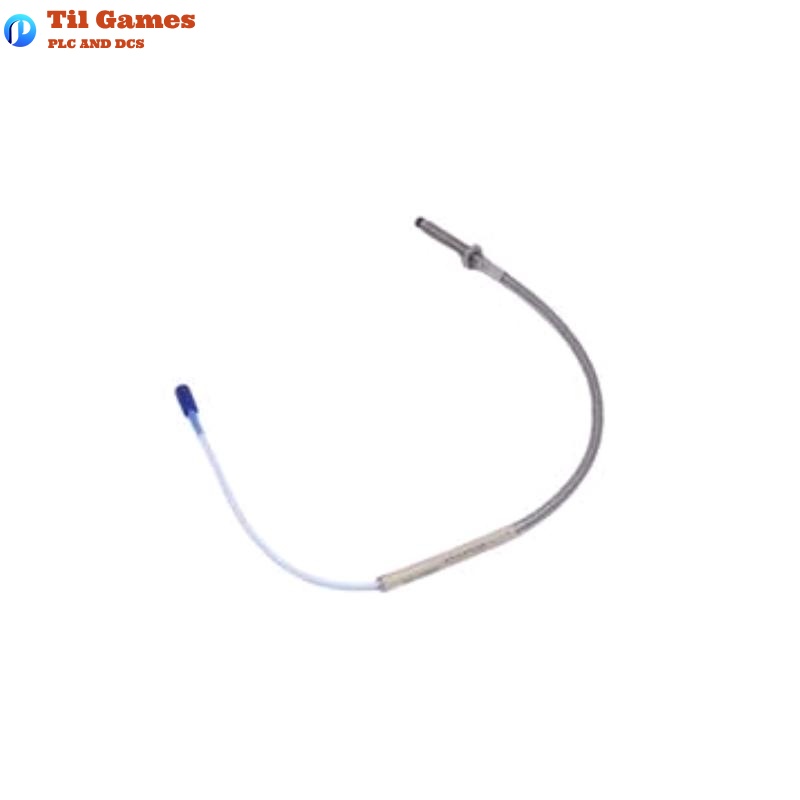

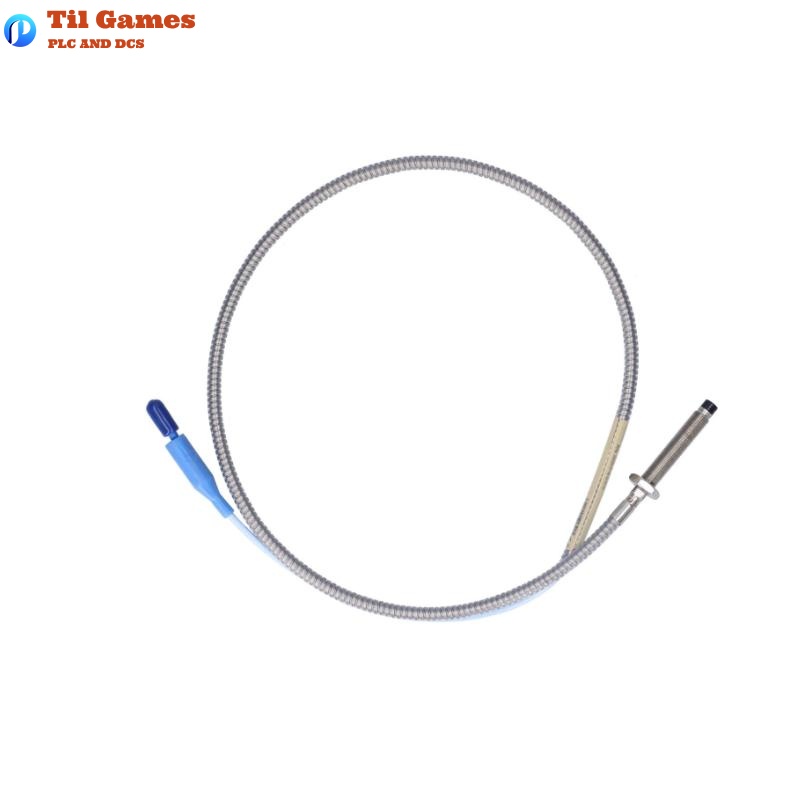

A2: Yes, the 330104-00-10-10-02-00 model includes armored cable configuration.
Q3: In what environments can this probe be used?
A3: It is certified for use in hazardous areas with CSA, ATEX, and IECEx approvals, suitable for Zone 0 and Zone 2.
Q4: Is this probe compliant with API 670?
A4: Yes, the 3300 XL 8 mm system fully complies with API 670 requirements for mechanical, linearity, accuracy, and temperature stability.
Q5: Can I mix this probe with non-XL series components?
A5: Yes, they are compatible, but the system accuracy will be limited to non-XL specifications.
Q6: Does it support fluid blocking features?
A6: It supports optional FluidLoc cables, but this specific model does not include that feature by default.
Q7: Are special tools required to connect the probe and extension cable?
A7: No special tools are needed; ClickLoc connectors are finger-tight and secure automatically.
Q8: What are the typical applications for this probe?
A8: It is ideal for displacement and vibration monitoring in turbines, compressors, motors, and other fluid-film bearing machinery.
