Technical Specifications
| Category | Specification |
|---|---|

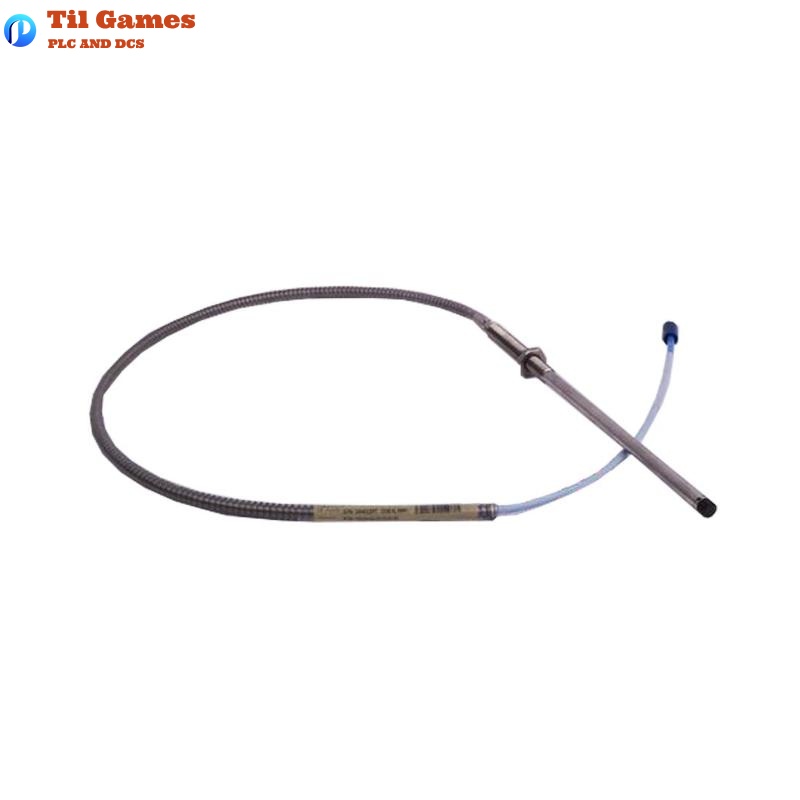

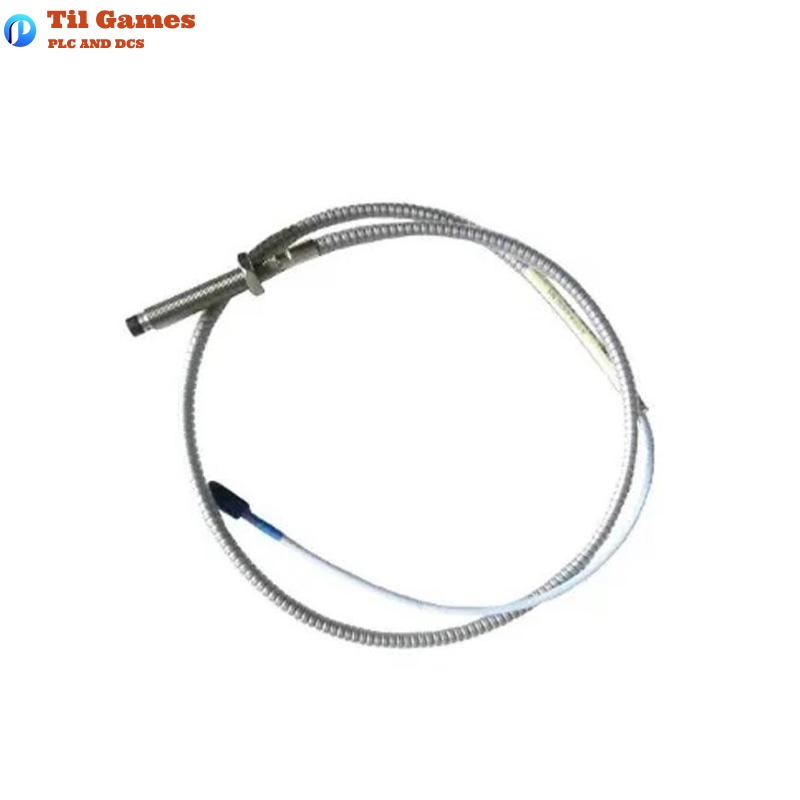

| Probe Model | 330104-00-15-10-01-CN (Armored, M10x1 thread) |
| Probe Tip Diameter | 8 mm |
| Housing Material | AISI 303 or 304 stainless steel |
| Tip Material | Polyphenylene sulfide (PPS) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tensile Strength | 330 N max (probe case to cable), 270 N at connector |
| Recommended Torque | 7.5 N·m (66 in·lbf) |
| Min Cable Bend Radius | 25.4 mm |
| Operating Temp | -52°C to +177°C (standard probe) |
| Storage Temp | -52°C to +177°C |
| Gap Voltage Setting | -9 VDC (~1.27 mm or 50 mils gap) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Accuracy | Within ±0.025 mm (±1 mil) for standard 1 m/5 m systems |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Min Target Size | 15.2 mm diameter (flat surface) |
| Min Shaft Diameter | 76.2 mm recommended |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Certifications | CSA, ATEX, IECEx, RoHS, FCC, SIL 2 (HFT=0), SIL 3 (HFT=1) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum operating temperature of the probe?
A1: The standard model supports up to +177°C; extended range models can reach +218°C.
Q2: Does the cable prevent oil leakage?
A2: Yes, when ordered with the optional FluidLoc cable, it prevents oil from migrating through the cable.
Q3: What is the linear measurement range of this probe?
A3: 0.25 mm to 2.3 mm (10 mils to 90 mils) is the recommended linear range.
Q4: Are the probe connections secure against loosening?
A4: Yes, the ClickLoc connectors have a locking mechanism that clicks into place, tool-free.
Q5: Is this probe compliant with API 670?
A5: Yes, the 3300 XL 8 mm system fully meets API 670 specifications for mechanical and linear performance.
Q6: What is the recommended installation method?
A6: The armored version with mounting bracket or nut is recommended to protect the cable from mechanical stress.
Q7: Is this probe backward compatible with previous generation systems?
A7: It is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems, though with reduced system performance.
Q8: What is the minimum distance between two probes to avoid crosstalk?
A8: For radial vibration, a minimum tip-to-tip spacing of 38 mm is recommended.
