Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330104-00-25-05-02-00 |

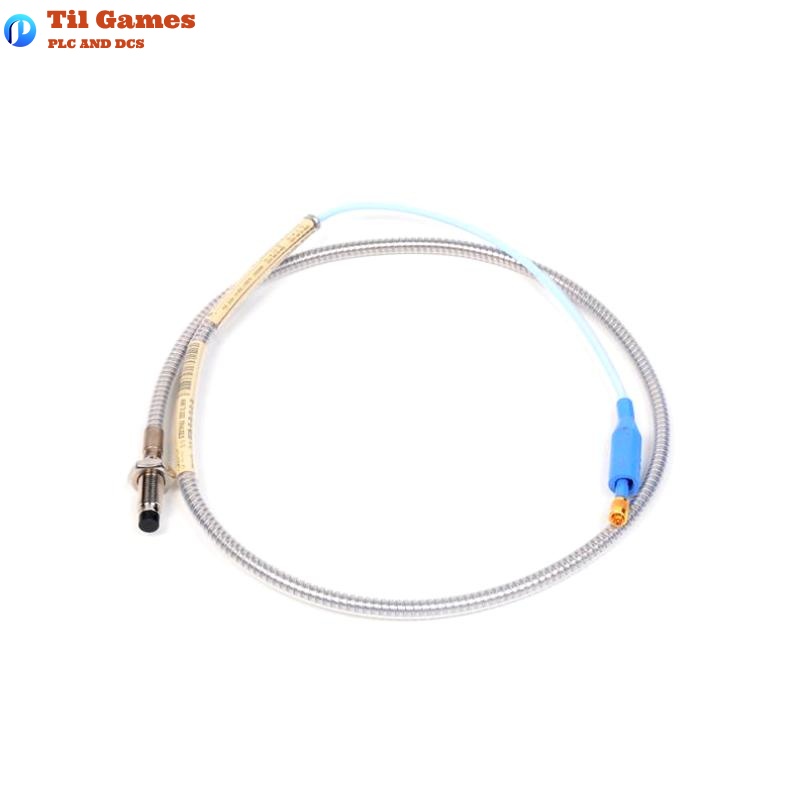

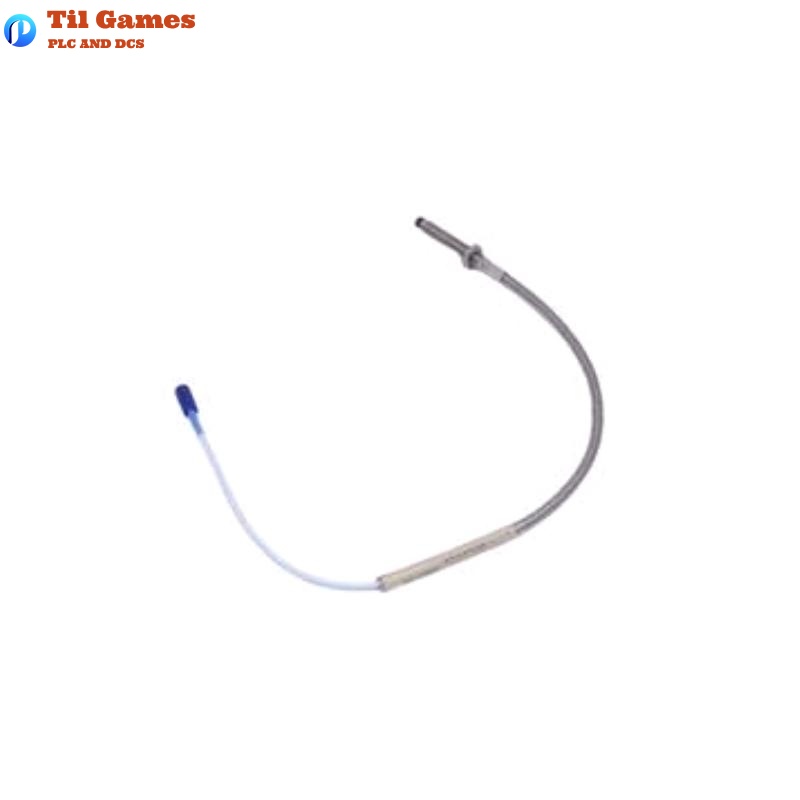

| Probe Type | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, armored |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Armor Material | Stainless Steel with FEP jacket |
| Operating Temperature (Standard) | –52°C to +177°C |
| Operating Temperature (Extended) | Up to +218°C for probe tip, +260°C for cable |
| Pressure Seal | Viton® O-ring, not pressure-tested by default |
| Minimum Cable Bend Radius | 25.4 mm |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Scale Factor | 7.87 V/mm ±5% (standard system), ±6.5% (9 m or ETR system) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Probe Torque – Forward Mount | Max 33.9 N•m, Recommended 11.2 N•m |
| Connector Type | Miniature ClickLoc, gold-plated brass/beryllium copper |
| Certification | CSA, ATEX, IECEx |
FAQ
FAQ (Q&A Format)
Q1: What is the total length and weight of the 330104-00-25-05-02-00 probe?
A1: The total length is 0.5 meter and the weight is approximately 0.162 kg.
Q2: What is the recommended gap setting for vibration measurements?
A2: The recommended gap setting is approximately 1.27 mm (50 mils).
Q3: What materials are used in the construction of the probe tip and case?
A3: The probe tip is made of PPS (Polyphenylene Sulfide), and the case is stainless steel (AISI 303 or 304).
Q4: What is the operational temperature range for this probe?
A4: The standard operating temperature is –52°C to +177°C; extended temperature probe tips can reach +218°C, and cables can reach +260°C.
Q5: Does this probe provide pressure sealing?
A5: Yes, it uses a Viton® O-ring for sealing but is not pressure-tested by default.
Q6: What is the minimum bend radius for the cable?
A6: The minimum bend radius is 25.4 mm (1.0 inch).
Q7: Is the probe certified for hazardous environments?
A7: Yes, it carries CSA, ATEX, and IECEx certifications for hazardous area use.
Q8: Are the connectors tool-free and secure?
A8: Yes, the gold-plated ClickLoc connectors are designed for finger-tight installation and include a locking feature.
