Technical Specifications
| Parameter | Specification |
|---|---|

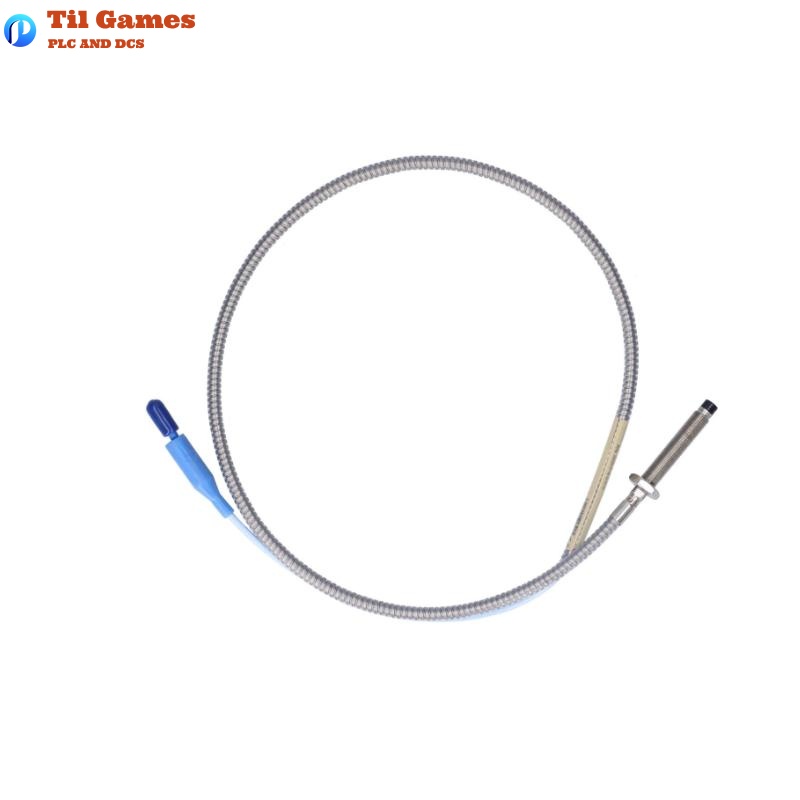

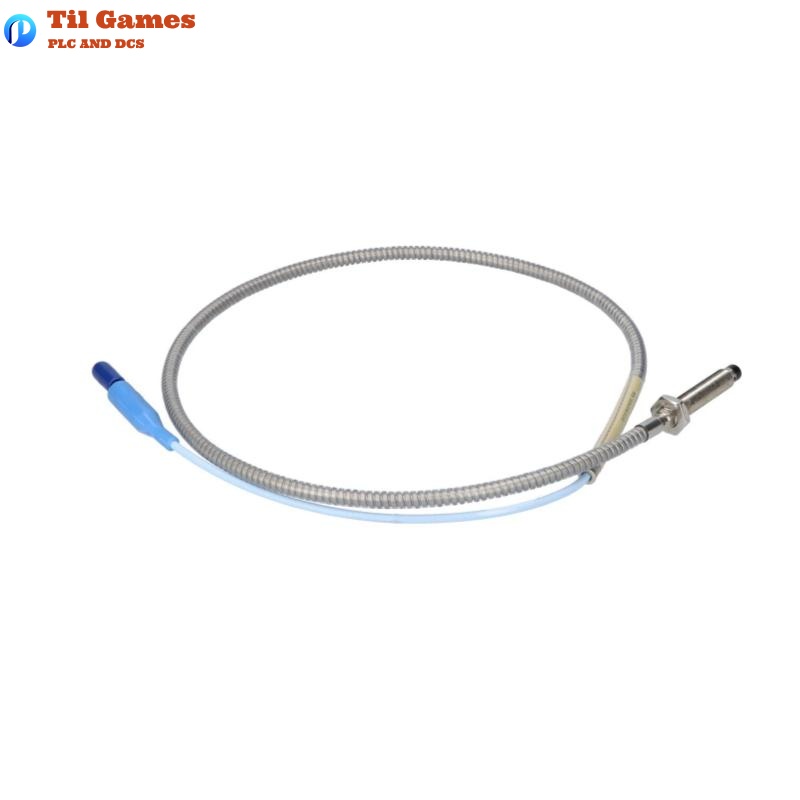

| Model Number | 330104-00-25-10-02-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulation |
| Cable Length | 1.0 meter |
| Total System Length | 1.0 meter |
| Weight | 0.323 kg |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature Range | -52°C to +177°C (Standard); up to +218°C with ETR option |
| Pressure Rating | Differential pressure sealed with Viton O-ring |
| Recommended Gap Voltage | -9 Vdc (≈1.27 mm gap) |
| Linear Range | 0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% (for 1 m systems) |
| DSL (Deviation from Straight Line) | < ±0.025 mm (1 mil) |
| RFI/EMI Immunity | High; compliant with CE without shielded conduit |
| Mounting Torque (Recommended) | 7.5 N•m (66 in•lbf) reverse mount |
| Probe Output | Proportional voltage (–1 to –17 Vdc) |
| Connector Type | Miniature coaxial ClickLoc (gold-plated) |
FAQ
FAQ – Bently Nevada 330104-00-25-10-02-05
Q1: What is the primary function of this proximity probe?
A1: It measures shaft vibration and position in rotating machinery.
Q2: What is the total length and weight of this model?
A2: Total length is 1.0 meter; weight is approximately 0.323 kg.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, standard version supports up to +177°C, and the ETR version up to +218°C.
Q4: Is it compatible with non-XL 3300 series components?
A4: Yes, it is physically and electrically interchangeable with non-XL 3300 series 8 mm components.
Q5: Does the probe come with a connector protector?
A5: Yes, the 02 option includes a standard cable with a miniature ClickLoc connector.
Q6: What is the linear measurement range of this probe?
A6: The linear range is 0.25 mm to 2.3 mm.
Q7: What kind of material is used for the probe case?
A7: The case is made of stainless steel (AISI 303 or 304).
Q8: What is the recommended gap setting during installation?
A8: Approximately 1.27 mm (50 mils), corresponding to –9 Vdc output.
