Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-05-10-10-02-05 |

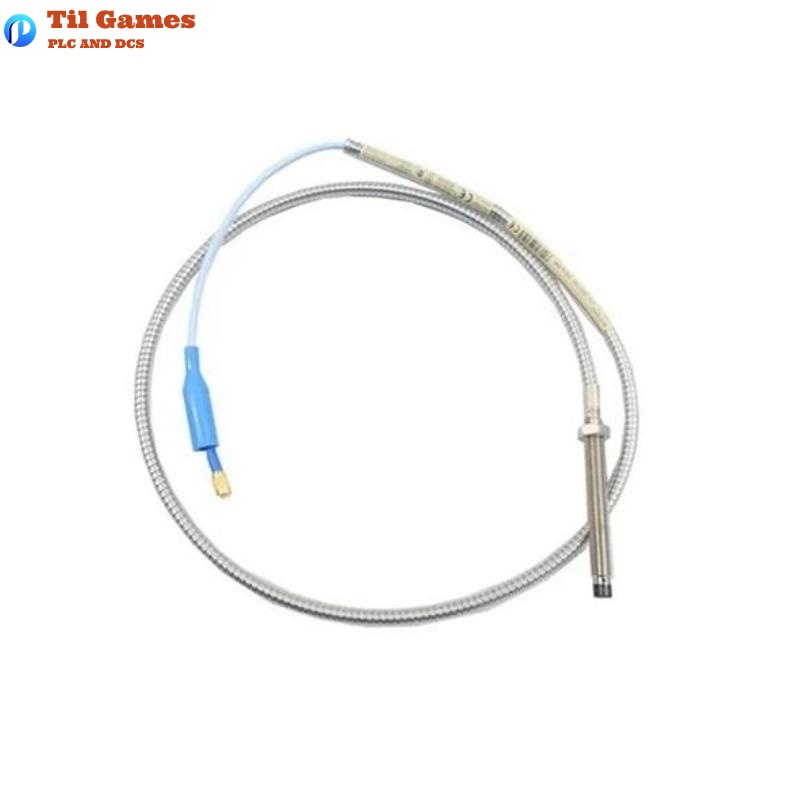

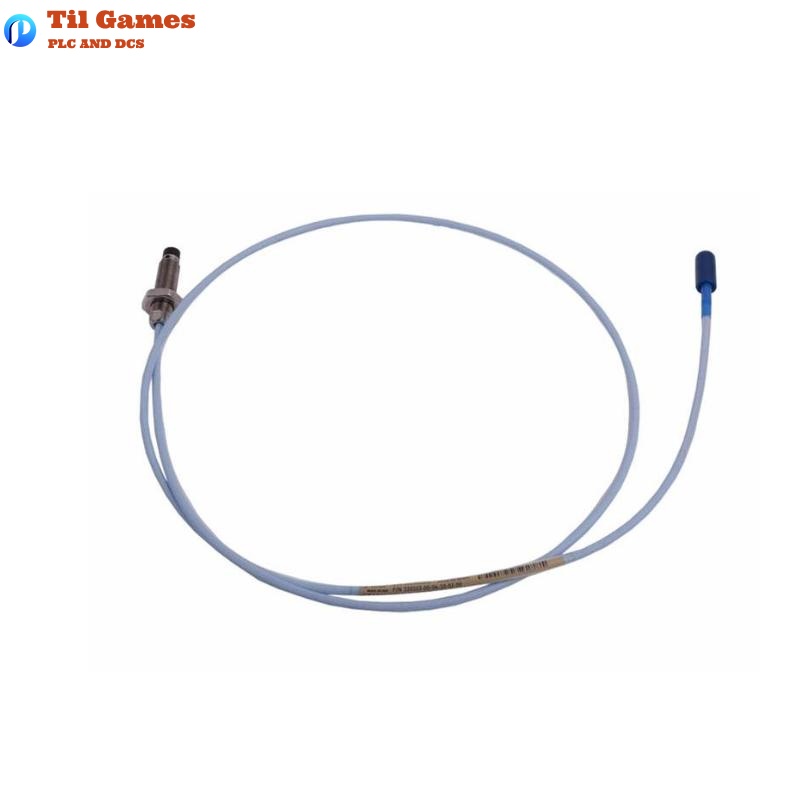

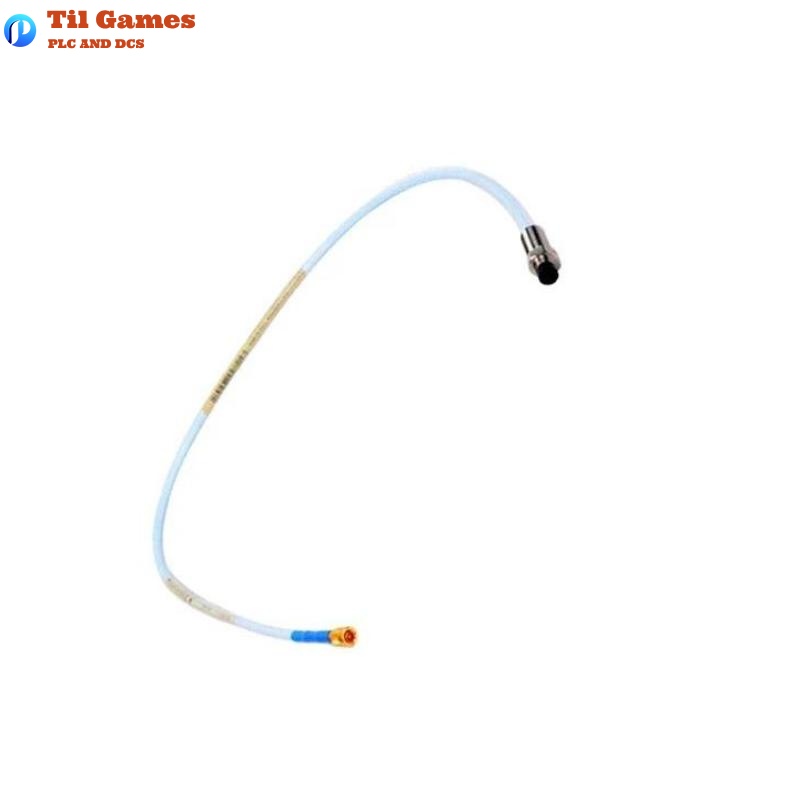

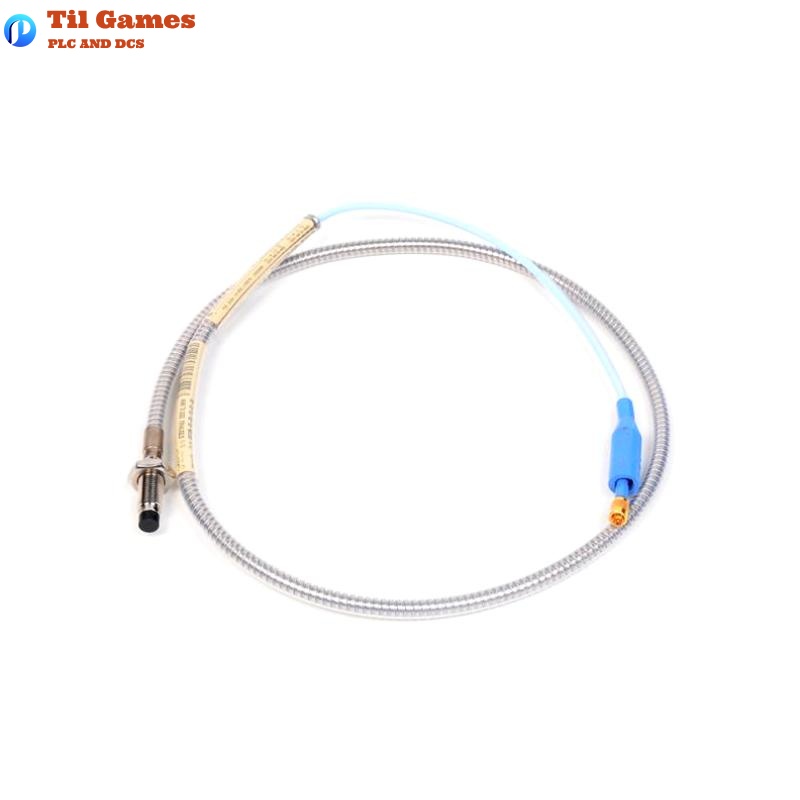

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 × 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated cable |
| Cable Pull Strength | 330 N (75 lbf) at probe case to lead |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Operating Temperature (Probe) | –52°C to +177°C |
| Storage Temperature (Probe) | –52°C to +177°C |
| Operating Temperature (Proximitor) | –52°C to +100°C |
| Storage Temperature (Proximitor) | –52°C to +105°C |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap | –9 Vdc ≈ 1.27 mm (50 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (1 m system) |
| Frequency Response | 0–10 kHz (+0, –3 dB) |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Probe Seal | Viton® O-ring |
| Minimum Bend Radius (Cable) | 25.4 mm (1 in) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What material is used for the 330104 probe tip?
A1: The tip is made from Polyphenylene sulfide (PPS), offering high durability in industrial environments.
Q2: What is the total length and weight of the 330104-05-10-10-02-05 model?
A2: The total length is 1.0 meter and the weight is approximately 0.323 kg.
Q3: What is the typical scale factor of this proximity probe system?
A3: For the 1-meter system, the scale factor is 7.87 V/mm (200 mV/mil) ±5%.
Q4: Is this probe compatible with non-XL 3300 systems?
A4: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm components.
Q5: What is the recommended shaft size for accurate measurement?
A5: Shaft diameters of at least 76.2 mm (3 in) are recommended to minimize scale factor deviation.
Q6: What is the operating temperature range for the probe?
A6: The standard probe operates from –52°C to +177°C.
Q7: Is the connector tool-free for installation?
A7: Yes, the ClickLoc connectors are finger-tightened and require no tools.
Q8: Does this model meet API 670 standards?
A8: Yes, the 3300 XL 8 mm system is fully compliant with API 670 mechanical and performance standards.
