Technical Specifications
| Parameter Category | Technical Specification |
|---|---|

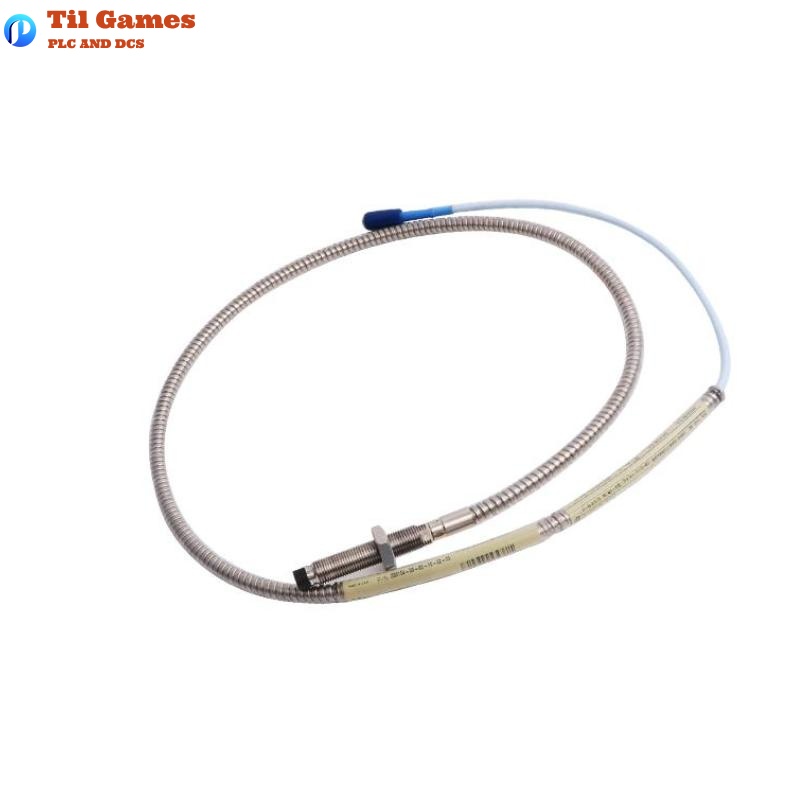

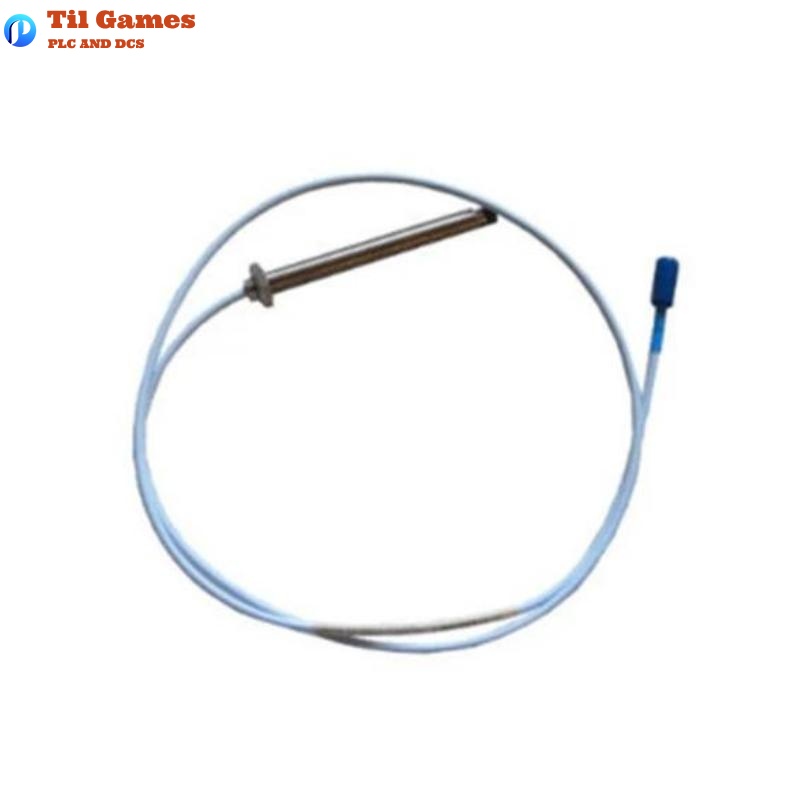

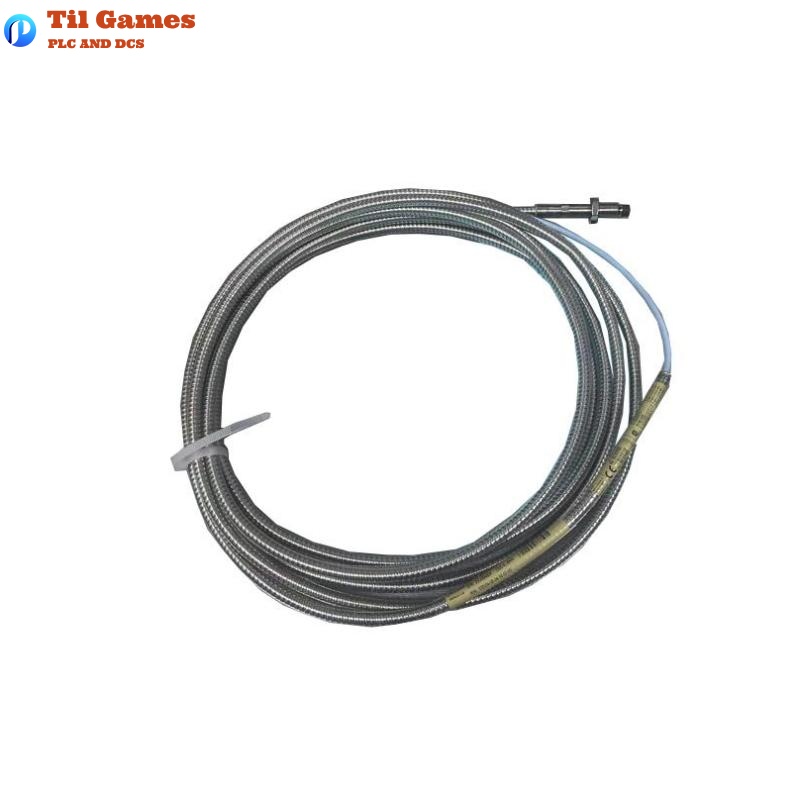

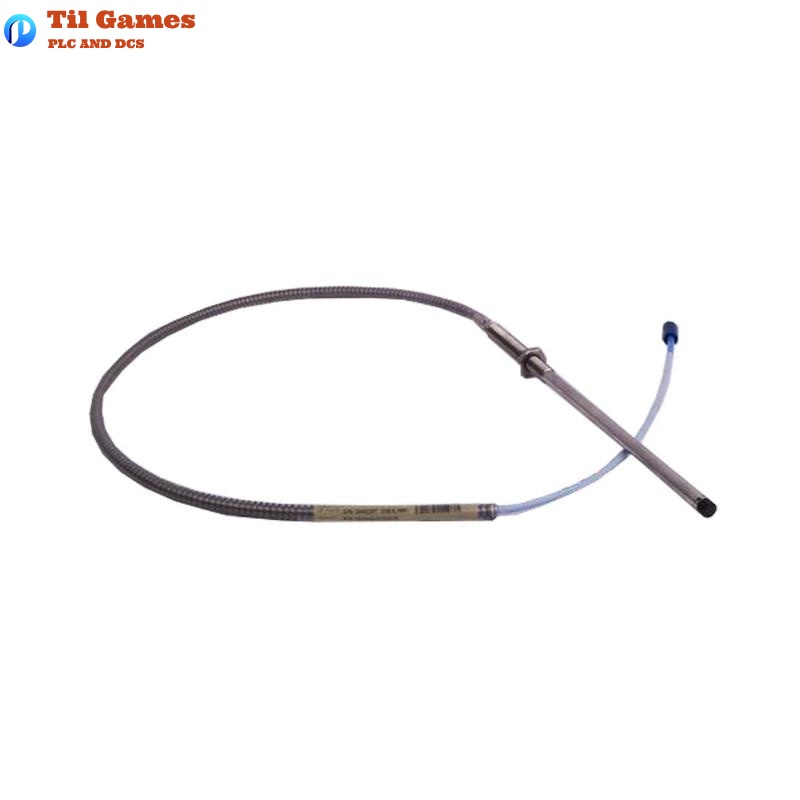

| Probe Model | Bently Nevada 330104-06-12-10-02-00 |
| Type | 3300 XL 8 mm Proximity Probe with armor, M10 x 1 thread |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Diameter | 8 mm |
| Probe Material | PPS tip, 303/304 stainless steel case |
| Cable Type | 75Ω triaxial FEP-insulated cable with ClickLoc connectors |
| Recommended Torque | 7.5 N·m (66 in·lbf) |
| Temperature Range | -52°C to +177°C (standard); up to +218°C for ETR probe tip |
| Linear Range | 0.25 mm to 2.3 mm (approx. –1 to –17 VDC output) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB, with up to 305 meters of field wiring |
| Tensile Strength | 330 N (75 lbf) probe to cable |
| Mounting Environment | Suitable for DIN rail or panel mount; optimized for EMI/RFI immunity |
FAQ
Frequently Asked Questions (FAQ)
Q1: What measurements can this probe perform?
A1: It measures both static position and dynamic vibration, ideal for fluid-film bearing machines.
Q2: Does it need to be paired with specific cables or Proximitor sensors?
A2: Yes, use with 3300 XL extension cables and Proximitor sensors is recommended for optimal performance.
Q3: What is the maximum operating temperature supported?
A3: Standard version supports up to +177°C, and ETR variant supports up to +218°C at the probe tip.
Q4: Does it comply with API 670 standards?
A4: Yes, the standard 5-meter system fully meets API 670 specifications for configuration and performance.
Q5: Can this probe be used in high-EMI environments?
A5: Yes, it has improved RFI/EMI immunity and is CE certified for use without shielded conduits.
Q6: Is environmental protection needed for the cable connections?
A6: Use of connector protectors is recommended, and some versions come pre-installed.
Q7: Is this probe suitable for compact installation spaces?
A7: Yes, the M10 x 1 thread design is well-suited for installations with limited space.
Q8: Can this model be reverse-mounted?
A8: No, this model is designed for standard mounting. For reverse mounting, use model 330105 or 330106.
