Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-08-15-10-02 |

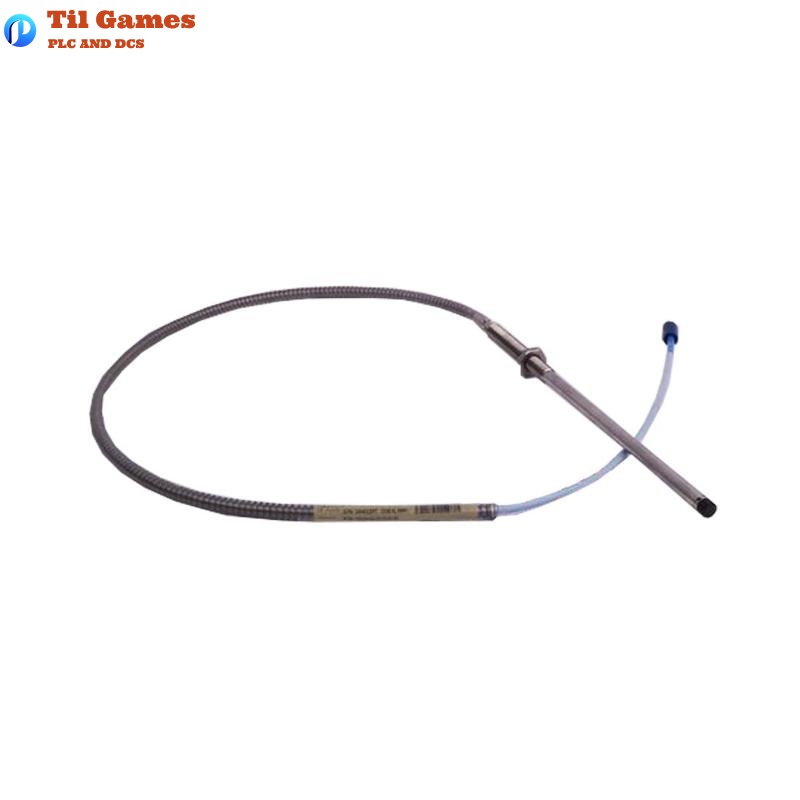

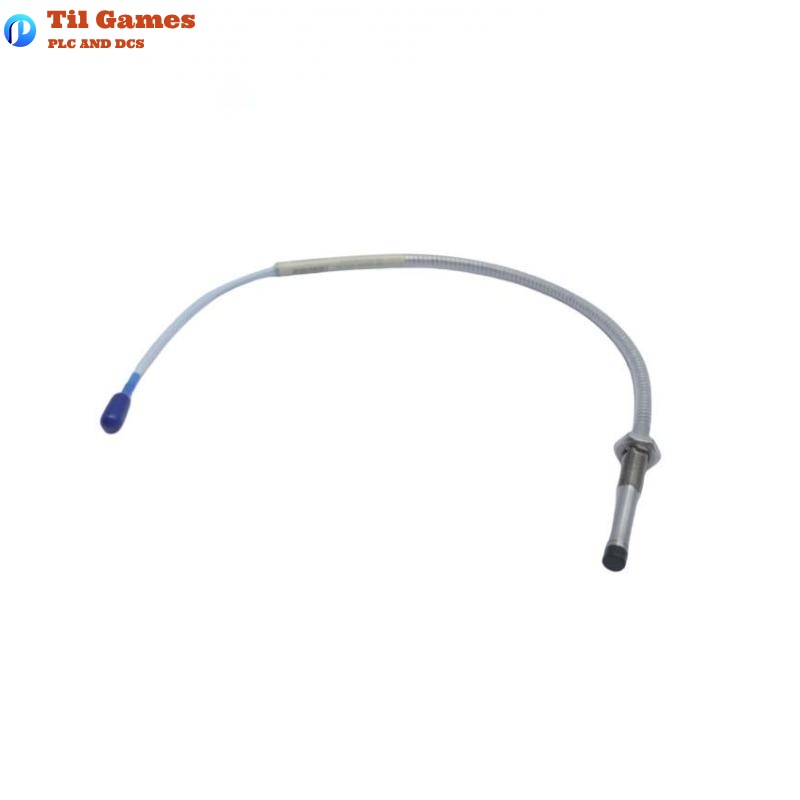

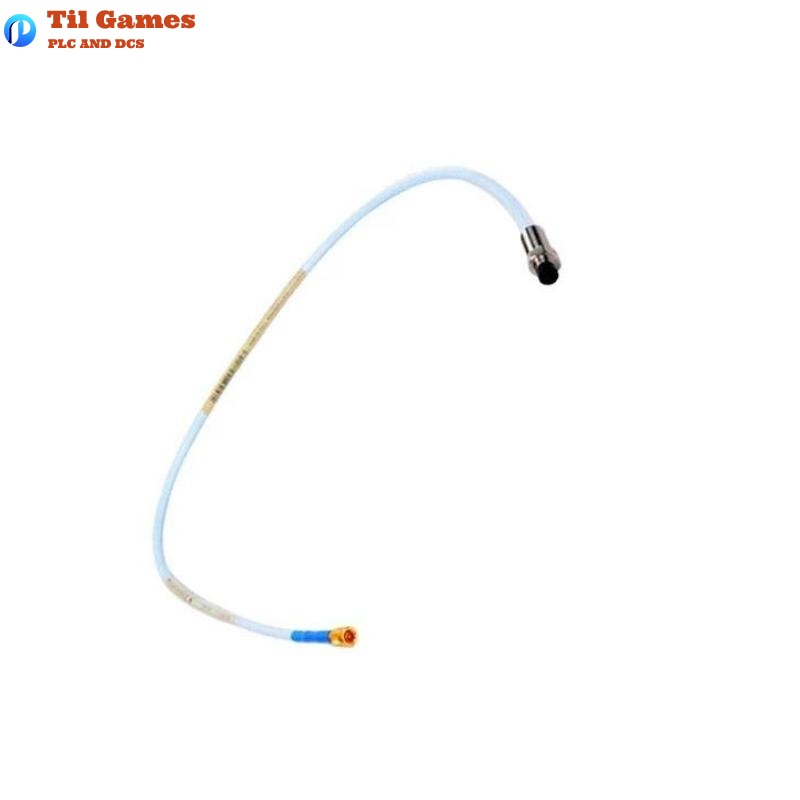

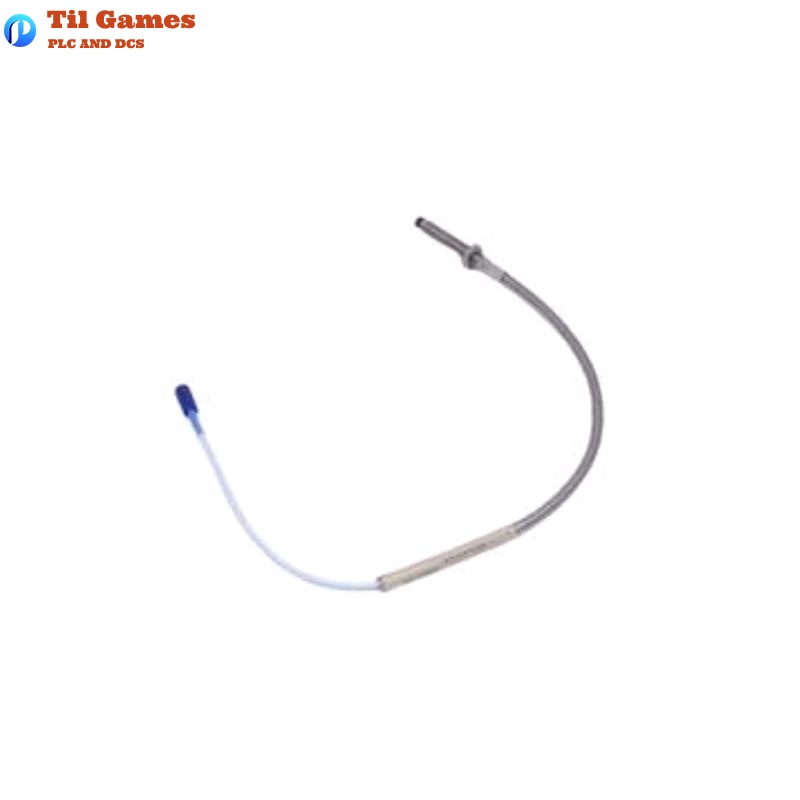

| Probe Type | 3300 XL 8 mm Proximity Probe (M10x1 Thread, Armored) |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Thread Size | M10 x 1 |
| Unthreaded Length | 8 mm (code 08) |
| Case Length | 15 mm (code 15) |
| Cable Type | Standard FEP triaxial with ClickLoc connector |
| Armor Type | Yes, armored cable |
| Connector | Miniature coaxial ClickLoc connector |
| Recommended Mounting Torque | 7.5 N·m (reverse) or 11.2 N·m (forward) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm) |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Operating Temp (Armored Cable) | -52°C to +177°C |
| Tensile Strength | 330 N (probe to cable), 270 N (cable connector) |
| Minimum Bend Radius | 25.4 mm |
| Minimum Target Size | 15.2 mm flat conductive surface |
| Recommended Shaft Diameter | ≥76.2 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the total length of this probe?
A1: The total length of 330104-08-15-10-02 is 1.0 meter, including the probe and integrated cable.
Q2: What is the function of the armor on the cable?
A2: The armored cable provides enhanced mechanical protection against abrasion, fluid ingress, and EMI.
Q3: Is calibration required before installation?
A3: No. All 3300 XL series components are factory pre-calibrated and fully interchangeable.
Q4: Is this probe suitable for high-temperature environments?
A4: Yes, it supports up to +177°C. For even higher temperatures, the ETR version should be selected.
Q5: Do I need any tools to install the connectors?
A5: No tools are required. ClickLoc connectors are finger-tightened and click to confirm locking.
Q6: Is this model suitable for compact installations?
A6: Yes. With its M10 x 1 thread, it’s ideal for limited-space applications compared to 3/8-24 threads.
Q7: What shaft diameter is recommended for this probe?
A7: A minimum shaft diameter of 76.2 mm is recommended to ensure measurement accuracy.
Q8: Does this probe meet API 670 requirements?
A8: Yes, it conforms to API 670 standards in terms of mechanical structure, linearity, and thermal stability.
