Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Type | 75Ω triaxial, fluoroethylene propylene (FEP) |
| Extension Cable | 75Ω triaxial, perfluoroalkoxy (PFA) for extended temperature range |
| Total Length | 1.5 meter (4.9 feet) |
| Weight | 0.485 kg (1.07 lb) |
| Maximum Probe Length | 9 meters (29.5 feet) |
| Cable Bend Radius | 25.4 mm (1.0 in) |
| Resistance (Probe) | 7.73 ± 0.50 Ω for 1.5 meter length |
| Resistance (Extension Cable) | 0.66 ± 0.10 Ω for 3-meter extension cable |
| Connector Type | Gold-plated ClickLoc connectors |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | -52°C to +105°C (-62°F to +221°F) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat target) |
| Shaft Diameter | Minimum: 50.8 mm (2 in), Recommended: 76.2 mm (3 in) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Linear Range | 2 mm (80 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% |
| Deviation from Best Fit Line | Less than ±0.025 mm (±1 mil) |
FAQ
FAQ

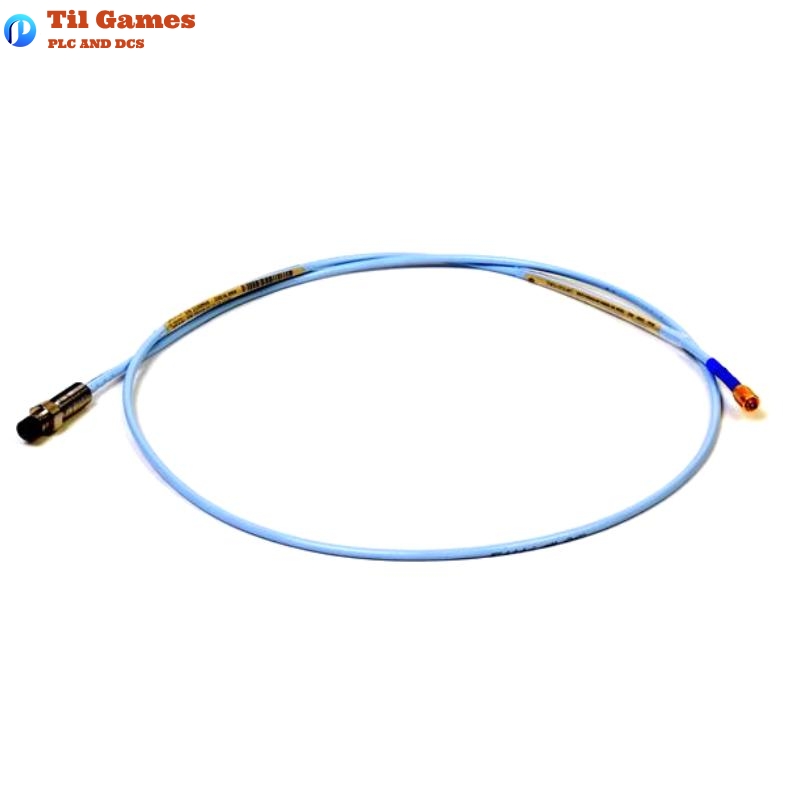

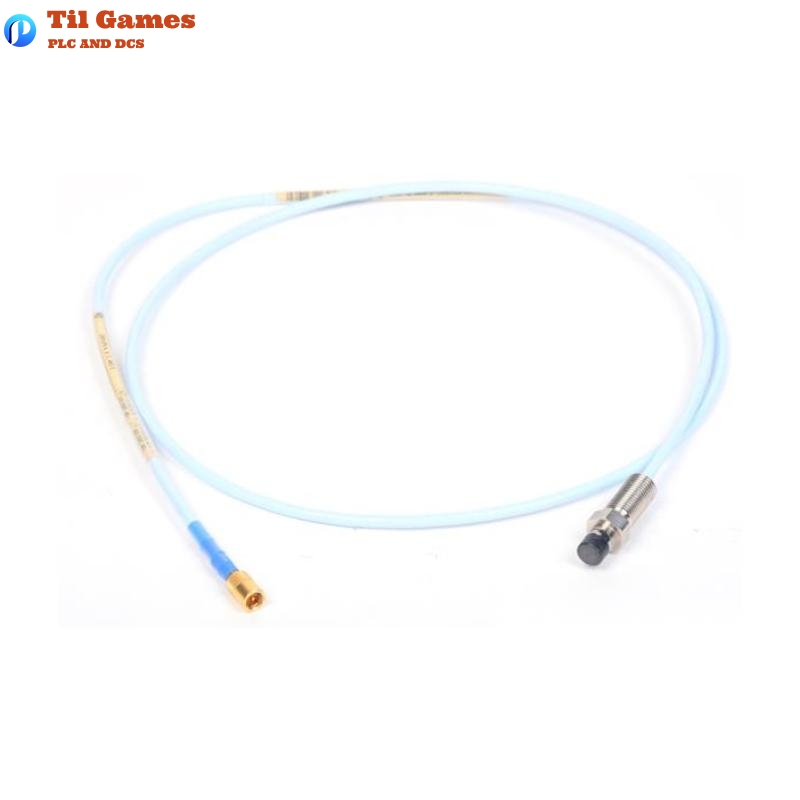

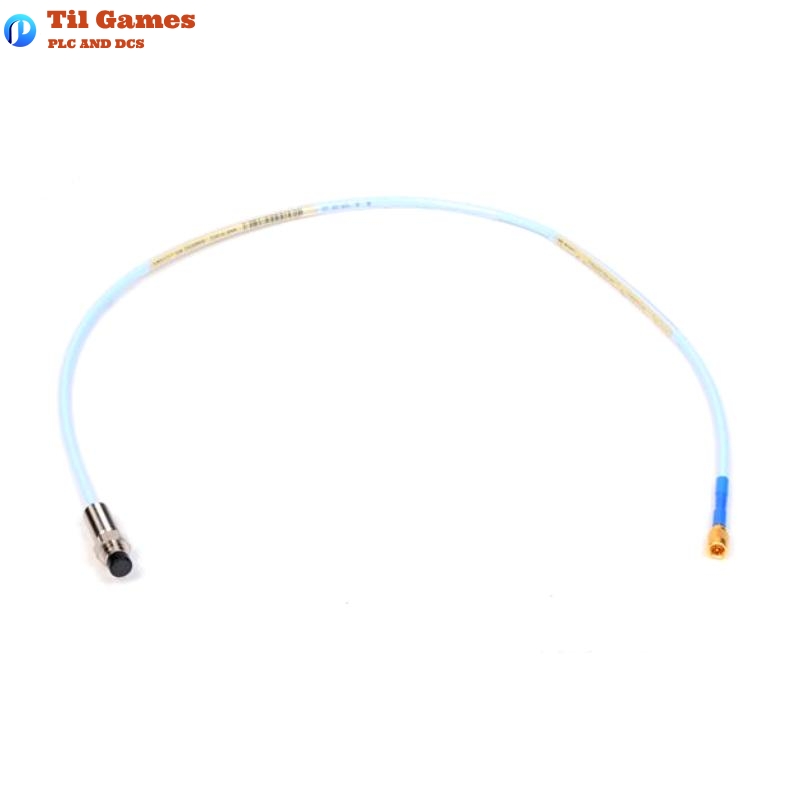

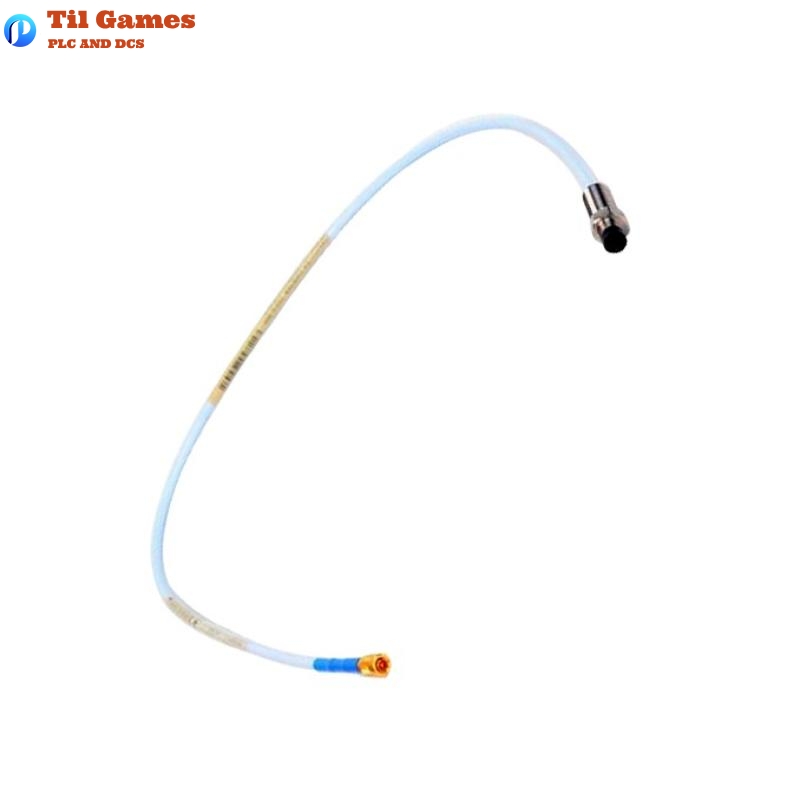

Q1: What is the length and weight of the Bently Nevada 330105-02-12-15-12-CN 3300 XL probe?
A1: The total length of the probe is 1.5 meters (4.9 feet), and its weight is 0.485 kg (1.07 lbs).
Q2: What is the recommended shaft diameter for using the 3300 XL 8 mm probe?
A2: The minimum shaft diameter is 50.8 mm (2 inches), with a recommended diameter of 76.2 mm (3 inches).
Q3: What type of materials are used for the probe tip and case?
A3: The probe tip is made from polyphenylene sulfide (PPS), and the case is made from AISI 303 or 304 stainless steel (SST).
Q4: What is the probe’s operating temperature range?
A4: The operating temperature range is from -52°C to +177°C (-62°F to +350°F).
Q5: How does the 3300 XL probe handle magnetic fields?
A5: The probe operates effectively with magnetic fields up to 300 Gauss without significant interference, maintaining stable output.
Q6: What is the minimum target size for the probe?
A6: The minimum target size is 15.2 mm (0.6 inches) in diameter for flat targets.
Q7: What is the frequency response of the probe?
A7: The frequency response is 0 to 10 kHz, with a ±3 dB range.
Q8: How is the probe mounted?
A8: The 3300 XL probe features a reverse mount design, typically secured with a 3/8-24 UNF thread. It can also be mounted using a M10 x 1 thread option.
