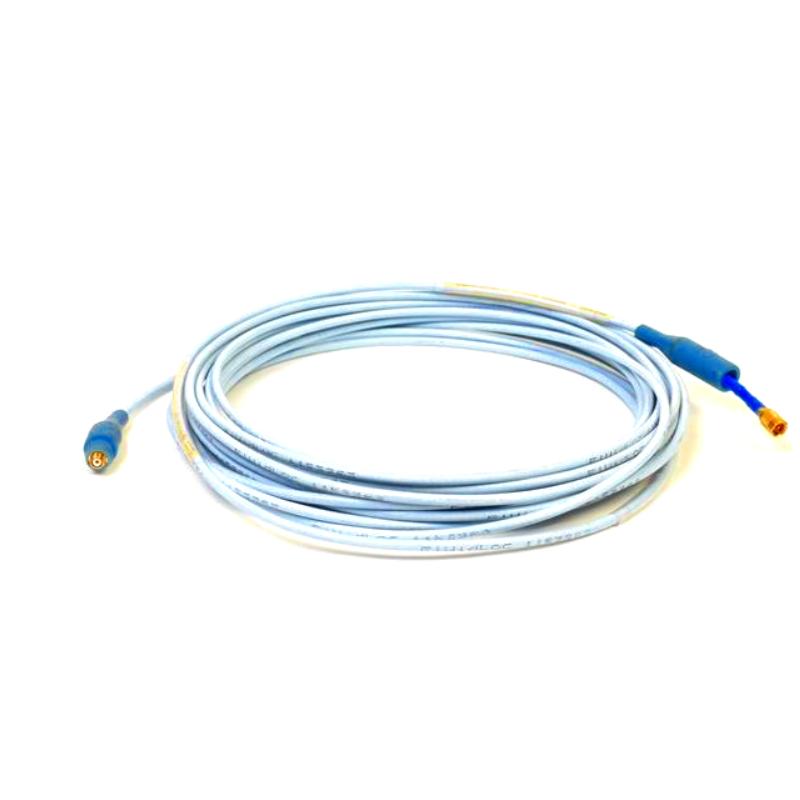

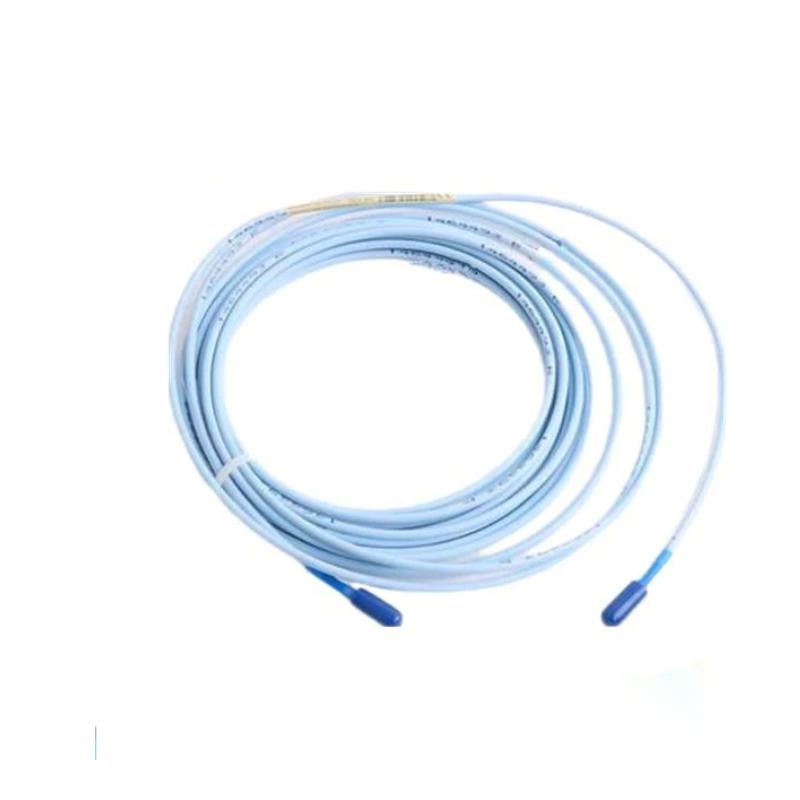

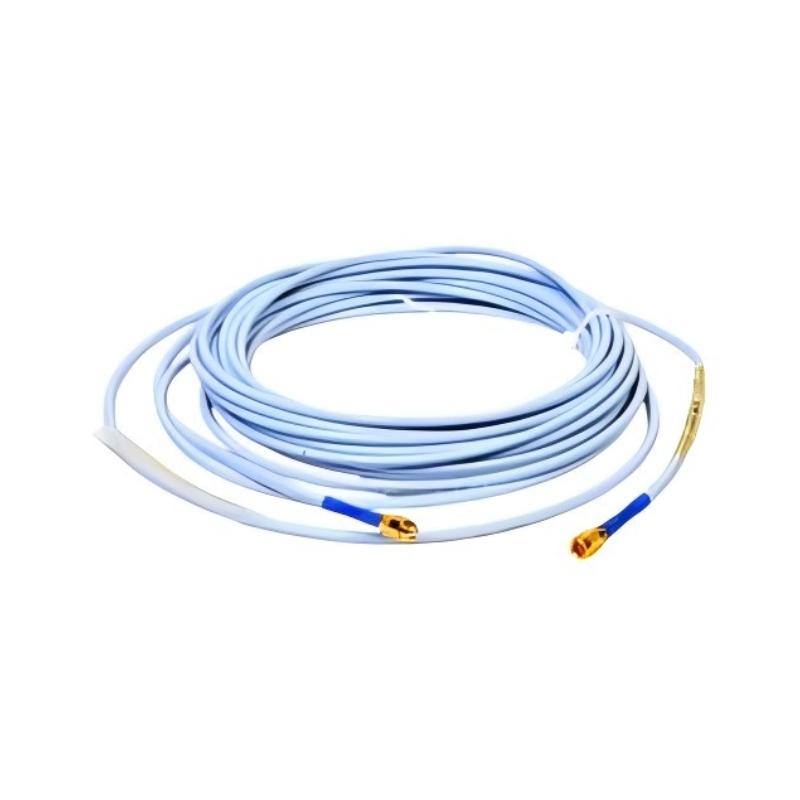

Technical Specifications – 330130-030-00-00 Standard Extension Cable
| Parameter | Specification |
|---|---|
| Model Number | 330130-030-00-00 |
| Cable Type | 75 Ω triaxial, FEP-insulated |
| Cable Length | 3.0 meters |
| Cable Weight | 0.102 kg |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Core) | 0.66 ± 0.10 Ω |
| DC Resistance (Jacket) | 0.20 ± 0.04 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Gold-plated ClickLoc (finger-tight) |
| Connector Torque | Max: 0.565 N•m (5 in•lbf) |
| Armor Option | Not included by default (optional) |
| Operating Temperature | -52°C to +177°C (standard cable) |
| Storage Temperature | -52°C to +177°C |
| Environmental Protection | Optional connector protectors available |
| Compliance | RoHS, FCC Part 15, CE, SIL2/SIL3 Functional Safety |
FAQ
FAQ – 330130-030-00-00 Extension Cable
Q1: What is the length and weight of the 330130-030-00-00 extension cable?
A1: The cable is 3.0 meters in length and weighs approximately 0.102 kg.
Q2: What type of connectors does this cable use?
A2: It uses gold-plated ClickLoc connectors with a finger-tight locking mechanism.
Q3: What is the typical capacitance of the cable?
A3: The typical capacitance is 69.9 pF/m.
Q4: Is the cable armored?
A4: No, the default version is not armored. An armored version is available as an option.
Q5: What is the environmental protection level?
A5: Environmental protection can be enhanced with optional connector protectors.
Q6: What are the temperature limits for operation?
A6: The standard cable can operate between -52°C and +177°C.
Q7: Is this cable compatible with non-XL 3300 systems?
A7: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q8: Can this cable be used with the Extended Temperature Range (ETR) probes?
A8: Yes, it is compatible, but system accuracy will be limited to the ETR rating.
