Technical Specifications
| Parameter Category | Specification |
|---|---|
| Model Number | 330130-040-10-CN |

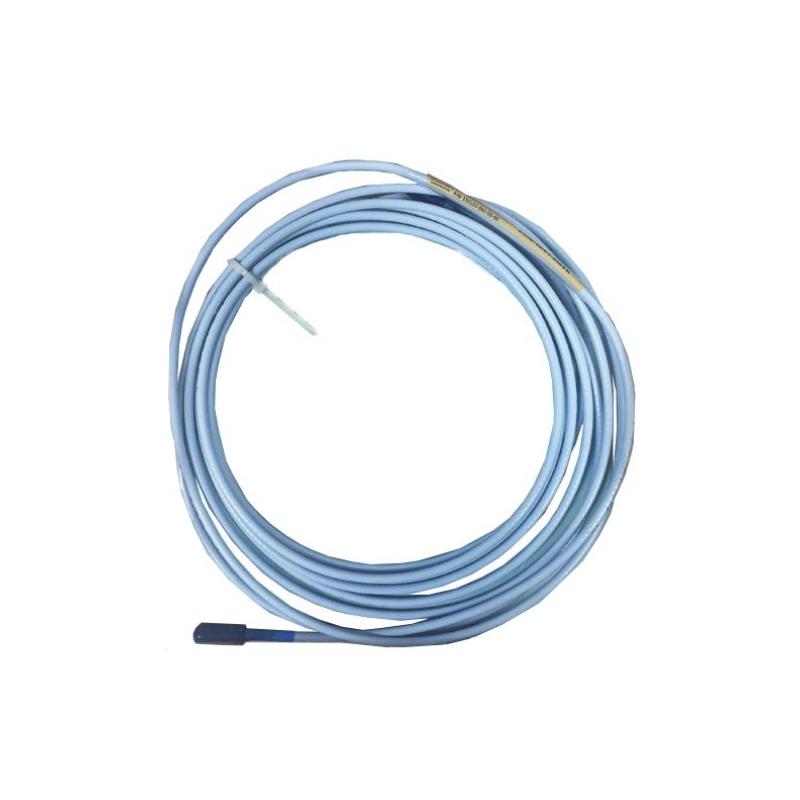

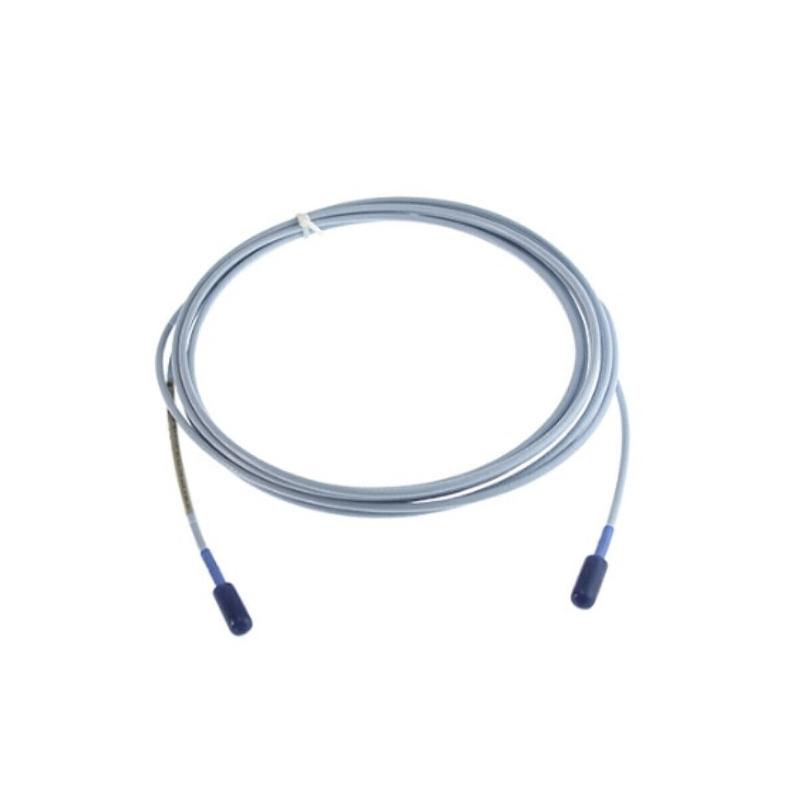

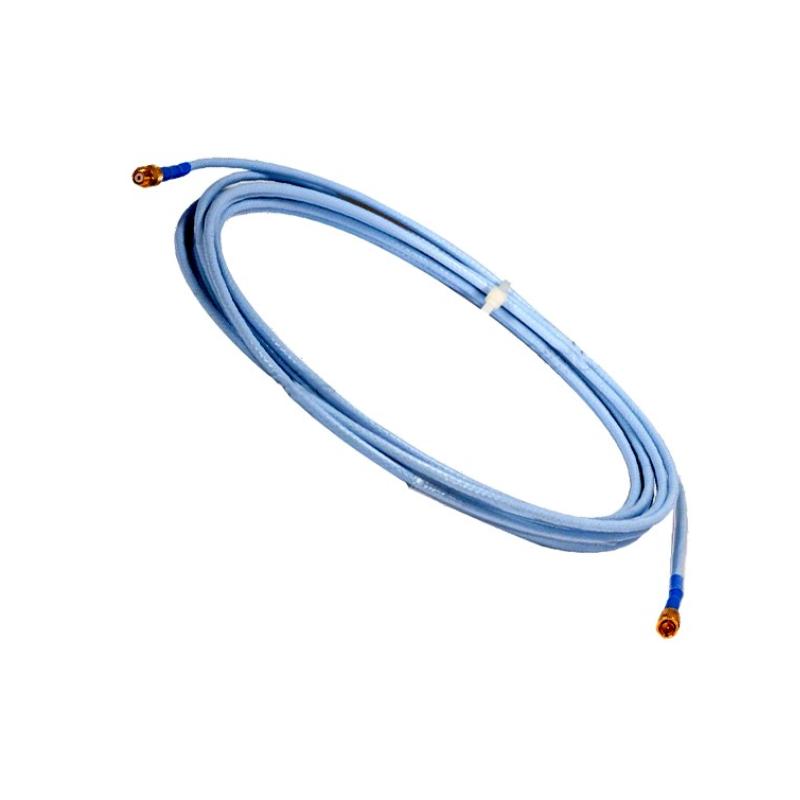

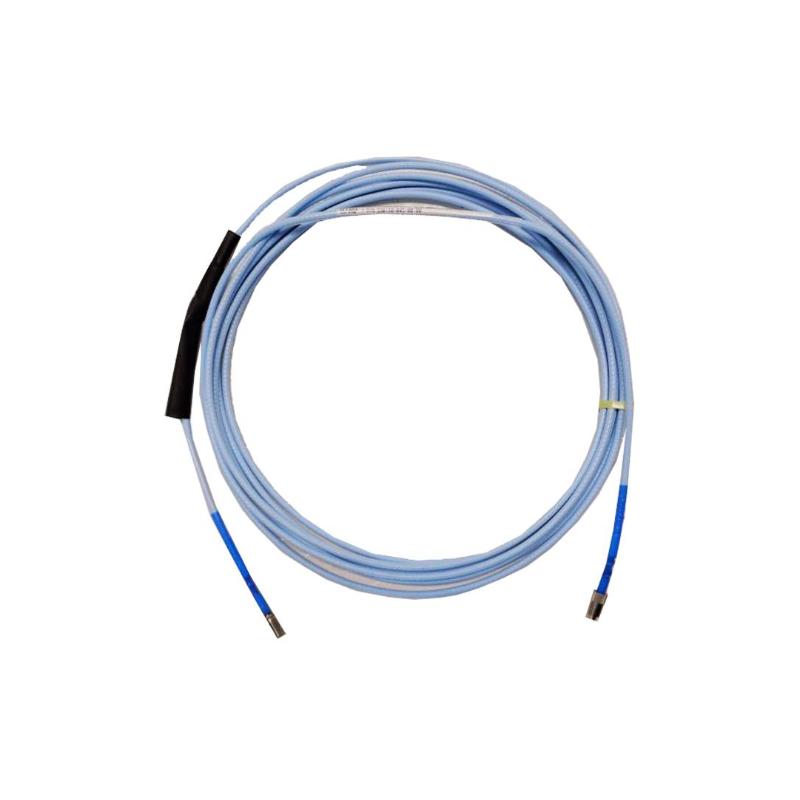

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.0 meters |
| Cable Weight | 0.136 kg (34 g/m × 4 meters) |
| Cable Type | 75Ω triaxial FEP insulated cable |
| Cable Material | Standard FEP; optional FluidLoc or armored |
| Capacitance | 69.9 pF/m |
| Minimum Bend Radius | 25.4 mm |
| DC Resistance (Core) | 0.88 ± 0.13 Ω |
| DC Resistance (Jacket) | 0.26 ± 0.05 Ω |
| Operating Temperature (Std) | -52°C to +177°C |
| Operating Temp. (ETR ver.) | -52°C to +260°C (if ETR version selected) |
| Connector Type | Gold-plated ClickLoc locking connectors |
| Recommended Connector Torque | Finger-tight (click sound), or 1/8 turn with pliers for mixed types |
| Certification Options | CSA, ATEX, IECEx (optional) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the 330130-040-10-CN extension cable compatible with older non-XL 3300 series probes?
A1: Yes, the 330130 series is electrically and physically compatible with both XL and non-XL 5 mm and 8 mm probes.
Q2: Can this cable be used in high-temperature environments?
A2: Yes. When used with Extended Temperature Range (ETR) components, it can operate up to +260°C.
Q3: Are special tools required for connector installation?
A3: No. The ClickLoc connectors are designed for tool-free finger-tight installation.
Q4: Is the use of connector protectors mandatory?
A4: Strongly recommended to improve environmental sealing and prevent oil ingress.
Q5: Does the cable have tensile protection?
A5: Yes. The patented CableLoc design provides 330 N (75 lbf) tensile strength for secure connections.
Q6: Can different cable lengths be mixed in a system?
A6: Yes, as long as the combined length of the probe and extension cable matches the total Proximitor system length.
Q7: What is the primary application of this extension cable?
A7: Used in eddy-current proximity transducer systems for monitoring vibration and position in rotating machinery.
Q8: Is there a minimum bend radius for installation?
A8: Yes. The minimum bend radius is 25.4 mm and must be observed during installation.
