Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-045-01-CN |

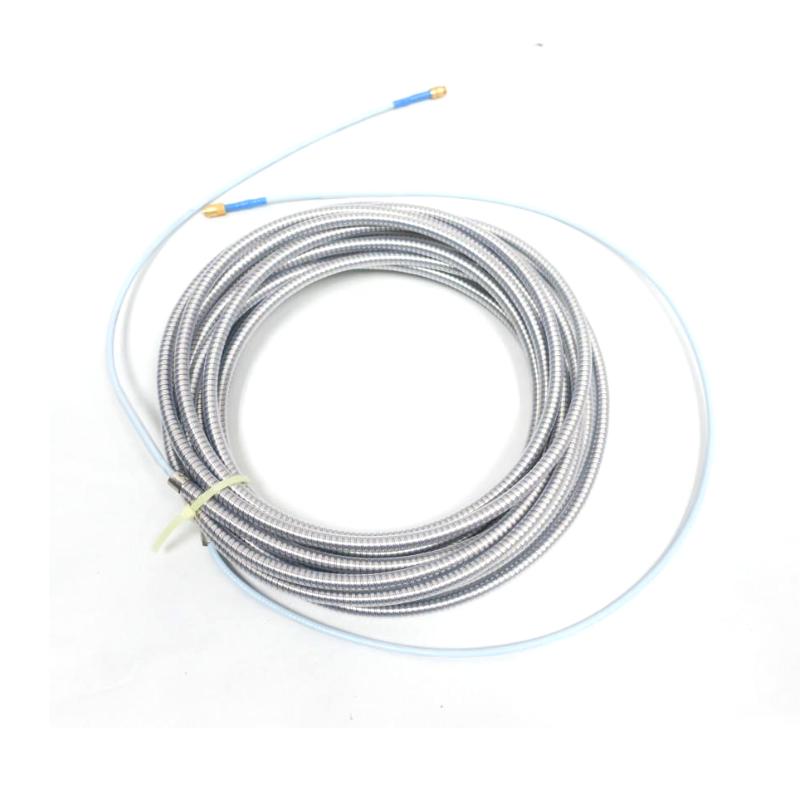

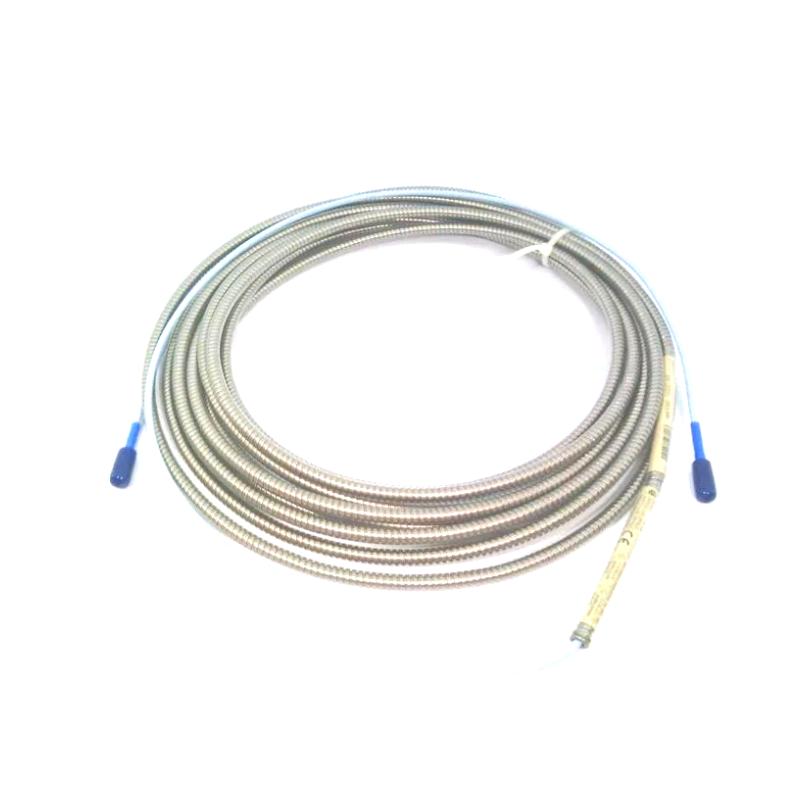

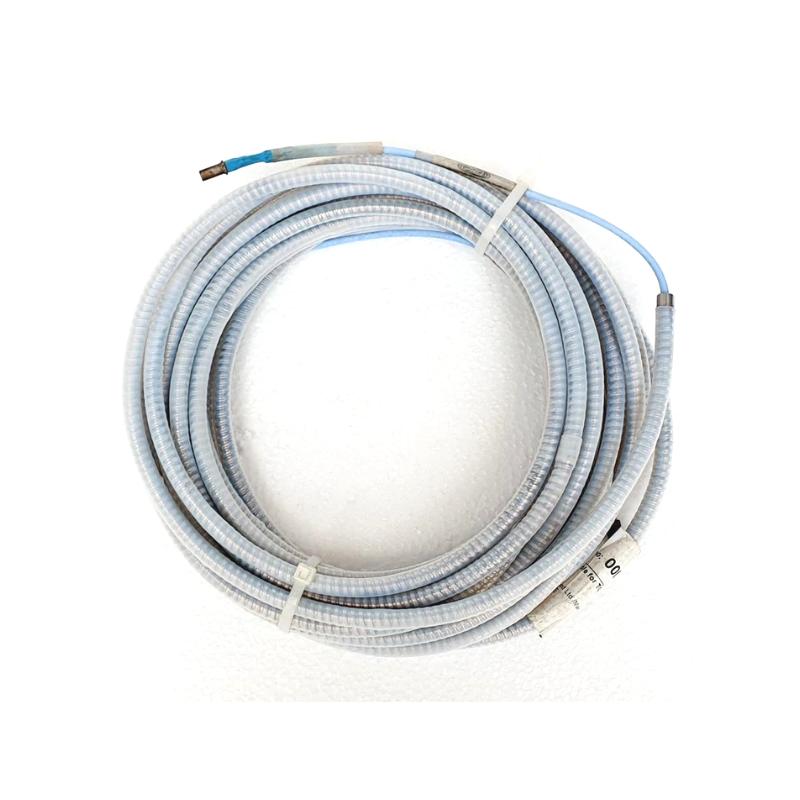

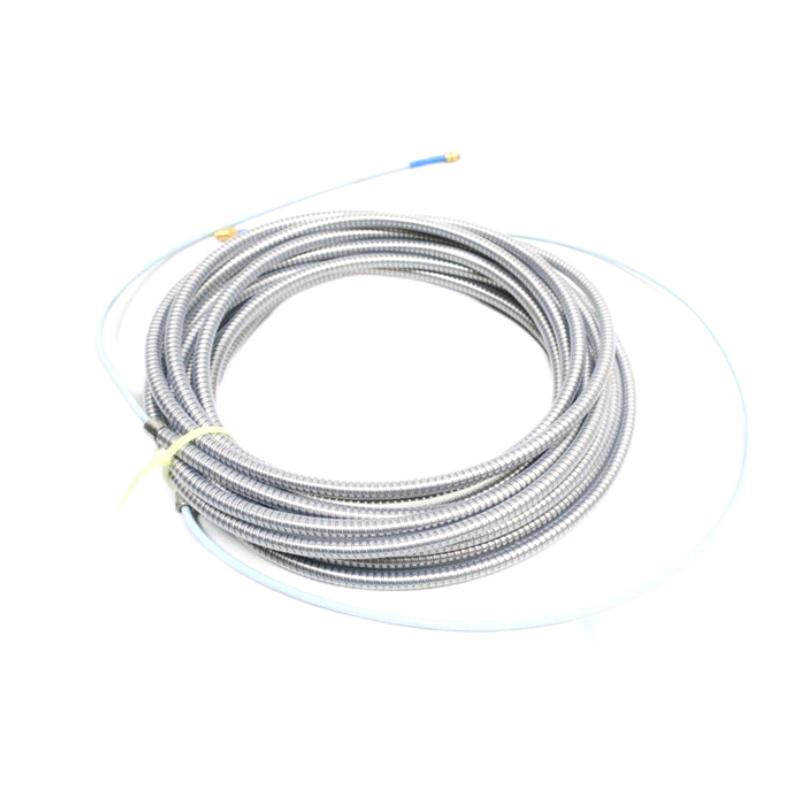

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Weight | 0.464 kg (based on 34g/m × 4.5m + connector weight) |
| Conductor Resistance (RCORE) | 0.99 ± 0.15 Ω |
| Jacket Resistance (RJACKET) | 0.30 ± 0.06 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Connector Type | Miniature coaxial ClickLoc, gold-plated, corrosion-resistant |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature | -52°C to +177°C (standard version) |
| Storage Temperature | -52°C to +177°C (standard version) |
| Pull Strength | 270 N (from probe lead to extension cable connector) |
| Connector Torque | Max 0.565 N·m (5 in·lbf); recommended: finger-tight |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the total weight of the 4.5m extension cable?
A1: Approximately 0.464 kg, considering the cable’s weight per meter and connectors.
Q2: What insulation material is used in the standard version of the cable?
A2: Fluoroethylene propylene (FEP) is used for insulation in the standard cable version.
Q3: Can this extension cable be used in high-temperature applications?
A3: The standard version supports up to +177°C. For higher temperatures, an ETR version is recommended.
Q4: What is the rated tensile strength of the extension cable?
A4: The maximum rated pull strength is 270 N between the probe lead and extension cable connector.
Q5: Is the 330130-045-01-CN cable interchangeable with other Bently Nevada 3300 series cables?
A5: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm system components.
Q6: Are connector protectors included with this cable?
A6: They can be ordered as options or separately. Silicone tape is included as an alternative.
Q7: What is the recommended minimum bend radius for this cable?
A7: 25.4 mm (1.0 inch) is the minimum bend radius to maintain cable integrity.
Q8: What is the standard application for this extension cable?
A8: It is used to connect a 3300 XL 8 mm proximity probe to the corresponding Proximitor Sensor in vibration and position monitoring systems.
