Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-045-03-00 |

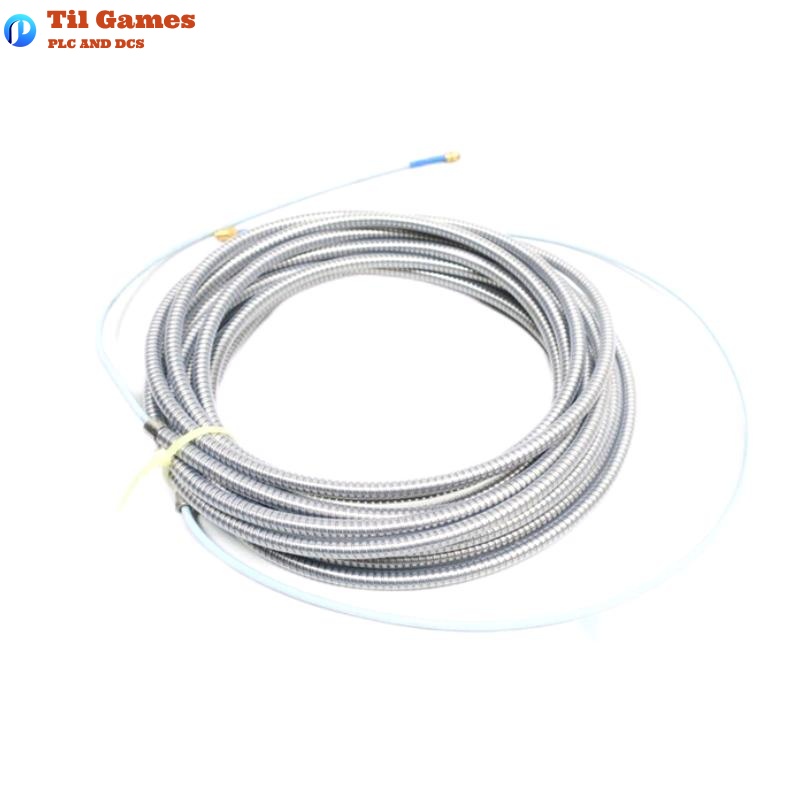

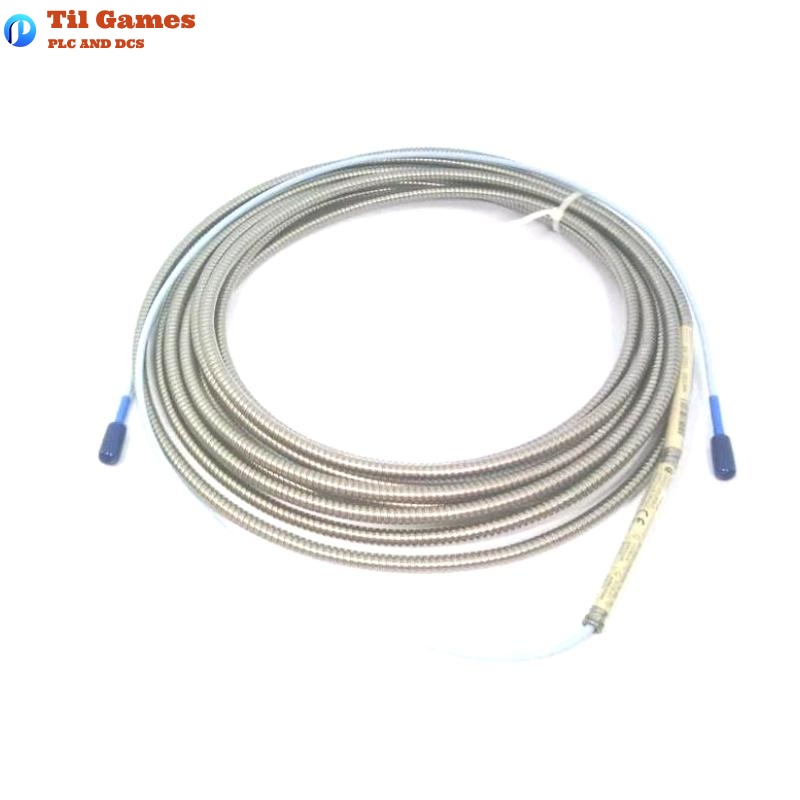

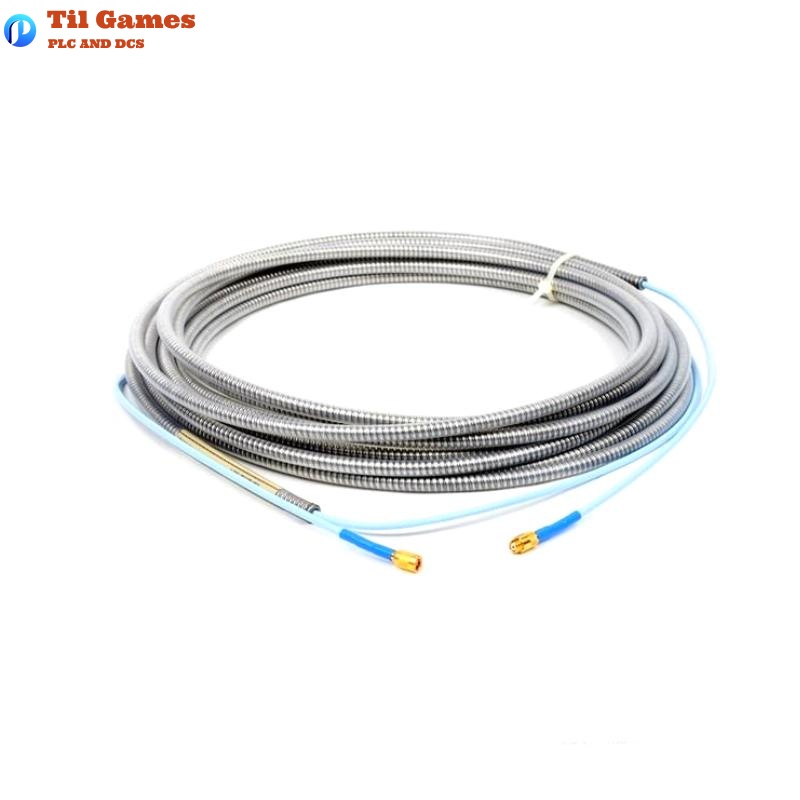

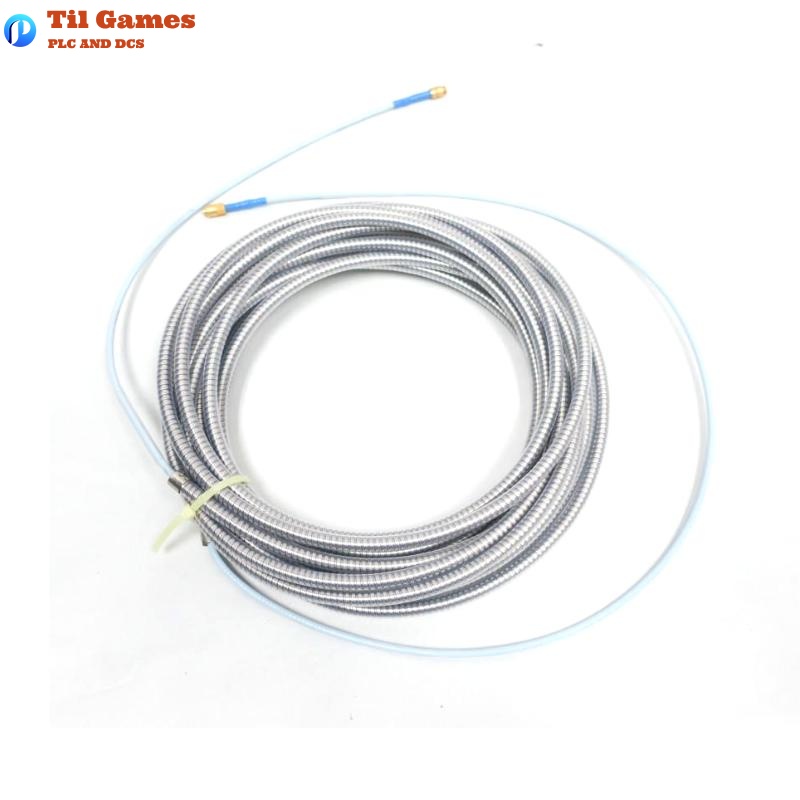

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | ClickLoc Gold-Plated Coaxial Connectors |
| Connector Torque (Max) | 0.565 N·m (5 in·lbf) |
| Weight | 0.464 kg |
| Jacket Resistance (RJACKET) | 0.30 ± 0.06 ohms (at 4.5 m) |
| Center Conductor Resistance | 0.99 ± 0.15 ohms (at 4.5 m) |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Extended Temperature Option | Up to +260°C (with ETR model) |
| Armor Option | Available with SST flexible armor (optional) |
| Connector Protection | Optional connector protector or silicone tape |
FAQ
FAQ
Q1: What is the purpose of the 330130-045-03-00 extension cable?
A1: It connects the proximity probe to the Proximitor sensor in the 3300 XL system, enabling flexible placement over a 4.5-meter span.
Q2: Is this cable compatible with other 3300-series components?
A2: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the insulation material of the cable?
A3: Fluoroethylene propylene (FEP) for standard models; PFA for extended temperature versions.
Q4: Can this cable be used in high-temperature environments?
A4: Yes, the extended temperature version supports up to +260°C.
Q5: What is the recommended tightening method for connectors?
A5: Finger-tight for standard gold ClickLoc connectors; add 1/8 turn with pliers when connecting to stainless steel connectors.
Q6: How much does the 4.5-meter cable weigh?
A6: Approximately 0.464 kg.
Q7: Is special tooling needed to install the connectors?
A7: No, ClickLoc connectors are tool-free and click into place.
Q8: Is connector protection necessary for installation?
A8: It is recommended for environmental protection, especially in oil-exposed or outdoor environments.
