Technical Specifications
| Parameter | Specification |
|---|---|

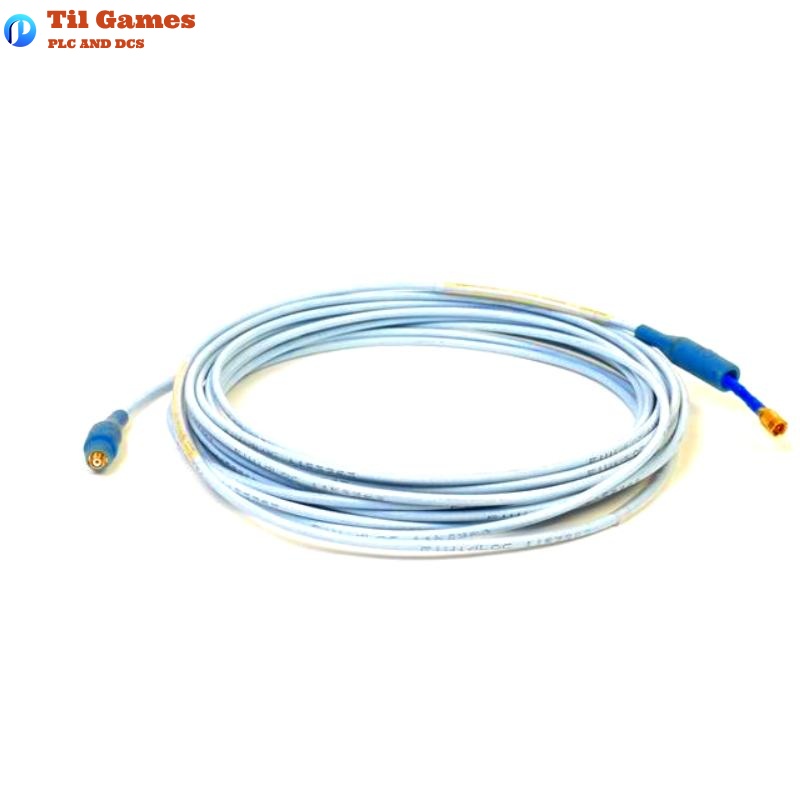

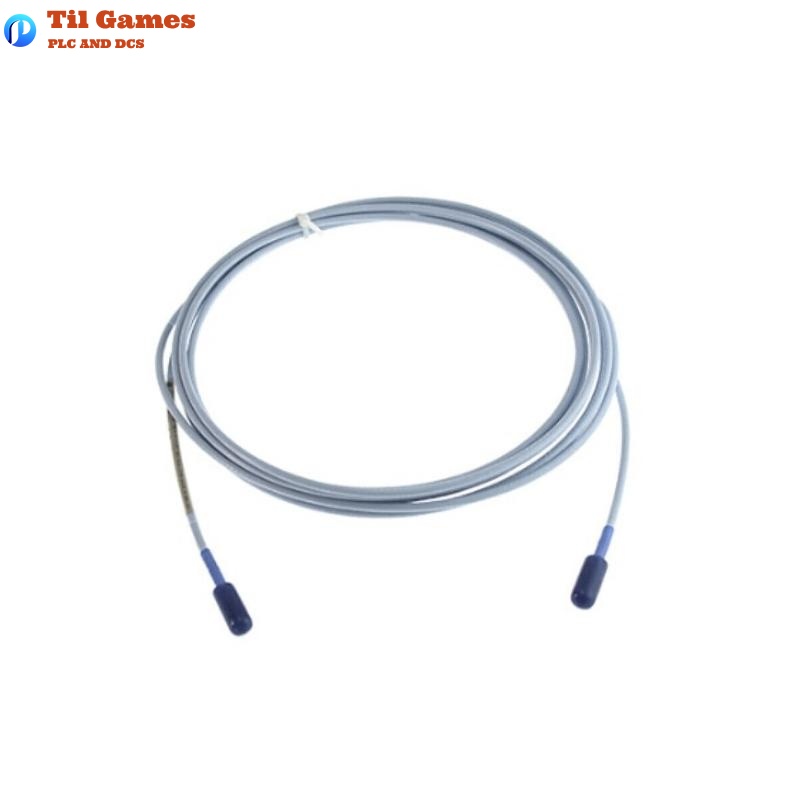

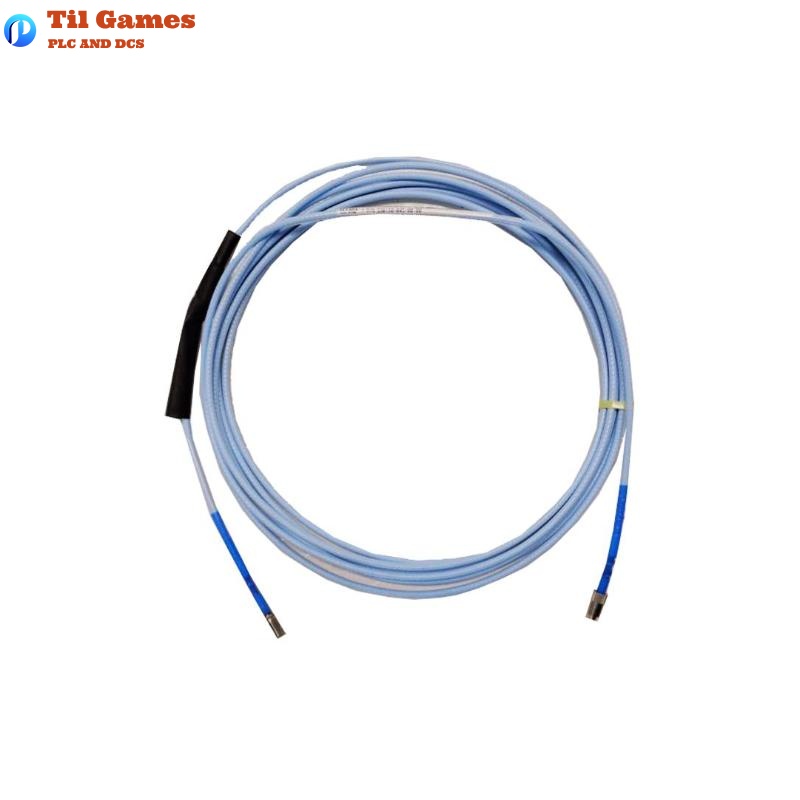

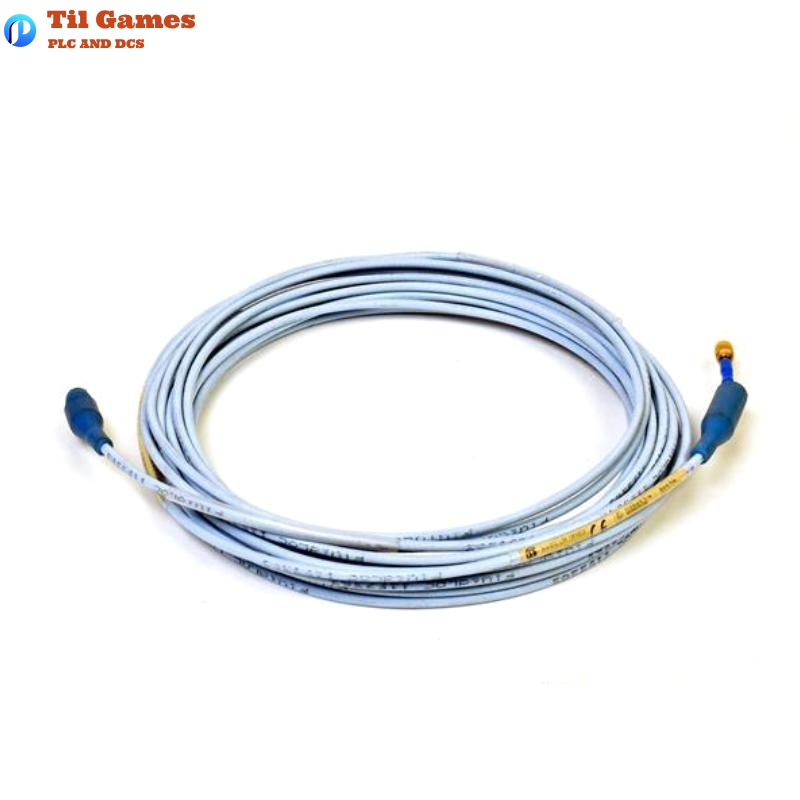

| Product Name | 330130-045-12-05 Standard Extension Cable |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Length | 4.5 meters |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Center Conductor) | 0.99 ± 0.15 Ω |
| DC Resistance (Outer Conductor) | 0.30 ± 0.06 Ω |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Armor Option | Optional stainless steel with FEP jacket |
| Operating Temperature | -52°C to +177°C (Standard cable) |
| Storage Temperature | -52°C to +177°C |
| Compatibility | Compatible with 3300 XL 8 mm probe and Proximitor Sensor |
| Weight | 0.153 kg (for 4.5 meters) |
| Dimensions | Length: 4.5 m, Outer Diameter: 3.68 mm (unarmored), 7.67 mm (armored) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What system is this extension cable used for?
A1: It is used as part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q2: What is the total length of this specific extension cable?
A2: The 330130-045-12-05 extension cable is 4.5 meters in length.
Q3: Is the cable armored?
A3: The “12” in the part number indicates it has FluidLoc cable with connector protector. It is not armored unless specified in options “01”, “03”, “11”, or “13”.
Q4: What is the recommended minimum bend radius of the cable?
A4: The minimum bend radius is 25.4 mm (1.0 inch).
Q5: Can this cable operate in high-temperature environments?
A5: The standard version supports up to +177°C. For higher temperatures, the ETR version supports up to +260°C.
Q6: What is the weight of this cable?
A6: The cable weighs approximately 0.153 kg for a 4.5-meter length.
Q7: What type of connectors are used on this cable?
A7: The cable uses gold-plated miniature ClickLoc connectors, which require no tools for tightening.
Q8: Is this cable interchangeable with older 3300 series components?
A8: Yes, it is electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm systems.
