Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-070-02-05 |

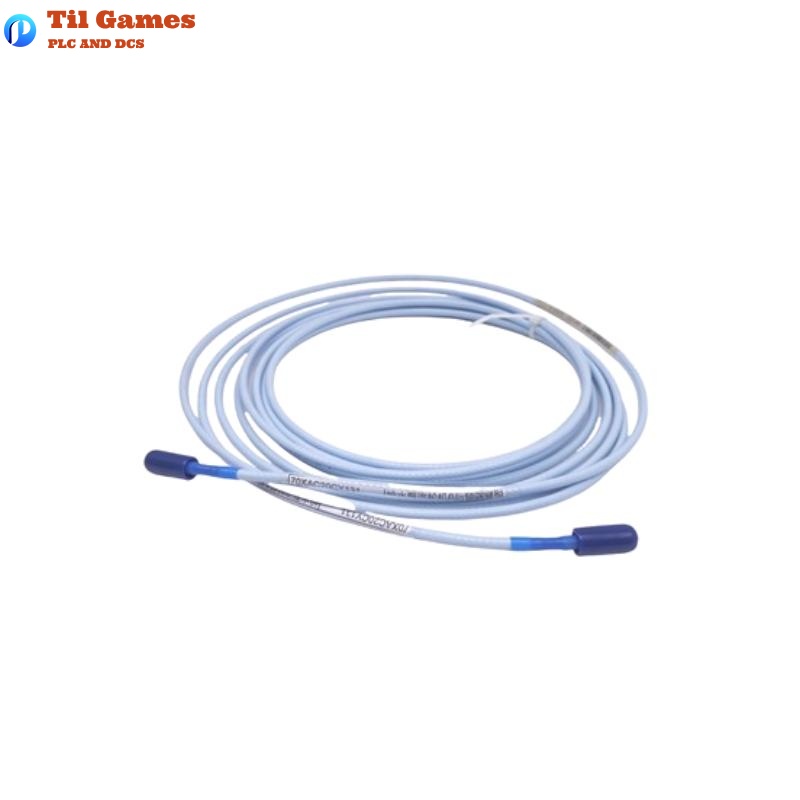

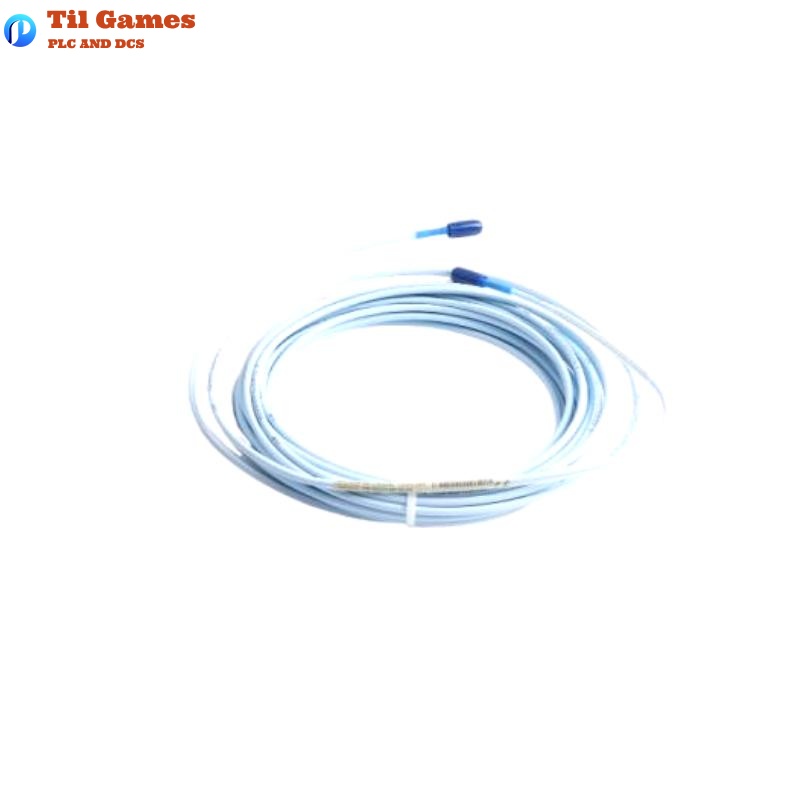

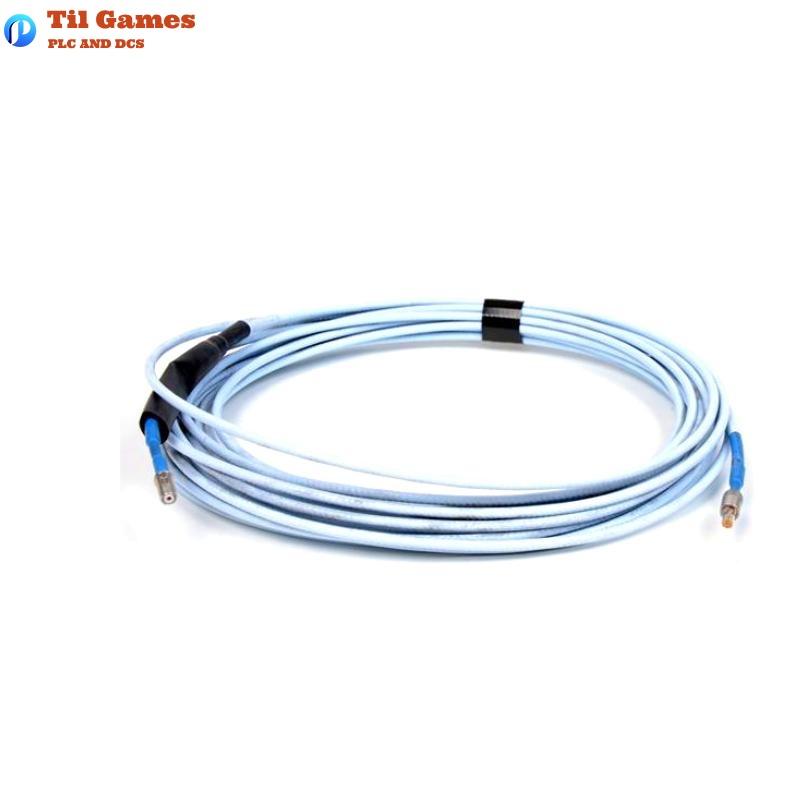

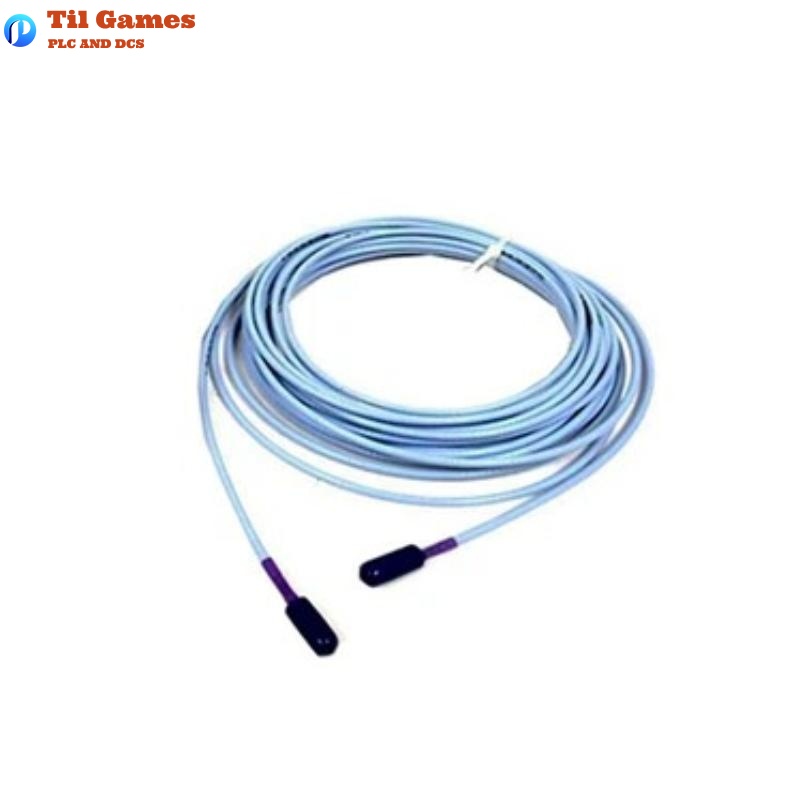

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 7.0 meters |
| Weight | 0.238 kg |
| Cable Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Center Conductor) | 1.54 ± 0.23 Ω |
| DC Resistance (Outer Conductor) | 0.46 ± 0.09 Ω |
| Cable Type | 75Ω triaxial, FEP insulation |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Gold-plated ClickLoc coaxial connectors |
| Connector Torque | 0.565 N·m (5 in·lbf) max |
| Operating Temperature Range | –52°C to +177°C |
| Storage Temperature Range | –52°C to +177°C |
| Compatibility | 3300 XL 8 mm Proximity Probe and Proximitor Sensor |
| Compliance | RoHS, FCC Part 15, CE (EMC 2014/30/EU) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-070-02-05 extension cable?
A1: It connects the 3300 XL proximity probe to the Proximitor sensor and transmits the probe signal with minimal loss.
Q2: Is this cable compatible with non-XL 3300 series components?
A2: Yes, it is electrically and mechanically compatible with both XL and non-XL 3300 series 8 mm and 5 mm systems.
Q3: What is the weight of the 7.0 meter cable?
A3: The weight of the cable is approximately 0.238 kg.
Q4: What type of connectors does it use?
A4: It uses gold-plated ClickLoc connectors that are corrosion-resistant and secure without tools.
Q5: Can this cable be used in high-temperature applications?
A5: The standard version is rated up to 177°C. For temperatures up to 260°C, the ETR version must be used.
Q6: What is the minimum bend radius for the cable?
A6: The minimum bend radius is 25.4 mm (1.0 inch).
Q7: Does the cable require calibration when replacing components?
A7: No calibration is needed when using standard components, as the system is designed for full interchangeability.
Q8: Are connector protectors included?
A8: If the “02” option is selected in the part number, connector protectors are included. They can also be ordered separately.
