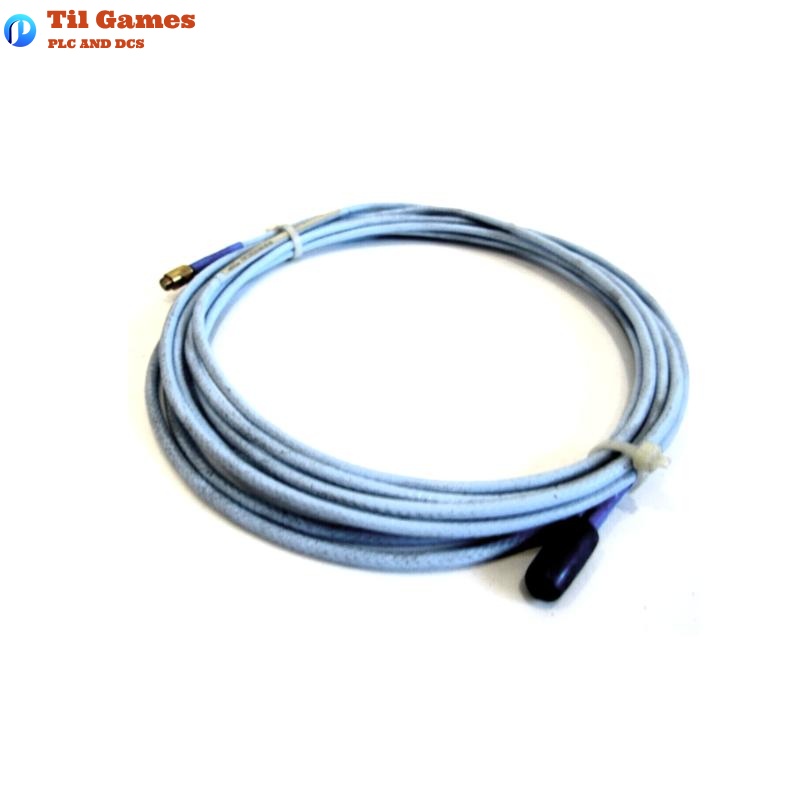

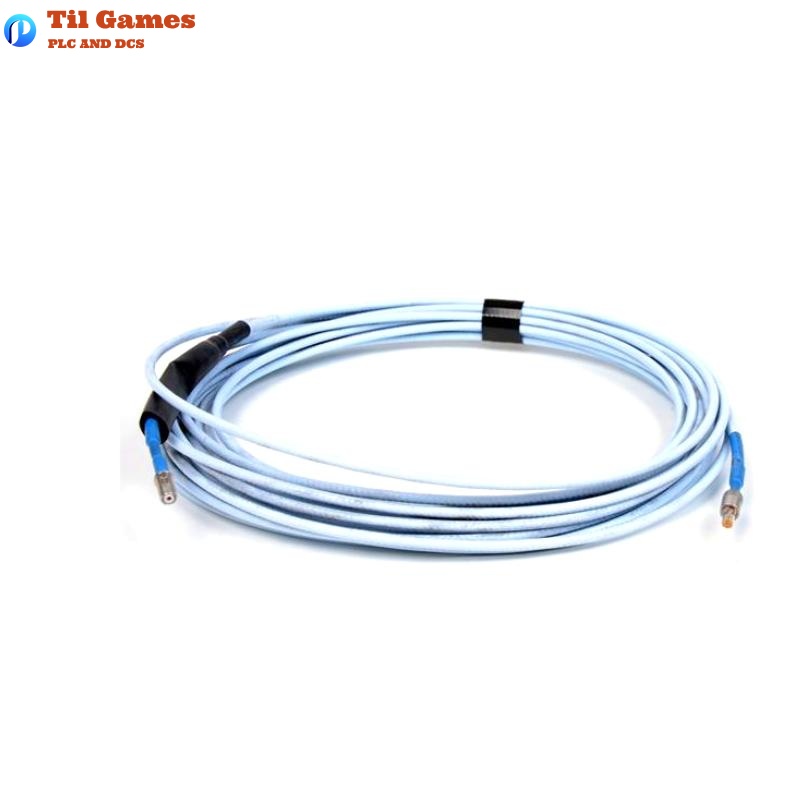

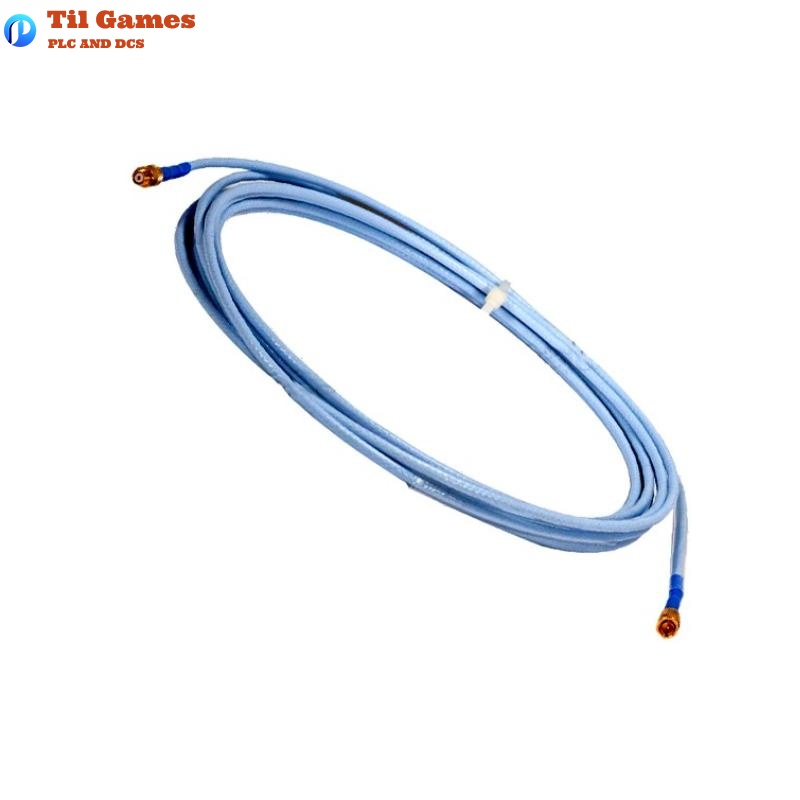

Technical Specifications – Bently Nevada 330130-075-00-00 Extension Cable
| Parameter | Specification |
|---|---|
| Product Model | 330130-075-00-00 |
| Cable Length | 7.5 meters |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Weight | Approx. 0.255 kg |
| DC Resistance (Center) | 1.65 ± 0.25 Ω |
| DC Resistance (Shield) | 0.49 ± 0.10 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated ClickLoc coaxial connector |
| Connector Torque | Max. 0.565 N·m (5 in·lbf) |
| Temperature Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Temperature Range (ETR) | -52°C to +260°C (-62°F to +500°F) (ETR model only) |
| Material | FEP insulation; gold-plated brass/copper connectors |
FAQ
FAQ – Bently Nevada 330130-075-00-00
Q1: What is the primary application of the 330130-075-00-00 cable?
A1: It connects the proximity probe to the Proximitor sensor in Bently Nevada’s 3300 XL 8 mm system, used for vibration and position monitoring.
Q2: Is this cable compatible with non-XL 3300 systems?
A2: Yes, it is physically and electrically interchangeable with non-XL 3300 8 mm components, with performance limited to the lower spec.
Q3: Does the cable include connector protectors?
A3: Connector protectors are optional and available under different order codes (e.g., “02” or “03” options).
Q4: Can this extension cable be used in high-temperature environments?
A4: Yes, if ordered in the Extended Temperature Range (ETR) version, it supports up to 260°C.
Q5: What is the signal degradation over the full 7.5m cable length?
A5: The system remains within ±6.5% scale factor deviation over its linear range with a 9m total system, including a 7.5m cable.
Q6: What is the recommended bend radius for this cable?
A6: Minimum bend radius is 25.4 mm (1 inch) to maintain cable integrity.
Q7: Are special tools required for installation?
A7: No, ClickLoc connectors are finger-tightened; no tools are necessary.
Q8: Can I use this extension cable with armored or FluidLoc versions?
A8: Yes, there are armored and FluidLoc options for enhanced durability and fluid sealing.
