Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330130-075-00-05 |

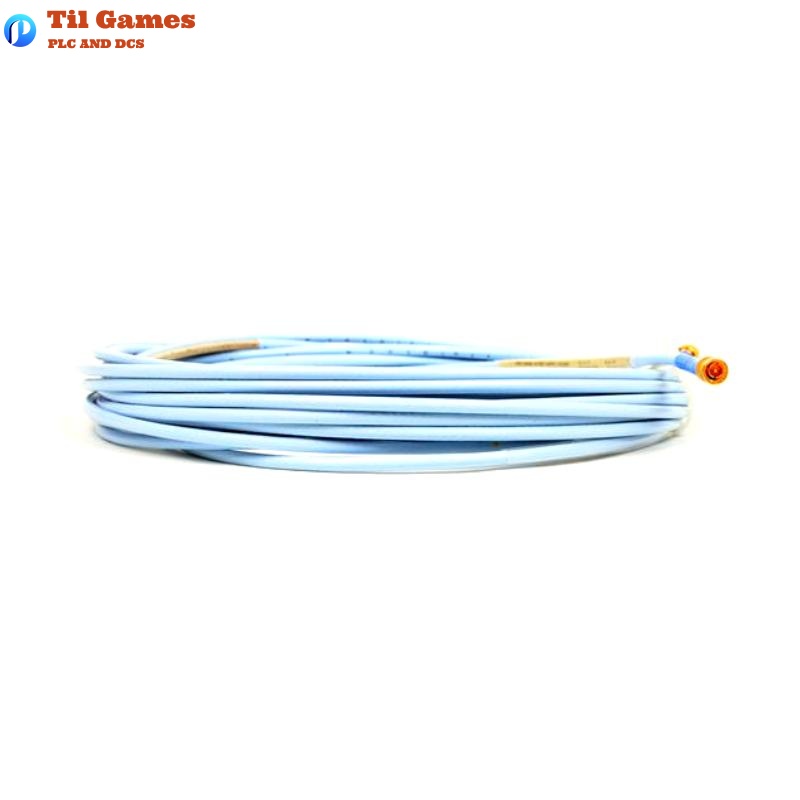

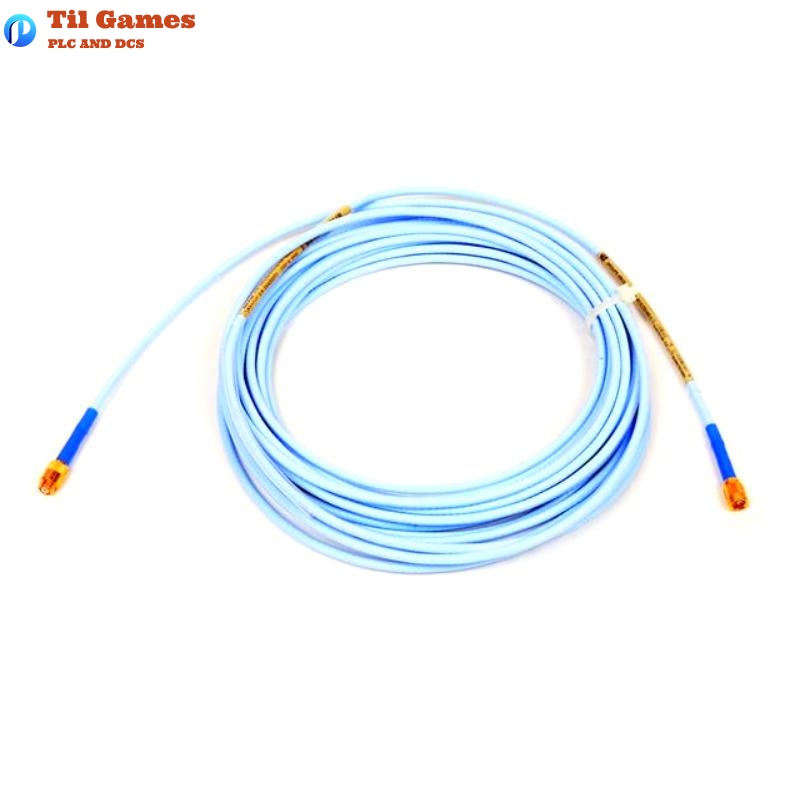

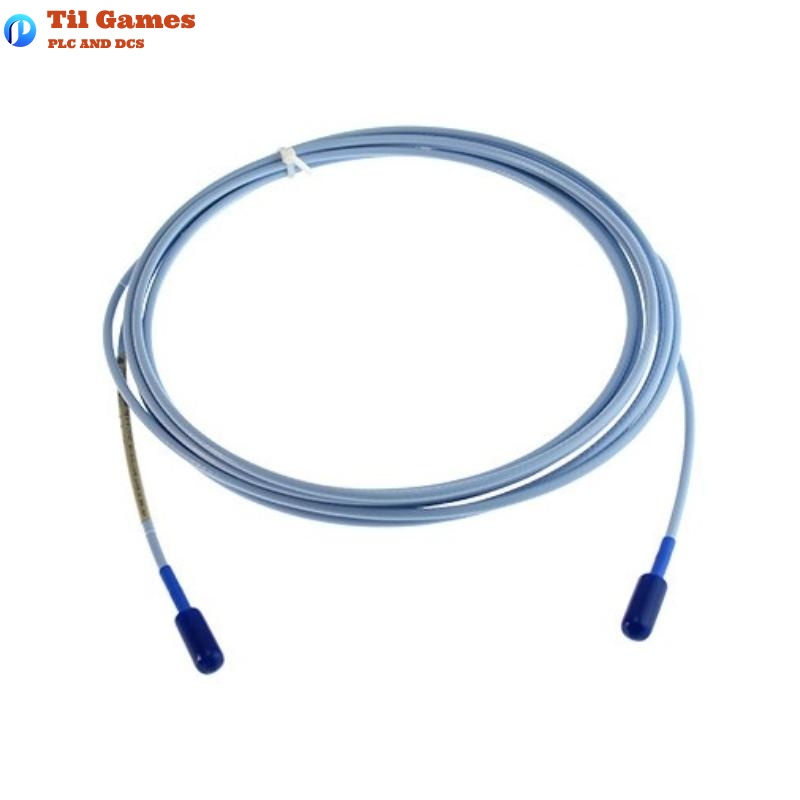

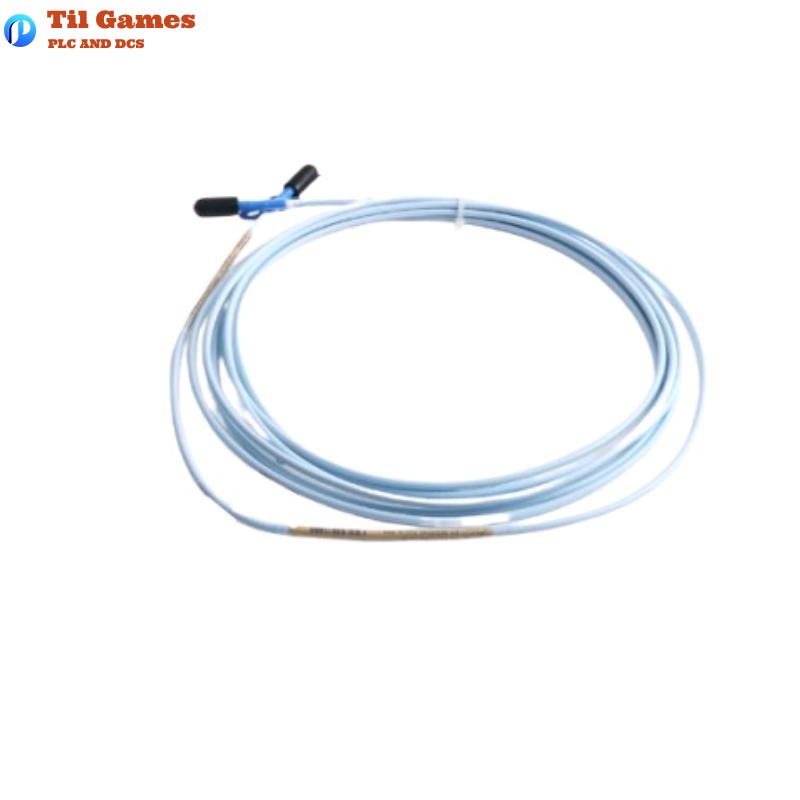

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 7.5 meters |
| Cable Weight | 0.255 kg |
| Cable Type | 75Ω triaxial, FEP-insulated standard |
| Core Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance | 0.49 ± 0.10 Ω |
| Cable Capacitance | approx. 69.9 pF/m |
| Minimum Bend Radius | 25.4 mm |
| Connector Type | Gold-plated ClickLoc coaxial connector |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Temperature Range (STD) | -52°C to +177°C |
| Temperature Range (ETR) | -52°C to +260°C |
| Compatibility | For use with 3300 XL 8 mm Proximitor System |
FAQ
Frequently Asked Questions (FAQ)
Q1: What system is the 330130-075-00-05 cable compatible with?
A1: It is designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q2: What is the length of this cable?
A2: The cable is 7.5 meters long, as indicated by “075” in the part number.
Q3: Is this cable suitable for high-temperature environments?
A3: The standard version supports up to 177°C. For higher temperatures (up to 260°C), use the ETR version.
Q4: What is the minimum bend radius for this cable?
A4: The minimum bend radius is 25.4 mm.
Q5: Are special tools needed for connector installation?
A5: No special tools are required. The ClickLoc connectors install by hand and click into place.
Q6: Are the cable connectors corrosion-resistant?
A6: Yes, the connectors are gold-plated and resistant to corrosion.
Q7: Can this extension cable be replaced independently?
A7: Yes. The cable is interchangeable with other 3300 XL components.
Q8: Does this cable prevent oil leakage?
A8: Only the FluidLoc version provides oil leakage protection. The standard version does not.
