Technical Specifications – Bently Nevada 330130-075-02-00
| Parameter | Specification |
|---|---|
| Product Model | 330130-075-02-00 |

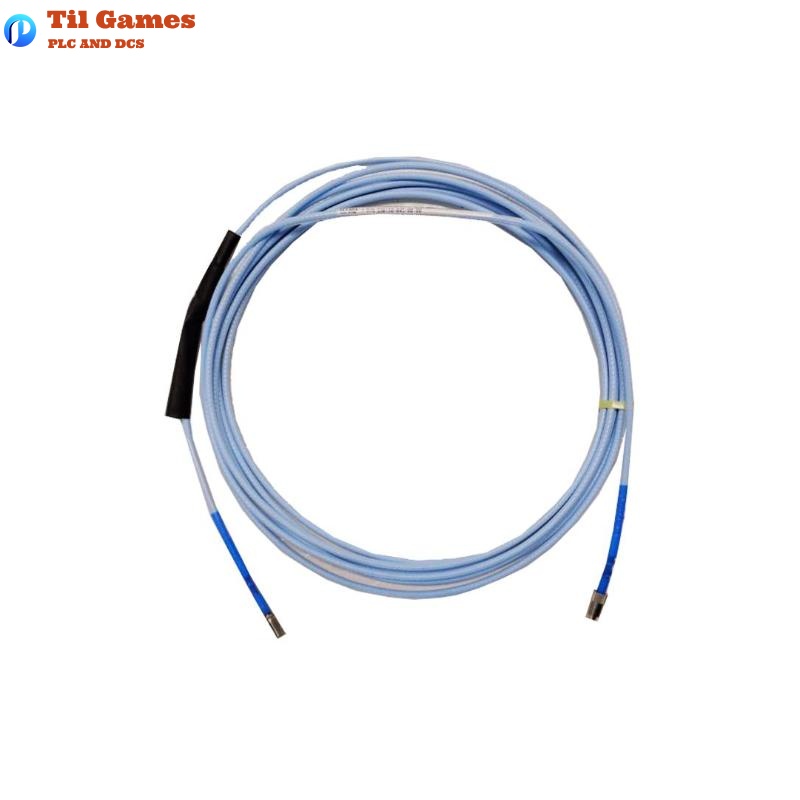

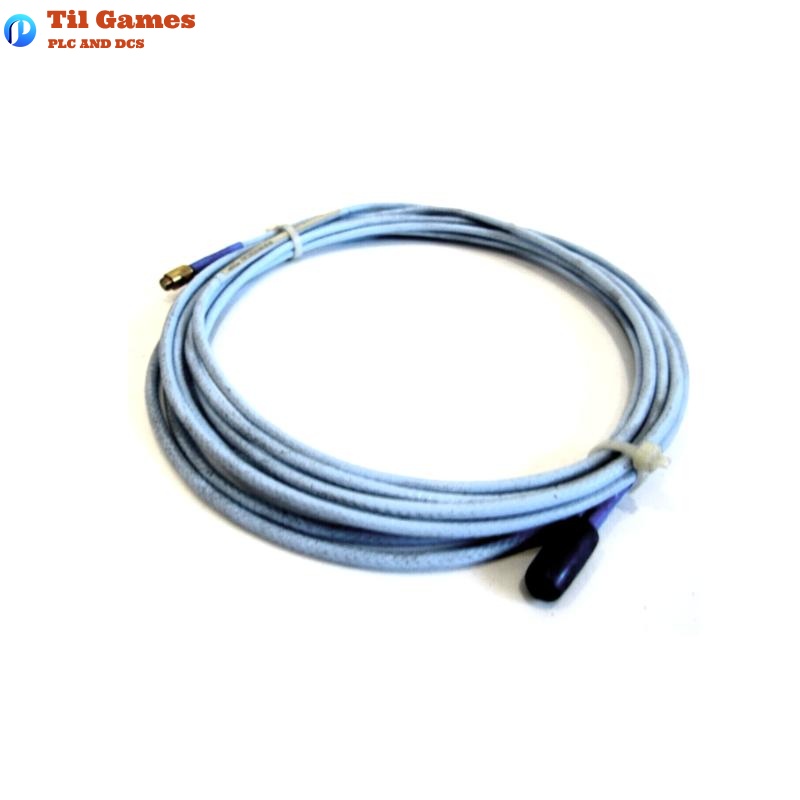

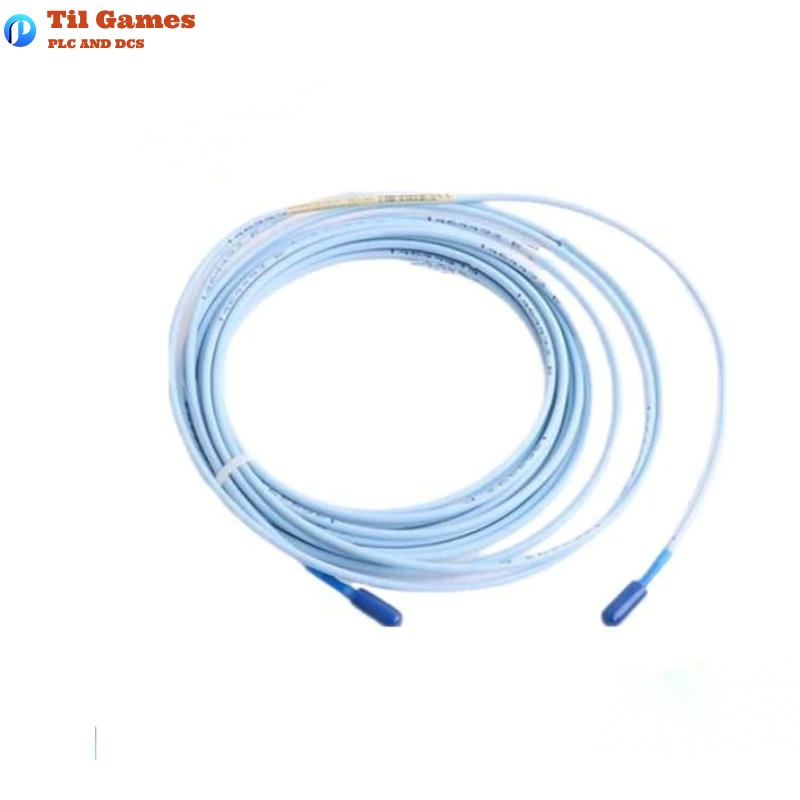

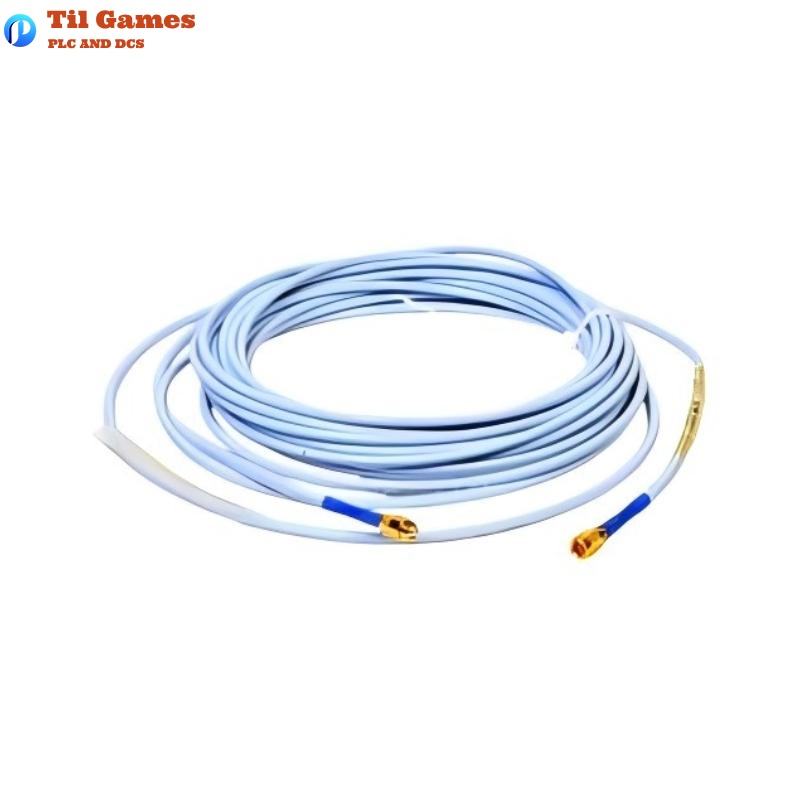

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 7.5 meters |
| Weight | 0.255 kg (34 g/m × 7.5 m) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Cable Capacitance | 69.9 pF/m (typical) |
| Minimum Cable Bend Radius | 25.4 mm |
| DC Resistance (RCORE) | 1.65 ± 0.25 Ω (center conductor) |
| DC Resistance (RJACKET) | 0.49 ± 0.10 Ω (outer conductor) |
| Connector Type | Gold-plated ClickLoc mini coaxial connector |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Environmental Temperature Range | -52°C to +177°C (Standard); -52°C to +260°C (ETR variant) |
| Flame Resistance | Optional FluidLoc variant available for oil leakage protection |
| Certifications | CSA, ATEX, IECEx (optional based on code “-05”) |
FAQ
FAQs – Bently Nevada 330130-075-02-00 Extension Cable
Q1: What is the standard cable length of this model?
A1: The 330130-075-02-00 cable has a length of 7.5 meters.
Q2: What type of insulation is used for this extension cable?
A2: It uses FEP (fluoroethylene propylene) insulation for standard models.
Q3: Can this extension cable be used in high-temperature environments?
A3: Yes, the standard model supports up to 177°C. The ETR version supports up to 260°C.
Q4: Does the cable support armored protection?
A4: Yes, armored versions are available under different order codes (e.g., “-01”, “-03”).
Q5: What type of connector is used on this cable?
A5: It uses gold-plated ClickLoc mini coaxial connectors that lock with a tactile “click”.
Q6: Is this cable compatible with non-XL 3300 series probes?
A6: Yes, it is physically and electrically compatible with non-XL 3300 5 mm and 8 mm components.
Q7: How should the cable be installed to maintain signal integrity?
A7: Avoid sharp bends (maintain at least a 25.4 mm bend radius) and use connector protectors where applicable.
Q8: What is the recommended torque for the connector?
A8: The maximum recommended torque is 0.565 N·m (5 in·lbf). Finger-tightening is usually sufficient.
