Technical Specifications
| Item | Description |
|---|---|
| Model Number | 330130-080-00-00 |

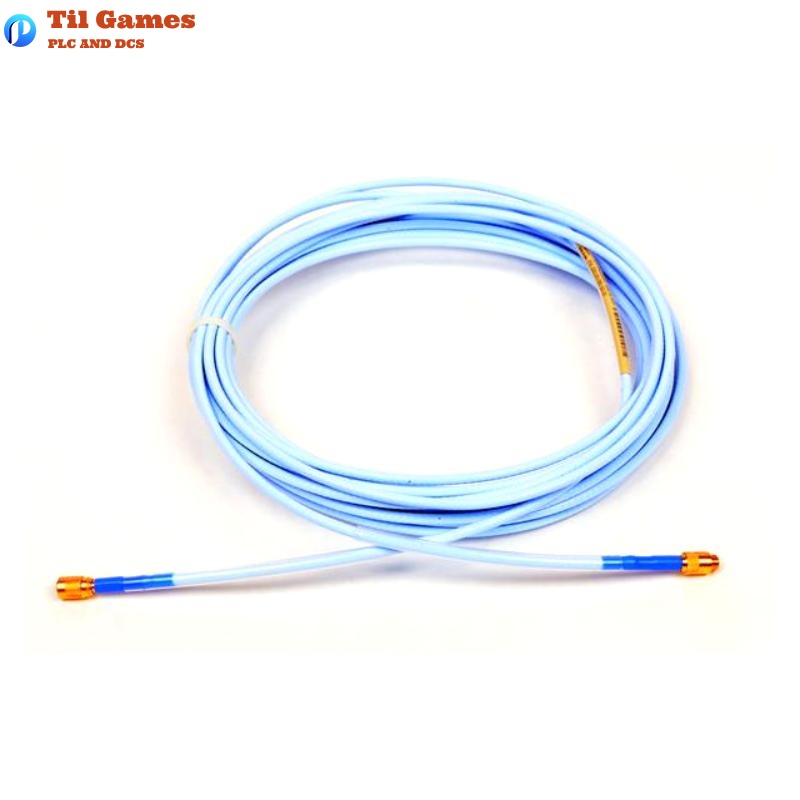

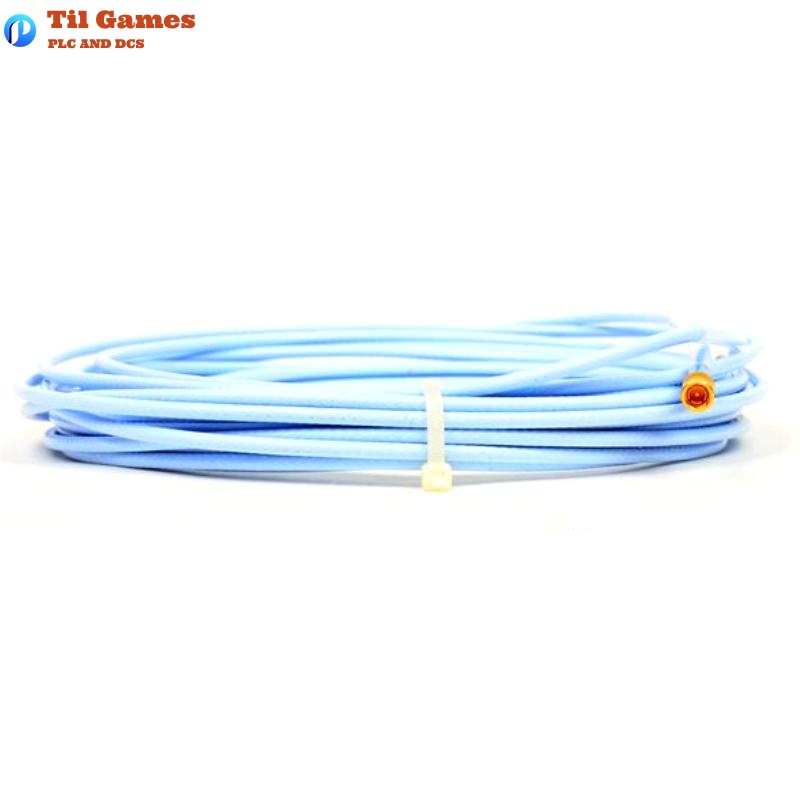

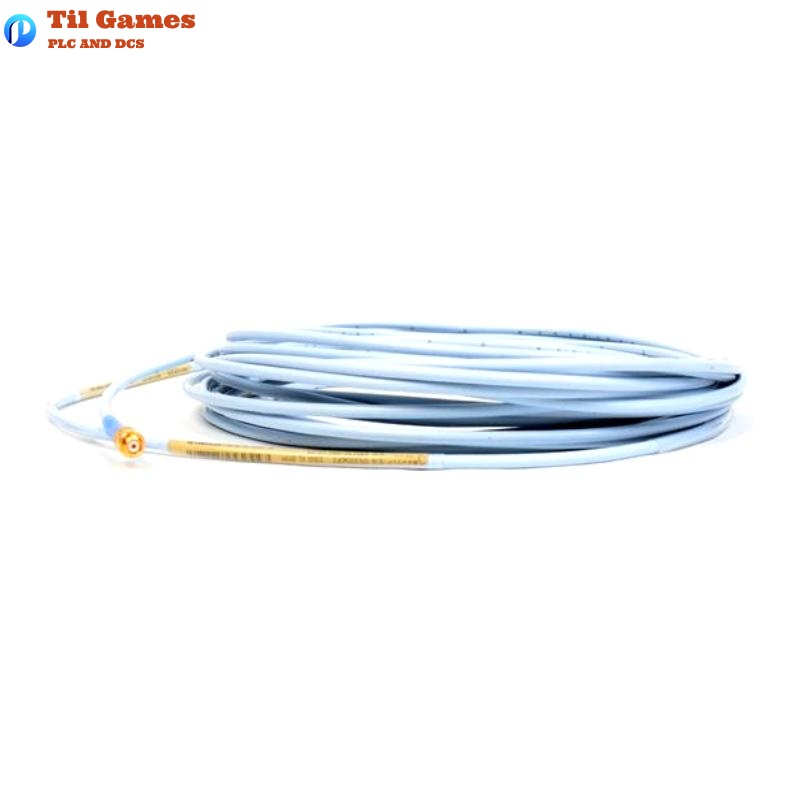

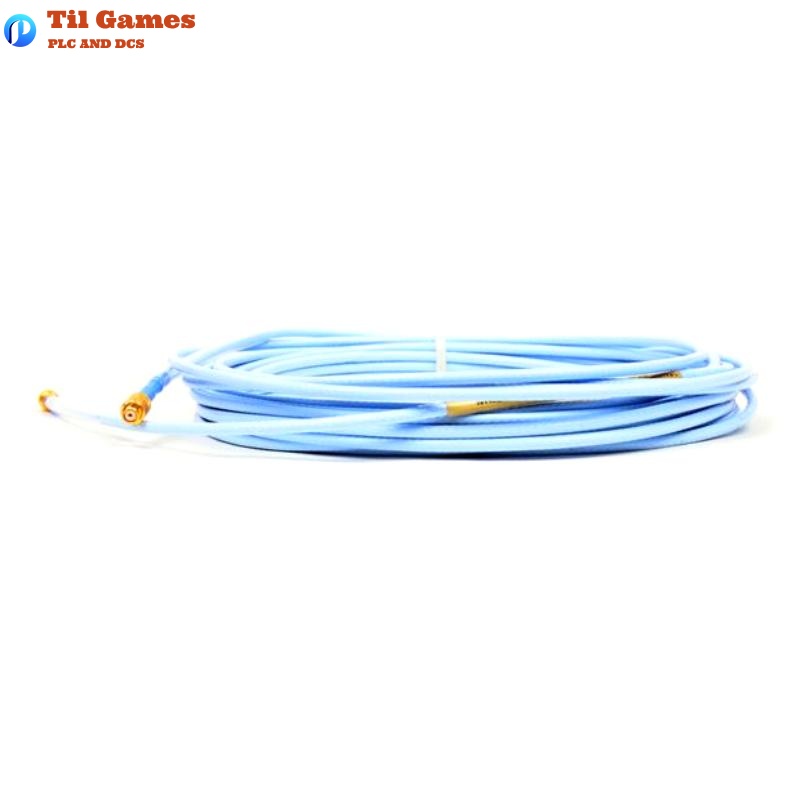

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg (approximately 0.6 lbs) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Outer Diameter | Max 3.68 mm (0.145 in) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Cable Capacitance | 69.9 pF/m (typical) |
| Conductor Resistance | 1.76 ± 0.26 Ω (for 8.0 meters) |
| Jacket Resistance | 0.53 ± 0.11 Ω (for 8.0 meters) |
| Temperature Range | -52°C to +177°C (standard), up to +260°C (ETR) |
| Connector Material | Gold-plated brass or beryllium copper |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Connection Type | ClickLoc connector, no tools required |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the standard length of the 330130-080-00-00 cable?
A1: It is 8.0 meters, one of the longest standard configurations.
Q2: Is the cable compatible with non-XL 3300 series probes and Proximitor sensors?
A2: Yes. It is electrically and physically compatible with 3300 5 mm and 8 mm components.
Q3: Can the cable be used in high-temperature environments?
A3: Yes. The standard cable supports up to +177°C, and the ETR version up to +260°C.
Q4: Are special tools needed for connector installation?
A4: No. The ClickLoc connectors are tool-free and lock securely with a “click”.
Q5: Is the cable resistant to oil leakage?
A5: Yes, if ordered with the optional FluidLoc version to prevent oil ingress.
Q6: Is this cable certified for hazardous areas?
A6: Yes. It complies with CSA, ATEX, and IECEx certifications, suitable for Zone 0 and Zone 2.
Q7: Are connector protectors included?
A7: Models with protectors can be ordered, or they can be purchased separately.
Q8: Do the connectors loosen during operation?
A8: No. ClickLoc connectors have built-in locking mechanisms to prevent loosening.
