Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330130-080-00 |

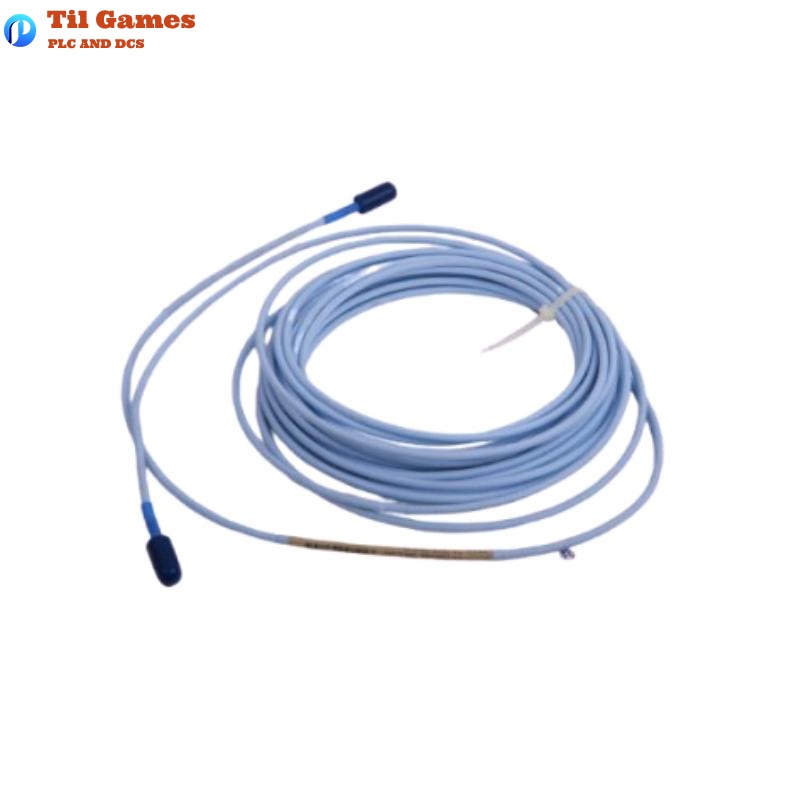

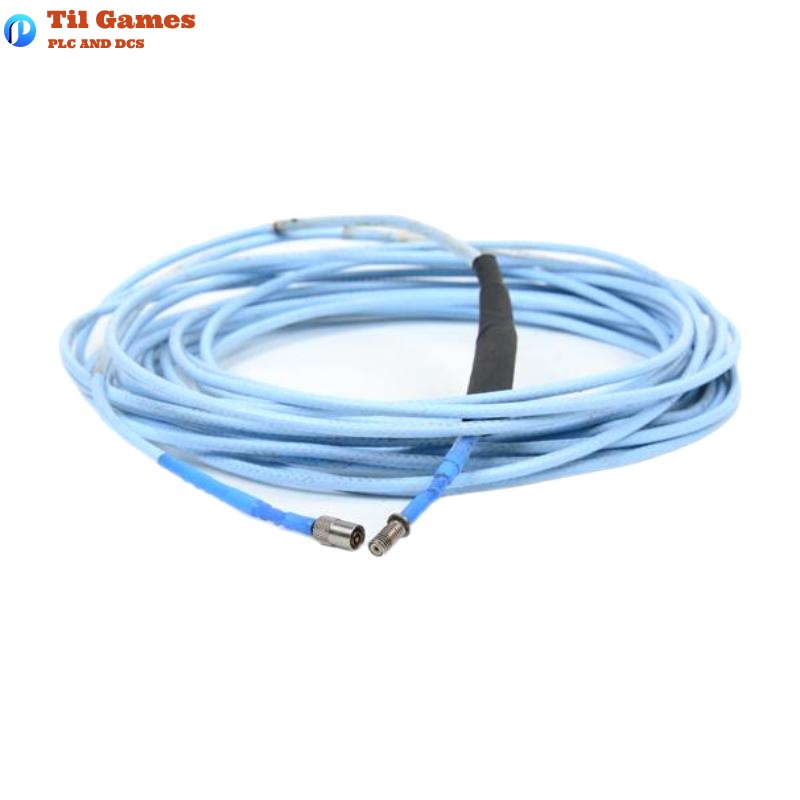

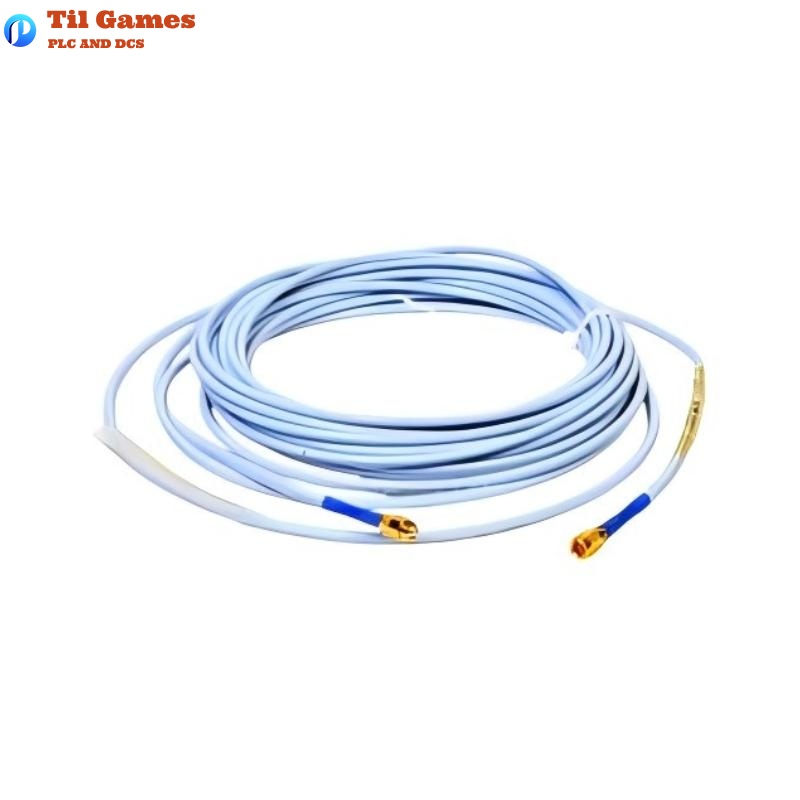

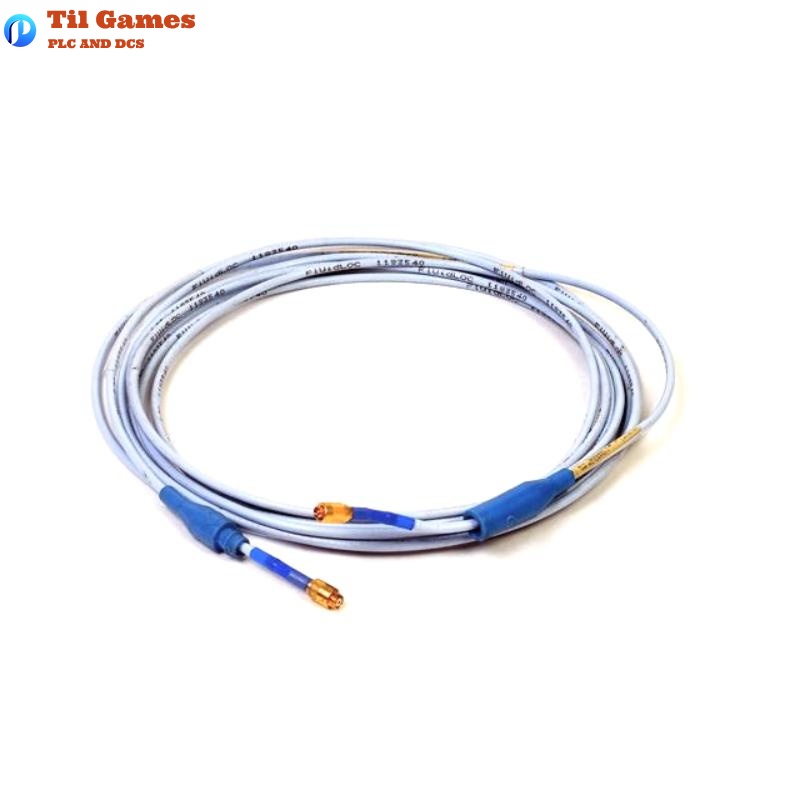

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters |
| Cable Type | 75Ω triaxial, FEP insulated standard cable |
| Cable Weight | 0.272 kg (approx. 34 g/m) |
| Core Resistance | 1.76 ± 0.26 Ω |
| Jacket Resistance | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated ClickLoc connectors |
| Operating Temperature | -52°C to +177°C (Standard) |
| Material | FEP insulation, gold-plated copper connectors |
| Dimensions | Approx. 3.7 mm diameter (non-armored cable) |
| Installation Advice | Use connector protectors for enhanced durability |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is this extension cable compatible with?
A1: The 330130-080-00 is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, compatible with standard Proximitor sensors and probes.
Q2: Can this cable be used in high-temperature environments?
A2: This is the standard temperature version rated up to +177°C. For higher temperatures, use the Extended Temperature Range (ETR) version.
Q3: Do the connectors require special tools for installation?
A3: No tools are needed. ClickLoc connectors lock with a click and prevent loosening without tools.
Q4: Is armored cable available for this model?
A4: Yes, both armored and non-armored variants are available.
Q5: What is the recommended minimum bend radius for installation?
A5: The recommended minimum bend radius is 25.4 mm to maintain cable integrity.
Q6: Is the cable length customizable?
A6: Yes, standard options range from 3.0 to 8.5 meters. 8.0 meters is a standard selection.
Q7: How far can the sensor system be extended with this cable?
A7: The probe and extension cable combined must match the Proximitor sensor’s specified system length, up to 9 meters.
Q8: Is calibration needed when installing this cable?
A8: No individual calibration is necessary. 3300 XL system components are fully interchangeable and factory-calibrated.
