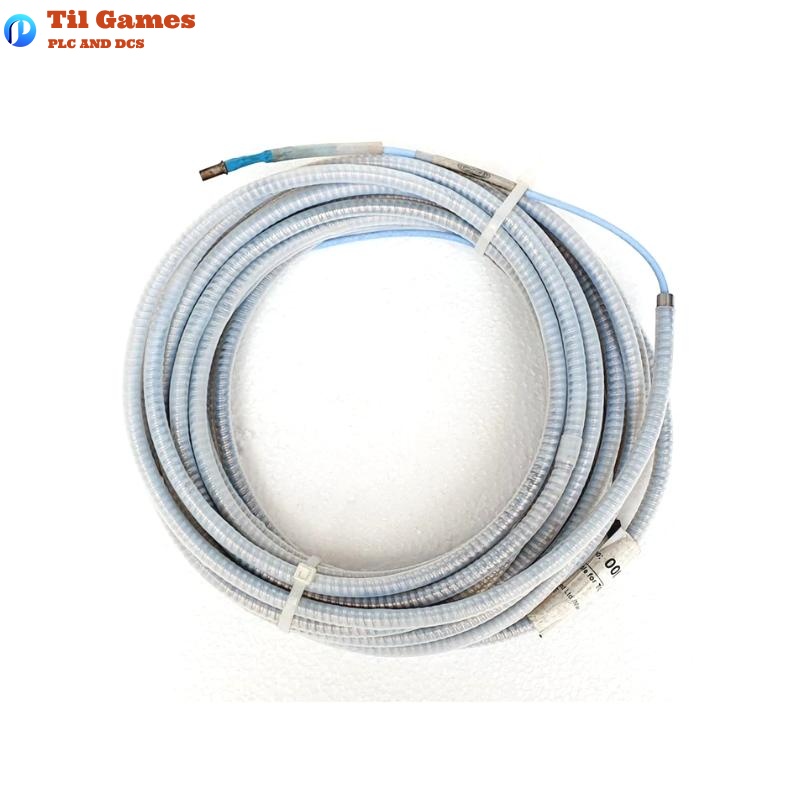

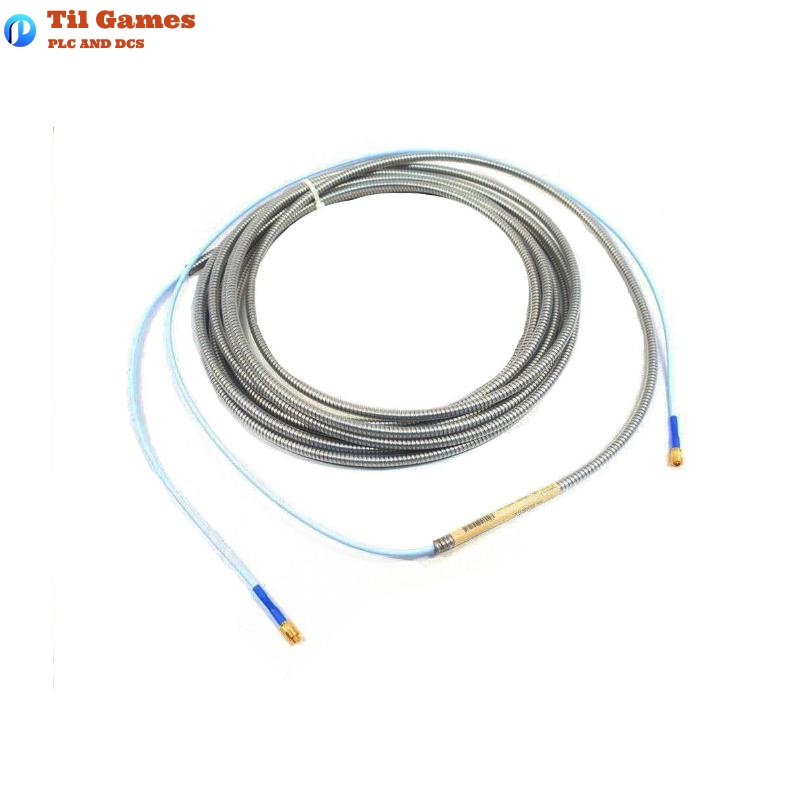

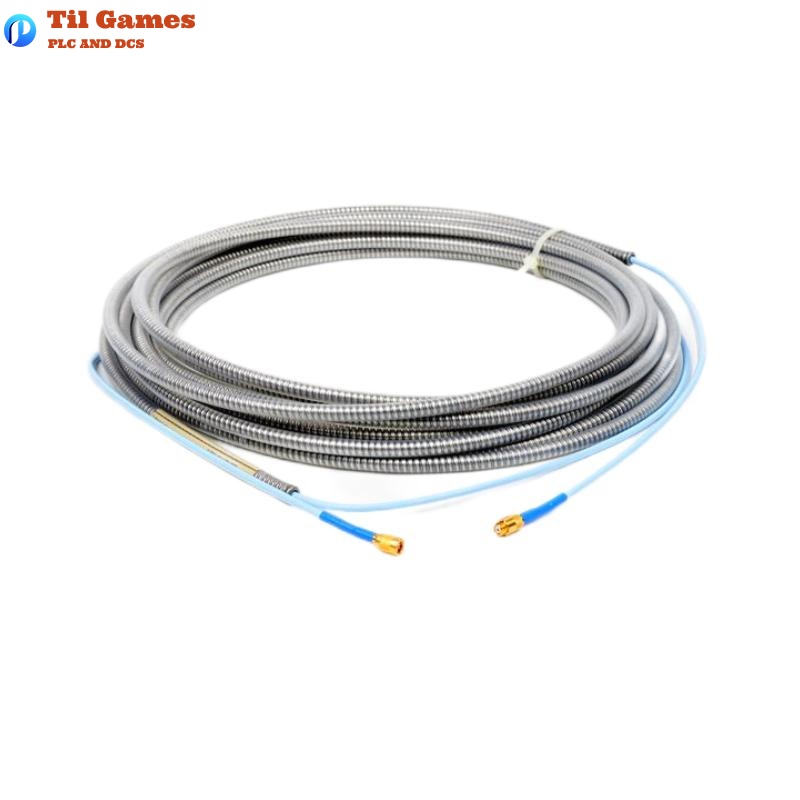

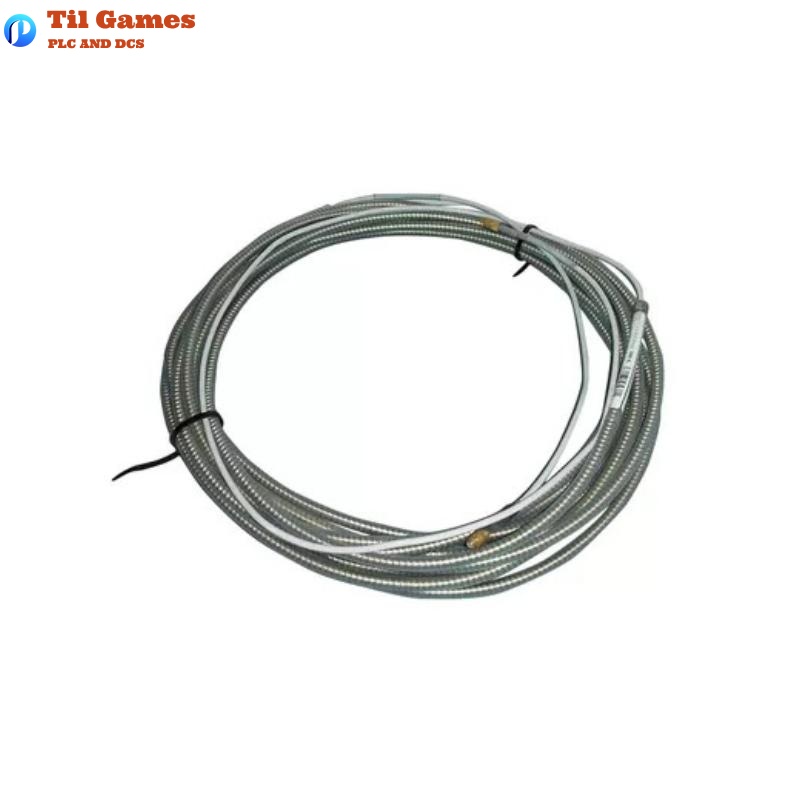

Bently Nevada 330130-080-01-00 Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 330130-080-01-00 |
| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters |
| Cable Weight | 0.824 kg (approximately 34 g/m) |
| Cable Type | 75Ω triaxial FEP-insulated standard cable |
| Capacitance | 69.9 pF/m (typical) |
| Core Resistance | 1.76 ± 0.26 Ω (for 8.0 meters) |
| Jacket Resistance | 0.53 ± 0.11 Ω (for 8.0 meters) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | ClickLoc gold-plated brass or beryllium copper |
| Connector Tightening | Finger-tight with audible click |
| Operating Temp Range | -52°C to +177°C (standard version) |
| Storage Temp Range | -52°C to +177°C (standard version) |
| Protection Accessories | Optional connector protectors, silicone tape |
| Installation Use | Used with 3300 XL probes and Proximitor sensors |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this extension cable compatible with legacy 3300 series probes?
A1: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm probes.
Q2: What is the maximum operating temperature of this cable?
A2: The standard version supports up to +177°C; the ETR version supports up to +260°C.
Q3: Are connector protectors required for installation?
A3: They are recommended, especially in environments exposed to oil or contamination.
Q4: Can connector protectors be ordered separately?
A4: Yes, connector protector kits and tools are available as accessories.
Q5: Can the cable be used in fluid-sealing applications?
A5: The standard version does not seal against fluid ingress. Choose the FluidLoc option for such use cases.
Q6: Are special tools required for installation?
A6: No, ClickLoc connectors are designed for tool-free installation using finger-tightening.
Q7: What is the maximum pull strength of the extension cable?
A7: The cable can withstand up to 270 N (60 lbf) at the probe-lead to extension connection.
Q8: Can this extension cable be used with ETR probes?
A8: Yes, ETR extension cables are compatible with ETR probes and support interchangeability.
