📌 Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-080-01-05 |

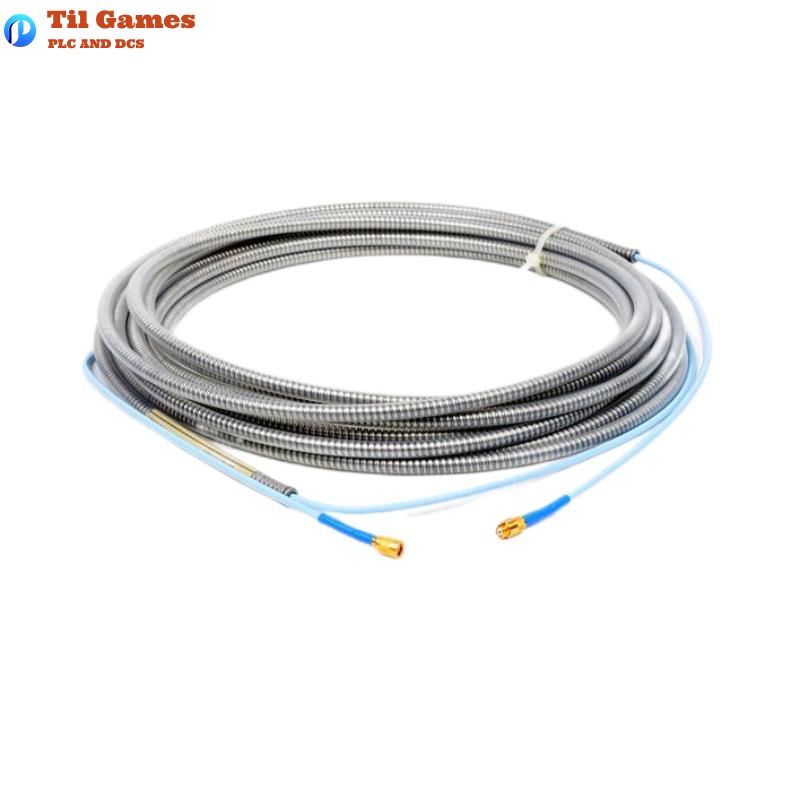

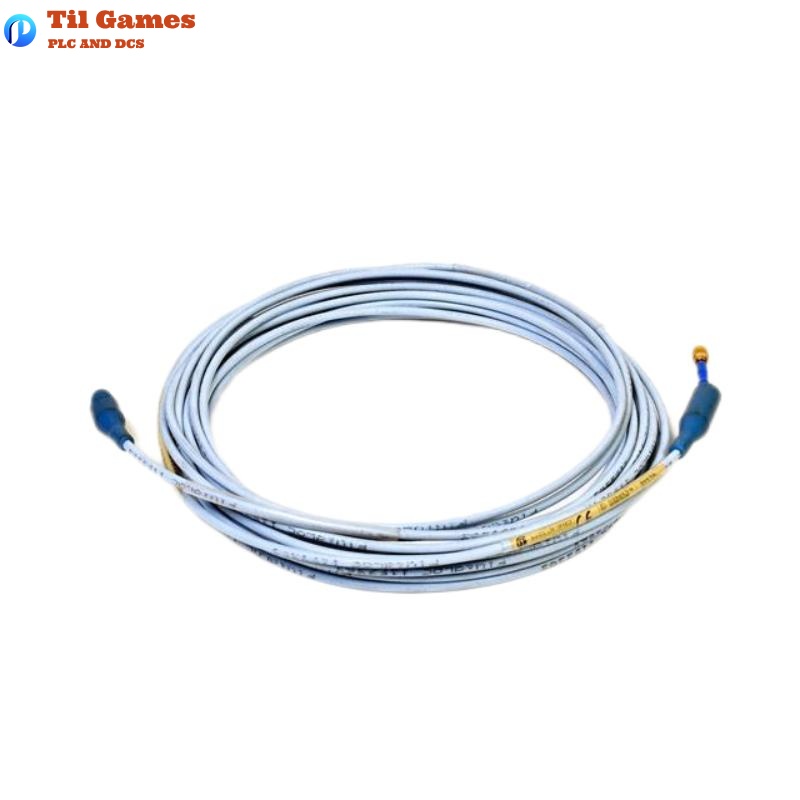

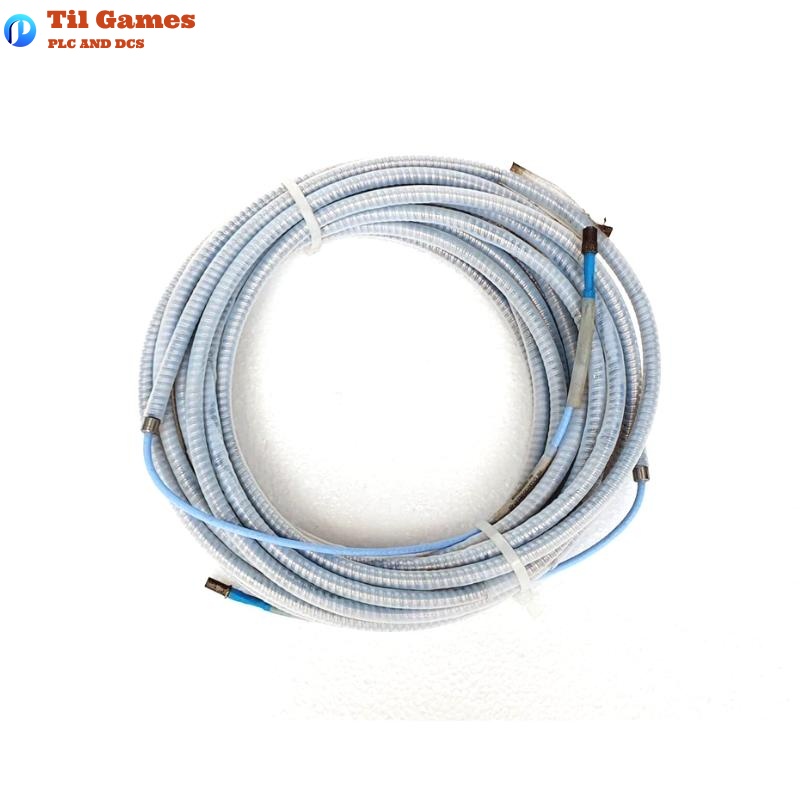

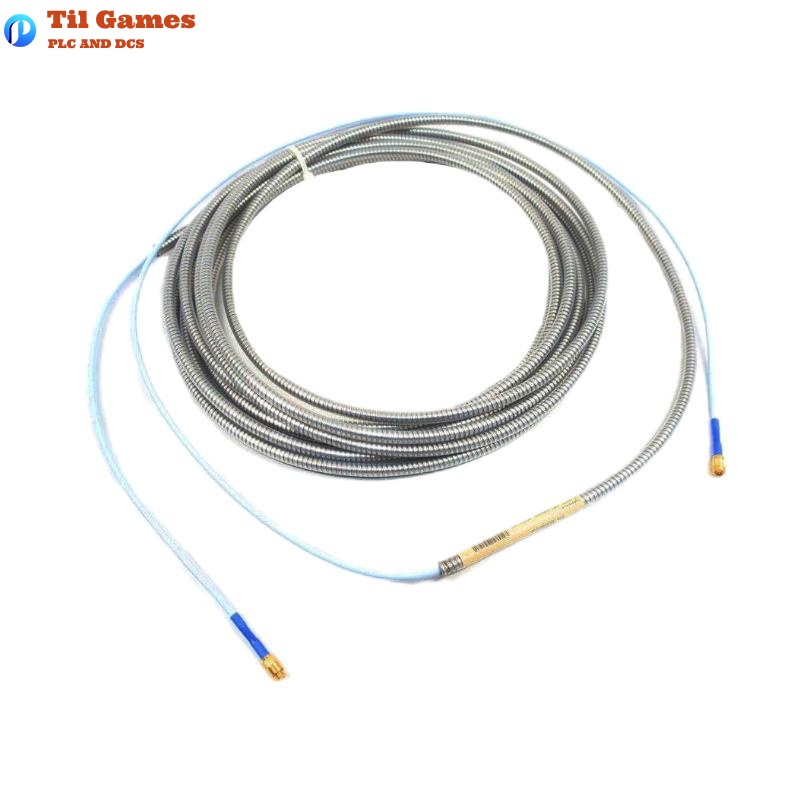

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters |
| DC Resistance (RCORE) | 1.76 ± 0.26 Ω (core) |
| Jacket Resistance (RJACKET) | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.824 kg |
| Connector Type | Gold-plated ClickLoc connectors |
| Operating Temperature Range | -52°C to +177°C (standard version) |
| Materials | Gold-plated brass or beryllium copper connectors |
FAQ
❓ Frequently Asked Questions (FAQ)
Q1: Is this cable interchangeable with non-XL 3300 series components?
A1: Yes, it is electrically and physically compatible with 3300 5mm and 8mm non-XL series.
Q2: Can this cable be used in high-temperature environments?
A2: This standard version supports up to +177°C. For higher temperatures, use the ETR version (model 330190 series).
Q3: What is the maximum wiring distance supported?
A3: The recommended maximum field wiring length between the Proximitor and monitor is 305 meters. Signal degradation at high frequencies may occur over long distances.
Q4: Are connector protectors recommended for installation?
A4: Yes, to enhance environmental protection, especially in oil or turbine applications, connector protectors are recommended.
Q5: Are special tools required for cable installation?
A5: No special tools are needed. ClickLoc connectors lock in place with finger-tightening.
Q6: Is the cable system compliant with API 670 standards?
A6: Yes, the entire 3300 XL system, including this cable, meets API 670 specifications for linear range and mechanical performance.
Q7: Are the connectors corrosion-resistant?
A7: Yes, the connectors are gold-plated and corrosion-resistant, suitable for industrial conditions.
Q8: How can I ensure proper cable matching with probes and Proximitor sensors?
A8: The total length of the probe and extension cable must equal the system length of the Proximitor. For example, an 8m cable should be used with a 1m probe and a 9m Proximitor sensor.
