Technical Specifications
| Item | Description |
|---|---|
| Part Number | 330130-080-01-CN |

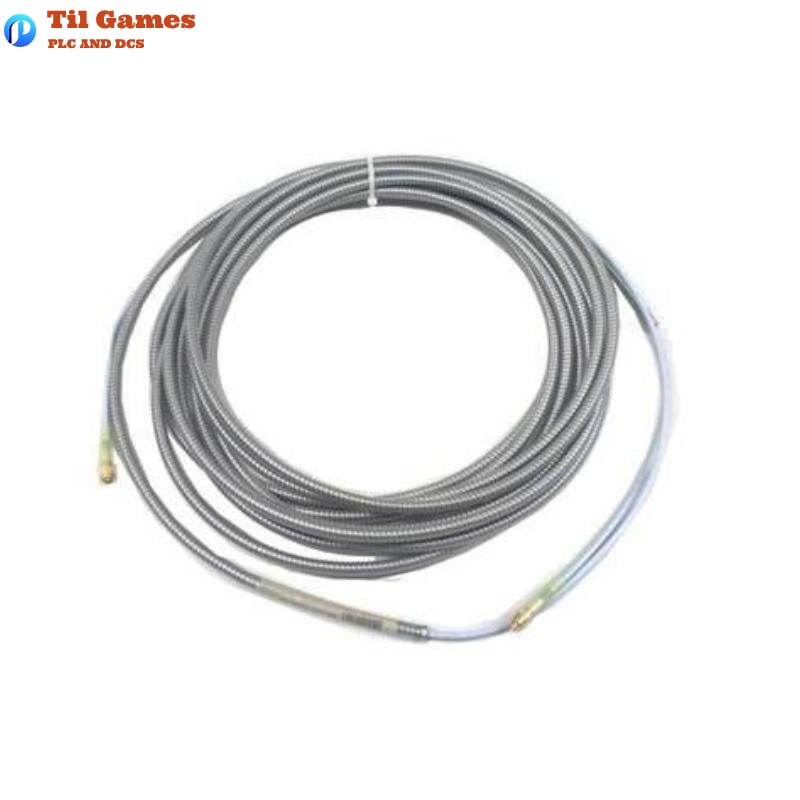

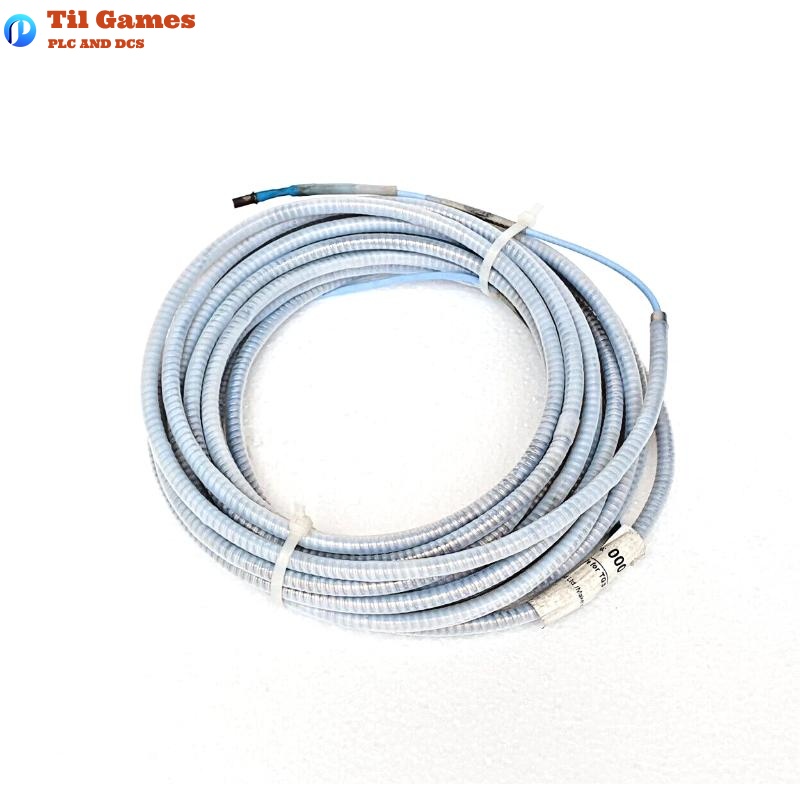

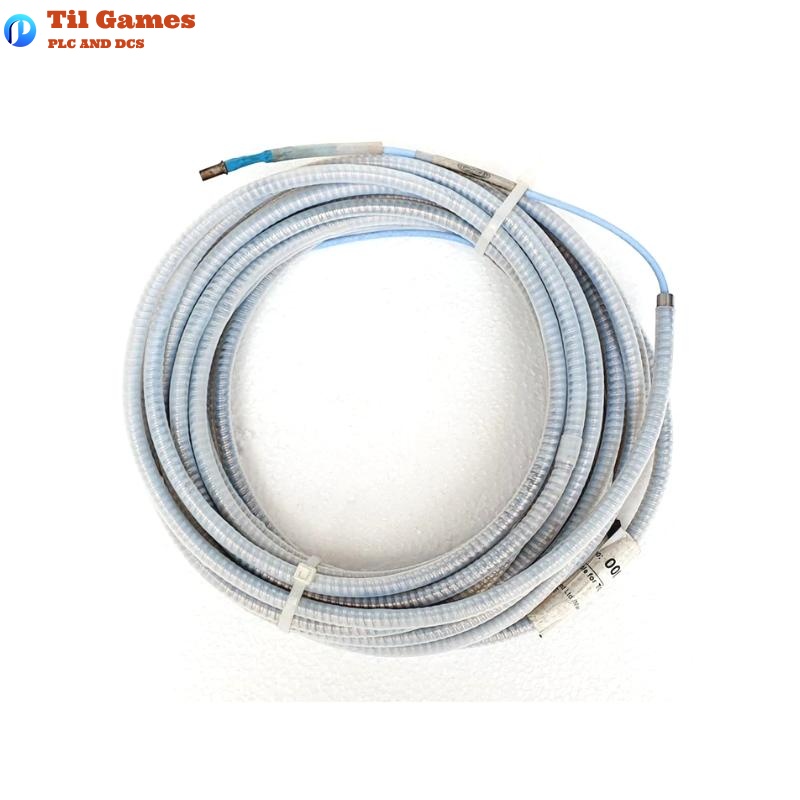

| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters |
| Cable Type | 75 Ω triaxial FEP insulated cable |
| Cable Weight | 0.824 kg |
| Optional Armor | Stainless steel armor with FEP outer jacket |
| Connector Type | Gold-plated ClickLoc coaxial connectors |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Capacitance | 69.9 pF/m |
| DC Resistance (Core) | 1.76 ± 0.26 Ω |
| DC Resistance (Jacket) | 0.53 ± 0.11 Ω |
| Min Bend Radius | 25.4 mm (1.0 inch) |
| Temperature Range | -52°C to +177°C (Standard Cable) |
| Tensile Strength | Max 270 N at connector |
| Recommended Pairing | With 3300 XL Proximitor Sensor and Probe |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is this extension cable compatible with?
A1: It is designed for use with Bently Nevada 3300 XL 8 mm eddy current proximity transducer systems, including Proximitor sensors and probes.
Q2: What is the cable length for this model?
A2: This model provides a standard 8.0-meter extension length, typically used in 9-meter systems.
Q3: Is the cable oil-resistant?
A3: If ordered with the FluidLoc option, it prevents oil and liquid ingress through the cable, ideal for high-oil environments.
Q4: Is the use of connector protectors mandatory?
A4: While not mandatory, they are strongly recommended for enhanced environmental protection.
Q5: Are special tools required for installation?
A5: No. ClickLoc connectors are finger-tightened and produce a click when properly secured.
Q6: What is the maximum temperature the cable can withstand?
A6: Standard cable withstands up to +177°C; Extended Temperature Range cable can handle up to +260°C.
Q7: Is this extension cable compatible with older 3300 series systems?
A7: Yes, it is fully compatible electrically and physically with non-XL 3300 5 mm and 8 mm components.
Q8: How do I ensure the correct cable length is selected?
A8: Ensure the sum of the probe length and extension cable length equals the Proximitor Sensor’s designated system length.
