📌 Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-080-02-00 |

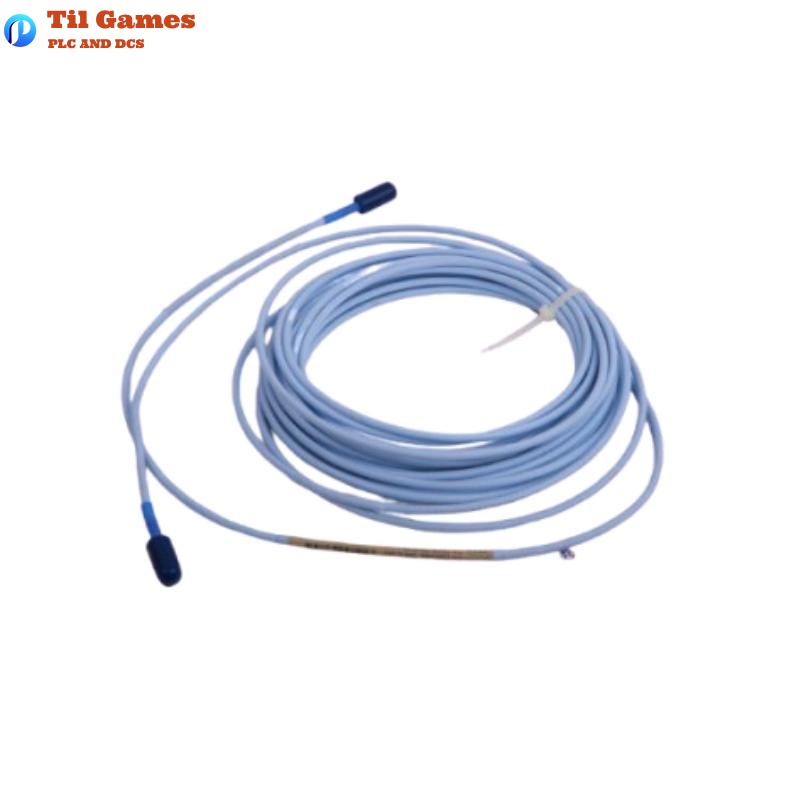

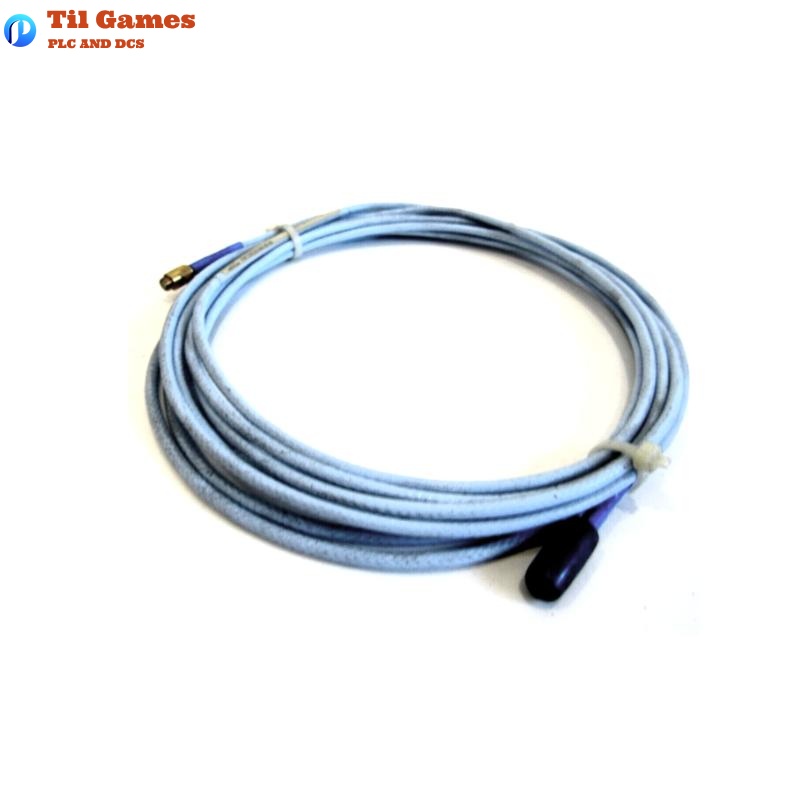

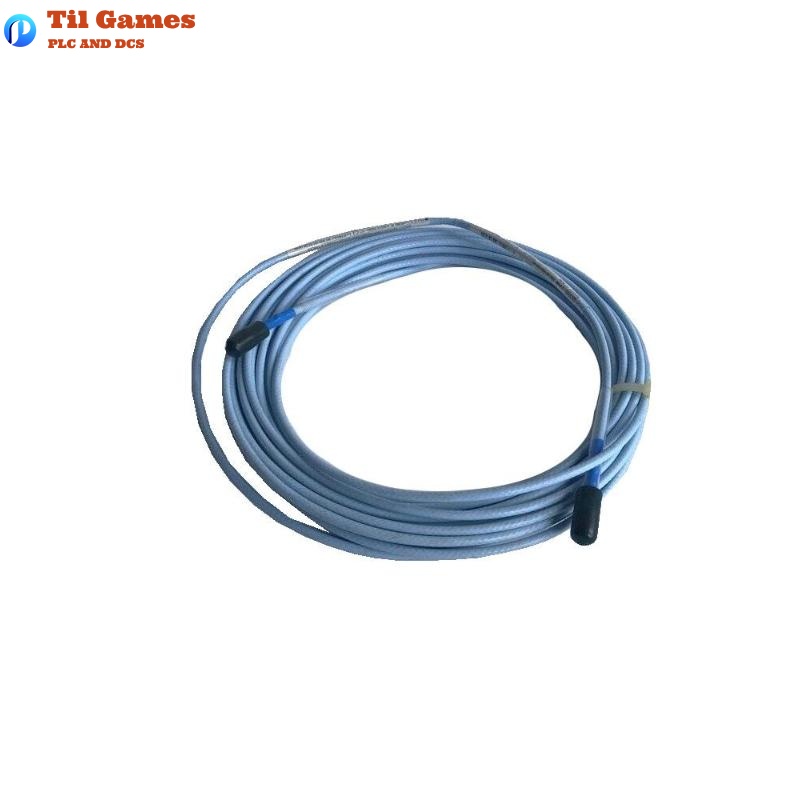

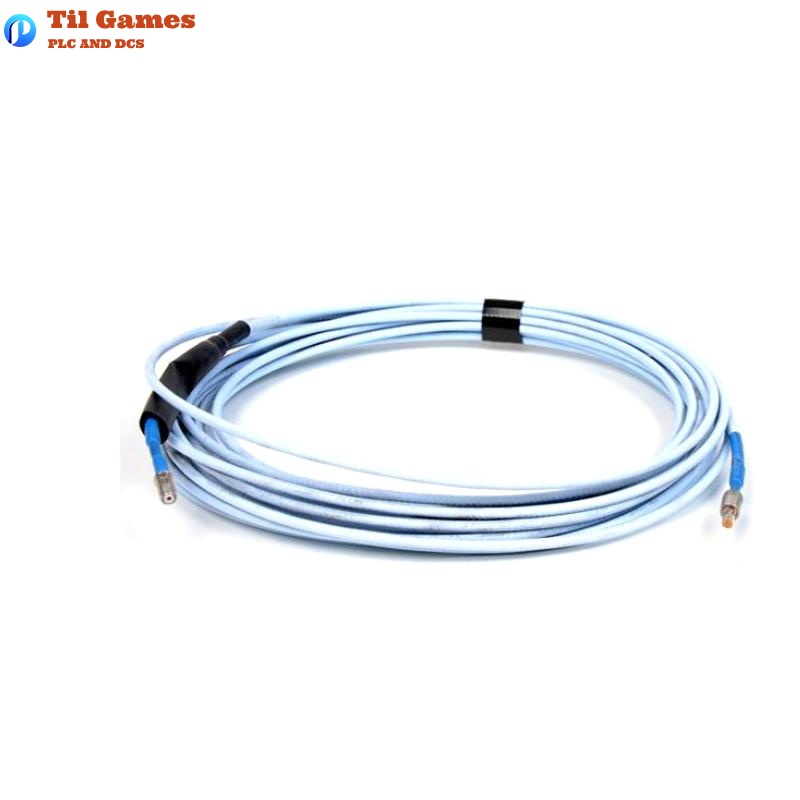

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Type | 75Ω triaxial, FEP-insulated, with connector protector |
| Cable Capacitance | 69.9 pF/m (typical) |
| Core Resistance | 1.76 ± 0.26 Ω |
| Jacket Resistance | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated ClickLoc coaxial, finger-tight installation |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Weight | 0.272 kg (for 8 m cable) |
| Compatibility | Compatible with 3300 XL 8 mm probes and Proximitors |
FAQ
❓ FAQ
Q1: What systems is the 330130-080-02-00 cable compatible with?
A1: This extension cable is designed for Bently Nevada 3300 XL 8 mm eddy current systems and connects to Proximitor sensors and probes.
Q2: What is the standard operating temperature for this cable?
A2: The operating and storage temperature range is -52°C to +177°C.
Q3: Is this cable suitable for high-temperature applications?
A3: For temperatures above +177°C, use the ETR (Extended Temperature Range) version, which supports up to +260°C.
Q4: Does the cable include connector protection?
A4: Yes, the -02 suffix indicates the cable includes standard connector protectors for environmental sealing.
Q5: What are the key electrical characteristics of the cable?
A5: Capacitance is 69.9 pF/m; core resistance is 1.76 ± 0.26 Ω; jacket resistance is 0.53 ± 0.11 Ω.
Q6: Are special tools required to install the connectors?
A6: No special tools are needed. ClickLoc connectors are finger-tightened with an audible “click” when secure.
Q7: What probe lengths can be used with this cable?
A7: Any probe length can be used as long as the sum of probe and cable matches the total system length (e.g., 9 m).
Q8: Does this cable meet API 670 compliance?
A8: Yes, it meets API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
