Technical Specifications
| Parameter | Description |
|---|---|

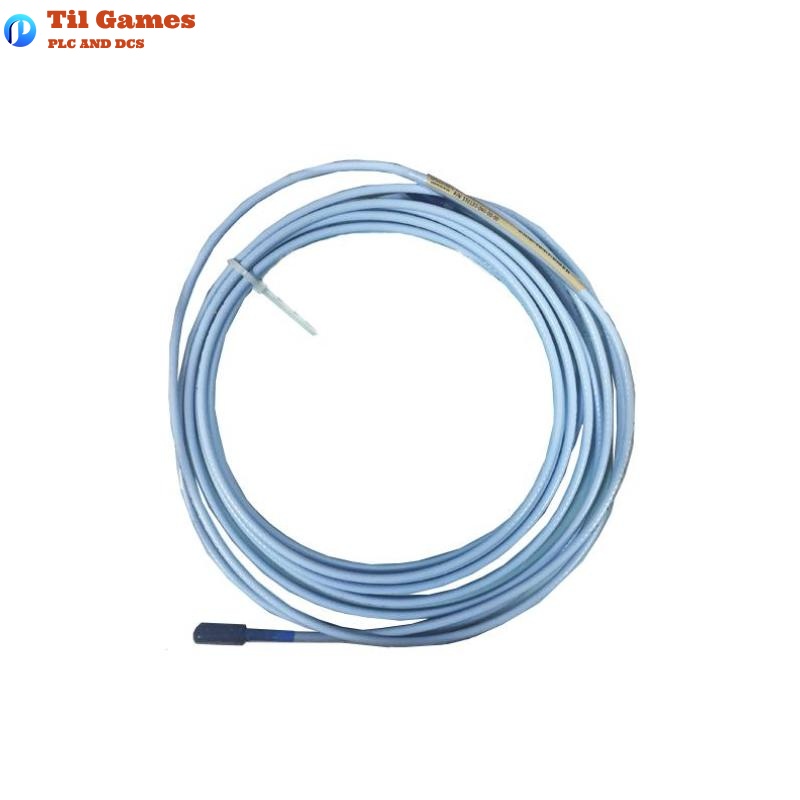

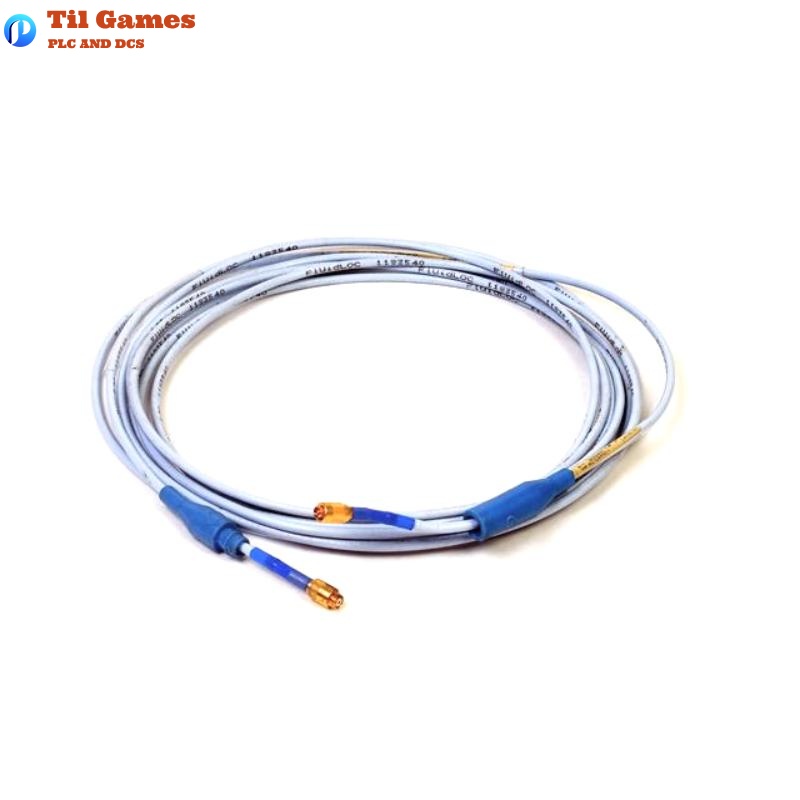

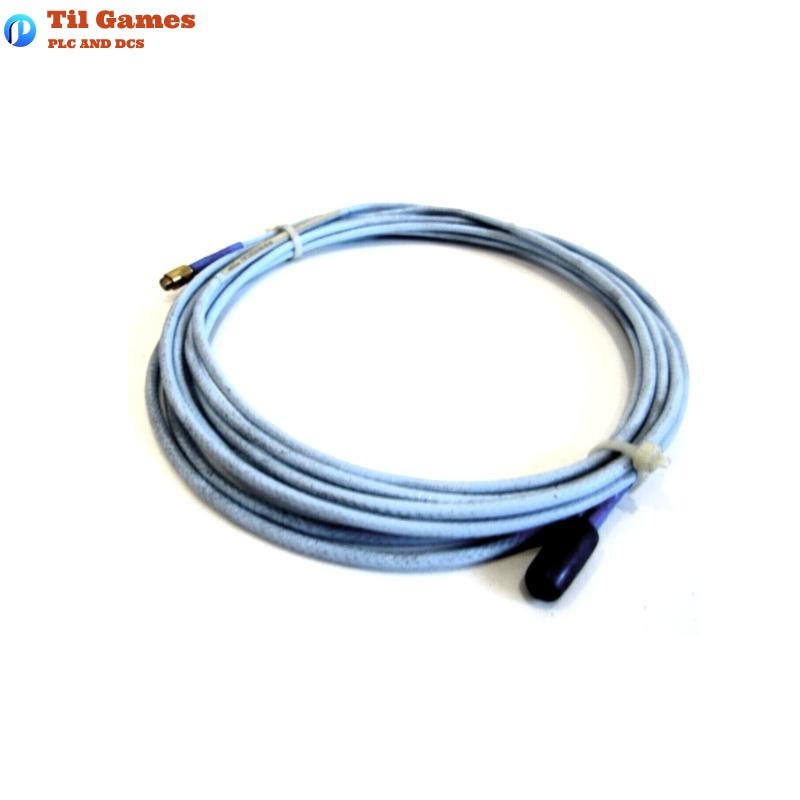

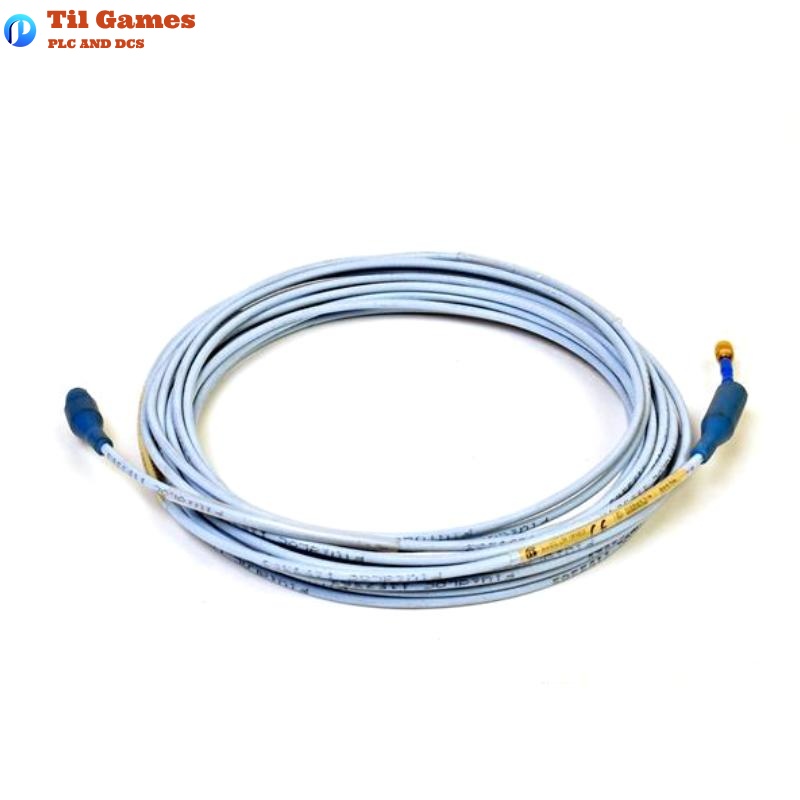

| Product Model | 330130-080-02-05 |
| Cable Type | 75Ω triaxial, FEP (Fluoroethylene Propylene) insulation |
| Connector Type | Miniature coaxial ClickLoc connectors with standard cable and protector |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Center Conductor) | 1.76 ± 0.26 ohms |
| DC Resistance (Outer Conductor) | 0.53 ± 0.11 ohms |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Material | Gold-plated brass or beryllium copper |
| Weight | 0.272 kg |
| Outer Diameter (Cable) | 3.68 mm (standard) |
FAQ
FAQ
Q1: What is the cable length of the 330130-080-02-05 model?
A1: The cable length is 8.0 meters.
Q2: What is the weight of the 330130-080-02-05 extension cable?
A2: The cable weighs approximately 0.272 kg.
Q3: What insulation material is used for this cable?
A3: The insulation is made of Fluoroethylene Propylene (FEP).
Q4: What is the operating temperature range for the standard cable?
A4: The standard cable can operate from -52°C to +177°C.
Q5: Is the connector type on this model tool-free?
A5: Yes, the ClickLoc connectors require no tools and are finger-tightened until they click.
Q6: What is the minimum bend radius for the cable?
A6: The minimum permissible bend radius is 25.4 mm.
Q7: Are connector protectors included with this cable?
A7: Yes, this version (02) includes connector protectors.
Q8: Can this extension cable be used in high-vibration environments?
A8: Yes, it is designed for industrial applications with rugged construction and robust connection
