Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-080-03-05 |

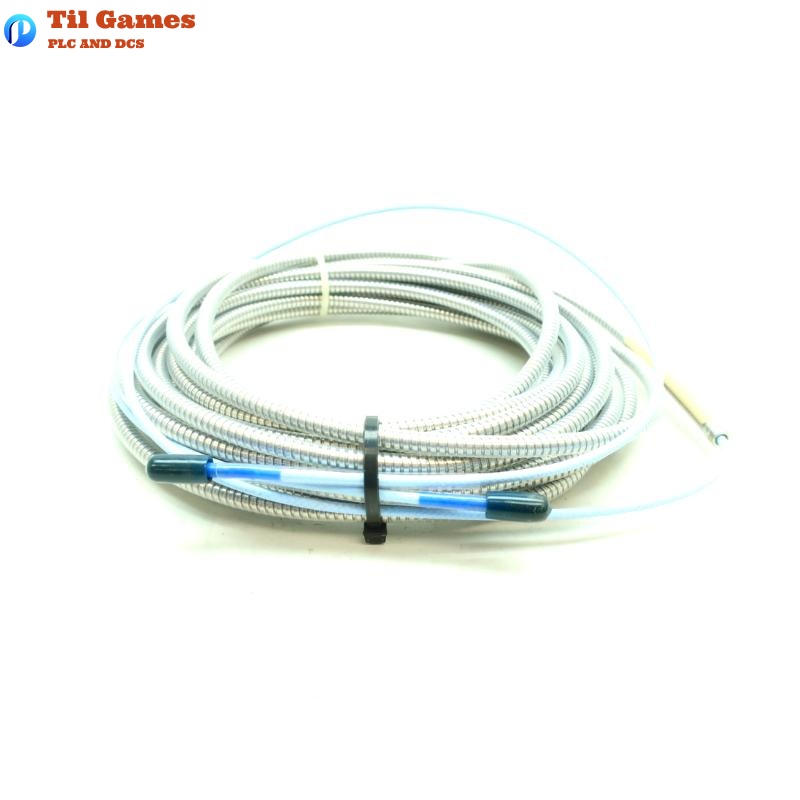

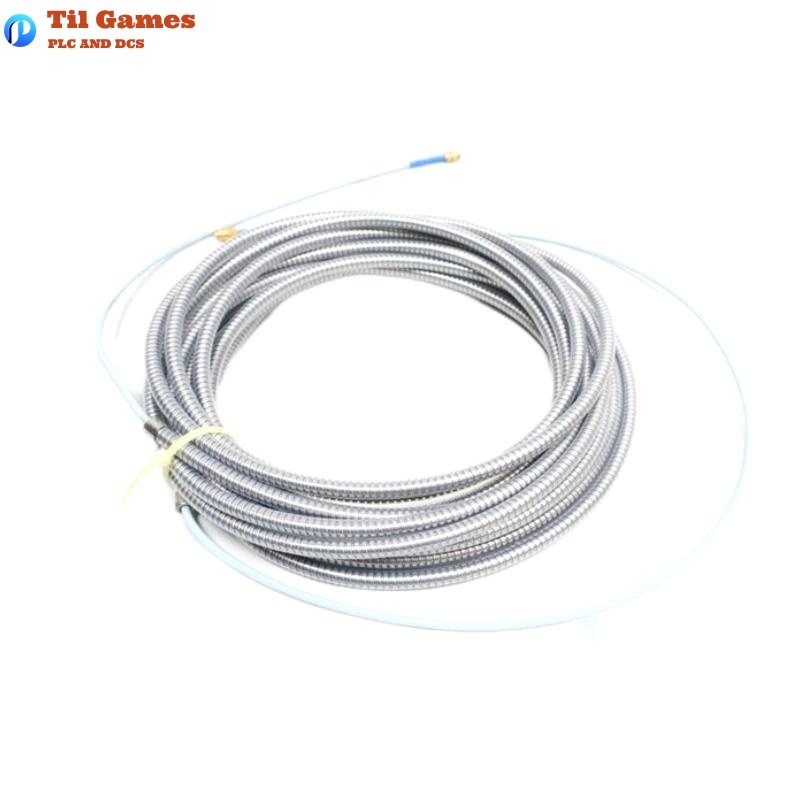

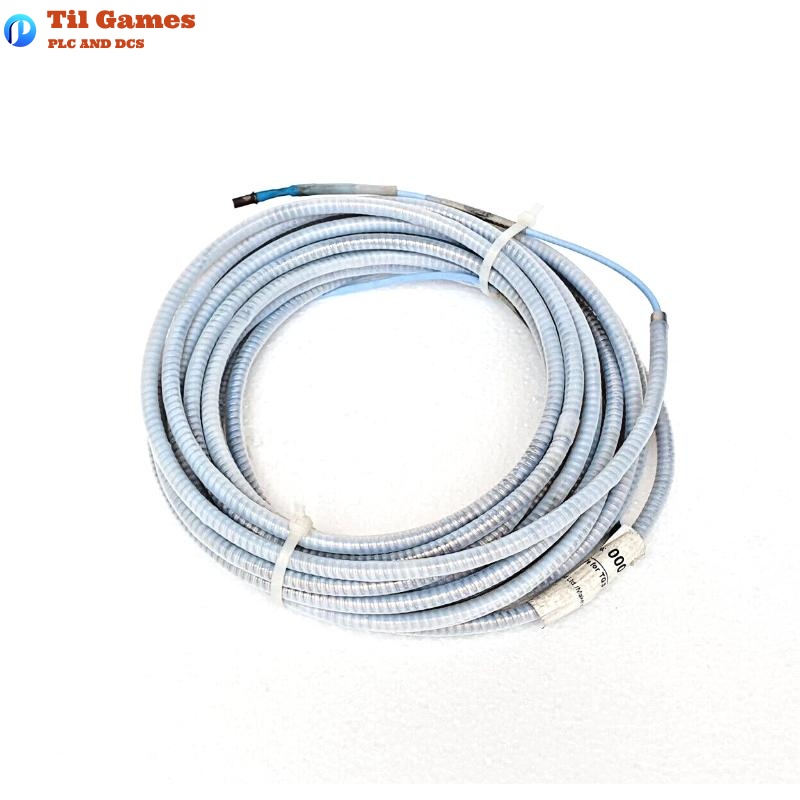

| Product Name | 3300 XL Standard Extension Cable |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft), typical |
| Jacket Resistance (RJACKET) | 0.53 ± 0.11 ohms |
| Core Resistance (RCORE) | 1.76 ± 0.26 ohms |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Gold-plated ClickLoc coaxial connectors |
| Connector Torque (Max) | 0.565 N·m (5 in·lbf) |
| Weight | 0.824 kg (typical for 8.0 m) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Material | FEP insulation, optional stainless-steel armor |
| Compliance | RoHS, CE, FCC, ATEX, IECEx certified |
FAQ
FAQ
Q1: What is the main function of the 330130-080-03-05 extension cable?
A1: It connects the proximity probe to the Proximitor sensor, transmitting the signal with high accuracy and shielding.
Q2: What is the resistance of the cable at 8 meters?
A2: The core resistance is 1.76 ± 0.26 ohms, and the jacket resistance is 0.53 ± 0.11 ohms.
Q3: What material is used for insulation?
A3: The standard version uses FEP (fluoroethylene propylene) insulation.
Q4: Can this cable be used in high-temperature environments?
A4: Yes, it operates in temperatures from -52°C to +177°C.
Q5: What is the bend radius requirement during installation?
A5: The minimum bend radius is 25.4 mm (1.0 inch).
Q6: Does this extension cable support ClickLoc connectors?
A6: Yes, it uses gold-plated ClickLoc connectors with a finger-tight click mechanism.
Q7: Is the cable armored?
A7: This specific model (03-05) includes standard cable; armored variants are available under different suffix codes.
Q8: Is the cable compliant with international safety standards?
A8: Yes, it complies with RoHS, CE, FCC, and has ATEX and IECEx approvals.
