Technical Specifications
| Parameter | Specification |
|---|---|

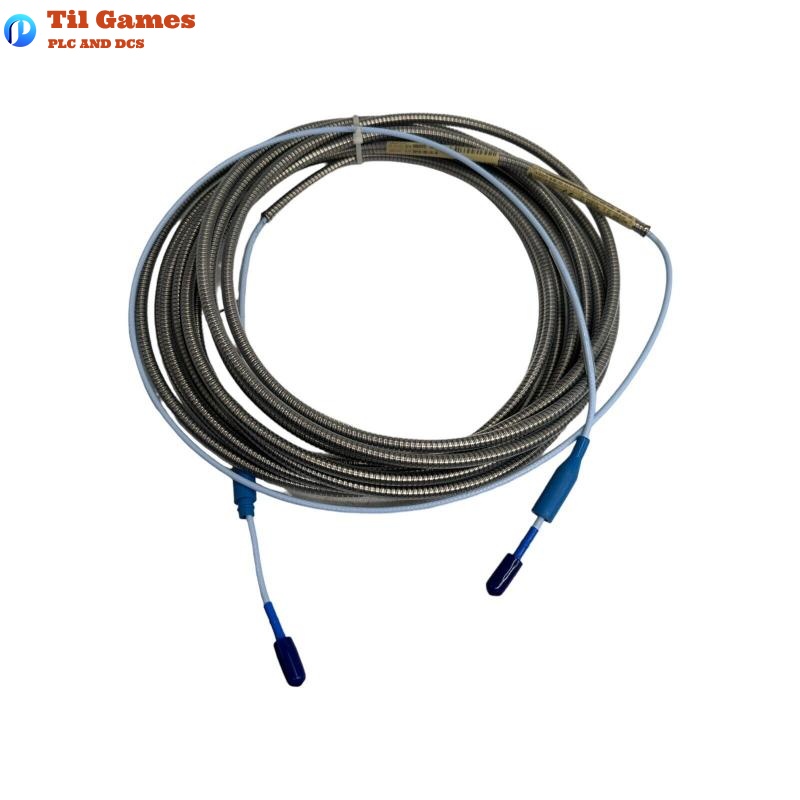

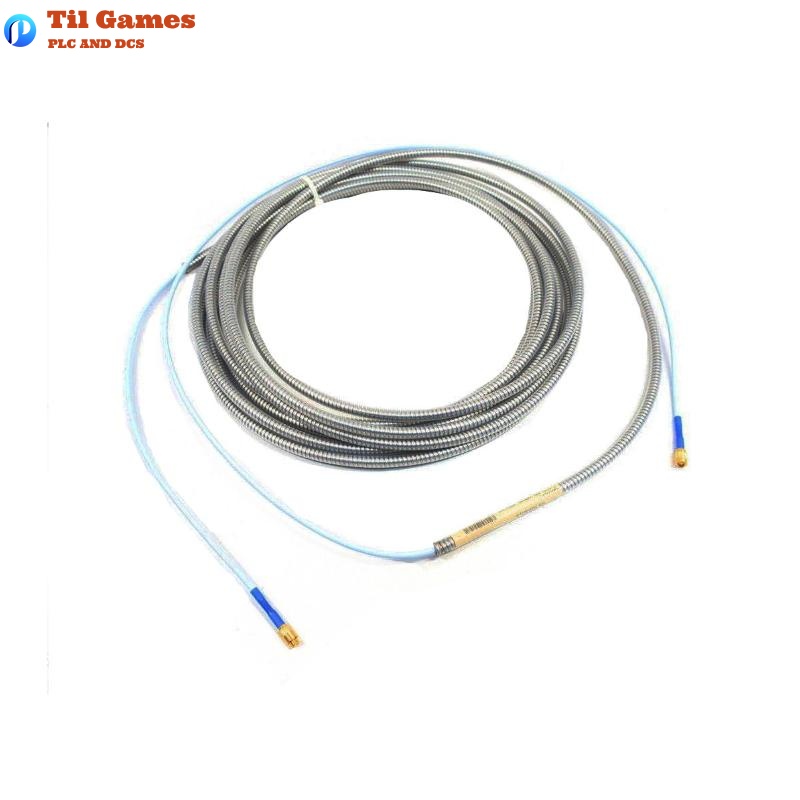

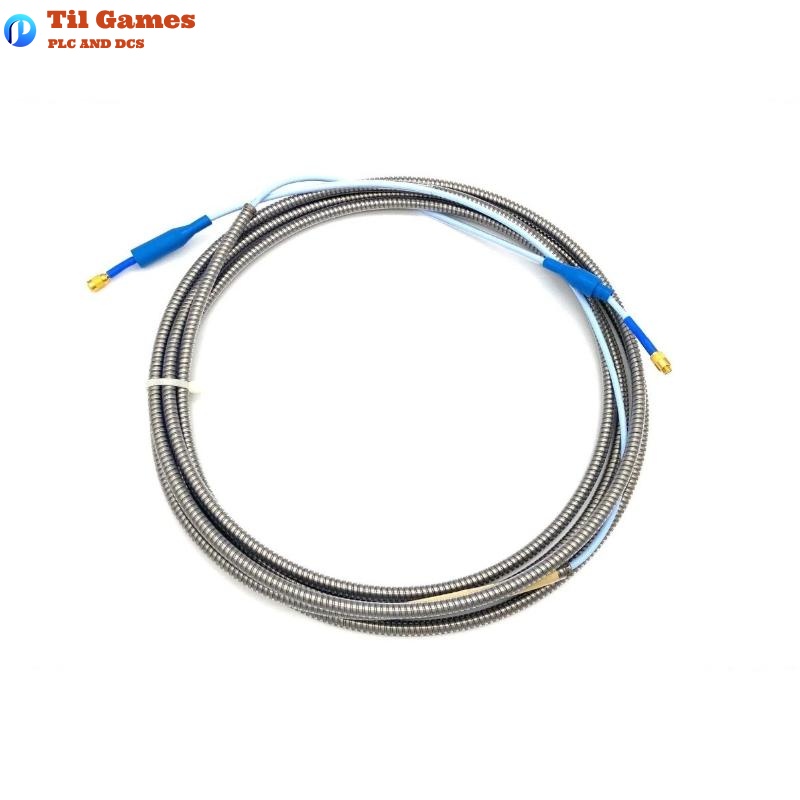

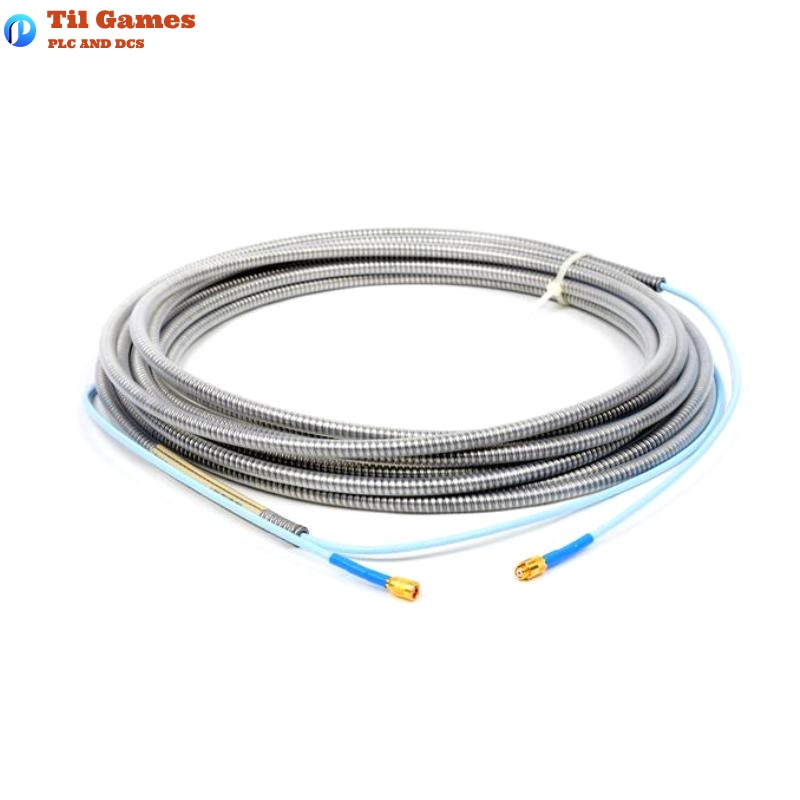

| Model | 330130-080-03-CN |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Length | 8.0 meters (26.2 ft) |
| DC Resistance (Center to Center) | 1.76 ± 0.26 Ω |
| DC Resistance (Shield to Shield) | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Armor Option | Available as armored and non-armored |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.824 kg |
| Environmental Rating | Operating Temp: -52°C to +177°C (Standard); Up to 260°C (ETR) |
| Compliance | CSA, ATEX, IECEx (depending on configuration) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330130-080-03-CN extension cable?
A1: It connects the proximity probe to the Proximitor sensor, enabling accurate signal transmission in vibration and position monitoring systems.
Q2: What is the maximum operating temperature for this cable?
A2: The standard version operates up to 177°C, while the ETR version can withstand up to 260°C.
Q3: Is this extension cable compatible with other Bently Nevada systems?
A3: Yes, it is electrically and physically compatible with other 3300 series 5 mm and 8 mm systems.
Q4: Does the cable require any special installation tools?
A4: No special tools are required. The ClickLoc connectors are designed for finger-tight installation.
Q5: What type of insulation is used on the standard version of the cable?
A5: Fluoroethylene propylene (FEP) insulation is used for the standard version.
Q6: Can this cable be used in high-humidity environments?
A6: Yes, it is tested for less than 3% change in scale factor in 93% humidity for 56 days.
Q7: What is the recommended minimum bend radius for this cable?
A7: The minimum bend radius is 25.4 mm (1 inch).
Q8: Is the cable supplied with connector protectors?
A8: It depends on the selected configuration. Option codes determine whether protectors are included.
