Technical Specifications
| Parameter | Specification |
|---|---|

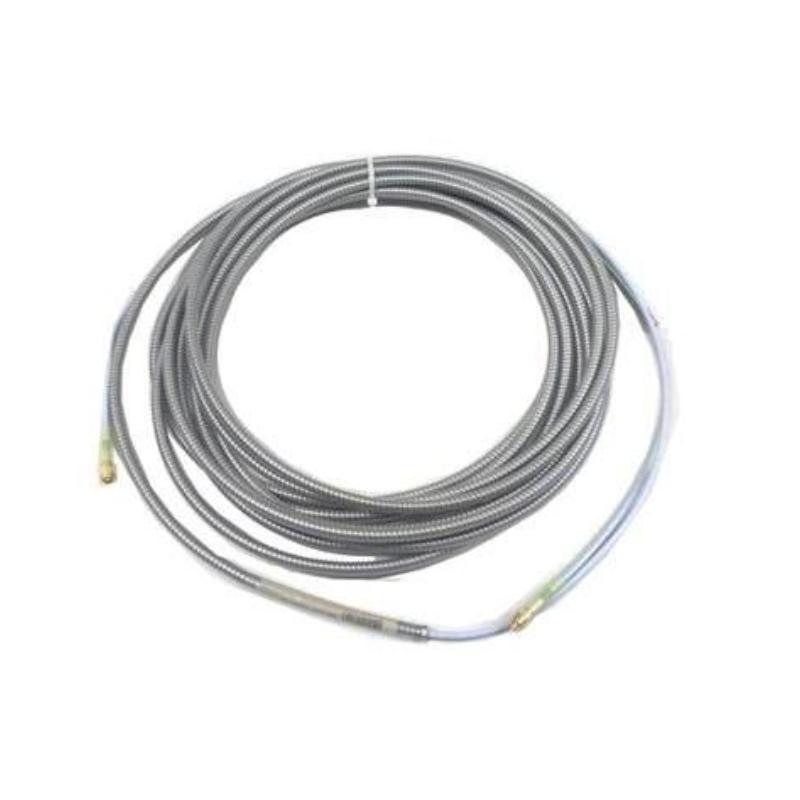

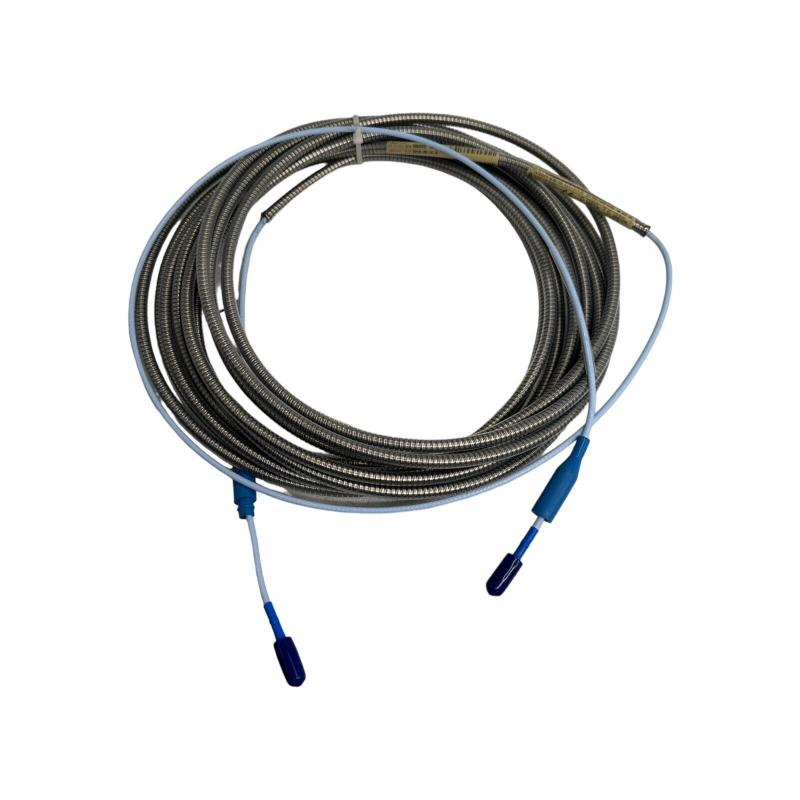

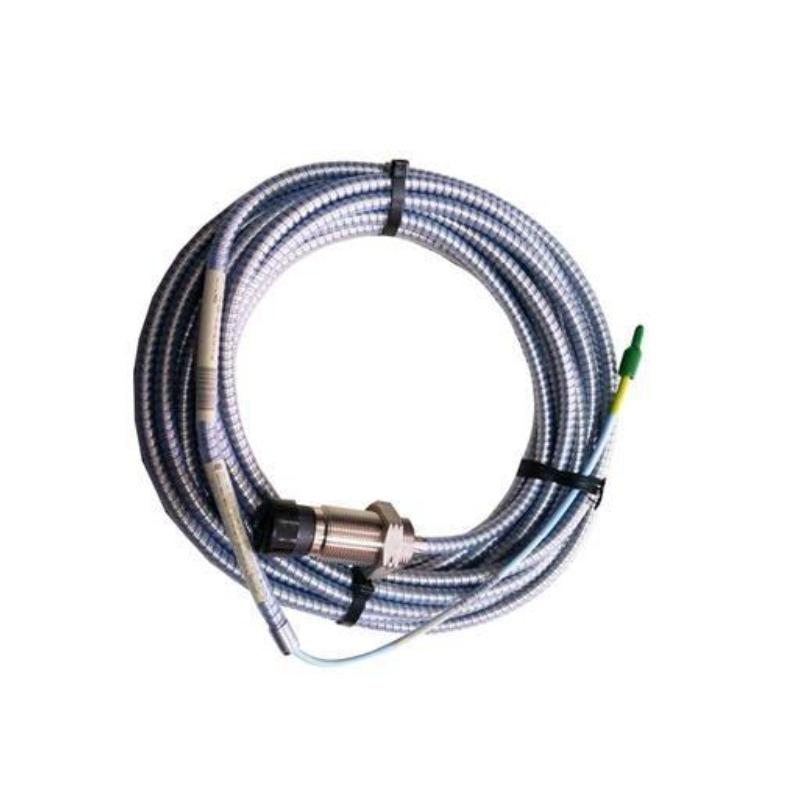

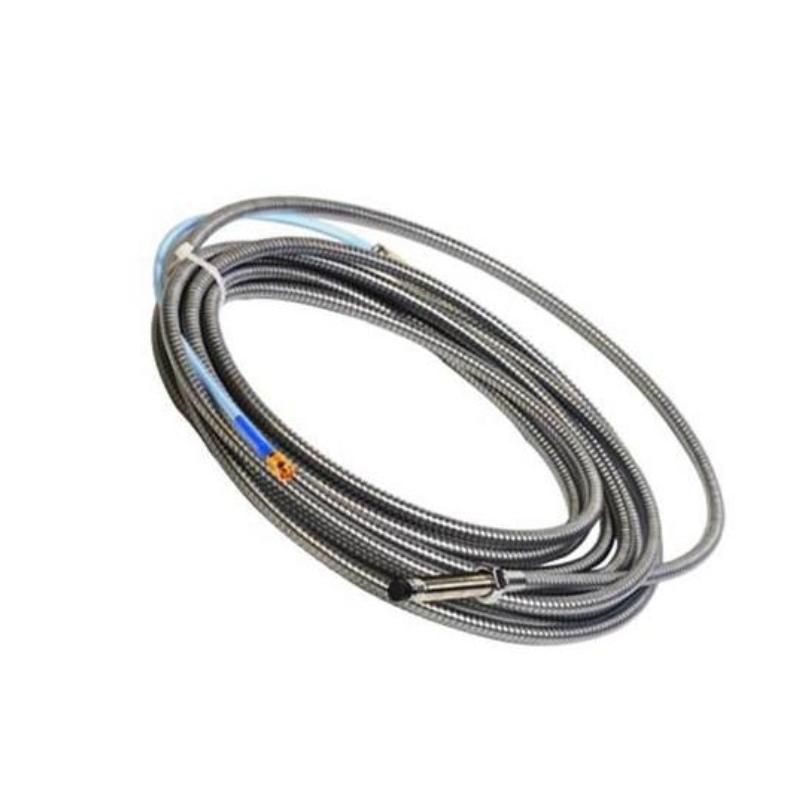

| Product Name | 330130-080-11-05 Standard Extension Cable |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Length | 8.0 meters |
| Capacitance | 69.9 pF/m typical |
| DC Resistance (Center to Center) | 1.76 ± 0.26 Ω |
| DC Resistance (Shield to Shield) | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature ClickLoc, gold-plated |
| Connector Torque | 0.565 N·m (5 in·lbf) max |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Weight | Approx. 0.272 kg |
| Dimensions | Cable diameter approx. 3.7 mm (without armor) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-080-11-05 extension cable?
A1: It connects the 3300 XL 8 mm probe to the Proximitor Sensor, extending signal reach while maintaining signal fidelity.
Q2: Can this extension cable be used in high-temperature applications?
A2: The standard version operates up to 177°C. For higher temperatures, use the ETR version.
Q3: Is the cable shielded against electromagnetic interference (EMI)?
A3: Yes, the cable is shielded and uses a triaxial design to reduce EMI and improve signal integrity.
Q4: What is the connector type used on this cable?
A4: It uses Bently Nevada’s proprietary ClickLoc connectors, which are gold-plated and require no tools for assembly.
Q5: Is the cable compatible with older 3300 series systems?
A5: Yes, it is both electrically and mechanically compatible with legacy 3300 5 mm and 8 mm systems.
Q6: Can I use this cable with armored protection?
A6: The specific part number 330130-080-11-05 indicates FluidLoc cable with connector protector; armored versions have different part numbers.
Q7: What is the recommended minimum bend radius for installation?
A7: The minimum bend radius is 25.4 mm (1.0 inch).
Q8: How is the cable secured in applications prone to vibration or contamination?
A8: Connector protectors are included for environmental sealing, and silicone tape may be used in some cases.
