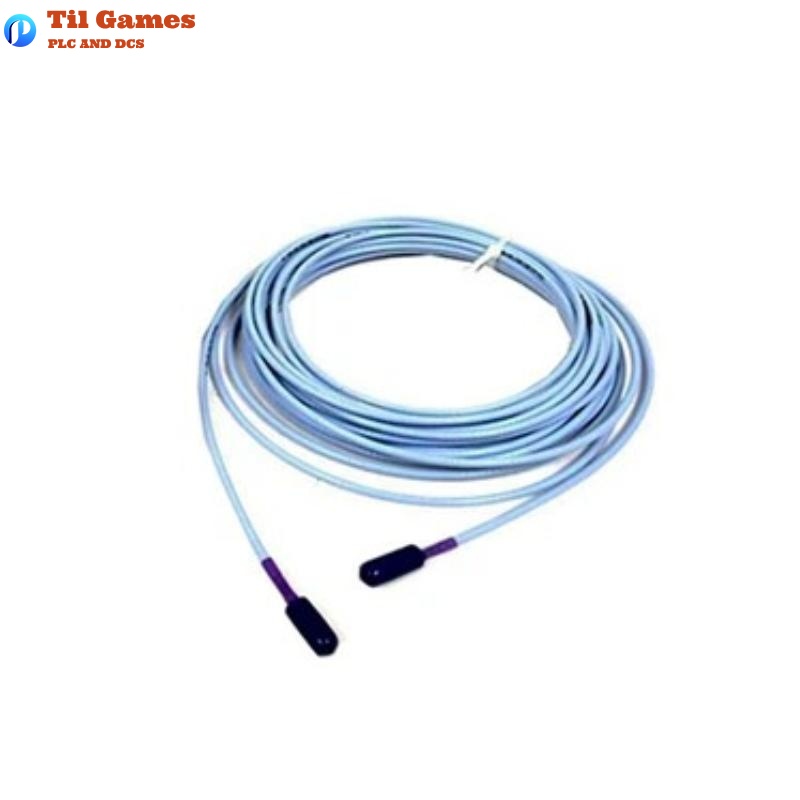

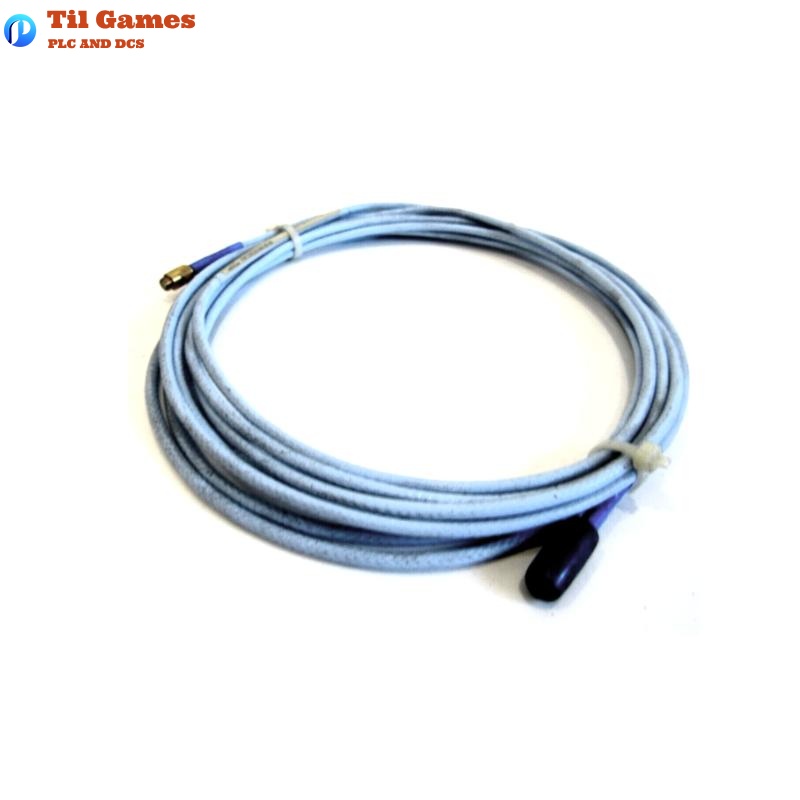

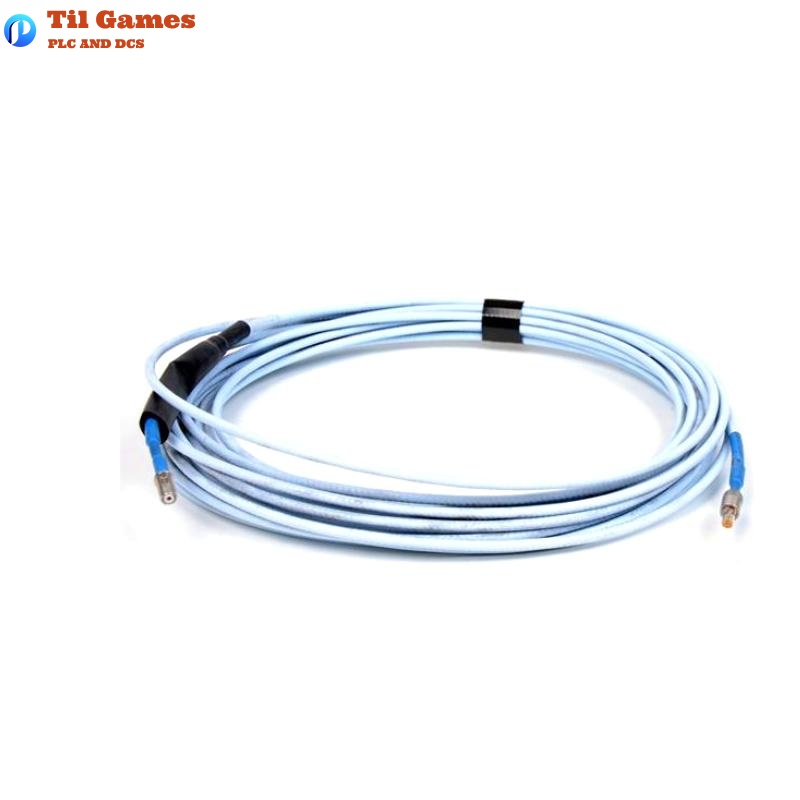

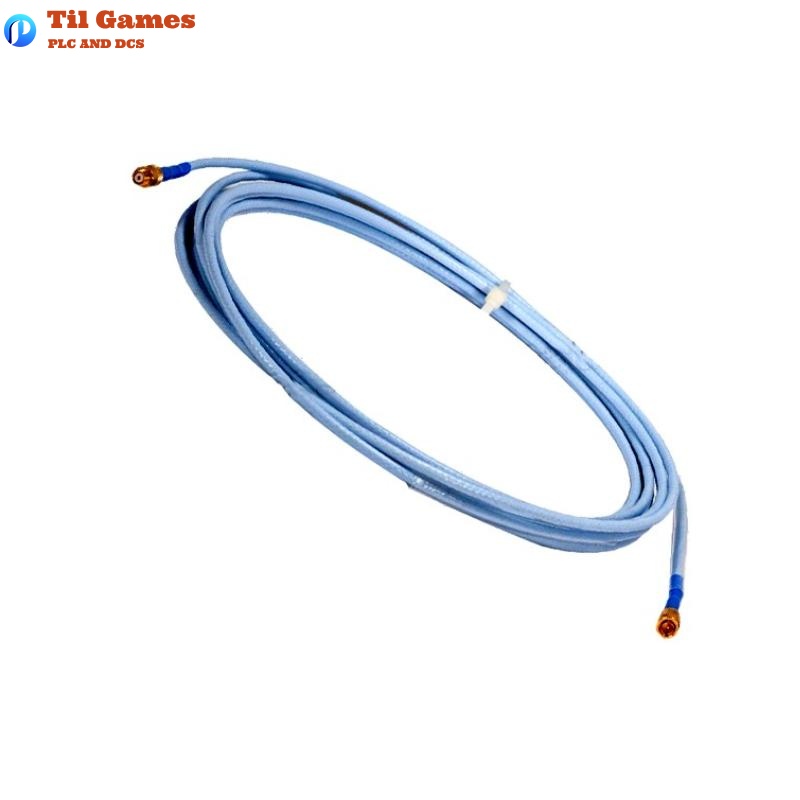

Technical Specifications – Bently Nevada 330130-085-02-05 Extension Cable
| Item | Specification |
|---|---|
| Model | 330130-085-02-05 |
| Product Name | 3300 XL Standard Extension Cable |
| Cable Length | 8.5 meters |
| Cable Type | 75Ω triaxial shielded, FEP insulated |
| Cable Capacitance | 69.9 pF/m |
| Center Conductor Resistance (RCORE) | 1.87 ± 0.28 Ω |
| Jacket Resistance (RJACKET) | 0.56 ± 0.11 Ω |
| Connector Type | Gold-plated miniature ClickLoc coaxial |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Operating Temp (Standard) | -52°C to +177°C |
| High-Temp Model (ETR) | Up to 260°C compatible with ETR probes |
| Compatibility | Works with 3300 XL Proximitor and 8 mm probes |
| Dimensions (Length) | 8.5 meters |
| Weight | 0.289 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this cable compatible with non-XL 3300 series probes?
A1: Yes. The 3300 XL extension cable is electrically and physically compatible with non-XL 5 mm and 8 mm probes.
Q2: What is the operating temperature range of this cable?
A2: The standard model supports up to 177°C; for higher temperatures, the ETR version is rated up to 260°C.
Q3: Are special tools needed for connector installation?
A3: No. ClickLoc connectors require only hand-tightening and do not need special tools.
Q4: What is the maximum wiring length supported?
A4: The maximum cable run from the Proximitor Sensor to the monitor is 305 meters (1,000 feet).
Q5: Does the cable have oil-sealing features?
A5: FluidLoc cable versions are available to prevent fluid leakage through the cable interior.
Q6: Are connector protectors mandatory?
A6: While not mandatory, they are highly recommended for enhanced environmental protection.
Q7: What are typical applications for this cable?
A7: Commonly used in rotating machinery like turbines and compressors for vibration and position monitoring.
Q8: Does this product comply with API 670?
A8: Yes. As part of the 3300 XL system, it meets API 670 requirements for mechanical configuration and performance.
