Technical Specifications
| Item | Specification |
|---|---|
| Model | 330130-085-12-00 |

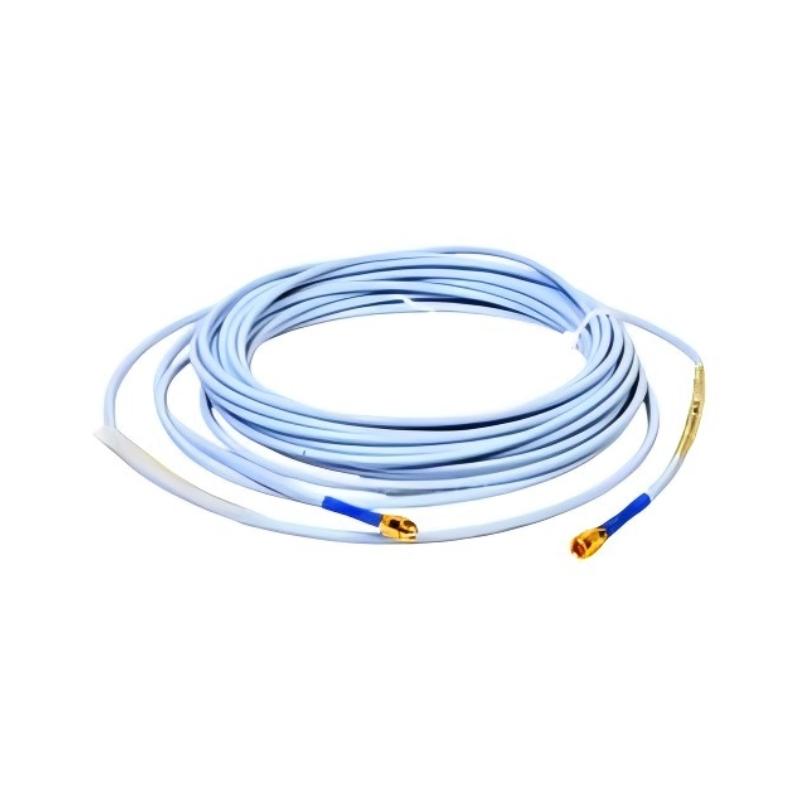

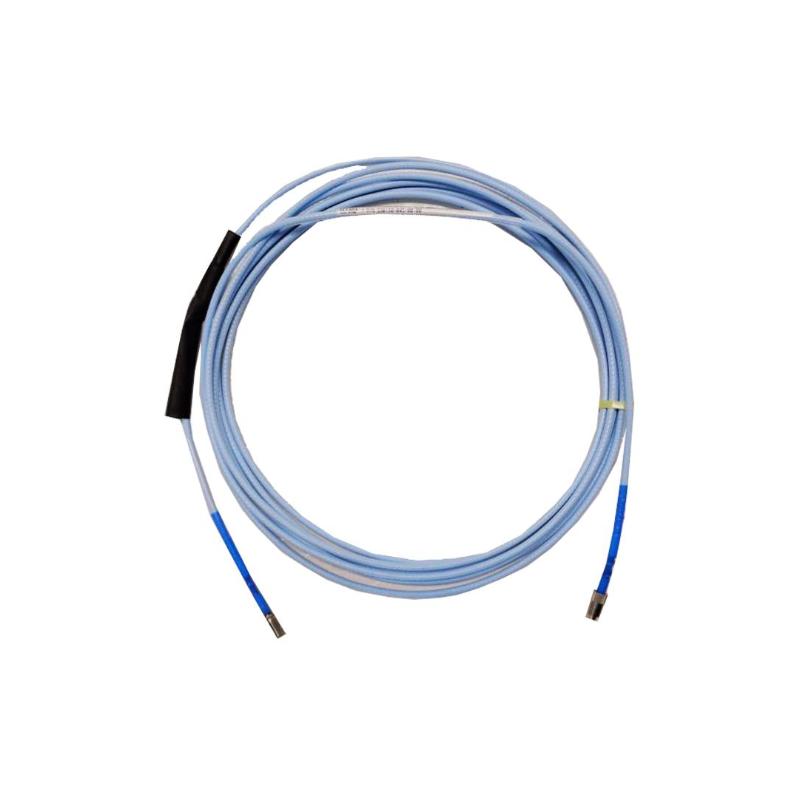

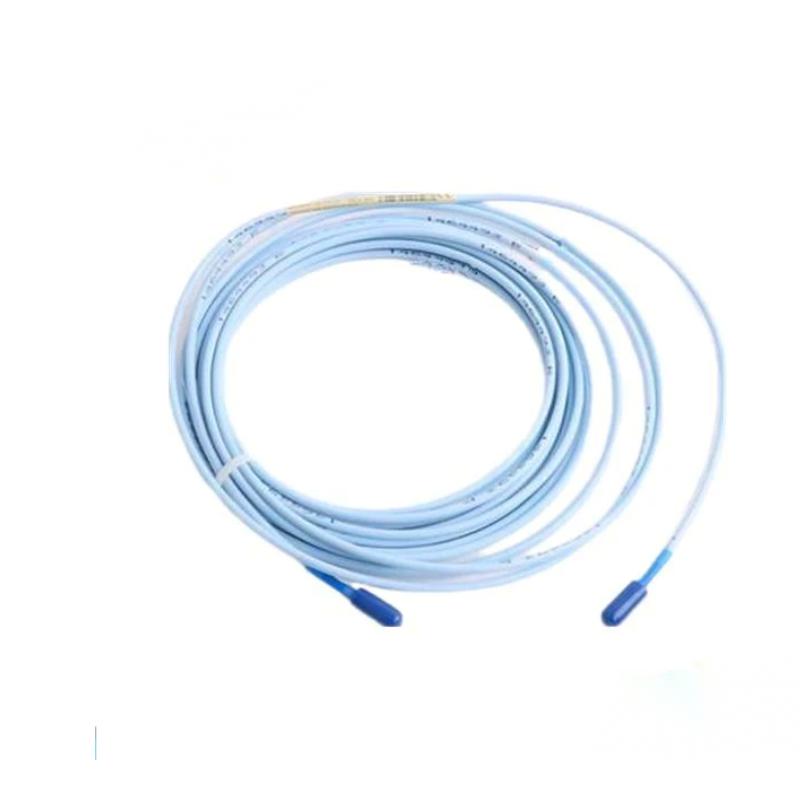

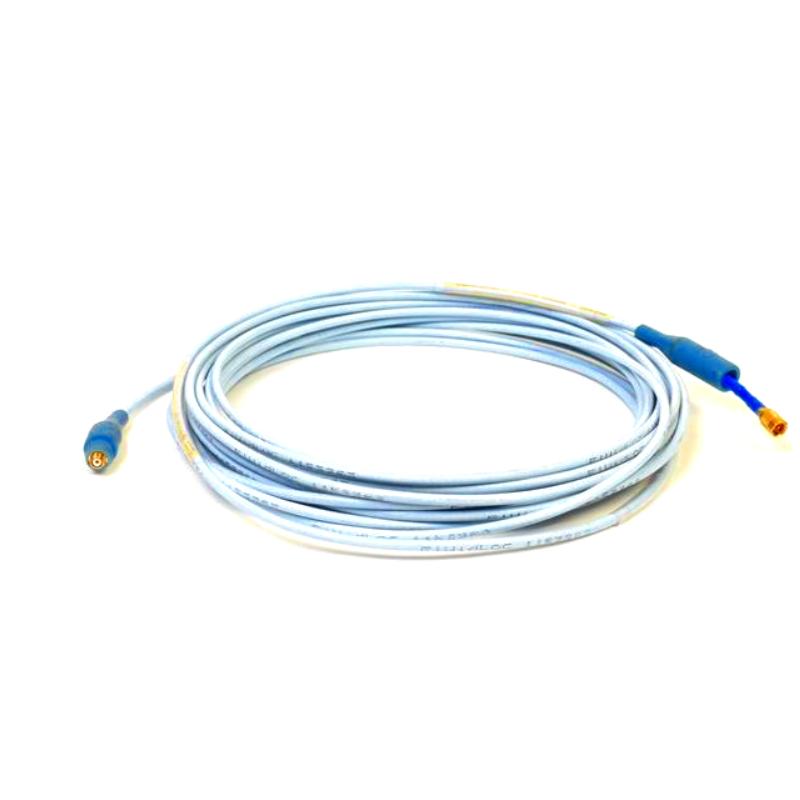

| Product Type | Standard Extension Cable (for 3300 XL 8 mm systems) |
| Cable Length | 8.5 meters |
| Cable Resistance (Core) | 1.87 Ω ± 0.28 Ω |
| Cable Resistance (Jacket) | 0.56 Ω ± 0.11 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | ClickLoc, gold-plated coaxial connectors |
| Cable Weight | 0.289 kg |
| Operating Temperature | -52°C to +177°C (standard cable) |
| Construction Material | FEP insulation with gold-plated brass or BeCu contacts |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is this cable compatible with?
A1: It is used in Bently Nevada 3300 XL 8 mm eddy current transducer systems to connect the probe to the Proximitor sensor.
Q2: What is the length of the 330130-085-12-00 cable?
A2: The cable is 8.5 meters (27.9 feet) long.
Q3: Can this cable be mixed with non-XL system components?
A3: Yes, it is electrically and physically compatible, but performance will be limited to the non-XL component specifications.
Q4: Does the cable come with connector protectors?
A4: Yes, the “12” in the part number indicates FluidLoc cable with connector protectors.
Q5: Is this cable suitable for high-temperature environments?
A5: The standard version supports up to +177°C. For higher temperatures, use the ETR version.
Q6: Can this cable be used in outdoor or humid environments?
A6: Yes. Using connector protectors is recommended for environmental protection.
Q7: Can the cable be ordered separately?
A7: Yes. Ensure the combined probe and extension cable length equals the Proximitor sensor system length.
Q8: Are special tools required for installation?
A8: No, ClickLoc connectors are designed for tool-free finger-tight installation.
