Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330180-50-00 |

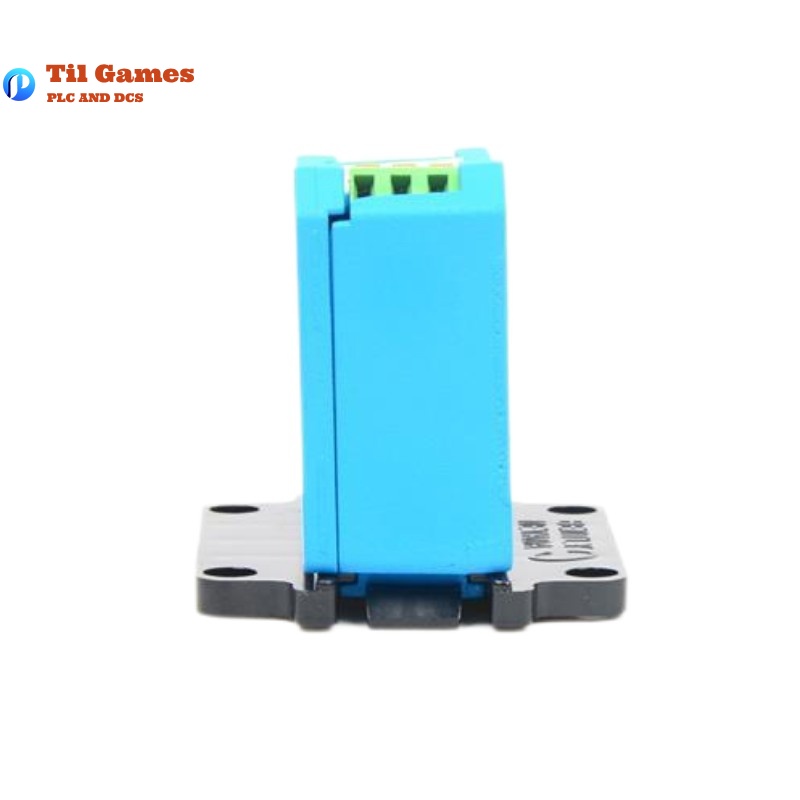

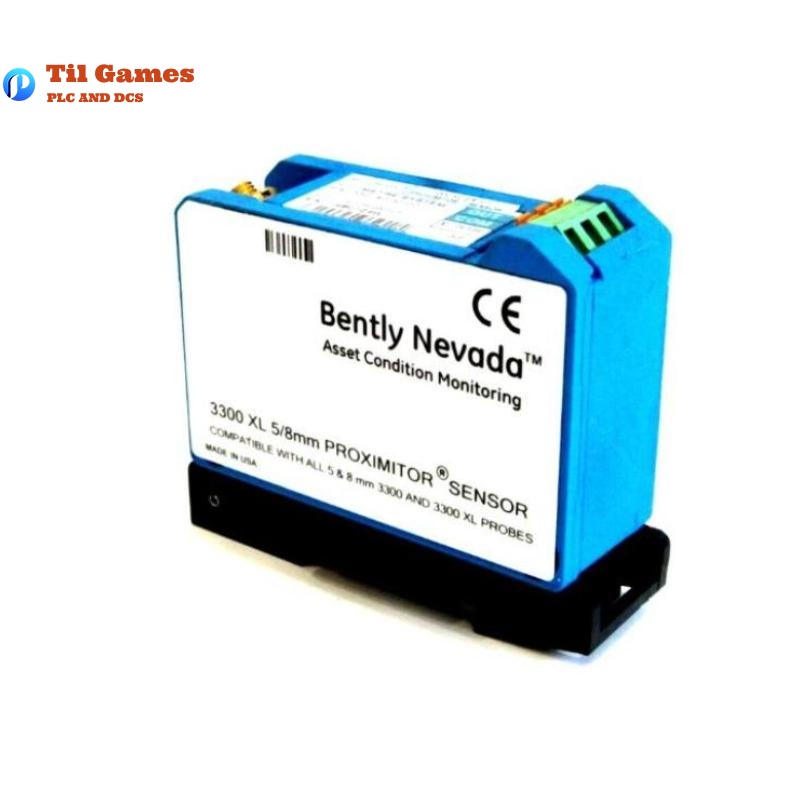

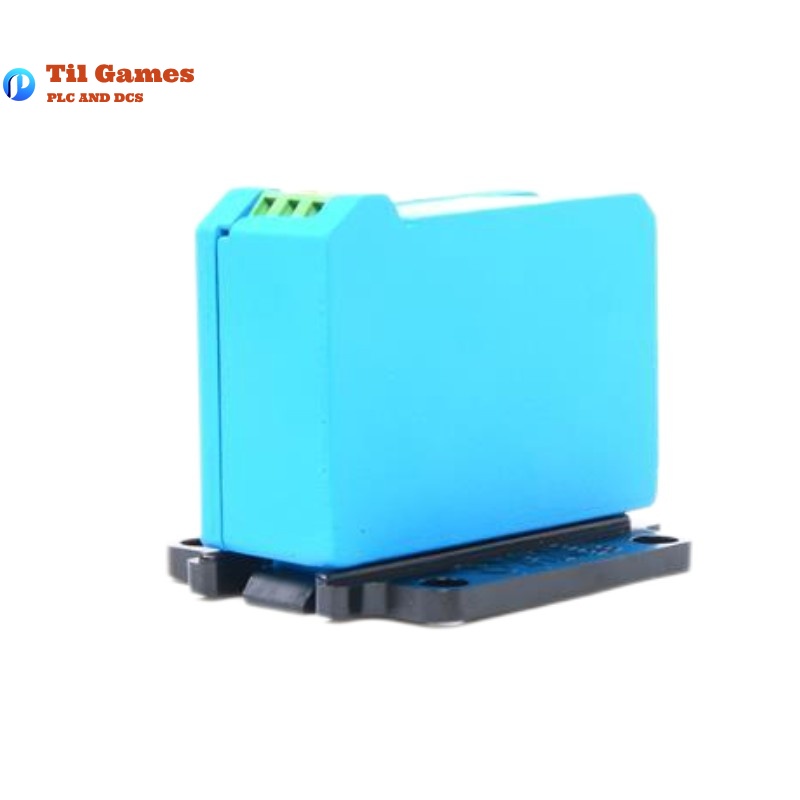

| Product Type | 3300 XL Proximitor Sensor (DIN or panel mount) |
| System Components | Probe, Extension Cable, Proximitor Sensor |
| Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils), linear 2 mm |
| Recommended Gap Voltage | -9 VDC (Approx. 1.27 mm or 50 mils) |
| Output Scale Factor (5m system) | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Probe Operating Temp (Standard) | -52°C to +177°C |
| Probe Operating Temp (ETR) | Up to +218°C (tip), +260°C (cable) |
| Humidity Resistance | <3% change in ASF at 93% RH, 56 days per IEC 68-2-3 |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Type | 75Ω triaxial, FEP or PFA insulation |
| Minimum Cable Bend Radius | 25.4 mm |
| Cable Connector | ClickLoc, gold-plated brass or beryllium copper |
| Power Supply | -17.5 VDC to -26 VDC |
| Output Resistance | 50 Ω |
| Electrical Isolation | Provided via mounting base |
| Compliance | API 670 compliant, CE, FCC, RoHS, SIL2/3, ATEX, IECEx certified |
| Total Length | 5.0 meters |
| Weight (Total System) | Approx. 0.246 kg |
FAQ
FAQ
Q1: What is the primary function of the 330180-50-00 Proximitor Sensor?
A1: It converts signals from a proximity probe to a voltage proportional to shaft displacement or vibration.
Q2: Is this sensor suitable for high-temperature environments?
A2: Yes, with ETR probes and cables, it supports up to +260°C.
Q3: Does the system comply with API 670 standard?
A3: Yes, the complete 3300 XL 8 mm system fully meets API 670 specifications.
Q4: Can the sensor be mounted on a DIN rail?
A4: Yes, it supports DIN rail and panel mount configurations.
Q5: Is the sensor interchangeable with older Bently Nevada models?
A5: Yes, it is electrically and physically interchangeable with non-XL 3300 series components.
Q6: What type of connectors are used?
A6: ClickLoc gold-plated connectors, which are corrosion-resistant and finger-tight.
Q7: What shaft diameter is required for accurate vibration measurement?
A7: Minimum shaft diameter of 50.8 mm is recommended.
Q8: What is the total cable and system length of the 330180-50-00 configuration?
A8: It is 5.0 meters total system length including probe and extension cable.
