Technical Specifications
| Parameter Category | Specification Details |
|---|---|

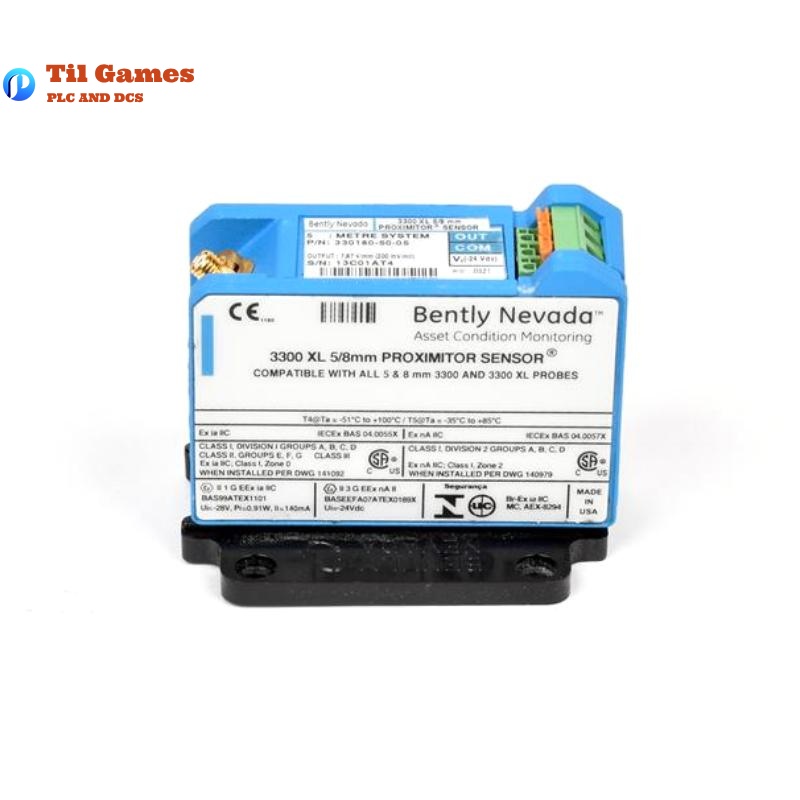

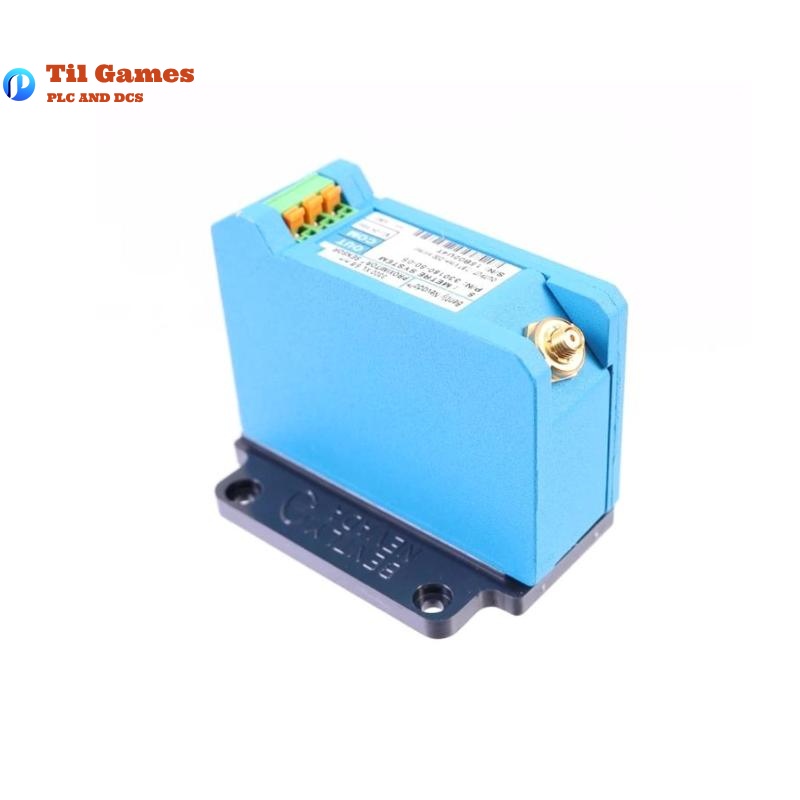

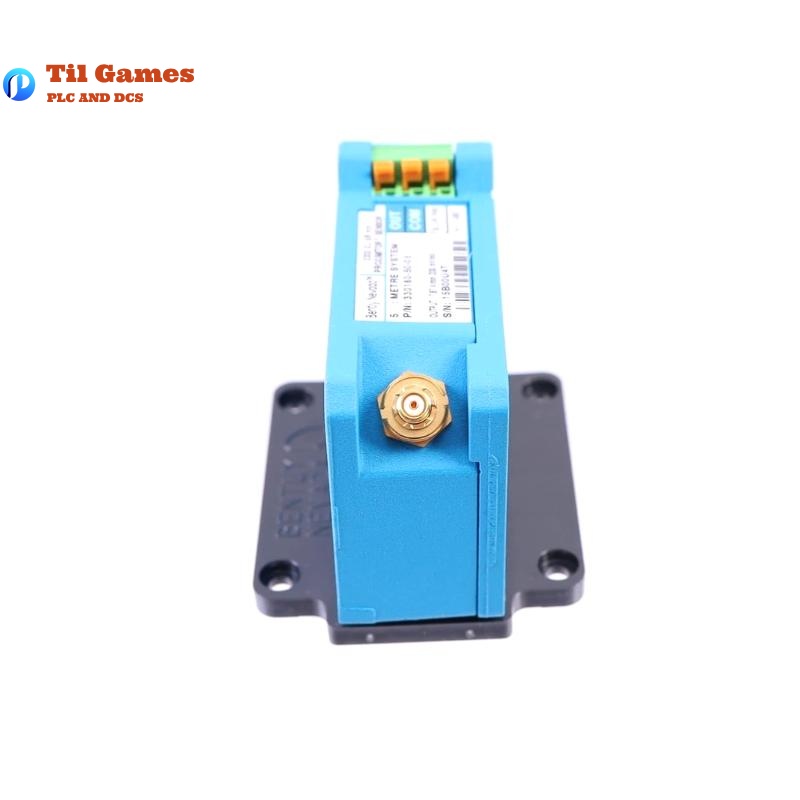

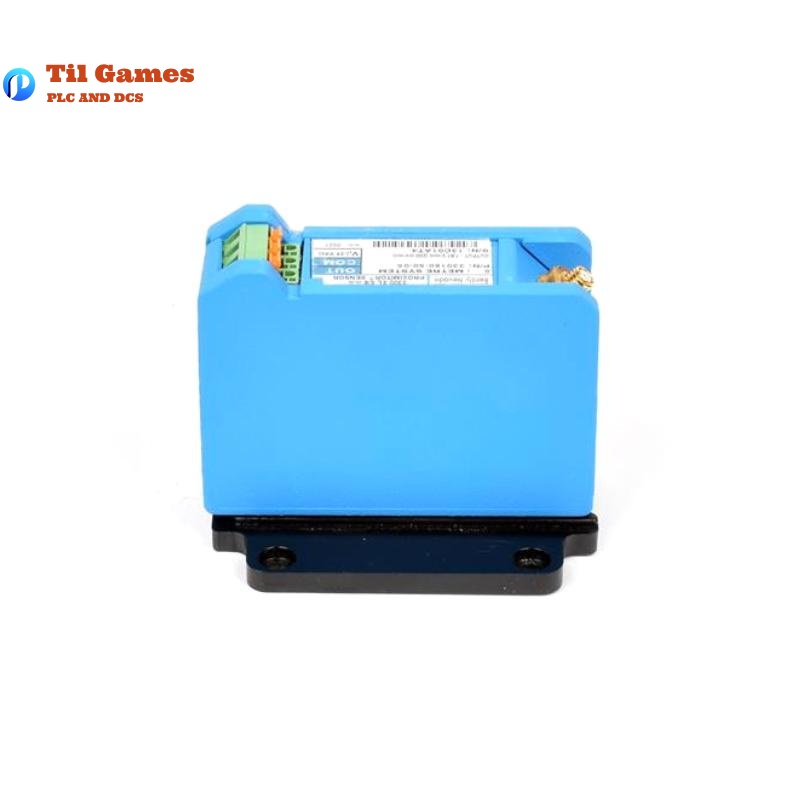

| Model | Bently Nevada 330180-50-05 |
| Type | 3300 XL 8 mm Proximitor Sensor |
| Applications | Vibration, displacement, Keyphasor signal, speed monitoring |
| Power Supply | -17.5 Vdc to -26 Vdc (typ. -24 Vdc), max 12 mA |
| Output Resistance | 50 Ω |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (for 5-meter system) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (flat target) |
| Recommended Shaft Dia | ≥76.2 mm |
| Probe Materials | PPS tip, SUS 303/304 stainless steel body |
| Cable Material | FEP (standard) or PFA (ETR), 75Ω triaxial |
| Min Cable Bend Radius | 25.4 mm |
| Probe Length | Total length 5 meters (this model) |
| Total Weight (System) | 0.7 kg |
| Proximitor Weight | 0.246 kg |
| Certifications | CE, FCC, RoHS, SIL2/3, ATEX, IECEx |
| Operating Temperature | Probe -52°C to +177°C, Sensor -52°C to +100°C |
| Storage Temperature | Probe -52°C to +177°C, Sensor -52°C to +105°C |
| Relative Humidity Effect | < 3% change in ASF at 93% RH over 56 days (IEC 68-2-3) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which probes and cables are compatible with 330180-50-05?
A1: It supports all Bently Nevada 3300 XL 8 mm probes and extension cables, and is backward compatible with 3300 5 mm and 8 mm non-XL components.
Q2: Is this sensor compliant with API 670?
A2: Yes, the 3300 XL 8 mm system fully meets API 670 standards in mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Can this sensor operate in high-temperature environments?
A3: Yes, with the Extended Temperature Range (ETR) version, the probe can operate up to +218°C and the cable up to +260°C.
Q4: Does power supply fluctuation affect performance?
A4: Output voltage changes less than 2 mV per volt of input voltage change, ensuring power stability.
Q5: Is calibration needed before use?
A5: Sensors are factory-calibrated to AISI 4140 steel. Calibration for other target materials is available upon request.
Q6: Can this sensor be used in hazardous areas?
A6: Yes, it is certified for use in ATEX and IECEx hazardous areas with intrinsic safety and non-incendive circuit installation options.
Q7: What mounting and connector features should be noted?
A7: Compatible with standard 4-hole panel or DIN rail mount. Uses tool-free ClickLoc connectors with optional protectors for environmental sealing.
Q8: What are the ideal application scenarios for this sensor?
A8: Best suited for monitoring vibration and shaft position in fluid-film bearing machinery, as well as Keyphasor reference and speed measurements.
